Connecting to an HSR Ring
In this application, the device operates as an HSR RedBox in an HSR ring. Connect the
device as follows:
A
B
5 (Coupler)
1 to 4
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
Port Connect To...
Connect to
port B of the
neighboring
HSR device
Connect to
port A of the
neighboring
HSR device
[Optional]
Connect
to a Singly
Attached
Node (SAN)
Connect
to one or
more Singly
Attached
Nodes (SANs)
2.7 Connecting the Device to the Network
DAN (RUGGEDCOM RSG907R RSG907R)
6
Figure 2.18
1
HSR Ring
1
HSR RedBox (RUGGEDCOM RSG907R)
2
HSR-Unaware Device
3
SAN
4

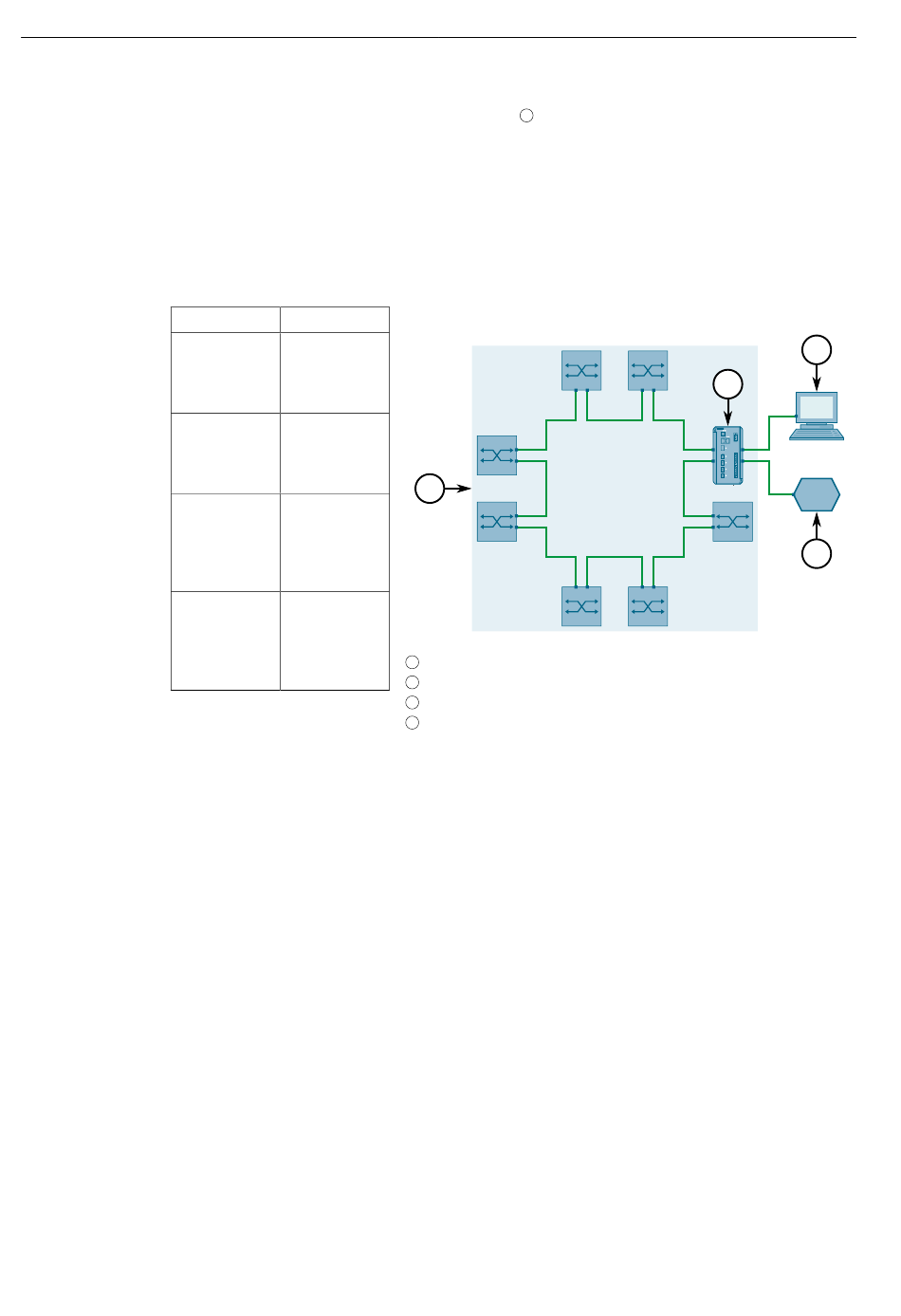

Figure 2.19 An HSR Ring
