LO Power Supply Configurations

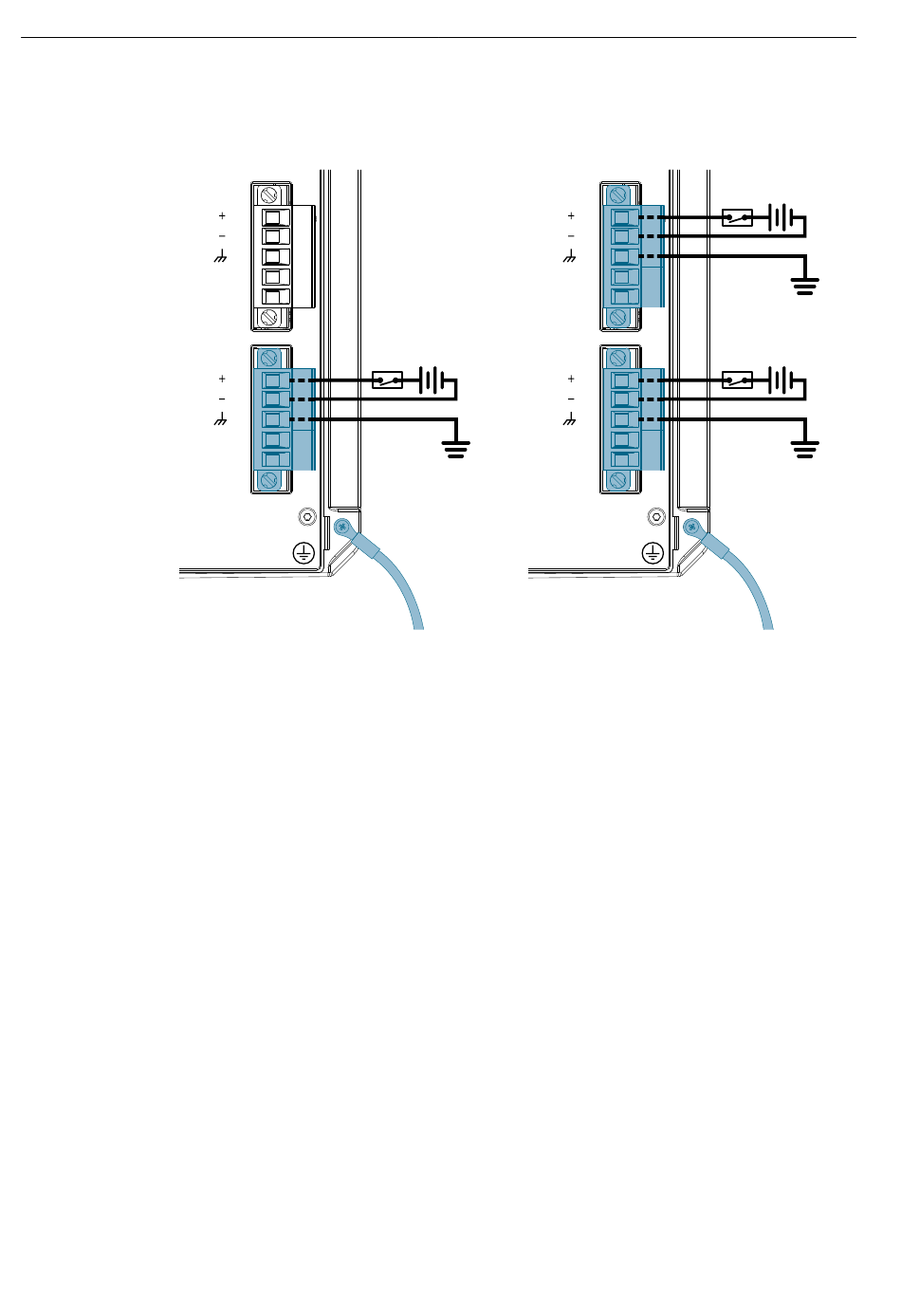

Figure 2.15
2.7

Connecting the Device to the Network

Steps to connect the device to the network are application-specific.
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
-
+
Single LO DC Power Input
Configuration
2.7 Connecting the Device to the Network
Figure 2.16 Dual LO DC Power Input
Configuration
