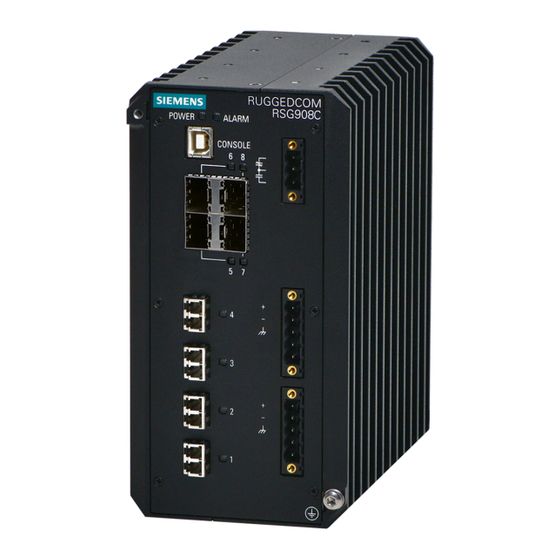

Siemens SIMATIC NET RUGGEDCOM RSG908C Equipment Manual

Rugged ethernet switches
Hide thumbs Also See for SIMATIC NET RUGGEDCOM RSG908C:
Table of Contents

Advertisement

Quick Links

Download this manual
Edition
11/2023
Equipment Manual
SIMATIC NET
Rugged Ethernet switches
RUGGEDCOM RSG908C
https://www.siemens.com/ruggedcom

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC NET RUGGEDCOM RSG908C

Summary of Contents for Siemens SIMATIC NET RUGGEDCOM RSG908C

  • Page 1 Edition 11/2023 Equipment Manual SIMATIC NET Rugged Ethernet switches RUGGEDCOM RSG908C https://www.siemens.com/ruggedcom...
  • Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Rugged Ethernet switches RUGGEDCOM RSG908C Communication Ports Technical Specifications Equipment Manual Certification 11/2023 C79000-G8976-1404-15...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    SIMATIC NET glossary ......................vi Registered trademarks ......................vi Warranty ..........................vii Training ..........................vii Customer support ......................... viii Contacting Siemens ......................viii Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 3 Decommissioning and disposal ................3 Installing the Device ......................
  • Page 5 Table of contents Supported Networking Standards ................ 24 Fiber Optic Ethernet Port Specifications ............... 24 Operating Environment ..................25 Mechanical Specifications ..................25 Dimension Drawings ................... 25 Certification ......................... 27 Approvals ......................27 6.1.1 UKCA ........................27 6.1.2 European Union (EU) ..................27 6.1.3 FCC ........................

  • Page 6: Preface

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer's exposure to cyber threats.

  • Page 7: Supplementary Documentation

    SIMATIC NET glossary The SIMATIC NET glossary describes special terms that may be used in this document. The glossary is available online via Siemens Industry Online Support (SIOS) at: https://support.industry.siemens.com/cs/ww/en/view/50305045 Registered trademarks The following and possibly other names not identified by the registered trademark sign ®...

  • Page 8: Warranty

    Warranty Siemens warrants this product for a period of five (5) years from the date of purchase, conditional upon the return to factory for maintenance during the warranty term. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void.

  • Page 9: Customer Support

    Call a local hotline center to submit a Support Request (SR). To locate a local hotline center, visit https://w3.siemens.com/aspa_app/?lang=en. Mobile app Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to: •...

  • Page 10: Introduction

    • Removable SFP Transceivers Ports 5 to 8 can be customized with a wide array of 1000Base-X Small Form- factor Portable (SFP) transceivers offered by Siemens, making the device flexible to the needs of the redundant network application. • Fixed Ethernet Ports In addition to removable SFP transceivers, the device also features four standard 100Base-FX fixed fiber optic Ethernet ports for Local Area Network (LAN) access.

  • Page 11: Description

    Introduction 1.2 Description Rated for Reliability in Harsh Environments • Immunity to EMI and heavy electrical surges • -40 to 85 °C (-40 to 185 °F) ambient operating temperature (no fans) • Die Cast Aluminum • Panel mounting option provides secure mechanical reliability •...

  • Page 12: Required Tools And Materials

    Introduction 1.3 Required Tools and Materials Chassis Ground Screw Figure 1.1 RUGGEDCOM RSG908C POWER LED Illuminates green during boot up and when power is supplied to the device. ALARM LED Illuminates red when an alarm condition exists. Console Port The USB Type-B console port is for interfacing directly with the device and accessing initial management functions.
  • Page 13 WEEE directive 2012/19/EU for the disposal of electrical and electronic equipment. Do not dispose of devices at public disposal sites. For environmentally friendly recycling and the disposal of devices, contact a certified disposal company for electronic scrap or your Siemens contact. For more information, refer to https://support.industry.siemens.com/cs/ww/en/ view/109479891.

  • Page 14: Installing The Device

    Installing the Device This chapter describes how to install the device, including mounting the device, connecting power, and connecting the device to the network. DANGER Electrocution hazard – risk of serious personal injury and/or damage to equipment Before performing any maintenance tasks, make sure all power to the device has been disconnected and wait approximately two minutes for any remaining energy to dissipate.

  • Page 15: General Procedure

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens Canada Ltd. could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.

  • Page 16: Unpacking The Device

    Visually inspect each item in the package for any physical damage. Verify all items are included. Note If any item is missing or damaged, contact Siemens for assistance. Mounting the Device The RUGGEDCOM RSG908C is designed for maximum mounting and display flexibility.
  • Page 17 Installing the Device 2.3.1 Mounting the Device on a DIN Rail Note The adapter features a sliding release with a slot at the bottom for a flathead screwdriver. DIN Rail DIN Rail Adapter Figure 2.1 Mounting the Device to a DIN Rail Insert a flathead screwdriver into the slot of the sliding release and move it down.

  • Page 18: 2.3.2 Mounting The Device To A Panel

    Installing the Device 2.3.2 Mounting the Device to a Panel DIN Rail DIN Rail Adapter Figure 2.2 Removing the Device from a DIN Rail Swing the bottom of the device away from the DIN rail. Lift the device off the DIN rail. 2.3.2 Mounting the Device to a Panel For panel installations, the RUGGEDCOM RSG908C can be equipped with panel...
  • Page 19 Installing the Device 2.3.2 Mounting the Device to a Panel Screw (M4) Panel Mount Adapter Figure 2.3 Panel Mount Adapter Assembly Prepare mounting holes in the panel where the device is to be installed. Place the device against the panel and align the adapters with the mounting holes.

  • Page 20: Connecting The Failsafe Alarm Relay

    Installing the Device 2.4 Connecting the Failsafe Alarm Relay Secure the adapters to the panel with M5 or #10-24 screws. Connecting the Failsafe Alarm Relay The failsafe relay can be configured to latch based on alarm conditions. The NO (Normally Open) contact is closed when the unit is powered and there are no active alarms.

  • Page 21: Connecting Power

    Installing the Device 2.5 Connecting Power Failsafe Alarm Relay Terminal Block Normally Open Common Normally Closed Figure 2.6 Failsafe Alarm Relay Wiring Connecting Power The RUGGEDCOM RSG908C features two input terminals that allow the device to be powered by: • Up to one independent AC and one independent DC power source •...

  • Page 22: Connecting Ac Or Dc Power

    Installing the Device 2.5.1 Connecting AC or DC Power the maximum amount of current transfer is below the safety threshold, it may be enough to trip some external Ground Fault Circuit Interrupter (GFCI) breakers. Before connecting power, review the installation and make sure this condition can be supported.
  • Page 23 Installing the Device 2.5.1 Connecting AC or DC Power Power Source Terminal Block Type 3 POS 5 POS Figure 2.7 Assembling the Power Terminal Blocks Note Torque all terminal connections to 0.6 N·m (5 lbf-in). Connect the power cable to the device as follows: HI AC/DC Power Supply  ...

  • Page 24: 2.5.2 Wiring Examples

    Installing the Device 2.5.2 Wiring Examples Connect the ground wire to the chassis/ground terminal on the terminal block. Connect the chassis ground screw to ground (Potential Earth). It is recommended to terminate the ground connection with an M4 ring tongue, and then torque to 1.7 N·m (15 lbf-in).
  • Page 25 Installing the Device 2.5.2 Wiring Examples HI Power Supply Configurations   Figure 2.10 Single HI AC Power Input Figure 2.11 Single HI DC Power Input Configuration Configuration RUGGEDCOM RSG908C Equipment Manual, 11/2023, C79000-G8976-1404-15...
  • Page 26 Installing the Device 2.5.2 Wiring Examples   Figure 2.12 Dual HI AC and DC Power Figure 2.13 Dual HI DC Power Supplies Supplies RUGGEDCOM RSG908C Equipment Manual, 11/2023, C79000-G8976-1404-15...
  • Page 27 Installing the Device 2.5.2 Wiring Examples LO Power Supply Configurations   Figure 2.14 Single LO DC Power Input Figure 2.15 Dual LO DC Power Input Configuration Configuration RUGGEDCOM RSG908C Equipment Manual, 11/2023, C79000-G8976-1404-15...

  • Page 28: Device Management

    Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RSG908C console and Web interfaces on the device. For more detailed instructions, refer to the "RUGGEDCOM ROS Configuration Manual" for the RUGGEDCOM RSG908C.

  • Page 29: Configuring The Device

    Device Management 3.2 Configuring the Device device's IP address. The factory default IP address for the RUGGEDCOM RSG908C is https://192.168.0.1. For more information about available ports, refer to "Communication Ports" (Page 21). Configuring the Device Once the device is installed and connected to the network, it must be configured. All configuration management is done via the RUGGEDCOM RSG908C interface.

  • Page 30: Communication Ports

    Communication Ports The RUGGEDCOM RSG908C can be equipped with various types of communication ports to enhance its abilities and performance. Ports 5 to 8 Ports 1 to 4 Figure 4.1 Port Assignment Port Type 5 to 8 SFP Transceiver (1000Base-SX/LX) 1 to 4 Fiber Optic (100Base-FX) Ethernet Ports Fiber Optic Ethernet Ports The RUGGEDCOM RSG908C features four fixed Fiber optic Ethernet ports, each with...

  • Page 31: Sfp Transceivers

    "RUGGEDCOM SFP Transceiver Catalog [https:// support.industry.siemens.com/cs/ca/en/view/109482309]". Note Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability as a result of performance issues related in whole or in part to third-party components. RUGGEDCOM RSG908C...

  • Page 32: Technical Specifications

    Technical Specifications This section provides important technical specifications related to the device. General specifications Insulation Class I Overvoltage category OVC II Power Supply Specifications Note When determining cable lengths, make sure the nominal input voltage for the power supply is provided at the power source. Power Input Voltage Internal...

  • Page 33: Supported Networking Standards

    3 dBm. To convert from peak to average, subtract 3 dBm. • Maximum segment length is greatly dependent on factors such as fiber quality, and the number of patches and splices. Consult a Siemens sales associate when determining maximum segment distances. Data...

  • Page 34: Operating Environment

    Technical Specifications 5.6 Operating Environment Operating Environment The RUGGEDCOM RSG908C is rated to operate under the following environmental conditions. Ambient Operating -40 to 85 °C (-40 to 185 °F) Temperature Ambient Storage Temperature -40 to 85 °C (-40 to 185 °F) Ambient Relative Humidity 5% to 95% Maximum Altitude...
  • Page 35 Technical Specifications 5.8 Dimension Drawings 38.1 163.12 Figure 5.2 Panel Mount Dimensions 162.72 Figure 5.3 DIN Rail Mount Dimensions RUGGEDCOM RSG908C Equipment Manual, 11/2023, C79000-G8976-1404-15...

  • Page 36: Certification

    Assessed (UKCA) marking. The marking is printed on the body of the device. 6.1.2 European Union (EU) This device is declared by Siemens Canada Ltd. to comply with essential requirements and other relevant provisions of the following EU directives: •...

  • Page 37: 6.1.3 Fcc

    Title 21 Code of Federal Regulations (CFR) – Chapter I – Sub-chapter J – Radiological Health 6.1.5 ISED This device is declared by Siemens Canada Ltd. to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A)

  • Page 38: Tüv Süd

    Republic of Korea (South Korea) as a Class A product in a commercial, industrial or business environment. R-REM-S14-RSG908C A copy of the KC Declaration of Conformity is available from Siemens Canada Ltd.. For contact information, refer to "Contacting Siemens" (Page viii). Notices specific to the RRA:...

  • Page 39: 6.1.9 Rohs

    Quality management systems – Requirements 6.1.9 RoHS This device is declared by Siemens Canada Ltd. to meet the requirements of the following RoHS (Restriction of Hazardous Substances) directives for the restricted use of certain hazardous substances in electrical and electronic equipment: •...
  • Page 40 Certification 6.2 EMC and Environmental Type Tests EMC Type Tests Test Description Test Levels Severity Levels Enclosure ± 8 kV 61000-4-2 Contact Enclosure Air ± 15 kV Radiated RFI Enclosure 20 V/m 61000-4-3 Ports Burst (Fast Transient) Signal Ports ± 4 kV @ 2.5 kHz, 5 kHz 61000-4-4 DC Power ±...
  • Page 41 Certification 6.2 EMC and Environmental Type Tests Test Description Test Levels Severity Levels 100% for 0.05 s Dielectric Strength Signal Ports 2 kV (Failsafe Relay Output)   60255-27 DC Power 2 kV or 2.8kV DC   Ports AC Power 2 kV  ...
  • Page 42 Certification 6.2 EMC and Environmental Type Tests Environmental Type Tests Test Description Test Levels Severity Levels IEC 60068-2-1 Cold Temperature Test Ad -40 °C (-40   °F), 16 Hours Cold Storage Test Ab -40 °C (-40   °F), 16 Hours IEC 60068-2-2 Dry Heat Test Bd 85 °C (185...
  • Page 43 Certification 6.2 EMC and Environmental Type Tests RUGGEDCOM RSG908C Equipment Manual, 11/2023, C79000-G8976-1404-15...
  • Page 44 For more information Siemens RUGGEDCOM https://www.siemens.com/ruggedcom Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens Canada Ltd. Digital Industries Process Automation 300 Applewood Crescent Concord, Ontario, L4K 4E5 Canada © 2023 Siemens Canada Ltd. Subject to change...
