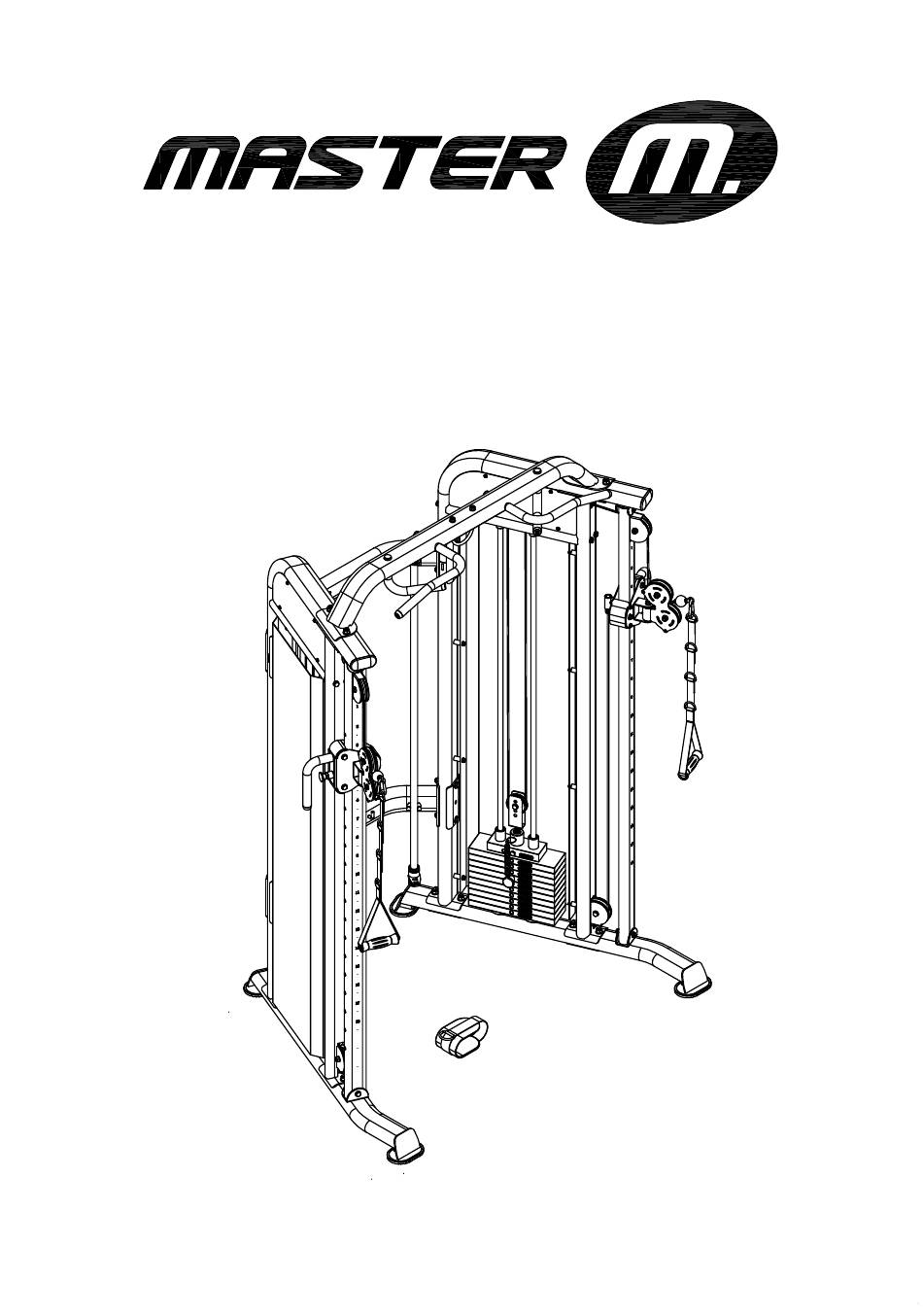

- Page 1 FUNCTIONAL TRAINER X17 Master marknadsförs av Vartex AB, Batterivägen 14, 43234 Varberg, Sweden www.masterfitness.se...
- Page 2 HARDWARE PACK…..…..........………………………. ASSEMBLY INSTRUCTIONS...........……………………. EXPLODED DIAGRAM…………………………………………………………….. PARTS LIST………..……………………………………………………………….. Thank you for selecting the FUNCTIONAL TRAINER X17. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer...
- Page 3 Dear Customer, Congratulations on your purchase of a home fitness tool. This product has been designed and manufactured to meet the needs and requirements of in-home use. Please carefully read the instructions prior to assembly and first use. Be sure to keep the instructions for reference and/ or maintenance. If you have any further questions, please contact us.
- Page 4 Training Instruction hich program is best for you? Which type of workout you pursue and which program you follow depends on your motivation level, available time, fitness level and goals. The following will help you decide: STRENGTH TRAINING PROGRAMS Best Suited For Individuals Who: ƒ...
- Page 5 Care and Maintenance The home exerciser should not be used or stored in a moist area because of possible corrosion. Check at least every 4 weeks that all connecting elements are tightly fitted and in good condition. In case of repair please ask your dealer for advice. Replace defective components immediately and/or keep the equipment out of use until repair.
- Page 27 FUNCTIONAL TRAINER X17 PARTS LIST DESCRIPTION SPEC KEY NO. Q'ty left Weight Stack Frame right Weight Stack Frame Front Support Rear Support Frame Pin Bushing 21×M18×1.5×18 Up Frame Rear Frame Chin-up Bar Left Sliding Block Rear Sliding Block Swivel Pulley Bracket...
- Page 28 Pulley φ95 Pulley φ75 Weight Selection Pin Bushing φ38×φ9×8 Hook φ8 bearing 6202ZZ End Cap PT50×100 End Cap φ25 Cover Cap φ30×φ26×12 Spring φ12.4×φ1.2×38.2 Adjustable Single Handle Ankle Strap Weight Stack Frame Cap PT145×95×9 Sunk Screw M6×20 pan head screw M6×12 HEX Bolt M8×16...
