Modules
4.3 Installing/Removing Power Modules
Figure 4.4
CAUTION
Contamination hazard – risk of equipment damage
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty.
Note
Power modules are hot swappable. When installing/removing a power module, it is
not necessary to turn off power to the redundant power module.
Removing a Power Module
To remove a power module, do the following:
DANGER
Electrocution hazard – risk of serious personal injury or death
Make sure power to the module is turned off before servicing the power supply ter-
minal.
1. Turn off power to the module.
2. Loosen the screws that secure the module to the chassis until the module can be
removed.

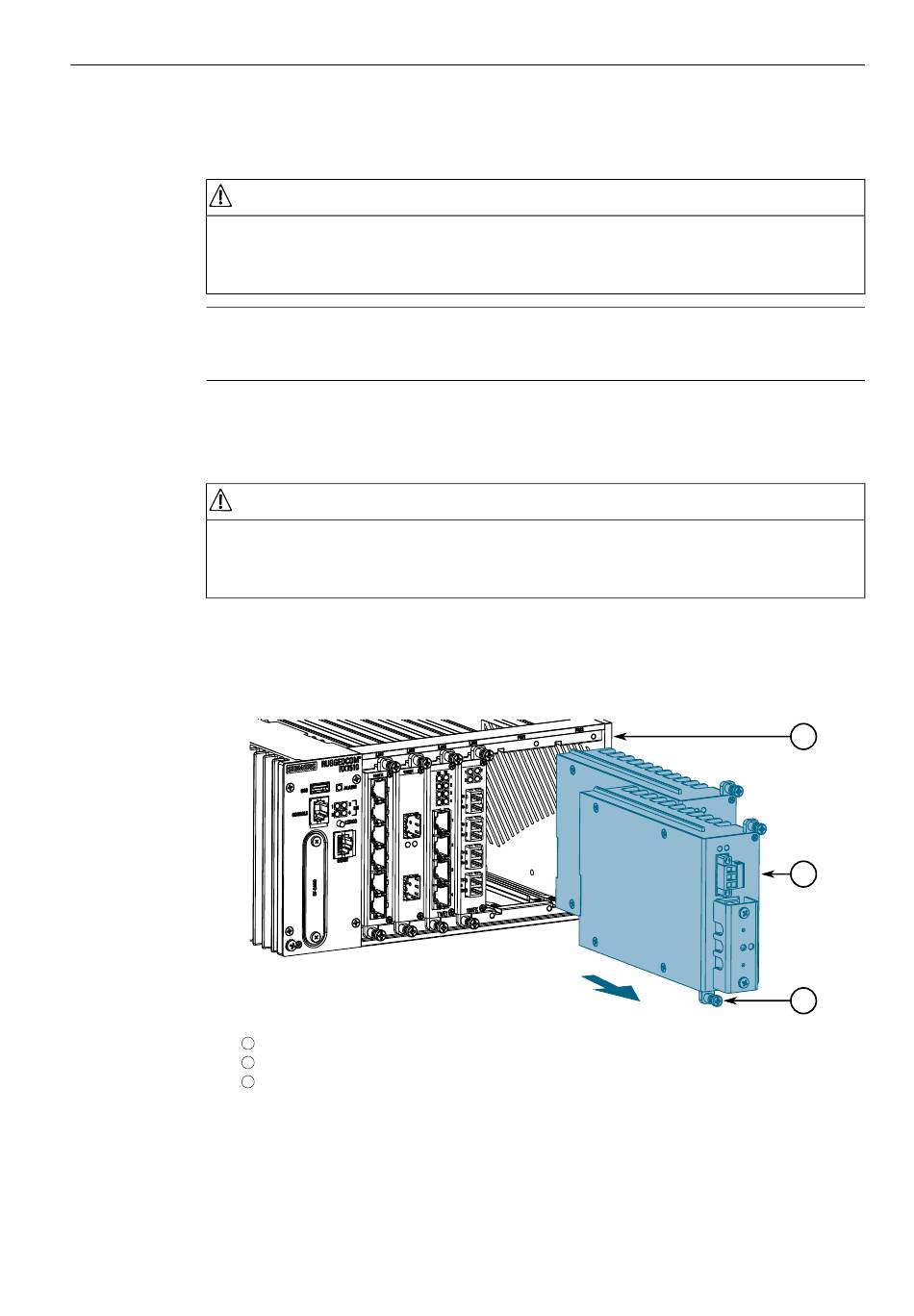

Figure 4.5
3. Slide the module out of the chassis.
40
All manuals and user guides at all-guides.com
Power Modules
Chassis
1
Screws
2
Power Supply
3
Removing a Power Supply
1
2
3
RUGGEDCOM RX1510
Installation Manual, 12/2019, C79000-G8976-1055-16
