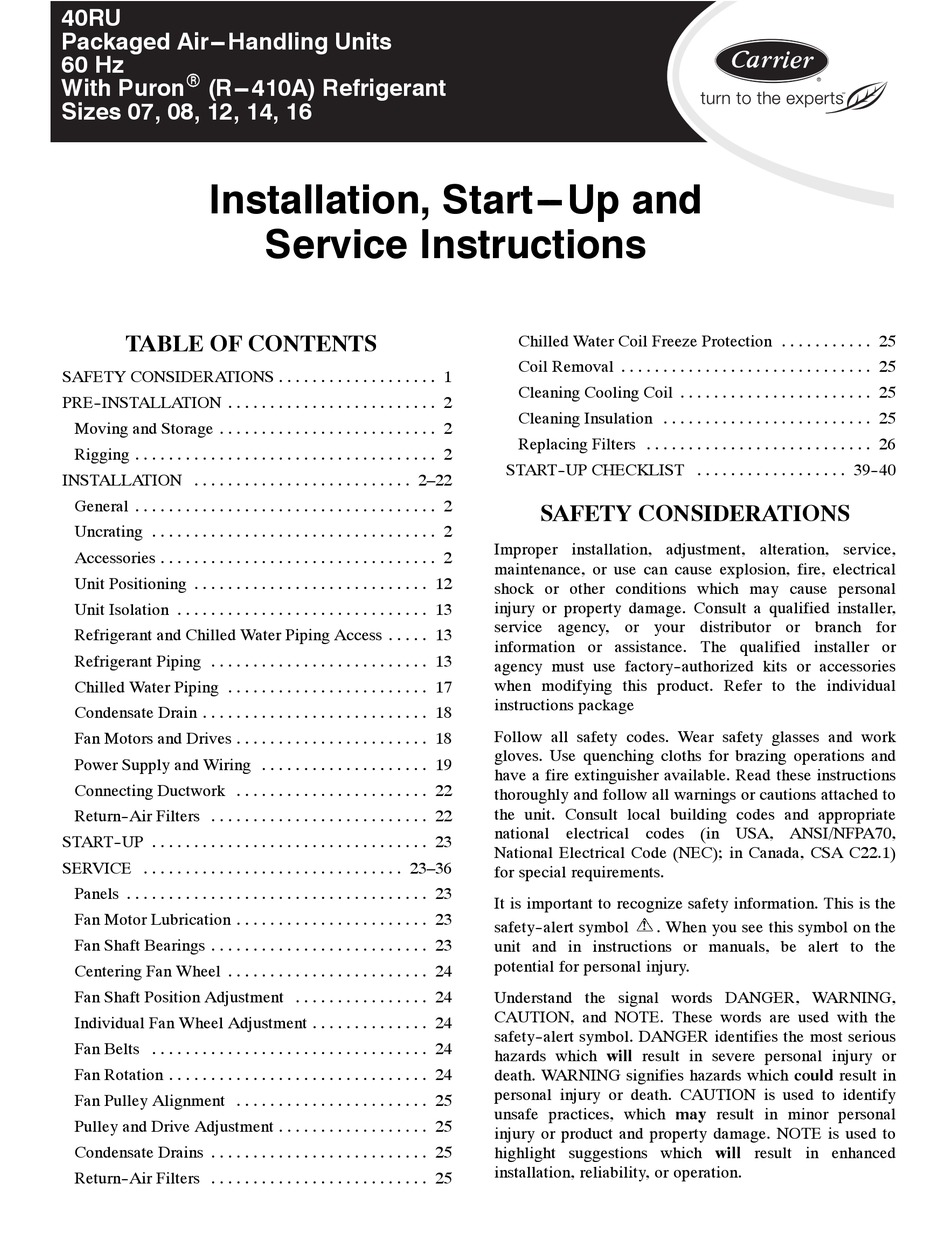

Page 1 40RU Packaged Air---Handling Units 60 Hz With Puron (R---410A) Refrigerant Sizes 07, 08, 12, 14, 16 Installation, Start---Up and Service Instructions TABLE OF CONTENTS SAFETY CONSIDERATIONS ....
Page 2: Pre- - Installation
Do not remove plastic wrap or skid from unit until final installation. Rigging - - All 40RU Series units can be rigged by using the shipping skid. Units are shipped fully assembled. Do not remove shipping skids or protective covering until unit is ready for final placement;...
Page 3 Table 1A — 40RUA Physical Data, English — Cooling Units UNIT 40RUA* NOMINAL CAPACITY (Tons) OPERATING WEIGHT (lb) Base Unit with TXV Plenum FANS Qty...Diam. (in.) Nominal Airflow (cfm) Airflow Range (cfm) Nominal Motor Hp (Standard Motor) 208/230---1---60 208/230---3---60 and 460---3---60 575---3---60 Motor Speed (rpm) 208/230---1---60...
Page 4 Table 1B — 40RUA Physical Data, SI — Cooling Units UNIT 40RUA* NOMINAL CAPACITY (kW) OPERATING WEIGHT (kg) Base Unit with TXV Plenum FANS Qty...Diam. (mm) Nominal Airflow (L/s) Airflow Range (L/s) Nominal Motor kW (Standard Motor) 208/230---1---60 208/230---3---60 and 460---3---60 575---3---60 Motor Speed (r/s) 208/230---1---60...
Page 5 Table 1C — 40RUQ Physical Data, English — Heat Pump Units UNIT 40RUQ* NOMINAL CAPACITY (Tons) OPERATING WEIGHT (lb) Base Unit with TXV Plenum FANS Qty...Diam. (in.) Nominal Airflow (cfm) Airflow Range (cfm) Nominal Motor Hp (Standard Motor) 208/230---1---60 208/230---3---60 and 460---3---60 575---3---60 Motor Speed (rpm) 208/230---1---60...
Page 6 Table 1D — 40RUQ Physical Data, SI — Heat Pump Units UNIT 40RUQ* NOMINAL CAPACITY (kW) OPERATING WEIGHT (kg) Base Unit with TXV Plenum FANS Qty...Diam. (mm) Nominal Airflow (L/s) Airflow Range (L/s) Nominal Motor kW (Standard Motor) 208/230---1---60 208/230---3---60 and 460---3---60 575---3---60 Motor Speed (r/s) 208/230---1---60...
Page 7 Table 1E — 40RUS Physical Data, English — Chilled Water Units UNIT 40RUS* NOMINAL CAPACITY (Tons) OPERATING WEIGHT (lb) Base Unit Plenum FANS Qty...Diam. (in.) Nominal Airflow (cfm) Airflow Range (cfm) Nominal Motor Hp (Standard Motor) 208/230---1---60 208/230---3---60 and 460---3---60 575---3---60 Motor Speed (rpm) 208/230---1---60...
Page 8 Table 1F — 40RUS Physical Data, SI — Chilled Water Units UNIT 40RUS* NOMINAL CAPACITY (kW) OPERATING WEIGHT (kg) Base Unit Plenum FANS Qty...Diam. (mm) Nominal Airflow (L/s) Airflow Range (L/s) Nominal Motor kW (Standard Motor) 208/230---1---60 208/230---3---60 and 460---3---60 575---3---60 Motor Speed (r/s) 208/230---1---60...
Page 9 • Right Side: 2 ft, 6 in. [762 mm] • Left Side: 2 ft, 6 in. [762 mm] • Local codes or jurisdiction may prevail. 4. Liquid piping not supplied by Carrier. 5. Duct flange is factory supplied and field installed.
Page 10 • Right Side: 2 ft, 6 in. [762 mm] • Left Side: 2 ft, 6 in. [762 mm] • Local codes or jurisdiction may prevail. 4. Liquid piping not supplied by Carrier. 5. Duct flange is factory supplied and field installed.
Page 11 4 0 R U A A 1 4 A 1 A 6 _____________ Model Type 40RU = Carrier Fan Coil Puronr R--- 410A Refrigerant Type of Coil A = Standard DX Coil Q = DX Coil for Heat Pump Duty...
Page 12: Unit Positioning
Unit Positioning - - The unit can be mounted on the floor for vertical application with return air entering the face of the unit and supply air discharging vertically through the top of the unit. The unit can also be applied in a horizontal arrangement with return air entering horizontally and the supply air discharging horizontally.
Page 13: Unit Isolation
Do NOT mount the sensor on a trapped portion of the suction line. The 40RU Series evaporator coils have a face- - split design. Ensure that lower circuit of coil is first on/last off when connected to the condensing unit and/or system controls. See Fig.
Page 14 Fig. 9 - - Face- - Split Coil Suction and Liquid Line Piping (Typical) FIRST ON/LAST OFF = B VERTICAL INSTALLATION FIRST ON/LAST OF F = A HORIZONTAL INSTALLATIO N Fig. 10 - - Typical Evaporator Coil Connections (40RU) UPPER SENSING SPLIT BULB...
Page 15 Table 2 – Factory- - Installed Nozzle and Distributor Data COIL TYPE UNIT 40RUA*07 4 Row 40RUQ*07 3 Row 40RUA*08 4 Row 40RUQ*08 4 Row 40RUA*12 4 Row 40RUQ*12 4 Row 40RUQ*16 4 Row 40RUA*14 4 Row 40RUA*16 4 Row Feeder tube size is in.
Page 16 ACCESS UNIT HOLE NO. 40RUQ*12 40RUA*14 40RUA*16 40RUQ*16 See Fig. 8 for access hole location by number. † Fittings are listed in order from header or tee stub connection out to access hole in corner support post. Table 3 - - Fitting Requirement (cont) CONNECTION CIRCUIT TYPE...
Page 17: Chilled Water Piping
Supply Upper To size, design, and install chilled water piping, consult the Carrier System Design manual. See Fig. 12 for an example of a typical installation. Recommended fittings are listed in Table 3. To access 40RUS coil vents and drains, remove the unit side panel over the coil header.
Page 18: Condensate Drain
Condensate Drain — Install a trapped condensate drain line to unit connection as shown in Fig. 13. The unit drain connection is a PVC stub. See Fig. 14. Some areas may require an adapter to connect to either galvanized steel or copper pipe.
Page 19: Power Supply And Wiring
CLIP Fig. 16 - - Wiring and Service Access The 40RU size 07- - 16 units that have motors wired for 460- - v, 3- - ph, 60 Hz operation can be field- - converted to 208/230- - v, 3- - ph, 60 Hz operation. Rewire the motor according to the diagram plate on the motor.
Page 20 575--- 3--- 60 208/230--- 3--- 60 40RUA 460--- 3--- 60 40RUQ 40RUS 575--- 3--- 60 See Legend and Notes on page 21. UNIT 40RU* 07, 08, 12, 14, 16 FAN MOTOR VOLTAGE LIMITS Hp (kW) 187--- 253 1.3 (0.97) 187--- 253 2.4 (1.79)
Page 21 4. Installation with Accessory Electric Heaters Size the Field Power Wiring between the heater TB1 and the 40RU indoor fan motor per NEC Article 430--- 28 (1) or (2) (depends on length of conduit between heater enclosure and 40RU power entry location). Install wires in field --- installed conduit.
Page 22: Connecting Ductwork
Connecting Ductwork - - Refer to the Carrier System Design Manual for the recommended design and layout of ductwork. Fig. 19 shows recommended duct connection to units with 2 fans. CAUTION UNIT OPERATION HAZARD Failure to follow this caution could cause equipment damage.
Page 23: Start- - Up
START- -UP Before starting unit, check the following and correct as necessary: S Is unit solidly supported? S Is fan adjusted for speed and pulley alignment? S Are pulleys, motor, and bearings securely mounted? S Are there any loose parts that will rattle or vibrate? S Is condensate drain pan pitched for correct drainage? S Are coil baffle plates tight against coil to prevent air bypass?
Page 24: Fan Shaft Bearings
Fan Shaft Bearings - - Bearings on size 07- - 12 units are sealed, permanently lubricated bearings that require no further lubrication. Size 14- - 16 units have pillow- - block bearings (Fig. 23) that must be lubricated with suitable bearing grease approximately every 3 months.
Page 25: Individual Fan Wheel Adjustment
Individual Fan Wheel Adjustment - - Loosen the 2 locking bolts holding fan wheel hub to shaft. See Fig. 23. Position fan wheel in center of the fan housing and tighten locking bolts. Clearance between wheel and housing should be the same on both sides. Fan Belts - - Motor mounting plate and motor support angles are slotted to permit both vertical and horizontal adjustment.
Page 26: Chilled Water Coil Freeze Protection
Chilled Water Coil Freeze Protection - - Shut off water supply to unit. Remove side panel of unit and remove vent and drain plugs in top and bottom of coil header. Drain coil and blow out remaining water. Reinstall plugs and side panel.
Page 27 Table 8A - - Fan Motor Data, Standard Motor — English 40RUA*07 UNIT 40RUQ*07 208/230---1---60 Speed (rpm) 1725 Frame (NEMA) Shaft Dia (in.) 208/230---3---60 and 460---3---60 Speed (rpm) 1725 Frame (NEMA) Shaft Dia (in.) 575---3---60 Speed (rpm) 1725 Frame (NEMA) Shaft Dia (in.) LEGEND NEMA —...
Page 28 Table 8C - - Fan Motor Data, Standard Motor — SI 40RUA*07 UNIT 40RUQ*07 208/230---1---60 Speed (r/s) 28.75 Shaft kW 0.97 Frame (NEMA) Shaft Dia (mm) 15.9 208/230---3---60 and 460---3---60 Speed (r/s) 28.75 Shaft kW 1.79 Frame (NEMA) Shaft Dia (mm) 15.9 575---3---60 Speed (r/s)
Page 29 Table 9A- - Standard Drive Data, 60 Hz — English UNIT MOTOR DRIVE Motor Pulley Pitch Diameter (in.) Pulley Factory Setting Full Turns Open FAN DRIVE Pulley Pitch Dia (in.) Pulley Bore (in.) Belt No. — Section Belt Pitch (in.) FAN SPEEDS (rpm) Factory Setting Range...
Page 30 Table 9C - - High- -Static Drive Data, 60 Hz — English UNIT MOTOR DRIVE Motor Pulley Pitch Diameter (in.) Pulley Factory Setting Full Turns Open FAN DRIVE Pulley Pitch Dia (in.) Pulley Bore (in.) Belt No. — Section Belt Pitch (in.) FAN SPEEDS (rpm) Factory Setting Range...
Page 31 Table 9E - - Medium- -Static Drive Data, 60 Hz — SI UNIT MOTOR DRIVE Motor Pulley Pitch Diameter (mm) Pulley Factory Setting Full Turns Open FAN DRIVE Pulley Pitch Dia (mm) Pulley Bore (mm) Belt No. — Section Belt Pitch (mm) FAN SPEEDS (r/s) Factory Setting Range...
Page 32 Table 10A - - 40RU Standard Fan Performance Data — 0.0- -2.4 in. wg External Static Pressure — English AIRFLOW UNIT (Cfm) 1,800 0.19 2,100 0.28 40RUA*07 2,400 0.40 40RUQ*07 2,700 0.55 3,000 0.73 2,250 0.08 2,600 0.15 40RUA*08 3,000 0.65...
Page 33 10.07 1.37 10.62 3540 10.99 1.81 11.50 See Legend and Notes on page 36. Table 10B - - 40RU Standard Fan Performance Data — 0- -600 kPa External Static Pressure — SI (cont) AIRFLOW UNIT (L/s) 15.16 0.78 15.44 0.90...
Page 34 40RUQ*16 40RUS*16 6,800 1.91 7,500 2.52 See Legend and Notes on page 36. Table 10C - - 40RU High- -Capacity Fan Performance Data — 0.0- -2.4 in. wg External Static Pressure — English (cont) AIRFLOW UNIT (Cfm) 1,800 1.07 2,100 1.26...
Page 35 1.42 10.85 3540 11.29 1.88 11.77 See Legend and Notes on page 36. Table 10D - - 40RU High- -Capacity Fan Performance Data — 0- -600 kPa External Static Pressure — SI (cont) AIRFLOW UNIT (L/s) 15.34 0.80 15.69 0.94...
Page 36 LEGEND — Brake Horsepower Input to Fan — External Static Pressure NOTES: 1. Maximum allowable fan speed is 1200 rpm for all sizes. 2. Fan performance is based on deductions for wet coil, clean 2--- in. filters, and unit casing. See table at right for factory--- sup- plied filter pressure drop.
Page 38 Copyright 2010 Carrier Corp. D 7310 W. Morris St. D Indianapolis, IN 46231 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations. Printed in U.S.A. Edition Date: 08/10 Catalog No: 40RU ---06SI...
Page 39: Outdoor Unit
40RUS HAS AIR BEEN BLED FROM SYSTEM? (Y/N) HAVE LEAK CHECKS BEEN MADE AT COMPRESSORS, CHILLERS, VALVES, & INDOOR COILS? (Y/N) LOCATE, REPAIR, AND REPORT ANY LEAKS. START- -UP CHECKLIST (SPLIT SYSTEMS WITH 40RU UNITS) INDOOR: MODEL NO. SERIAL NO.
Page 40 CHECK THE COMPRESSOR OIL LEVEL SIGHT GLASSES, ARE THE SIGHT GLASSES SHOWING OIL LEVEL AT FULL? (Y/N) NOTES: Copyright 2010 Carrier Corp. D 7310 W. Morris St. D Indianapolis, IN 46231 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations. COMP A1 ____/____/____ Printed in U.S.A.
