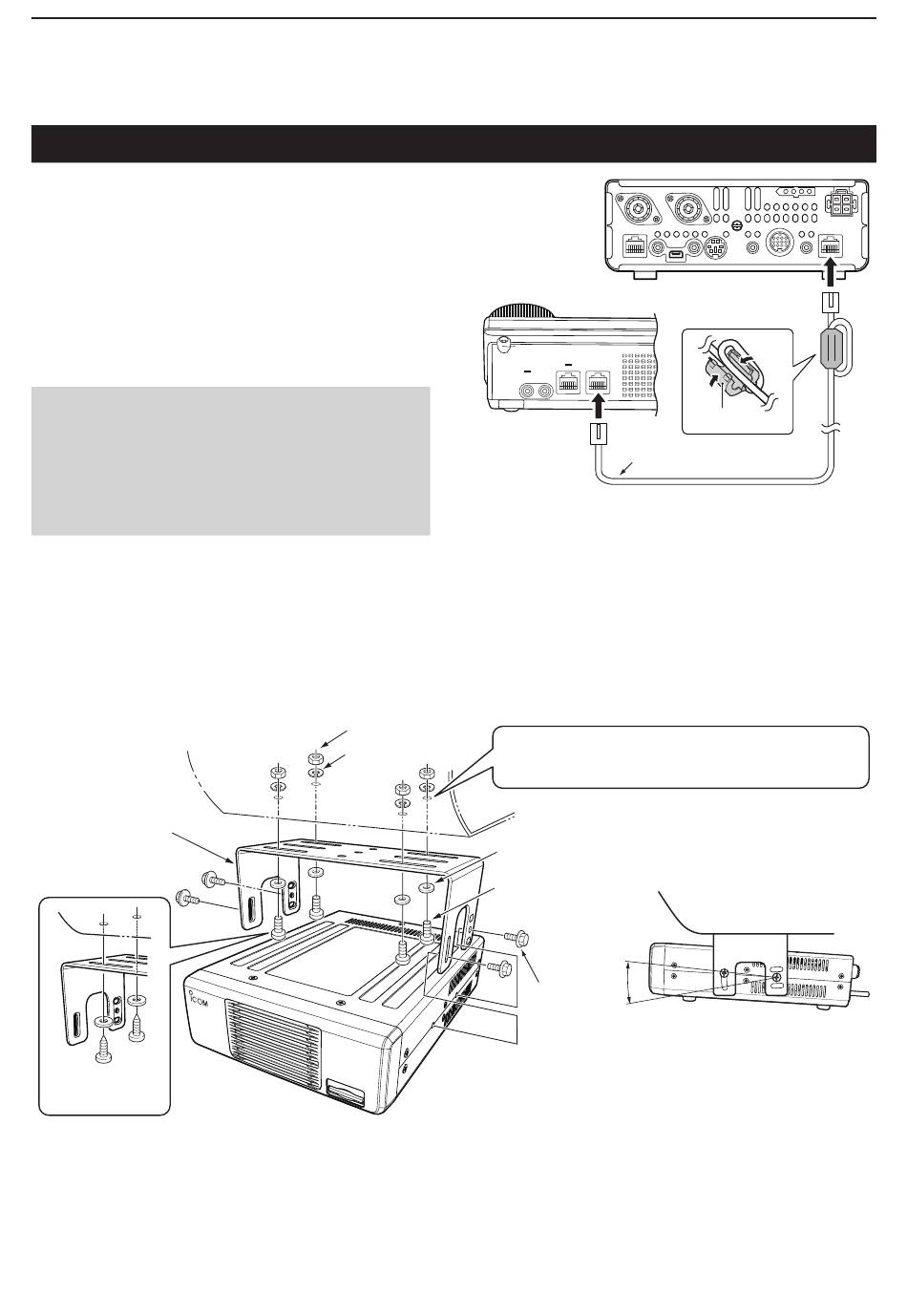

Connect controller to transceiver
The Main unit becomes hot when transmitted for long
period of time.
DO NOT place anything on the transceiver. It may ob-
struct radiation and cause mechanical trouble.
Using Ferrite EMI filter*
Depending on the installed condition of the transceiv-
er, malfunction may occur by the wraparound of the
electric wave. This problem can be resolved by using
the Ferrite EMI filter.
* The filter connection is required for the European
versions.
D
The Main unit installation
MB-62
Main unit installation
Using
tapping screws
Rear panel
Controller
To the [MAIN UNIT]
connector
Nut
Drill 5 mm holes for the bracket location.
Spring washer
Drill 3 mm holes for the tapping screws.
Flat washer
Screw
IC-7100
2-3
INSTALLATION AND CONNECTIONS
To the [CONTROLLER]
connector
Ferrite EMI filter
Controller cable
The MB-62 can be used for AT-180 as well.
Adjust for the best viewing angle.
Frange bolt
2
