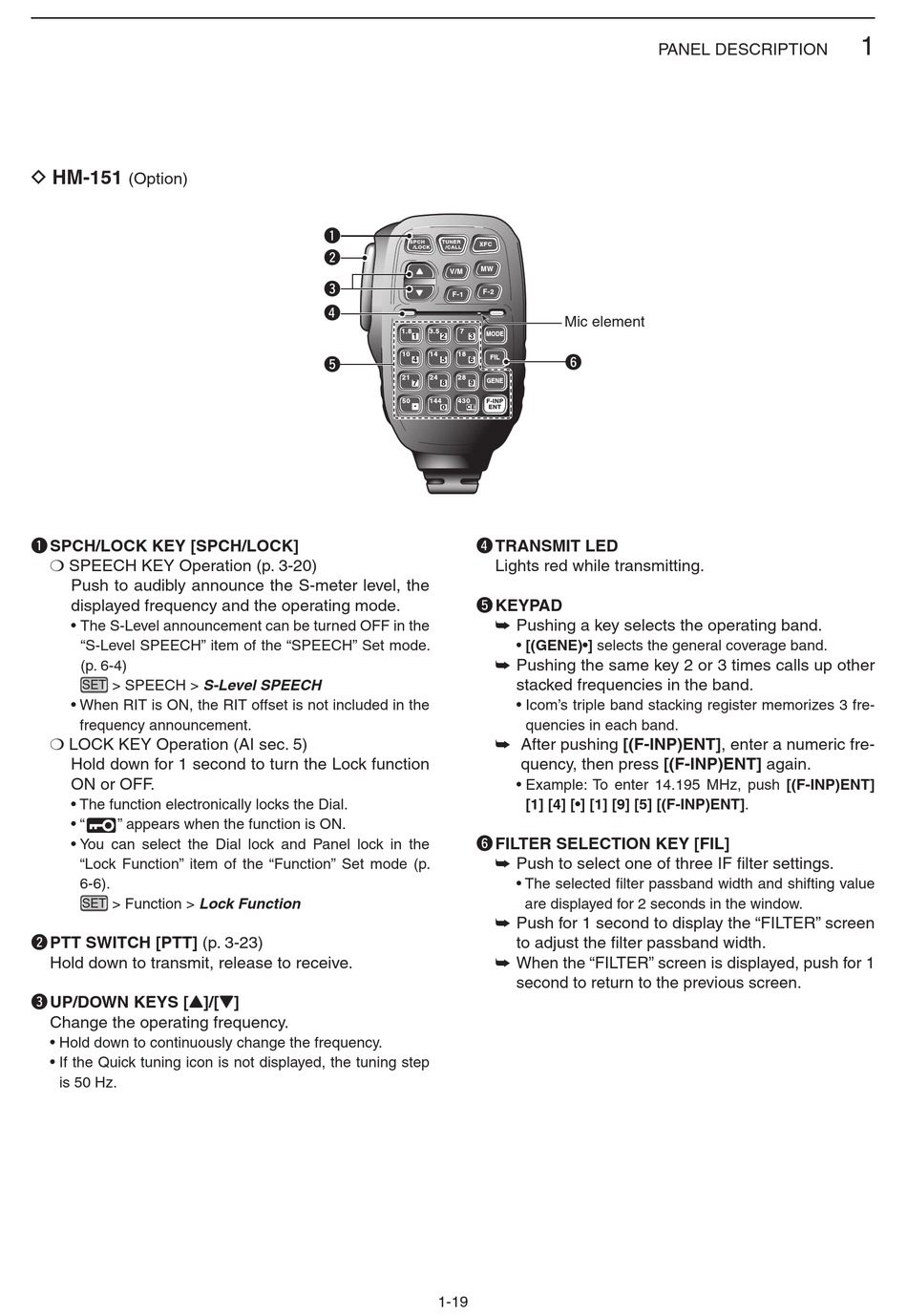

D HM-151
(Option)
q SPCH/LOCK KEY [SPCH/LOCK]
❍ SPEECH KEY Operation (p. 3-20)
Push to audibly announce the S-meter level, the
displayed frequency and the operating mode.
• The S-Level announcement can be turned OFF in the
"S-Level SPEECH" item of the "SPEECH" Set mode.
(p. 6-4)
> SPEECH > S-Level SPEECH
SET
• When RIT is ON, the RIT offset is not included in the
frequency announcement.
❍ LOCK KEY Operation (AI sec. 5)
Hold down for 1 second to turn the Lock function
ON or OFF.
• The function electronically locks the Dial.
• " " appears when the function is ON.
• You can select the Dial lock and Panel lock in the
"Lock Function" item of the "Function" Set mode (p.
6-6).
> Function > Lock Function
SET
w PTT SWITCH [PTT] (p. 3-23)
Hold down to transmit, release to receive.
e UP/DOWN KEYS [Y]/[Z]
Change the operating frequency.
• Hold down to continuously change the frequency.
• If the Quick tuning icon is not displayed, the tuning step
is 50 Hz.
q
SPCH TUNER
XFC
/LOCK /CALL
w
MW
V/M
e
F-2
F-1
r
1.8 3.5 7
MODE
1 2 3
10 14 18
FIL
4 5 6
t
21 24 28
GENE
7 8 9
50 . 144 430 F-INP
0
CE ENT
r TRANSMIT LED
Lights red while transmitting.
t KEYPAD
➥
➥
➥
y FILTER SELECTION KEY [FIL]
➥
➥
➥ When the "FILTER" screen is displayed, push for 1
1-19
PANEL DESCRIPTION
Mic element
y
Pushing a key selects the operating band.
• [(GENE)•] selects the general coverage band.
Pushing the same key 2 or 3 times calls up other
stacked frequencies in the band.
• Icom's triple band stacking register memorizes 3 fre-
quencies in each band.
After pushing [(F-INP)ENT], enter a numeric fre-
quency, then press [(F-INP)ENT] again.
• Example: To enter 14.195 MHz, push [(F-INP)ENT]
[1] [4] [•] [1] [9] [5] [(F-INP)ENT].
Push to select one of three IF filter settings.
• The selected filter passband width and shifting value
are displayed for 2 seconds in the window.
Push for 1 second to display the "FILTER" screen
to adjust the filter passband width.
second to return to the previous screen.
1
