Surface Mounting the GPSMAP 3005C
Tools
• Drill and drill bit
• Screwdriver
• Pencil
• Mounting hardware (not included)
NOTE: Mounting hardware (fasteners) not included. Mounting holes are 5/16" (7.9 mm)
in diameter.
To install the bail mount and unit:
1. Using the bail mount as a template, mark the location of the four mounting holes with
a pencil. Be sure to leave at least two inches of clearance behind the unit for the
wiring connector.
2. Using an appropriate size drill bit, drill pilot holes for the fasteners that you choose to
use.
3. Secure the bail mount to the surface with the fasteners.
4. Loosen the mounting knobs.
5. Slide the unit into the bail mount, and tighten the mounting knobs.

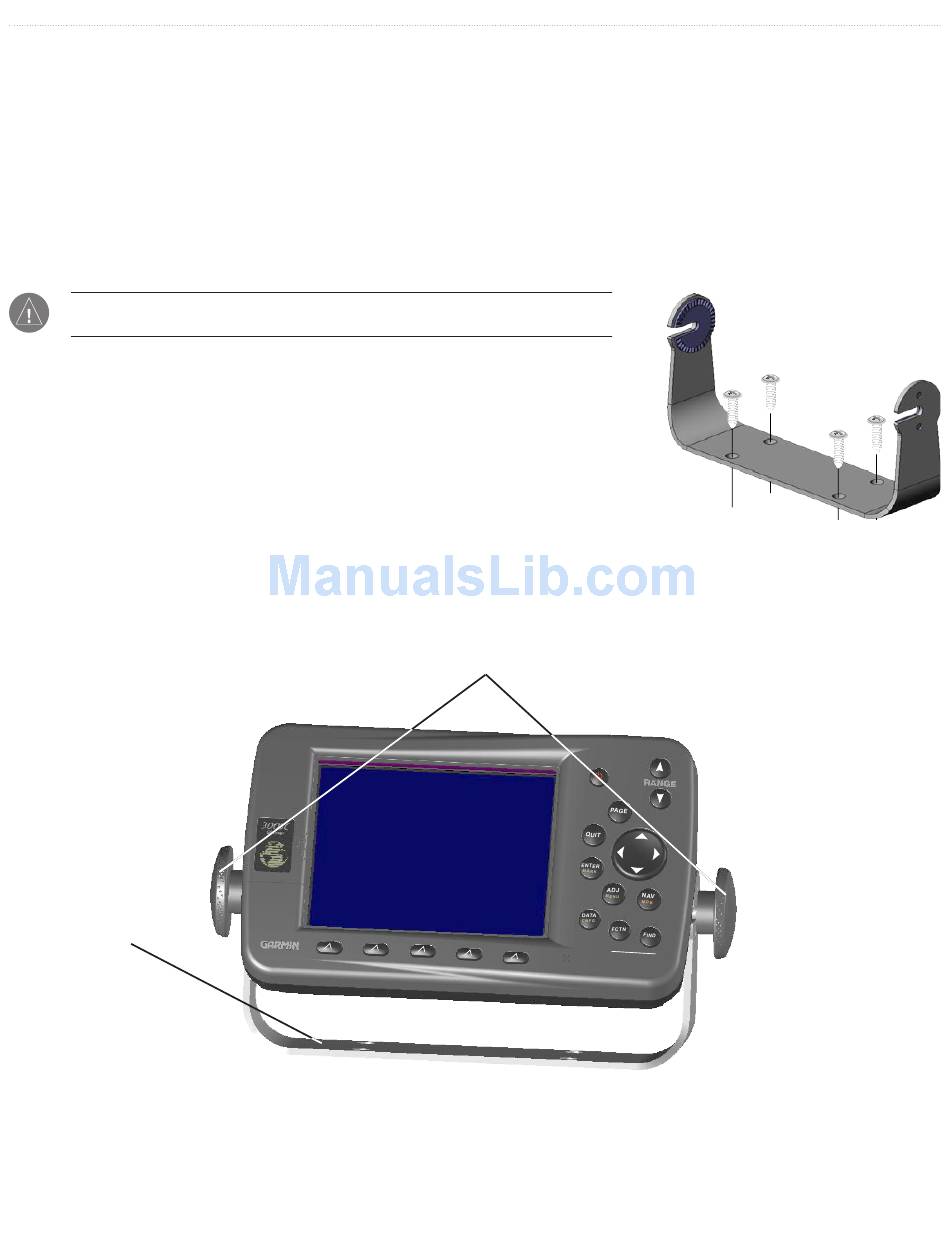

Bail mount
2
I I
NSTALLATION NSTRUCTIONS
Mounting knobs
Bail Mount
GPSMAP 3005C & GPS 17
