Page 1: Specifications
GPS 16/17 SERIES TECHNICAL SPECIFICATIONS Garmin International, Inc. 1200 E. 151 Street Olathe, KS 66062 USA 190-00228-21, Revision A July 2005... - Page 2 Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto,...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Introduction ....................1 1.1 Caution ..............................1 1.2 FCC Compliance ..........................1 1.3 Limited Warranty ..........................2 1.4 Overview ............................3 1.5 Features .............................3 1.6 GPS 16/17 Series..........................4 1.6.1 GPS 16LVS & 16HVS ......................4 1.6.2 GPS 17HVS ...........................4 1.7 Technical Specifications........................5 1.7.1 Physical Characteristics ......................5 1.7.1.1 Size ..........................5 1.7.1.2 Weight ........................5... - Page 4 Receiver Measurement Record .......................24 Sample C Code..........................25 Appendix C: Ephemeris Data download (Programming Example) ....26 Synopsis ............................26 Garmin Binary Format Review .......................26 Ephemeris Download Procedure .....................27 TX Packet: Ephemeris Data Request ...................27 RX Packet: Acknowledgement ....................27 RX Packet: Number of Data Packets to Expect ..............27 TX Packet: Acknowledgement ....................27...
-
Page 5: Introduction
INTRODUCTION Caution The GPS system is operated by the government of the United States, which is solely responsible for its accuracy and maintenance. Although the GPS 16/17 is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted, and therefore become unsafe. Use these products at your own risk. To reduce the risk, carefully review and understand all aspects of these Technical Specifications before using the GPS 16/17. -
Page 6: Limited Warranty
Garmin retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. -
Page 7: Overview
OEM (Original Equipment Manufacture) system applications. Based on the proven technology found in other Garmin 12-channel GPS receivers, the GPS 16/17 tracks up to 12 satellites at a time while providing fast time-to-first-fix, one-second navigation updates, and low power consumption. This generation of GPS sensors adds the capability of FAA Wide Area Augmentation System (WAAS) differential GPS. -
Page 8: Gps 16/17 Series

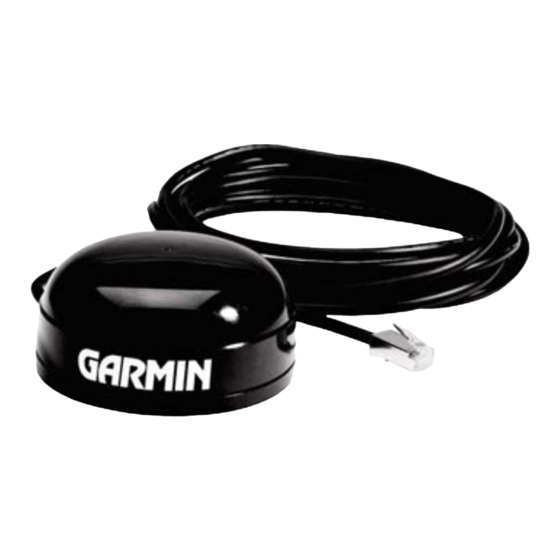

GPS 16/17 Series There are several different products in the GPS 16/17 product series, as described below. 1.6.1 GPS 16LVS & 16HVS Both the GPS 16LVS and GPS 16HVS are black with a white logo. GPS 16LVS & 16HVS 1.6.2 GPS 17HVS The GPS 17HVS is white with a blue logo. -
Page 9: Technical Specifications
Technical Specifications Specifications are subject to change without notice. 1.7.1 Physical Characteristics 1.7.1.1 Size • GPS 16: 3.58” (91.0 mm) diameter, 1.65” (42 mm) high • GPS 17: 3.58” (91.0 mm) diameter, 3.60” (91.5 mm) high 1.7.1.2 Weight • GPS 16LVS & 16HVS only: 6.4 oz (181 g) •... -
Page 10: Gps Performance
Configurable between NMEA 0183 Versions 2.00 and 3.00 • ASCII output sentences GPALM, GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG (NMEA-approved sentences); PGRMB, PGRME, PGRMF, PGRMM, PGRMT, and PGRMV (Garmin proprietary sentences) • NMEA 0183 Outputs (see Section 4.2 Transmitted NMEA 0183 Sentences... -
Page 11: Gps 16/17 Wiring And Pinouts
GPS 16/17 WIRING AND PINOUTS GPS 16/17 Pinout The GPS 16LVS and GPS 16HVS sensors utilize an 8-pin RJ-45 plug. The GPS 17HVS terminates in a JST connector, which is mainly for factory testing; you can remove the JST connector without voiding your warranty. The following is a functional description of each wire in the cable assembly. -
Page 12: Gps 16/17 Wiring Diagrams
GPS 16/17 Wiring Diagrams Figure 1: Computer Serial Port Interconnection Figure 2: PDA Serial Port Interconnection Figure 3: Basic NMEA Device Interconnection 190-00228-21 GPS 16/17 Technical Specifications Rev. A Page 8... -
Page 13: Mechanical Characteristics & Mounting
MECHANICAL CHARACTERISTICS & MOUNTING GPS 16 and GPS 17 Flush Mount 1.65 inches [42 mm] M4 Thread 120 Degrees 3.58 inches [91 mm] 2.44 inches [62 mm] Figure 4: GPS 16 & GPS 17 Flush Mount Dimensions 190-00228-21 GPS 16/17 Technical Specifications Rev. -
Page 14: Gps 17
GPS 17 3.60 inches (91.5 mm) 0.27 inches [7 mm] M4 Thread Fits on a standard one- 3.58 inches [91 mm] inch, 14 threads-per-inch marine mount. Figure 5: GPS 17 Dimensions 190-00228-21 GPS 16/17 Technical Specifications Rev. A Page 10... -
Page 15: Gps 16 Optional Magnetic Mount
Figure 6: GPS 17 Attaching to the Included Pole Mount GPS 16 Optional Magnetic Mount Magnetic Mount M4 Flat Head Screws (3 each) Figure 7: Optional GPS 16 Magnetic Mount 190-00228-21 GPS 16/17 Technical Specifications Rev. A Page 11... -
Page 16: Software Interface
The GPS 16/17 series products interface protocol, in addition to transmitting navigation information as defined by NMEA 0183, transmits additional information using the convention of Garmin proprietary sentences. Binary phase data information can alternatively be output on the COM 1 port; see... -
Page 17: Sensor Initialization Information
4.1.2 Sensor Initialization Information (PGRMI) The $PGRMI sentence provides information used to initialize the GPS sensor’s set position and time used for satellite acquisition. Receipt of this sentence by the GPS sensor causes the software to restart the satellite acquisition process. -
Page 18: Additional Sensor Configuration Information (Pgrmc1)
0183 sentence transmission will be suspended temporarily. 5. $PGRMO,,G will cause the COM port to change to Garmin Data Transfer format for the duration of the power cycle. You must enable Garmin Data Transfer format to update the GPS 16/17 series products. -
Page 19: Tune Dgps Beacon Receiver (Pslib)
4.1.6 Tune DGPS Beacon Receiver (PSLIB) The $PSLIB sentence provides the ability to tune a Garmin GBR 21, GBR 23 or equivalent beacon receiver. $PSLIB,<1>,<2>*hh<CR><LF> <1> Beacon tune frequency, 0.0, 283.5–325.0 kHz in 0.5 kHz steps <2> Beacon bit rate, 0, 25, 50, 100, or 200 bps If valid data is received, the GPS sensor will store it in the EEPROM and echo the PSLIB command to the beacon receiver. -
Page 20: Transmitted Time
4.2.2 Transmitted Time The GPS sensor outputs UTC (Coordinated Universal Time) date and time of day in the transmitted sentences. Before the initial position fix, the on-board clock provides the date and time of day. After the initial position fix, the date and time of day are calculated using GPS satellite information and are synchronized with the one-pulse-per- second output. -
Page 21: Gps Dop And Active Satellites (Gsa)
4.2.5 GPS DOP and Active Satellites (GSA) $GPGSA,<1>,<2>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<4>,<5>,<6>*hh<CR><LF> <1> Mode, M = manual, A = automatic <2> Fix type, 1 = not available, 2 = 2D, 3 = 3D <3> PRN number, 01 to 32, of satellite used in solution, up to 12 transmitted (leading zeros will be transmitted) <4>... -
Page 22: Geographic Position (Gll)
Time dilution of precision, 0 to 9 (rounded to nearest integer value) 4.2.12 Map Datum (PGRMM) The Garmin Proprietary sentence $PGRMM gives the name of the map datum currently in use by the GPS sensor. This information is used by the Garmin MapSource real-time plotting application. -
Page 23: Velocity Information
4.2.14 3D Velocity Information (PGRMV) $PGRMV,<1>,<2>,<3>*hh<CR><LF> <1> True east velocity, -514.4 to 514.4 meters/second <2> True north velocity, -514.4 to 514.4 meters/second <3> Up velocity, -999.9 to 999.9 meters/second 4.2.15 DGPS Beacon Information (PGRMB) Note: PGRMB is not supported at this time. $PGRMB,<1>,<2>,<3>,<4>,<5>,K,<6>,<7>*hh<CR><LF>... -
Page 24: Appendix A: Earth Datums
APPENDIX A: EARTH DATUMS The following is a list of the Garmin GPS 16/17 Earth datum indices and the corresponding earth datum name (including the area of application): ADINDAN - Ethiopia, Mali, Senegal, Sudan AFGOOYE - Somalia AIN EL ABD 1970 - Bahrain Island, Saudi Arabia... - Page 25 HONG KONG 1963 - Hong Kong INDIAN - Bangladesh, India, Nepal INDIAN - Thailand, Vietnam IRELAND 1965 - Ireland ISTS O73 ASTRO 1969 - Diego Garcia JOHNSTON ISLAND 1961 - Johnston Island KANDAWALA - Sri Lanka KERGUELEN ISLAND - Kerguelen Island KERTAU 1948 - West Malaysia, Singapore L.C.
- Page 26 PICO DE LAS NIEVES - Canary Islands PITCAIRN ASTRO 1967 - Pitcairn Island PUERTO RICO - Puerto Rico, Virgin Islands QATAR NATIONAL - Qatar QORNOQ - South Greenland REUNION - Mascarene Island ROME 1940 - Sardinia Island RT 90 - Sweden PROVISIONAL SOUTH AMERICAN 1956 - Bolivia, Chile, Colombia, Ecuador, Guyana, Peru, Venezuela SOUTH AMERICAN 1969 - Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay,...
-
Page 27: Appendix B: Binary Phase Output Format
APPENDIX B: BINARY PHASE OUTPUT FORMAT Note: The following applies to all software versions of GPS 16LVS, GPS 16HVS, and GPS 17HVS. Two records are transmitted once per second by the GPS 16/17 series products. One record contains primarily post- process information, such as position and velocity information. -
Page 28: Receiver Measurement Record
Latitude velocity (meters/second) alt_vel Altitude velocity (meters/ second) msl_hght Mean sea level height (meters) leap_sec UTC leap seconds grmn_days Garmin days (days since December 31, 1989) Receiver Measurement Record - 0x10 (DLE is first byte) - 0x34 (Receiver record identifier) - 0xE2... -
Page 29: Sample C Code
Sample C Code DLE and ETX bytes: Sample C code to receive the two records should filter DLE and ETX bytes as described below: typedef enum DAT, DLE, } rx_state_type; /* Declare and initialize static variables */ static char in_que[ 256 ]; static int in_que_ptr = 0;... -
Page 30: Appendix C: Ephemeris Data Download (Programming Example)
To download the ephemeris data, you must first command the unit to output information in Garmin Binary Format (Garmin mode) instead of the default NMEA output format. To put the unit in Garmin mode, connect to the unit using a terminal program and send the following NMEA sentence: $PGRMO,,G*hh<CR><LF>... -
Page 31: Ephemeris Download Procedure
Ephemeris Download Procedure The following is the sequence of events that occurs when downloading ephemeris. Send a packet containing the command that requests ephemeris data (IOP_DOWN_LOAD_EPH). The packet should look like this: TX Packet: Ephemeris Data Request Byte Description Name HEX Value Delimiter 0x10... -
Page 32: Rx Packet: Ephemeris Data
Next, the unit will send the specified number of packets containing the ephemeris information. An example packet is shown below. Each packet should be acknowledged as before (be sure to modify the ACK packet to indicate what type of packet being acknowledged—for ephemeris data, the ID is 0x35). RX Packet: Ephemeris Data Byte Description Name... - Page 33 An example function to do the parsing is shown below. Note that the double data types are converted by the function cnvt_ieee_double(). This function merely swaps the upper and lower words of the double. This is necessary on GPS 15, 16, 17 series sensors due to a compatibility issue with the IEEE floating point standard): In this example, the array m_TempArray contains the data portion of the ephemeris packet (with DLE stuffing removed).
-
Page 34: Tx Packet: Download Complete
Each data member of the ephemeris data structure is indexed into the data array of the ephemeris packet and cast as the appropriate data type. The indices are as follows (note that they correlate to the data members of the structure respectively): #define IDX_EPH_WN #define IDX_EPH_TOC... -
Page 35: Appendix D: Sensor Configuration Software
(SNSRCFG.exe) is included in the software update download. Selecting a Model After opening the program (snsrcfg.exe), the following screen appears. Select the radio button next to the type of Garmin sensor you are configuring. Connecting to the Sensor After selecting the type of sensor, the following window opens. This is the Main Interface Screen for the program. -
Page 36: File Menu
File Menu The File Menu allows you to open, save, and print sensor configurations. The items in the File Menu work like most Windows-based programs. Comm Menu The Comm (Communication) Menu allows you to set the port number, baud rate, and then connect and disconnect from the sensor. -
Page 37: View Menu
Switch to NMEA Mode (F10): Switches the unit to NMEA Mode. The sensor must be in NMEA Mode when connected to this software. Switch to Garmin Mode (F11): Switches the unit to Garmin Mode. Update Software (F12): After you have downloaded a new software version for the sensor, you can update the sensor with the new software.
