I I
NSTALLATION NSTRUCTIONS

Garmin Marine Network

The Garmin Marine Network is a waterproof Ethernet-based system that allows Multi-Function Displays (MFD) to communicate with sensors
and other MFDs over the network. Waterproof RJ-45 connections allow for simple installation and high-speed connectivity. For a simple
installation with one MFD and one sensor, the two devices can be directly connected with a Garmin Marine Network Cable. If more than
two MFDs are installed, a Garmin Marine Network Port Expander (GMS 10) is needed to expand the network. If two or more GPSMAP
3005C/3006C/3010C units are installed and networked, only one GPS 17 antenna needs to be installed. You can add up to five total devices
to the Network Port Expander. If more than five are needed, you can add more Network Port Expanders to the network. This network is NOT
compatible with PC networks. Do NOT attach PC devices to the Garmin Marine Network. Some examples of the Garmin Marine Network
are included below. Refer to the individual installation instructions for the individual sensors. Additional Garmin Network Cables are available
from your Garmin dealer or direct from Garmin.

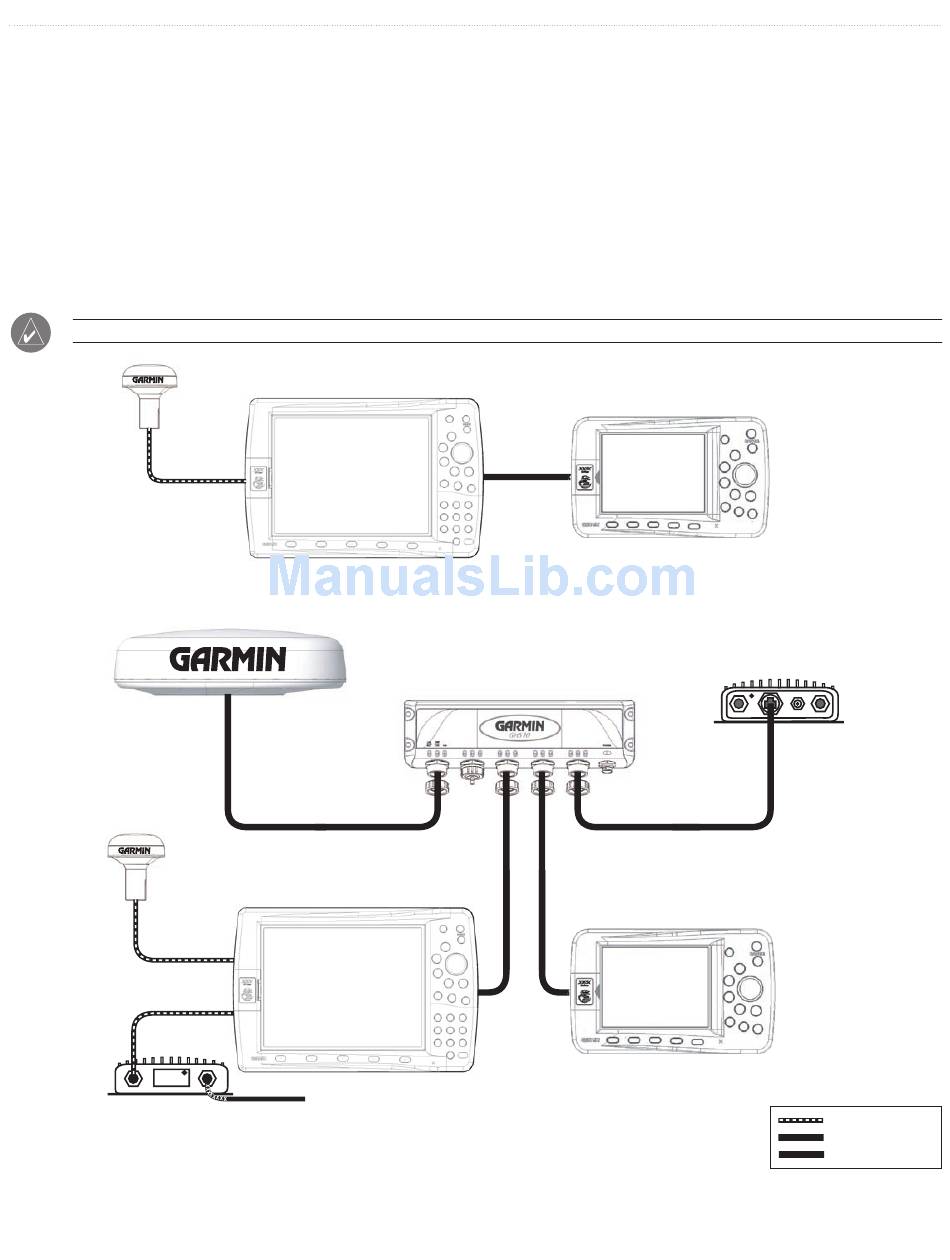

NOTE: Power connections for network components are not shown in the following illustrations.
GPS 17
MARINE RADAR
GPS 17
GSD 20 or GSD 21
SOUNDER
MODULE
10
GARMIN
GPSMAP 3006C/3010C
MFD
GARMIN
GARMIN
GPSMAP 3006C/3010C
MFD
xxxxxxxxxxxxxxxxxxx
TO TRANSDUCER
Two MFD Networked with Sensors and GMS10 Port Expander
Two MFD Network
GARMIN GMS 10
MARINE NETWORK PORT EXPANDER
GARMIN
GPSMAP 3005C
MFD
GARMIN GDL 30/30A
MARINE WEATHER/AUDIO
SATELLITE RECEIVER
GARMIN
GPSMAP 3005C
MFD
xxxxxxxxx
GPSMAP 3005C & GPS 17
Serial cable
Ethernet cable
Transducer cable
