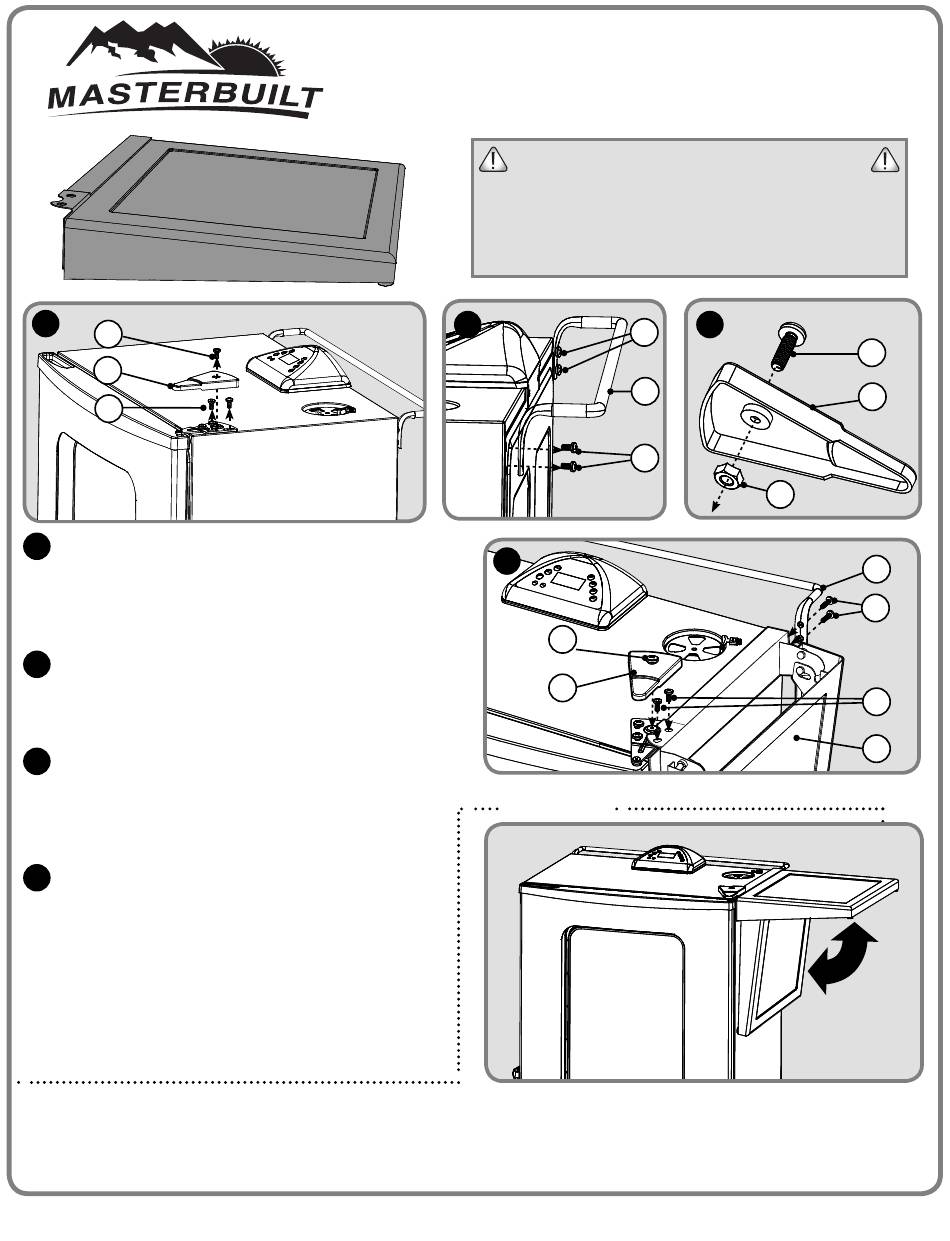

Masterbuilt 20101513 Quick Start Manual

1
A
B
C
1
Facing right side of smoker, remove door hinge
cover screw (A) and door hinge cover (B), then re-
move only the closest door hinge screws (C) from
hinge. (Do not remove far rear screws as the door
will loosen and the seal could be compromised.)
2
Still facing the right side of smoker, slightly loosen
handle screws (D) and completely remove handle
screws (D) closest to you, allowing rear handle (E)
to move freely.
3
Insert hinge cover screw (A) through door hinge
cover (B), then take nut (F) and thread onto screw
taking care not to fully tighten screw; leaving a
slight gap between the nut (F), door hinge cover
(B) and screw (A).
4
With smoker side shelf (G) in downward position,
align shelf support bracket and holes onto the right
side of smoker body as shown.
With side shelf (G) between smoker body and
handle (E), replace handle screws (D) and door
hinge screws (C). Tighten all screws at this time.
Re-set door hinge cover (B) over door hinge and
secure with door hinge cover screw (A) as shown.
Shelf installation is now complete.
Upright Position
With both hands on the left and right of the shelf, lift
smoker side shelf. When shelf is in full upright position,
push the shelf gently towards the smoker. The hinge will
then drop and lock into place.
Masterbuilt Manufacturing, Inc. · 1 Masterbuilt Ct. Columbus, GA 31907 · Customer Service / Servicio de atención al cliente: 1-800-489-1581 · www.masterbuilt.com
MADE IN CHINA
SMOKER SIDE SHELF
FITS MASTERBUILT 30-in. MODELS: 20070411, 20070911, 20071011, 20071111
FITS MASTERBUILT 40-in. MODELS: 20070211, 20070212, 20070311, 20071211,
20071311, 20071411, 20071611, 20071711
· SMOKER SIDE SHELF WEIGHT CAPACITY 25 LBS.
· NEVER MOVE SMOKER WITH SHELF IN UPRIGHT POSITION.
· DO NOT SIT ON OR LEAN AGAINST SHELF.
· WHEN ADJUSTING SHELF, KEEP FINGERS CLEAR OF HINGES.
2
4
POSITIONING
Downward Position
Again, with both hands on each side of the smoker side
shelf, slightly lift the shelf to remove it from its locked
position, then gently pull towards yourself and swing the
shelf into its downward position.
CAUTION
3
D
E
D
A
B
Model# 20101513
A
B
F
E
D
C
G
081612-04SS
