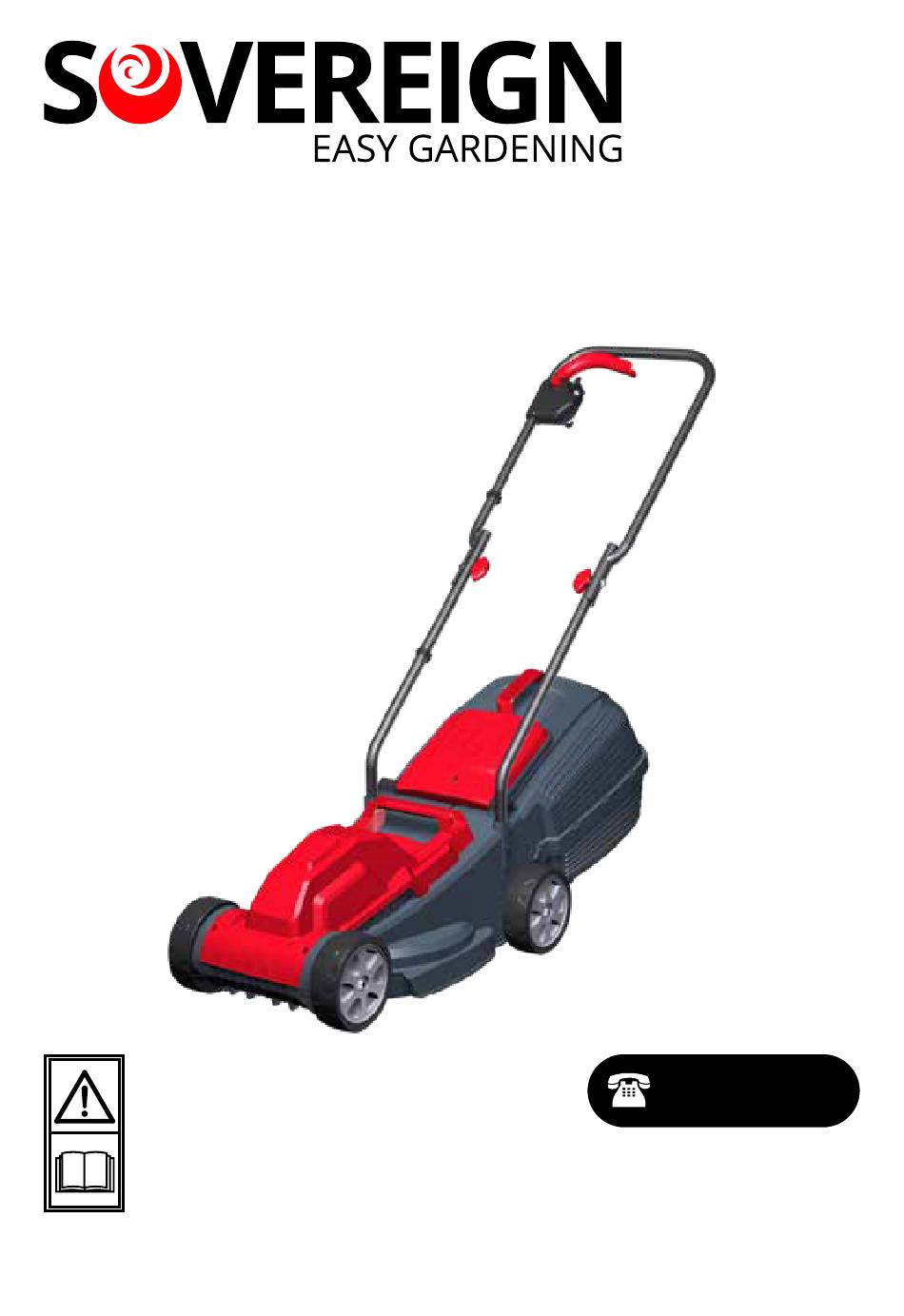

- Page 1 1200W ELECTRIC LAWN MOWER Item No. 577135 Model No. M4E1232C Technical Support & Parts 0343 515 1905 Mon-Fri 9am-5pm Sat-Sun 11am-4pm ORIGINAL INSTRUCTION MANUAL Please read these instructions fully before starting assembly. HHGL Limited, MK9 1BA HHGL (ROI) Limited, D02 X576...
-
Page 2: Table Of Contents
Contents General safety warnings Intended use Warning symbols In the box Assemble the mower Operate the mower Maintenance Troubleshooting Technical data Disposal Getting help Warranty... -
Page 3: General Safety Warnings
General safety warnings Important - please read these instructions fully before starting assembly WARNING! When using this equipment, the following safety precautions must be followed to avoid injuries and damage: • Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements. - Page 4 General safety warnings Important - please read these instructions fully before starting assembly General Safety (continued) • Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator. • In areas where the mains supply is weak or bearing a high load, this mower may cause further voltage fluctuations as it starts.
- Page 5 General safety warnings Important - please read these instructions fully before starting assembly Personal Safety (continued) • Before each use, inspect the mower to check the cutting blade, fastening bolts and the entire cutting unit for any signs of wear or damage. To prevent imbalance or vibration, worn or damaged cutting blades and fastening bolts must always be replaced in full.
- Page 6 General safety warnings Important - please read these instructions fully before starting assembly Personal Safety (continued) • Check the site on which you intend to use the lawn mower and remove all objects that may be caught or thrown up by the mower.
- Page 7 General safety warnings Important - please read these instructions fully before starting assembly Personal Safety (continued) • Ensure that you have safe footing at all times whilst working with the mower. • Always wear strong, anti-slip footwear and long trousers when using the mower.
- Page 8 General safety warnings Important - please read these instructions fully before starting assembly Personal Safety (continued) • Do not switch the mower on and off frequently over a short period of time, and in particular, do not play with the ON/OFF switch. •...
- Page 9 General safety warnings Important - please read these instructions fully before starting assembly Operating and Maintenance Safety (continued) • Keep extension cords away from the blade. The blade can cause damage to cords and lead to contact with live parts. •...
-
Page 10: Intended Use
Intended use This lawn mower is designed for domestic use only: • This electric lawn mower is intended for mowing lawns in domestic and hobby gardens. • This product is not to be used in wet weather conditions and may not be used to mow wet or unusually high grass. •... -
Page 11: Warning Symbols
Warning symbols The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. Read instruction handbook before operating this machine. Wear eye and ear protection (PPE). Do not expose to rain. Keep bystanders away. - Page 12 Warning symbols Guaranteed sound power level data (96dB) in accordance with Directive 2000/14/EC. Class II equipment. Recycle unwanted materials instead of disposing of them as household waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way.
-
Page 13: In The Box
In the box Parts Switch lever Plastic lug Deflector guard Cable strain-relief Support (×2) Cable clip (×2) Upper handle bar Screw (×2) Wing nut (×2) Bolt (×2) Rear wheel (×2) Safety button Lower handle bar Deck Wheel axle (×2) Grass collection box Front wheel (×2) Blade handle... -
Page 14: Assemble The Mower
Assemble the mower... - Page 15 Assemble the mower...
- Page 16 Assemble the mower Assembling Handles • Insert the lower handle bar into the supports the deck (Fig. 2). • Fix the lower handle bar using the enclosed screws (Fig. 3). • Fix the upper handle bar using the enclosed bolts and the wing nuts on the lower handle bar (Fig.
- Page 17 Assemble the mower Attaching the Grass Collection Box • Lift the deflector guard • Place the grass collection box on the mounting brackets provided at the back of the lawn mower (Fig. 8). • Lower the deflector guard onto the grass collection Setting the Cutting Height The electric lawn mower can be adjusted to the following cutting heights, with three position changes of the front and...
- Page 18 Assemble the mower WARNING! Keep the front and rear wheels at the same height. Connecting to the Power Supply • Hook the mains cable through the cable strain-relief (Fig. 10). • Connect the mower to your power supply socket. • Before switching on, ensure that the mower is not in contact with any foreign objects.
-
Page 19: Operate The Mower
Operate the mower Ⅰ Ⅱ... - Page 20 Operate the mower On/Off Operation • Before switching on, ensure that the mower is not in contact with any foreign objects. • To switch on, press the safety button on the handle, then activate the switch lever . Release the safety button (Fig.
- Page 21 Operate the mower maintained at all times. Take special care when mowing and changing direction on embankments and slopes. Ensure that you have a secure surface to stand on, wear shoes with anti- slip soles that offer good grip, and suitable long trousers. Always mow across the slope (not in an up or down direction).
- Page 22 Operate the mower Emptying Grass Collection Box • To remove the grass collection box , raise the deflector guard with one hand and remove the grass collection holding its handle with your other hand. To maintain safety, the deflector guard automatically closes to the rear discharge position when you remove the grass collection box...
-
Page 23: Maintenance
Maintenance Storing The handles can be folded for easy storage (Fig.16). • Keep the equipment dry and out of reach of children. Loosen the wing nuts and fold down the upper handle so the equipment takes up less space. Ensure that the cable is not caught. - Page 24 Maintenance Wipe the equipment with a soft brush or blow it with compressed air at low pressure after usage. • Clean the mower regularly with a soft brush. Do not use cleaning agents or solvents; these may damage plastic components. •...
- Page 25 Maintenance Plug Replacement If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this apparatus may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.
-
Page 26: Troubleshooting
Troubleshooting WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist! Always turn off the machine and remove the plug before making any adjustment. The following table provides solutions to common problems encountered with the mower. -
Page 27: Technical Data
Technical data Technical data table Specification Value Model M4E1232C Voltage 220-240V~ 50Hz power input 1200W No load speed 3500/min Cutting width 32cm Cutting height 20mm, 40mm, 60mm Volume of grass bag Measured sound pressure level L 86dB(A) K=3dB(A) Measured sound power level L 90.6 dB(A) K=2.08dB(A) -
Page 28: Disposal
Disposal Disposal and recycling Recycle unwanted materials instead of disposing of them as household waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Getting help If you need help or have damaged or missing parts, call the Customer Helpline on 0343 515 1905.
