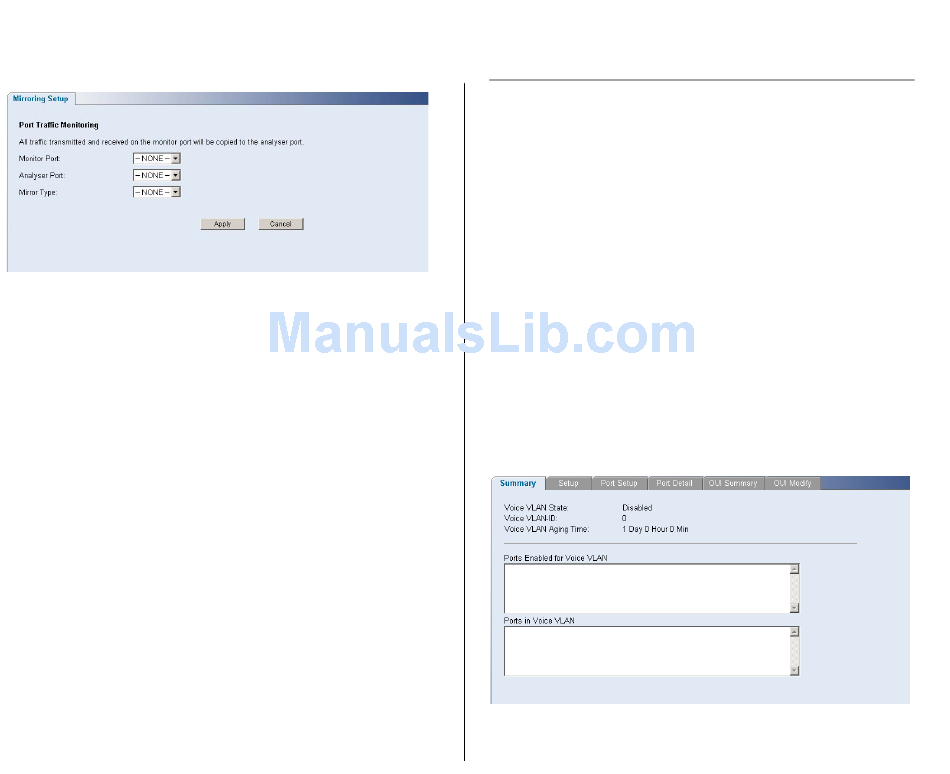

Figure 48 Port Mirroring Screen
To set up port mirroring:
Connect a network analyzer to a port.
1
Access the Web interface. Click Port, then Port
2
Mirroring on the menu. The Port Monitoring Setup
Screen appears.
Select the port number under Monitor Port to which
3
you want to monitor. Traffic to and from this port will
be forwarded to the analyser port.
Select the port number under Analyser Port to which
4
you connected the network analyzer. Traffic to and
from the selected mirrored ports will be forwarded to
this port.
Under Mirror Type, select to monitor incoming traffic,
5
outgoing traffic, or both.
Click Apply.
6
S
WITCH

QoS VoIP Traffic Settings

Using the Web interface, you can configure the Voice
over Internet Protocol (VoIP) settings.
The QoS VoIP Traffic Setting menu includes six tabs:
Summary
■
Setup
■
Port Setup
■
Port Detail
■
OUI Summary
■
OUI Modify
■
Summary
Use the Summary tab to display the global settings
for Voice VLAN.
Figure 49 QoS VoIP Summary Screen
