Aiphone IS-IP4DVF Quick Start Manual

The IS-IP4DVF is an IS Series IP video door station with 4 call buttons for selective calling to
IS-IPMV master stations. The RY-IP44 adaptor is required for assigning the call buttons to specific
master stations within the IS-IP configuration (refer to the RY-IP44 programming manual for
programming instructions). The IS-IP4DVF will connect to a network switch, and the call buttons will
connect to the RY-IP44 adaptor inputs.
IS-IP4DVF
PACKAGE CONTENTS:
Security Driver
IS-IP4DVF
4 Call Button
Door Station
SA-1 x 3
Flush backbox &
tamper resistant screws
IS-IP4DVF
IP Video Door Station with 4 Call Buttons
1
2
3
4
5
6
7
Blank name
placard x5
-INSTRUCTIONS-

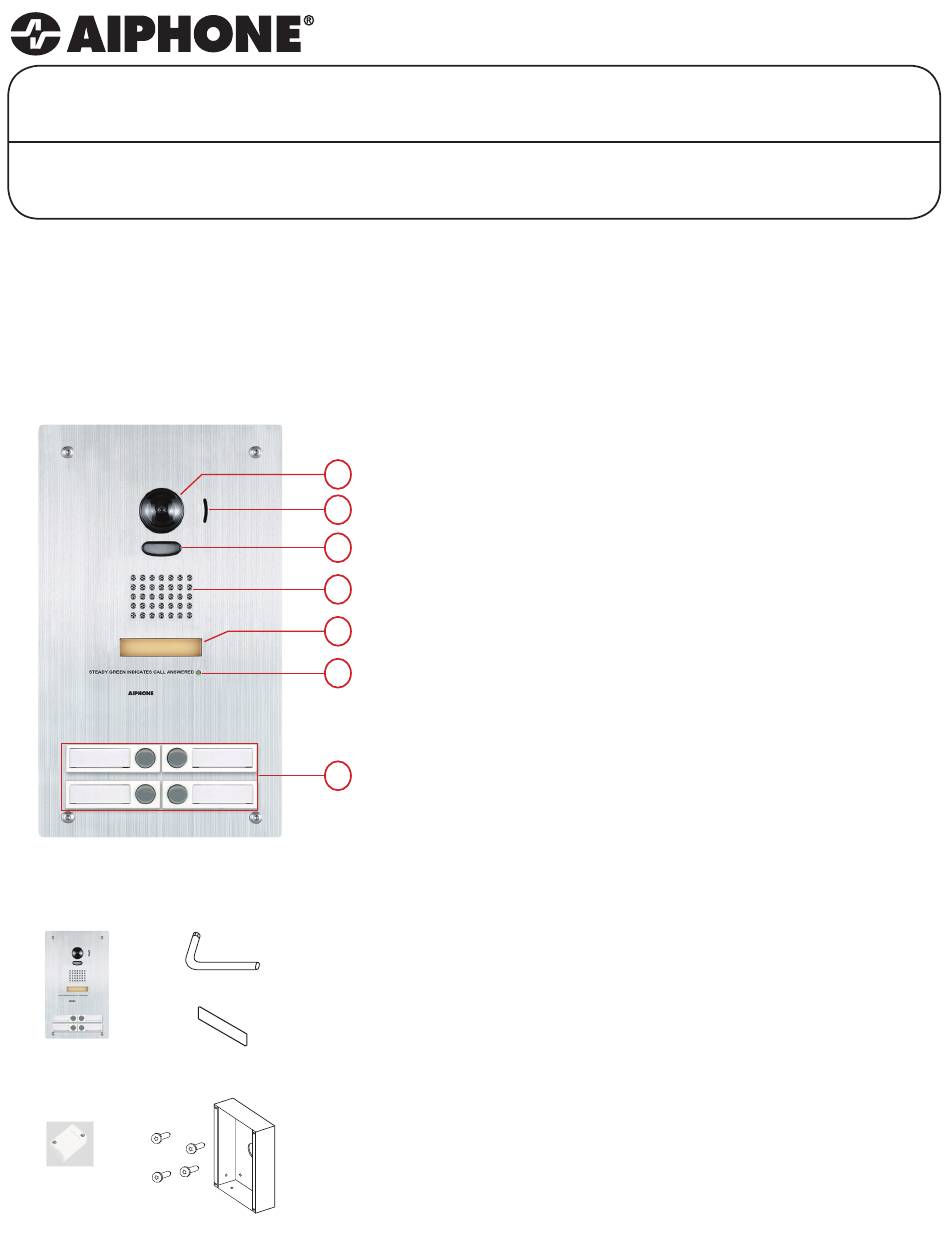

NAMES & FUNCTIONS:
1. Camera
2. Microphone
3. LED illuminator
4. Speaker
FEATURES:
• IP video door station
• 4 call buttons for selective calling to master stations
(RY-IP44 adaptor required)
• LED call status indicator
• 5 name placards
• Stainless steel faceplate with tamper resistant screws
INSTALLATION:
• For flush mounting, cut a hole in the wall and use the
supplied back box.
Box dimensions are: 11-3/4" H x 5-13/16" W x 1-3/4" D
• For surface mounting, use the SBX-ISDVFP surface
mount box. This box can mount to a standard 1 gang
box or to any flat surface.
Note:
When installing the IS-IP4DVF in the supplied back box, the call
button assembly may come loose. Push call button assembly
back in to position as necessary.
5. Directory card
6. Call status indicator
7. Call buttons with integrated
name placard
Pg. 1
