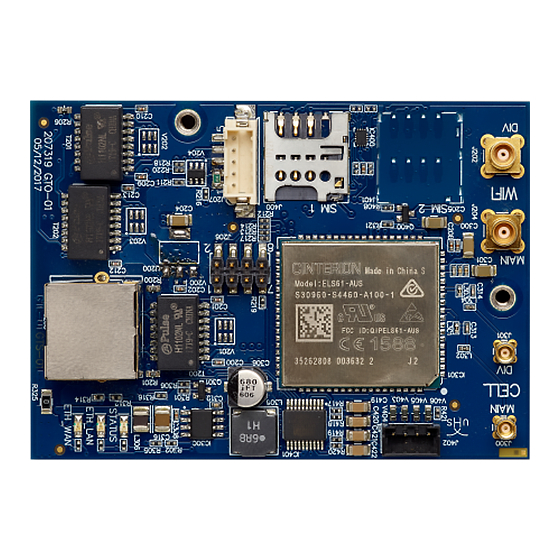

NXG-7002 4G Cellular and WiFi Router Module
Installation Sheet
Product Summary
4G Cellular Modem
This module adds 4G cellular communication capabilities to the
xGen alarm panel, allowing alarm reporting and remote
connections over the 4G mobile network via UltraSync Cloud.
In the event that the primary path (WiFi or Ethernet) from the
customer's broadband internet is not working, the panel will
automatically switch to the backup 4G cellular to provide
seamless alarm reporting.
If 4G is unavailable, the module will switch to 3G or 2G where
available. One SIM card may be pre-installed and should not
be removed.
Only alarm traffic is routed to 4G, video from cameras is not.
Wired LAN
The WiFi Router provides a wired Ethernet LAN for connecting
one or more cameras.
WiFi Access Point Mode
In access-point-mode, security devices such as WiFi cameras
can connect to the WiFi Router. It provides DHCP services to
assign camera IP addresses and performs router functions for
© 2019 UTC Fire & Security Americas Corporation, Inc.
connected clients. This separates the cameras from the
customer's network for better performance and security.
WiFi Client Mode
In client-mode, the WiFi Router can connect wirelessly to a
customer's WiFi router which will provide the primary internet
connection to the xGen panel. This avoids having to install an
Ethernet cable between the xGen and the customer's router.
Full Wireless Integration
Access Point and Client modes can operate simultaneously to
allow flexible connection of equipment with 4G cellular backup.
