Interlogix NX-586E Instructions

DESCRIPTION
The NX-586E can store up to four (4) NetworX alarm panel
configurations -- panel only, no modules -- within its own non-
volatile memory. These files can be created using the DL900
software (1.13 or later) without a panel attached (power must still be
supplied). The files can also be created using the installer program
mode on any existing NetworX panel without the need for any
computer. The files stored on the Direct Connect unit can be
transferred to any panel of the same type or read by the DL900
software for reviewing, editing and archiving purposes.
REQUIREMENTS
Computer running DL900 (download software for Windows
with available serial port

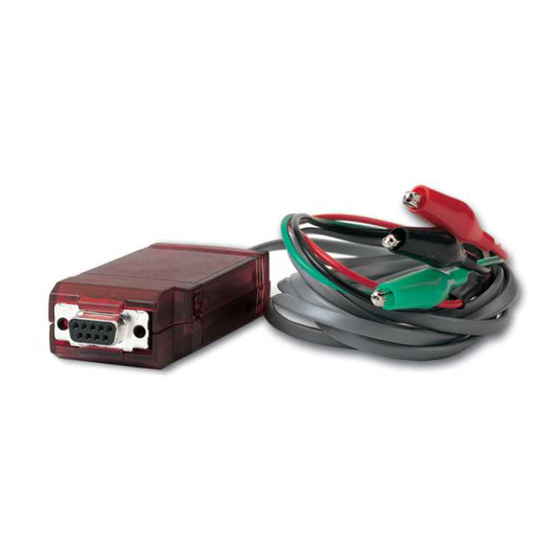

NX-586E Direct Connect module
Any NetworX control panel
OPERATIONS
PC TO PANEL DIRECT CONNECT
A.
1.
Connect NX-586E to serial port.
2.
Connect cable with alligator clips to a NetworX panel as
follows:
a. Red to POS
b. Black to COM
c. Green to DATA
3.
Start the DL900 Download software.
4.
Select: PROGRAM
CONNECT SETTINGS
5.
Select the correct port number and baud rate. Protocol
must be Binary (default). The baud rate should match the
NX-586E. Default is 9600. Click OK.
6.
Select the account to use.
7.
Select DOWNLOAD
Note: You can also use the tool bar or the [F11] key.
8.
Download as normal. You cannot perform the following:
9.
View keypad status
10.
Enroll devices
WRITING DATA FROM THE DL900 TO THE
B.
NX-586E
The NX-586E will hold the entire programming worksheet for up to
four (4) NetworX control panels.
the modules will NOT be read or written to/from the NX-586E.
1.
Perform steps 1-6 in Section A of this document ("PC to
Panel Direct Connect").
In step 2, COM and POS can be connected to any 12
VDC source, and DATA does not need to be connected.
2.
Select: DOWNLOAD
586
3.
You will be warned this could overwrite user codes (if they
were changed by the user).
4.
Select the location in the NX-586E where the data will be
stored.
SETUP DIRECT
DIRECT CONNECT
Note: Programming information for
WRITE PANEL DATA TO
NX-586E Direct Connect Module
This will overwrite the existing data without further
prompting.
5.
A screen will appear indicating that the data is being sent.
When this screen disappears, the process is complete.
READING DATA FROM THE NX-586E TO THE
C.
DL900
1.
Perform steps 1-6 in Section A of this document ("PC to
Panel Direct Connect").
2.
In step 2, COM and POS can be connected to any 12 VDC
source, and DATA does not need to be connected.
3.
Select: DOWNLOAD
586
4.
Select the location in the NX-586E from which the data will
®
be retrieved.
)
5.
A screen will appear indicating that the data is being read.
When this screen disappears, the process is complete.
USING THE NX-586E WITHOUT A COMPUTER:
D.
1.
Attach the cable with the three alligator clips to the proper
terminals on the NetworX panel (Refer to Section 0). Note:
If you have a keypad installed in partition 8, keypad 8, it
must be removed during this operation.
2.
On a Partition 1 keypad, enter
3.
Enter the 4- or 6-digit program code (default is 9713).
4.
When prompted for the device number, enter 2 5 5 #
5.
When prompted for the location, enter 0 #
6.
To READ or WRITE:
A.
Read (store the NetworX panel configuration into a file
on the NX-586E):
Enter 1
o
Enter the number of the file (1 to 4) in which you
o
wish to save it
Enter
o
The 'Receiving Data' LED will flash if the command
o
is being carried out. The keypad sounder will chime
('ding-dong') if the operation is successful.
B.
Write (copy a file from the NX-586E to the NetworX
panel):
Enter 2
o
Enter the number of the file to copy (1 to 4)
o
The 'Sending Data' LED will flash if the command is
o
being carried out. The keypad sounder will chime
('ding-dong') if the operation is successful.
7.
A 'triple beep' will sound if any error occurred during either
Read or Write. You can view the result in Location 0 /
Segment 1 (see chart for possible results).
Instructions
Rev D October 2005
READ PANEL DATA FROM
8
#
I-NX586E-IM
#
