- Page 1 USER MANUAL Portable Air Conditioner and Heater With Heat Pump Technology PAC12 PAC15 PAC18 Please read this manual carefully prior to operating the product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION..................................... 3 IMPORTANT SAFEGUARDS.................................. 4 PRODUCT DIAGRAM..................................5-6 INSTALLATION ....................................... 7 WINDOW KIT INSTALLATION................................8 CONTROL PANEL AND MULTI-COLOR DISPLAY P AC12 ......................9 （ ） CONTROL PANEL AND MULTI-COLOR DISPLAY P AC15 ......................10 （... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the PAC12, PAC15 or PAC18 Portable Air Conditioner and Heater. This unit is designed to improve indoor living and working comfort by providing cooling, dehumidifying, heating, and ventilation with minimal installation. Please complete the following information for future reference. Retain this owner’s manual with your sales receipt as a permanent record of your purchase. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before installing and using your portable air conditioner and heater, it is important that you read this owner’s manual carefully. Store this manual in a safe place for future reference. This instruction manual is used for guidance and does not form part of a contract. It reserves the right to make technical changes without prior notice. -
Page 5: Product Diagram

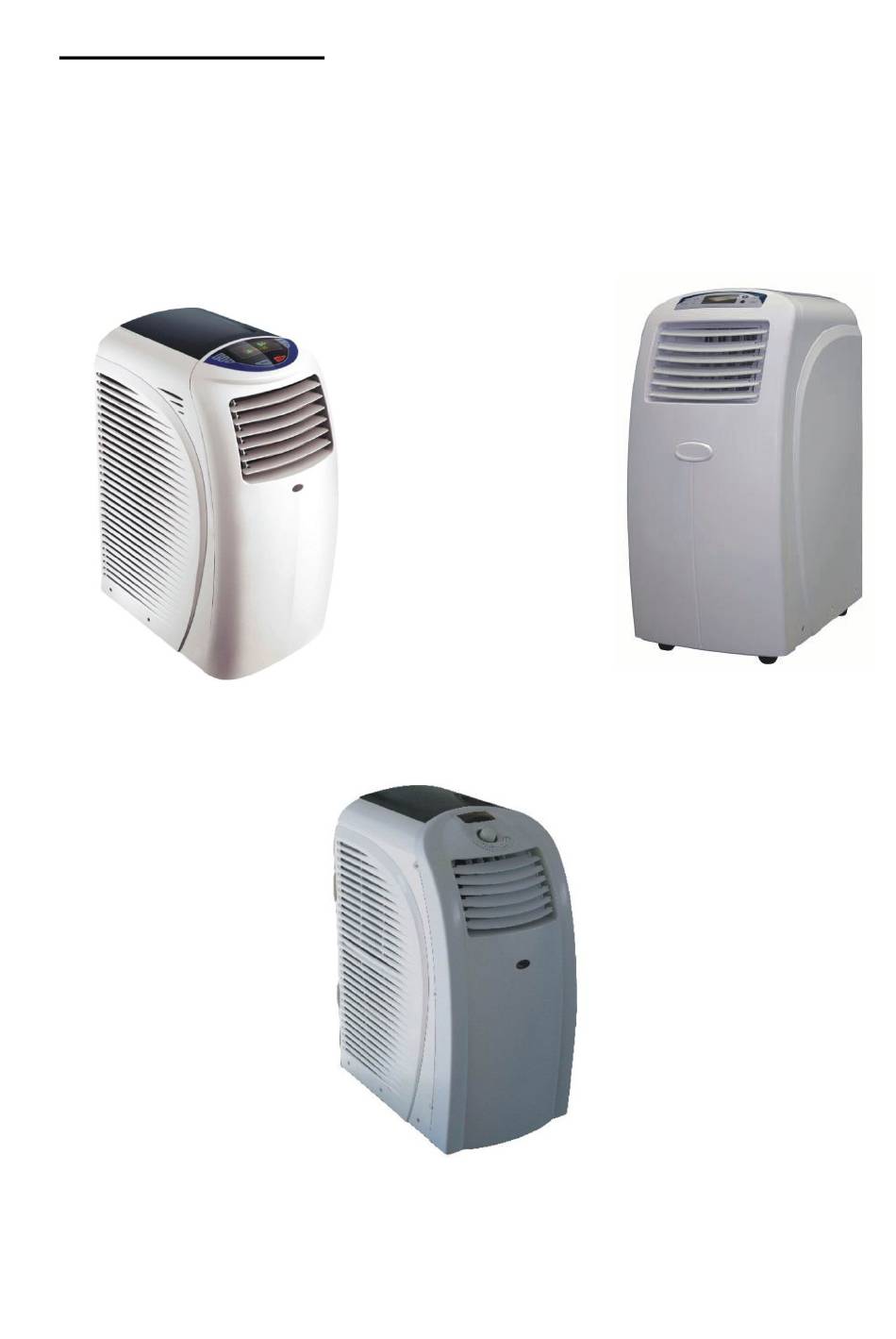

PRODUCT DIAGRAM FRONT （ （ （ （ P AC12 ） ） ） ） A. Control panel B. Vertical air louvers C. Air outlet D. Castors E. Cable (power cord and plug) FRONT （ （ （ （ P AC15 ） ） ） ） Control panel ．... - Page 6 BACK A. Hot air outlet grill Lower air inlet grill ACCESSORIES Flexible exhaust hose with 2 adapters • 3-piece set • stretches from 14 1/4” to 60 5/8” (36cm to 150cm) Window exhaust adapter Adjustable window slider kit • 3-piece set •...
-
Page 7: Installation
INSTALLATION SELECTING THE LOCATION Place the unit in a flat location where the air outlets are not obstructed. Place the unit at least 20” (50cm) away from a wall or other obstacle. MOUNTING THE EXHAUST HOSE Slide the square end of the exhaust duct over the hot air outlet on the back of the unit. -
Page 8: Window Kit Installation
WINDOW KIT INSTALLATION The window kit is designed to fit into most standard vertical and horizontal windows. However, it may be necessary to modify some aspects of the installation process for certain window types. 1. Open the window or sliding door and adjust the length of the window kit to fit the opening. -
Page 9: Control Panel And Multi-Color Displayp Ac12
CONTROL PANEL AND MULTI-COLOR DISPLAY（PAC12） CONTROL PANEL F A N S P E E D T I M E R O N S W I N G T I M E R O F F M O D E O N / O F F FAN SPEED Press this button to choose high, medium or low fan speed. -
Page 10: Control Panel And Multi-Color Displayp Ac15
CONTROL PANEL AND MULTI-COLOR DISPLAY （ （ （ （ P AC15 ） ） ） ） CONTROL PANEL FAN SPEED Press this button to choose high, medium or low fan speed. In dehumidifying mode, this button is Button inoperable. SWING Button Press this button to oscillate the vertical louvers or to stop oscillation. -
Page 11: Control Panel And Multi-Color Displayp Ac18
CONTROL PANEL AND MULTI-COLOR DISPLAY（ （ （ （ PAC18） ） ） ） CONTROL PANEL F A N S W I N Power Button Press this button to turn the unit on or off. Mode Button Press this button to select the mode (auto, cooling, dehumidifying, fan or heating). Swing Button Press this button to oscillate the vertical louvers or to stop oscillation. -
Page 12: Control Panel Functions
CONTROL PANEL FUNCTIONS ON/OFF( POWER ) BUTTON Starts or stops the unit. MODE BUTTON Press to select the operating mode: Fan Mode Air Conditioning Mode Heating Mode Dehumidifying Mode Auto Mode FAN BUTTON Press to select the fan speed: High, Medium, and Low. The fan speed can be visually distinguished by the number of the digital air segments (follow arrow above) flow out from the windmill fan image on the multi-colour display. -
Page 13: Cooling Mode
OPERATION USING THE CONTROL PANEL COOLING 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until “ ”... -
Page 14: Sleep Mode
During the Auto mode, The unit operates in dehumidifying mode when the room temperature is between 68 ° ° F. The unit operates in cooling mode when the room temperature is above 73 ° F. You may use the timer with the Auto mode. -
Page 15: Water Drainage
WATER DRAINAGE When the unit is in cooling mode, unwanted water is extracted from the air. Most of this water is re-used to cool the unit and make it run more efficiently. When the unit is used in extremely humid environments, water will collect in a water container at the bottom of the unit. -
Page 16: Maintenance
MAINTENANCE Always turn off and unplug the unit before cleaning to avoid electrical shock. CLEANING THE HOUSING Wipe the surface of the unit with a soft, damp cloth. Do not use abrasive chemicals or detergents to clean the surface of the unit, as the unit may become scratched or damaged. -
Page 17: Troubleshooting
TROUBLESHOOTING Before seeking repair or service, please check the following: PROBLEM POSSIBLE CAUSE REMEDY Is the unit plugged in? Securely plug the power cord into the wall outlet. Is the main power supply on? Re-establish the main power supply. Unit does not operate or only runs in fan mode.
