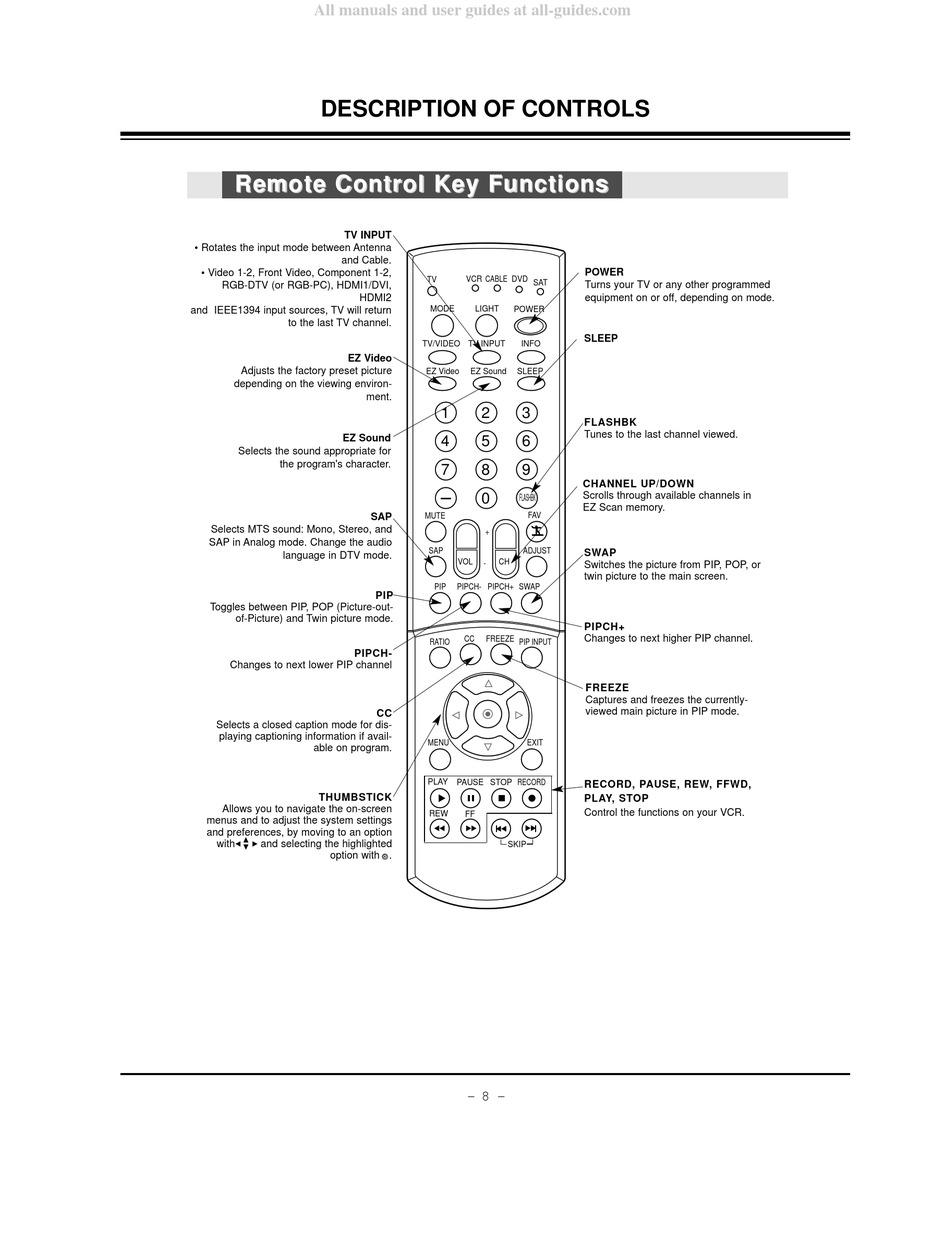

DESCRIPTION OF CONTROLS
Remote Control Key Functions
Remote Control Key Functions
TV INPUT
• Rotates the input mode between Antenna
and Cable.
• Video 1-2, Front Video, Component 1-2,
RGB-DTV (or RGB-PC), HDMI1/DVI,
HDMI2
and IEEE1394 input sources, TV will return
to the last TV channel.
EZ Video
Adjusts the factory preset picture
depending on the viewing environ-
ment.
EZ Sound
Selects the sound appropriate for
the program's character.
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
Toggles between PIP, POP (Picture-out-
of-Picture) and Twin picture mode.
PIPCH-
Changes to next lower PIP channel
Selects a closed caption mode for dis-
playing captioning information if avail-
able on program.
THUMBSTICK
Allows you to navigate the on-screen
menus and to adjust the system settings
and preferences, by moving to an option
D
with and selecting the highlighted
F G
E
option with .
VCR CABLE DVD SAT
TV
MODE LIGHT POWER
TV/VIDEO TV INPUT INFO
EZ Video EZ Sound SLEEP
1 2 3
4 5 6
7 8 9
0
FLASHBK
MUTE FAV
SAP
+
SAP ADJUST
VOL CH
-
PIP PIPCH- PIPCH+ SWAP
PIP
CC FREEZE PIP INPUT
RATIO
CC
MENU EXIT
PLAY
PAUSE STOP RECORD
REW
FF
SKIP
- 8 -
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
SLEEP
FLASHBK
Tunes to the last channel viewed.
CHANNEL UP/DOWN
Scrolls through available channels in
EZ Scan memory.
SWAP
Switches the picture from PIP, POP, or
twin picture to the main screen.
PIPCH+
Changes to next higher PIP channel.
FREEZE
Captures and freezes the currently-
viewed main picture in PIP mode.
RECORD, PAUSE, REW, FFWD,
PLAY, STOP
Control the functions on your VCR.
