Current Transformers (CTs)

CAUTION
Equipment damage. Only connect CTs provided by
Generac. Never connect to any other CTs. Connecting
to other CTs could result in equipment damage.
Current transformers (CTs) are required to use Self
Supply mode and to enable Import / Export Limiting
capability. CTs also allow the inverter to provide
information on utility consumption through the PWRcell
Inverter control panel and the PWRview monitoring app.
A

Connecting CTs to the Inverter

1. See 5-10. Connect CT leads to RJ-45
Figure
Breakout Adapters with push terminals (M) or
screw terminals (N) according to the label on the
breakout adapter.
NOTE: Use yellow lead for CTx+ and use green lead for
CTx-.
M
Figure 5-10. RJ-45 Breakout Adapter
Installation and Owner's Manual for Generac PWRCell Inverter
(000732)
B
D
C
F

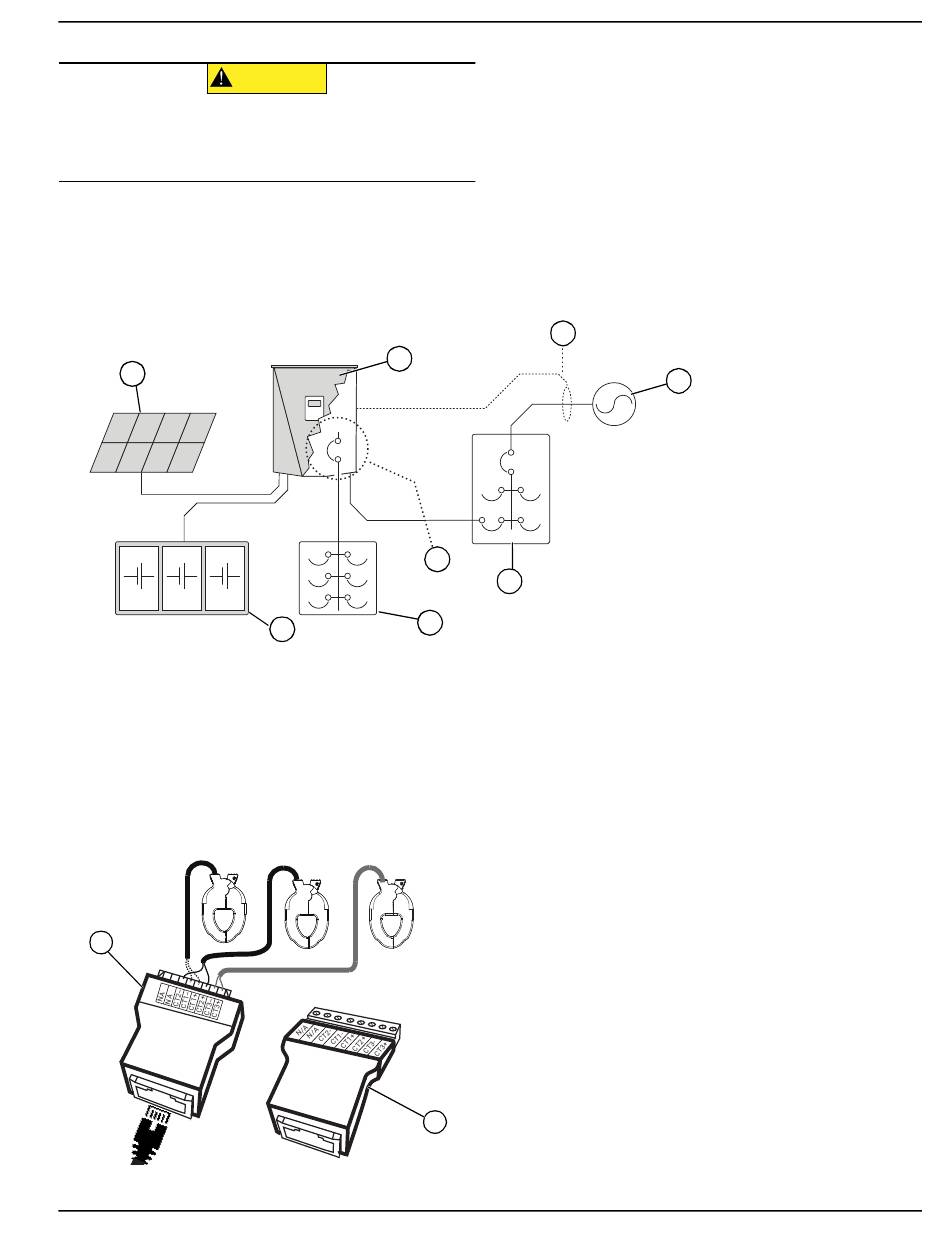

Figure 5-9. Connecting Current Transformers (CTs)
N
012424

Connecting Current Transformers

•
See 5-9. Install CTs around the main
Figure
service conductors between the service meter and
point of interconnection with the inverter.
•
Install one current transformer per phase:
– Install two CTs for split phase grids.
– Install three CTs for three-phase grids.
G
H
A PV Array
B PWRcell Inverter
C Protected Loads Panel
D
Protected Loads Disconnect
E AC Main Panel
F PWRcell Battery
E
G Current Transformers (CTs)
H
Utility
NOTE: RJ-45 Breakout Adapter is included in the
Generac PWRcell Kit.
NOTE: The connection between the RJ-45 Breakout
Adapter and the inverter is made using an installer
supplied Cat 5 cable.
Electrical Connections
