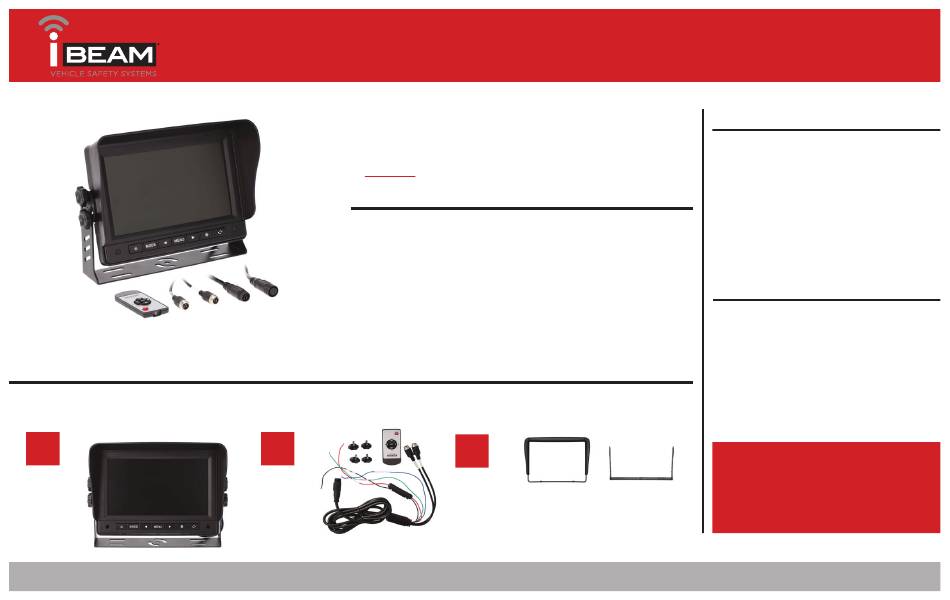

Part Components
A) Monitor
B) Harness and hardware
A
iBEAM Vehicle Safety Systems
®
Commercial AHD
2 Camera Input
Visit
iBEAMUSA.com
for more detailed informatuon about the product and up-to-date vehicle specific
applications.
Product Features
•
7 inch monitor (TE-AHD7M)
•
9 inch monitor (TE-AHD9M)
•
2 camera inputs, audio on both inputs
•
Resolution: 1240 X 600
•
PAL/NTSC auto switching
•
720p/960p/1080p auto switching
C) Sunshade and mount
B
iBEAMUSA.com
©COPYRIGHT 2021 METRA ELECTRONICS CORPORATION

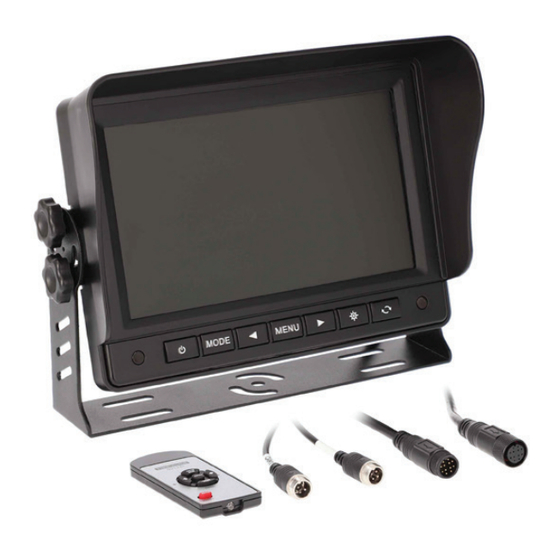

7 inch or 9 inch Monitor
C
TE-AHD7M/
TE-AHD9M
TABLE OF CONTENTS
Button operation and accessing the menu ......2-3
Menu....................................................................4-5
Wiring.......................................................................6
Specifications..........................................................7
TOOLS REQUIRED
• Wire stripper
• Tape
• Digital Multi-meter
Attention!
When testing the aftermarket
equipment, ensure that all factory equip-
ment is connected before cycling the key to
ignition.
REV. 06/08/2021 INSTTE-AHD7M/9M
Advertisement
Related Manuals for Metra Electronics iBeam TE-AHD7M
Summary of Contents for Metra Electronics iBeam TE-AHD7M
- Page 1 B) Harness and hardware C) Sunshade and mount Attention! When testing the aftermarket equipment, ensure that all factory equip- ment is connected before cycling the key to ignition. iBEAM Vehicle Safety Systems ® iBEAMUSA.com ©COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 06/08/2021 INSTTE-AHD7M/9M...
-
Page 2: Button Operation And Accessing The Menu
BUTTON OPERATION - ACCESSING THE SETTINGS Normal button press operation Power - Turns the monitor on and off Mode - Switch between input 1 and input 2 Left arrow - One press of the button brings up the volume menu and will decrease the volume. - Page 3 REMOTE Remote - the buttons on the remote will work the same way the monitor buttons are listed on Page 2 Power Mode Up/positive increase Menu Down/negative decrease Mode Selection Figure A REV. 06/08/2021 INSTTE-AHD7M/9M...
-
Page 4: Menu
MENU Settings Menus Image settings - This menu will allow you to change the settings on the USER preset • Brightness - 0-100 • Contrast - 0-100 Figure A • Saturation - 0-100 • Reset resets all the settings to 50 Voice settings - adjusts the volume of the audio inputs •... - Page 5 MENU CONT. Settings Menu (cont.) System - this menu allows you to change specific settingsfor the operating system • Language - changes the language - see specs for different languages (page 7) • Acc-Time - 0-15 sec - Changes the time of the delay for the trigger after it is no longer active •...
-
Page 6: Wiring
WIRING 386-257-1187 iBEAMUSA.com... -
Page 7: Specifications
SPECIFICATIONS Resolution 1240X600 RGB Video input format 720p/960p/1080p HD 25/30fps TV System NTSC/PAL auto switching Aspect ratio 16:9 Working Voltage 12V-24V Storage Temp. -30°~80 ºC Working Temp. -20°~70 ºC Languages Chinese, English, Dutch, Duetch, French, Italian, Portugese, Spanish, Russian REV. 06/08/2021 INSTTE-AHD7M/9M... - Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. TE-AHD9M TE-AHD7M Metra Recommends MECP certified technicians iBEAM Vehicle Safety Systems ® iBEAMUSA.com ©COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 06/08/2021 INSTTE-AHD7M/9M...
