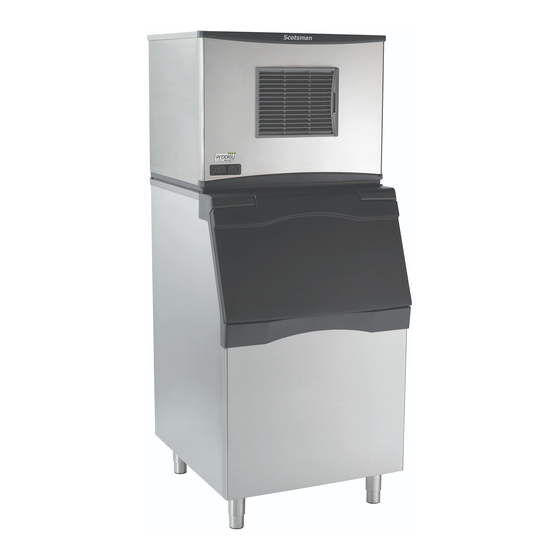

Scotsman C0522 Installation And User Manual
Remote condenser modular cuber
Hide thumbs
Also See for C0522:
- Specification sheet (2 pages) ,
- Technical & service manual (104 pages) ,
- Installation manual (88 pages)
Related Manuals for Scotsman C0522
Summary of Contents for Scotsman C0522
- Page 1 Installation and User's Manual for Remote Condenser Modular Cuber Models: C0522, C0530, C0630, C0830 and C1030...
-
Page 2: Table Of Contents
C0522 Cabinet Dimensions ........Page 4... -
Page 3: Installation: Product Specifications
C0522 through C1030 Remote Condenser Models - User Manual Installation: Product Specifications Location Limitations Power Supply This ice system is made up of three parts, the ice Minimum Maximum making machine, or head; the remote condenser; 115 volt model 104 volts 126 volts and the interconnecting tubing. -
Page 4: Model Number Description
KSB - SmartBoard Advanced feature board standards of UL and NSF. Some installations require bin or dispenser Scotsman assumes no liability of responsibility of adapters. See the table below. any kind for products manufactured by Scotsman that have been altered in any way, including the Standard bin applications –... -
Page 5: C0522 Cabinet Dimensions
C0522 through C1030 Remote Condenser Models - User Manual C0522 Cabinet Dimensions REMOTE CONDENSER 28.2 DISCHARGE LINE 11.12 1/2 MALE CPLG. 19.2 REMOTE CONDENSER 7.58 LIQUID LINE 3/8 MALE CPLG. .88" DIA 2.02 ELECTRICAL ACCESS (2) 15.5 6.11 50.1 19.71 14.56... -
Page 6: C0530, C0630, C0830 And C1030 Cabinet Dimensions
C0522 through C1030 Remote Condenser Models - User Manual C0530, C0630, C0830 and C1030 Cabinet Dimensions REMOTE CONDENSER DISCHARGE LINE 1/2 MALE CPLG. 44.1 17.35 35.1 REMOTE CONDENSER REMOTE CONDENSER LIQUID LINE 13.81 DISCHARGE LINE .88" DIA 3/8 MALE CPLG. -
Page 7: Product Description And Electrical Requirements
208-230/60/3 ERC311-32 10.8 • *Or HACR circuit breakers. Non-Scotsman condensers must have prior Scotsman Engineering approval for warranty ** Maximum width at top panel. coverage to be in effect. Ratings include the remote condenser motor, as it Precharged tubing kits: is designed to be powered by the ice machine. -
Page 8: Water
Testing has shown that using a filter that does not remove chlorine, such as the Scotsman Aqua Patrol, will greatly improve this situation, while the ice making process itself will remove the chlorine from the ice, resulting in no taste or odor impact. -
Page 9: Panel Removal
(two metal straps and four changing the bezel in the front panel's trim strip. A cover up bezel is available from the local Scotsman bolts). distributor. Place the bin and ice machine in the selected location and level it using the bin leg levelers. -
Page 10: Remote Condenser Location
C0522 through C1030 Remote Condenser Models - User Manual Remote Condenser Location Use the following for planning the placement of the Do NOT: condenser relative to the ice machine • Route a line set that rises, then falls, then Location Limits - condenser location must not rises. -
Page 11: For The Installer: Remote Condenser
C0522 through C1030 Remote Condenser Models - User Manual For The Installer: Remote Condenser Locate the condenser as near as possible to the Roof Attachment interior location of the ice machine. Install and attach the remote condenser to the roof... -
Page 12: Precharged Line Routing
C0522 through C1030 Remote Condenser Models - User Manual Precharged Line Routing Do not connect the precharged tubing until all routing and forming of the tubing is complete. See the Coupling Instructions for final connections. 1. Each set of pre-charged tubing lines contains a 3/8”... -
Page 13: Coupling Instructions
C0522 through C1030 Remote Condenser Models - User Manual Coupling Instructions The couplings on the ends of the pre-charged line 4b. Then using two wrenches tighten the coupling sets are self-sealing when installed properly. until it bottoms out or a definite increase in Follow these instructions carefully. -
Page 14: Plumbing Requirements
C0522 through C1030 Remote Condenser Models - User Manual Plumbing Requirements All models require connection to cold, potable 2. Connect drain tubing to drain fitting. water. A hand actuated valve within site of the machine is required. There is a single 3/8” FPT 3. -
Page 15: Electrical
C0522 through C1030 Remote Condenser Models - User Manual Electrical The machine is not supplied with a power cord, one 1. Remove the junction box cover and route the must either be field installed or the machine power cord through the access hole and hard-wired. -
Page 16: Final Check List
C0522 through C1030 Remote Condenser Models - User Manual Final Check List: 1. Is the unit located indoors in a controlled environment? 2. Is the unit located where it can receive adequate cooling air? 3. Has the correct electrical power been supplied to the machine? 4. -
Page 17: Initial Start Up
C0522 through C1030 Remote Condenser Models - User Manual Initial Start Up 1. Remove front and left side panels. Check 6. When the ice has frozen enough, the Ready for machine for any packing or wires rubbing Harvest indicator light will be on steady. After moving parts. -
Page 18: Adjustments
C0522 through C1030 Remote Condenser Models - User Manual Adjustments Bridge Thickness - For the Service Tech Only 1. Push and hold Off till the machine stops. 2. Remove evaporator cover. 3. Remove curtain. 4. Use a hex wrench and rotate the bridge thickness adjustment screw in 1/8 turn increments CW to increase bridge thickness. -
Page 19: Use And Operation
Contact is ON when a curtain is either open or not present. an authorized Scotsman service agent and have the machine cleaned, de-scaled and sanitized. July 2006... -
Page 20: Control Switches
C0522 through C1030 Remote Condenser Models - User Manual Control Switches There is front access to two switches – On and Off. Optional adjustable ice level control (KVS) When this option is present there is an adjustment Status De-Scale post and an additional indicator light to the right of the four indicator lights mentioned above. -
Page 21: Options And Other Information
C0522 through C1030 Remote Condenser Models - User Manual Options and Other Information Optional Advanced Feature Board (KSB) When this option is present there is an additional The cuber drops ice in large sections. That ice will display panel in the area below the main control break up into random parts as it falls into the bin, board. -
Page 22: Cleaning, Sanitation And Maintenance
12 ounces of water. filled. 12. Locate curtain, push in on edge of curtain by 6. Pour 8 ounces of Scotsman Clear 1 ice pivot pin to release it. Pull each curtain out of machine scale remover into the reservoir. - Page 23 Inspect Orifice Holes 1. Remove and discard all ice. Inspect Water Distributor 2. Mix a solution of 7 ounces Scotsman Clear 1 ice machine scale remover to 84 ounces of 14. Locate ice thickness sensor. Squeeze potable water and wash all interior surfaces of mounting legs together to release sensor.
-
Page 24: Remote Condenser
C0522 through C1030 Remote Condenser Models - User Manual Remote condenser The condenser fins will need to be cleaned. Push and release the Off button. Wait until the machine stops. Note: Lock out the controller or the ice machine power supply to prevent an unauthorized fan motor restart. -
Page 25: What To Do Before Calling For Service
C0522 through C1030 Remote Condenser Models - User Manual What to do before calling for service Reasons the machine might shut itself off: • Lack of water. • Freeze cycle takes too long. • Harvest cycle takes too long. •... - Page 26 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-726-8762 www.scotsman-ice.com 17-3083-03 Rev A.
