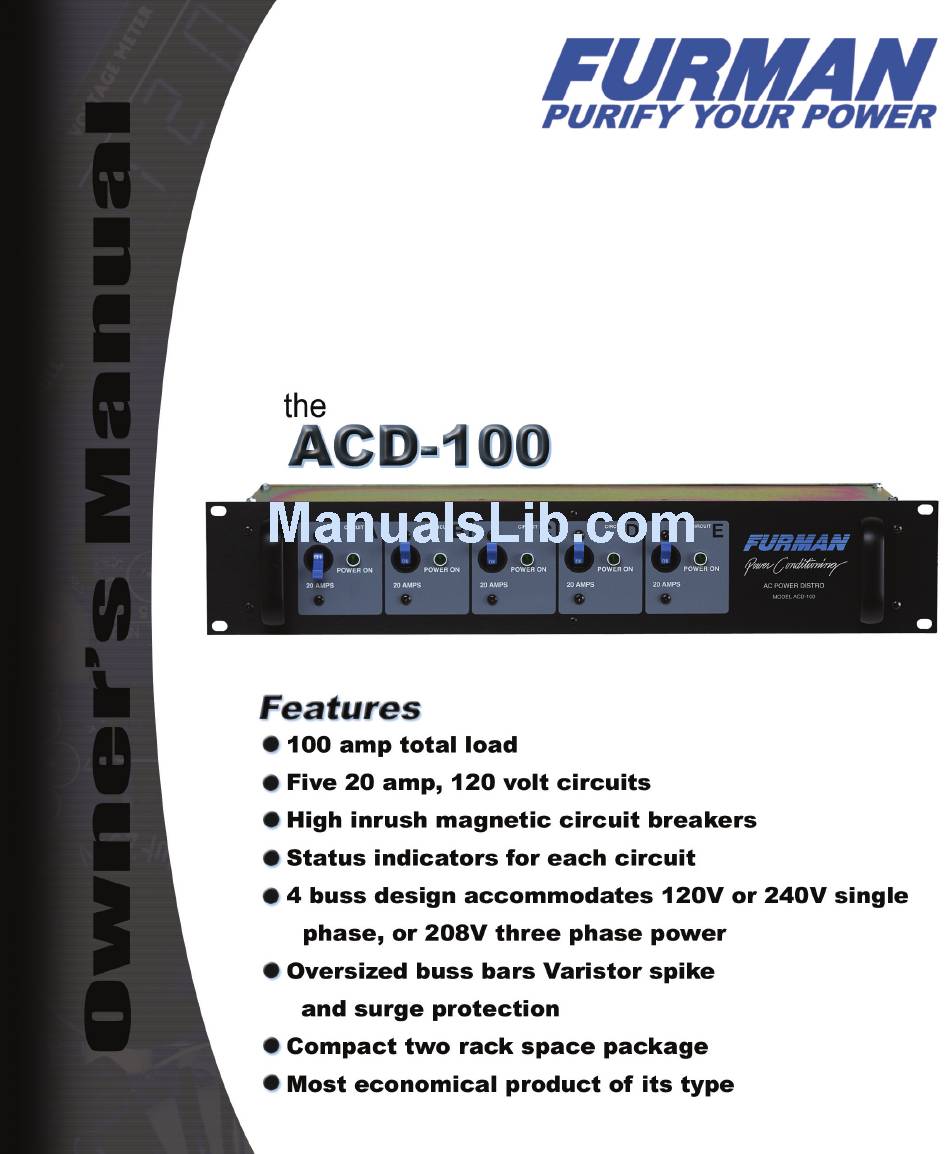

  • Page 1 AR-1 5 AC LINE VOLTAGE REGULATOR POWER CONDITIONER VOLTAGE REGULATORS...

  • Page 2: Safety Warning

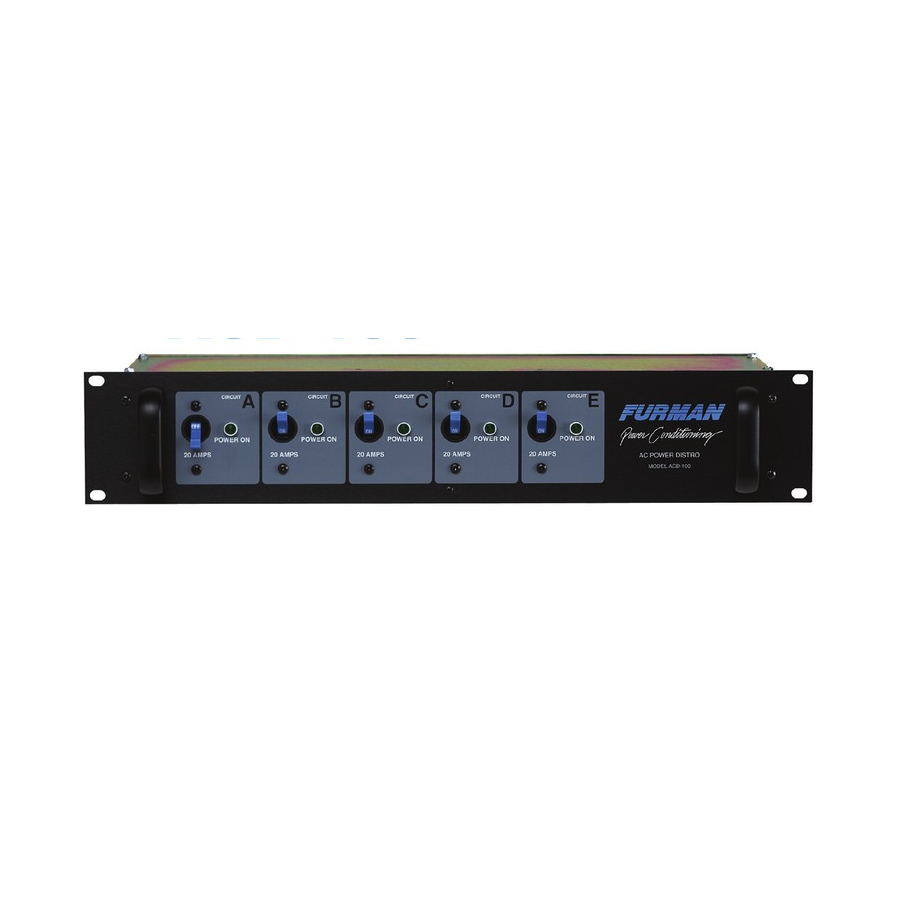

    GENERAL INFORMATION Congratulations on your purchase of a Furman ACD 100 AC Power Distro. The ACD 100 is a compact rack mount power distribution system that is ideal for touring PA systems, touring musical and theatrical acts, mobile recording facilities, on location film and video shoots, etc.

  • Page 3: Wiring Instructions

    flexibility and ease of coiling for storage. Another possibility is to use individual wires (such as welding AC POWER DISTRIBUTION / ACD-100 cable) bundled together every foot or two with plastic ties. The gauge and number of conductors depends on the supply voltage and cable or wire bundle length.
  • Page 4 ACD-100 / AC POWER DISTRIBUTION The ACD 1 00’s strain relief clamp can accommodate a cable up to 1.5 inches in diameter. For reference, a 4 conductor, 2 AWG type S or SO portable cord’s diameter is 1.28 inches. If the cable is to be moved from location...
  • Page 5 AC POWER DISTRIBUTION / ACD-100 wire, grasp it by the terminal and pull straight up. Then reposition it over an unused Fast On male terminal on the appropriate buss bar and push down firmly. Wire the loads in accordance with Table 2.

  • Page 6: Limited Warranty

    fifteen days from the date of purchase to complete warranty registration by mail or on- line at the Furman website. If the Product does not conform to this Limited Warranty during the warranty period (as herein above specified), Purchaser shall notify Manufacturer in writing of the claimed defects.
  • Page 7 Manufacturer at its sole discretion if the product is modified in any way without written authorization from Furman warranty also does not apply to Products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Manufacturer.
  • Page 8 3.5" H x 19" W x 8" D, rack mount.Weight: 12 lbs (5.5 kg). Construction: Steel chassis, zinc chromate plating; .125" brushed and black anodized aluminum front panel None All current carrying components are TUV listed. Furman Sound, Inc. • 1997 South McDowell Blvd. • Petaluma, CA 94954-6919 USA Made in China...
