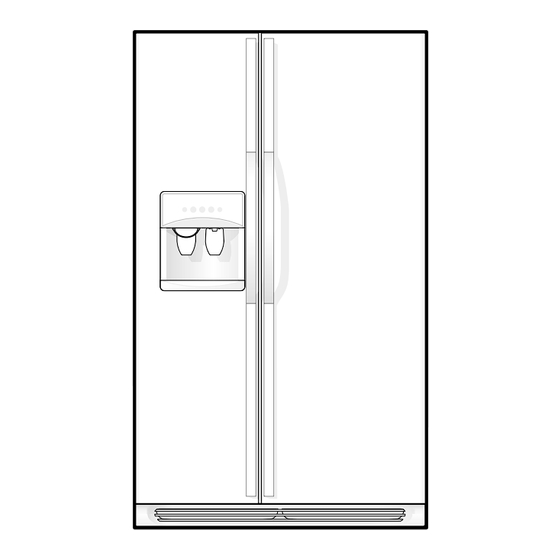

Frigidaire FRS23H5AS Factory Parts Catalog

Side by side refrigerator
Hide thumbs Also See for FRS23H5AS:
Table of Contents

Advertisement

Quick Links

PRODUCT NO.
BASE MODEL NO.
FRS23H5ASB0
FRS23H5AS
FRS23H5ASB1
FRS23H5AS
MARKET
North America
WIRING DIAGRAM - 240389604
OWNER'S GUIDE - 0 = 240389302 & 1 = 240389303
SERVICE DATA SHEET - 240389604
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
SERIES
COLOR
R134a
stainless/black
R134a
stainless/black
Publication No.
5995364261
020122
-EN/SERVICE/KHB
357
PARTS CATALO
VOLTS
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS23H5AS
©2002 Electrolux Home Products, Inc.
All rights reserved
FACTORY
G

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire FRS23H5AS

Summary of Contents for Frigidaire FRS23H5AS

  • Page 1 PRODUCT NO. BASE MODEL NO. FRS23H5ASB0 FRS23H5AS FRS23H5ASB1 FRS23H5AS MARKET North America WIRING DIAGRAM - 240389604 OWNER’S GUIDE - 0 = 240389302 & 1 = 240389303 SERVICE DATA SHEET - 240389604 ELECTROLUX HOME PRODUCTS, INC P.O. BOX 212378, Augusta, GA 30917...

  • Page 2: Freezer Door

    Publication No. FRS23H5AS 5995364261 FREEZER DOOR 01/02...
  • Page 3 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS FREEZER DOOR PART NO DESCRIPTION 240390608 Gasket-frzr door,black ,magnetic 240367301 Bin-door,frzr-upper 240359001 Bin-door 240451830 Door-frzr,stainless steel, complete assy 240456906 Door Stop,black ,frzr...

  • Page 4: Refrigerator Door

    Publication No. FRS23H5AS 5995364261 REFRIGERATOR DOOR 01/02...
  • Page 5 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS REFRIGERATOR DOOR PART NO DESCRIPTION 240390607 Gasket-refr door,black ,magnetic 240363701 Bin-door,2-liter 240338303 Door,dairy ,clear 240456905 Door Stop,black ,ref 240451921 Door-refr,stainless steel, complete assy...
  • Page 6 Publication No. FRS23H5AS 5995364261 CABINET 01/02...
  • Page 7 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 14 # 14A# 100* # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS CABINET PART NO DESCRIPTION 240435901 Cover-air duct 240475901 Cover-evap coil,lower 5303208309 Plug-hole,factory test 240413601 Switch,light/lamp ,rocker 215486600...
  • Page 8 Publication No. FRS23H5AS 5995364261 SHELVES 01/02...
  • Page 9 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 42A* 42A* # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS SHELVES PART NO DESCRIPTION 240434601 Trim-basket 240338801 Shelf-freezer,flip-up 240338703 Shelf-freezer,fixed wire 240355211 Shelf-"Spill-Safe",fixed 240355209 Shelf-"Spill-Safe",fixed 240350107 Shelf-"Spill-Safe",cantilever ,sliding 240354501...
  • Page 10 Publication No. FRS23H5AS 5995364261 CONTROLS 01/02...
  • Page 11 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 13 # 21 # 115* 137* 139* 199* # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS CONTROLS PART NO DESCRIPTION 5308000010 Fan Blade,red ,evaporator fan 5300157666 Bushing-motor mtg,(2) 5303292396...
  • Page 12 Publication No. FRS23H5AS 5995364261 SYSTEM 01/02...
  • Page 13 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 6* # 15 # 29 # 30 # 55 # 60 # 61 # # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS SYSTEM PART NO DESCRIPTION 240333602 Condenser 218679606...
  • Page 14 Publication No. FRS23H5AS 5995364261 DISPENSER 01/02...
  • Page 15 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 38A# # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS DISPENSER PART NO DESCRIPTION 218976405 Tube-water inlet 218976901 Tube-water inlet,inlet valve to ice maker 218976903 Tube-water inlet,inlet valve ,to filter...

  • Page 16: Ice Container

    Publication No. FRS23H5AS 5995364261 ICE CONTAINER 01/02...
  • Page 17 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 18 # 45 # # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS ICE CONTAINER PART NO DESCRIPTION 5304404344 Auger-ice 5304404343 Cam-drive 218815300 Container-ice,bucket only 5304404346 Drum-ice disp 218815400 Front-ice container...

  • Page 18: Ice Maker

    Publication No. FRS23H5AS 5995364261 ICE MAKER 01/02...
  • Page 19 A = FRS23H5AS (FRS23H5ASB0) B = FRS23H5AS (FRS23H5ASB1) POS. NO 11 # 12 # 13 # 15 # 17 # 55 # 55*# 55*# # = Fast-moving Parts * = Non-Illustrated Parts FRS23H5AS ICE MAKER PART NO DESCRIPTION 218976405 Tube-water inlet...

  • Page 20: Wiring Schematic

    Publication No. FRS23H5AS 5995364261 WIRING SCHEMATIC 01/02...

  • Page 21: Wiring Diagram

    FRS23H5AS Publication No. 5995364261 WIRING DIAGRAM # = Fast-moving Parts 01/02 * = Non-Illustrated Parts...
