Frigidaire FRS23H7C Factory Parts Catalog

Frigidaire FRS23H7C Factory Parts Catalog

Side by side
Hide thumbs Also See for FRS23H7C:
Table of Contents

Advertisement

Quick Links

See also: Factory Parts Catalog
PRODUCT NO.
BASE MODEL NO.
FRS23H7CB1
FRS23H7C
FRS23H7CQ1
FRS23H7C
FRS23H7CW1
FRS23H7C
FRS23H7CSB1
FRS23H7C
MARKET
North America
ENERGY GUIDE - B, Q, W = 240465097 & SB = 240592210
OWNER'S GUIDE - # 240389311
SERVICE DATA SHEET - #240389613
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
SERIES
COLOR
R134a Gallery
black
R134a Gallery
bisque
R134a Gallery
white
R134a Gallery
stain/blk
Publication No.
5995394243
030815
-EN/SERVICE/KHB
357
PARTS CATALO
VOLTS
115
115
115
115

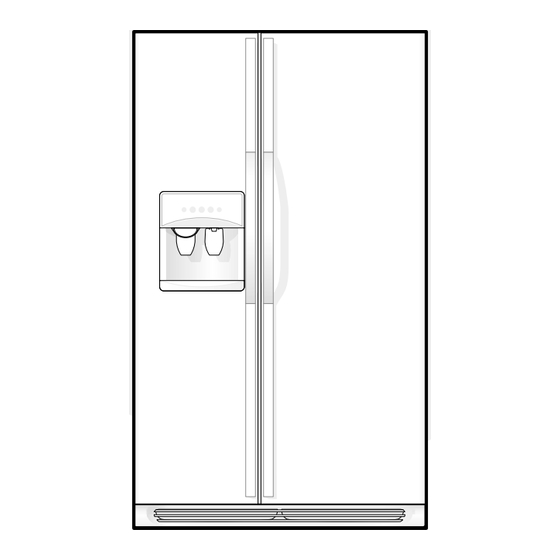

SIDE BY SIDE
REFRIGERATOR
Model No.
FRS23H7C
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY
G

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire FRS23H7C

Summary of Contents for Frigidaire FRS23H7C

  • Page 1 FACTORY PARTS CATALO PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRS23H7CB1 FRS23H7C R134a Gallery black FRS23H7CQ1 FRS23H7C R134a Gallery bisque FRS23H7CW1 FRS23H7C R134a Gallery white FRS23H7CSB1 FRS23H7C R134a Gallery stain/blk MARKET North America ENERGY GUIDE - B, Q, W = 240465097 & SB = 240592210 OWNER’S GUIDE - # 240389311 SERVICE DATA SHEET - #240389613 SIDE BY SIDE...

  • Page 2: Freezer Door

    Publication No. FRS23H7C 5995394243 FREEZER DOOR 08/03...
  • Page 3 FRS23H7C Publication No. 5995394243 FREEZER DOOR A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 240390608 A - - D Gasket-frzr door, black, magnetic 240390604 - B C - Gasket-frzr door, white 240367301 A B C D...

  • Page 4: Refrigerator Door

    Publication No. FRS23H7C 5995394243 REFRIGERATOR DOOR 08/03...
  • Page 5 FRS23H7C Publication No. 5995394243 REFRIGERATOR DOOR A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 240390607 A - - D Gasket-refr door,black ,magnetic 240390603 - B C - Gasket-refr door,white ,magnetic 240363702 A B C D...
  • Page 6 Publication No. FRS23H7C 5995394243 CABINET 08/03...
  • Page 7 FRS23H7C Publication No. 5995394243 CABINET A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 240435901 A B C D Cover-air duct 240475901 A B C D Cover-evap coil,lower 5303208309 A B C D Plug-hole,factory test...
  • Page 8 Publication No. FRS23H7C 5995394243 SHELVES 08/03...
  • Page 9 FRS23H7C Publication No. 5995394243 SHELVES A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 240434603 A B C D Trim-basket 240350648 A B C D Shelf-freezer,glass ,lower 240350647 A B C D Shelf-freezer,glass ,upper 240588001...
  • Page 10 Publication No. FRS23H7C 5995394243 CONTROLS 08/03...
  • Page 11 FRS23H7C Publication No. 5995394243 CONTROLS A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 5308000010 A B C D Fan Blade,red ,evaporator fan 5300157666 A B C D Bushing-motor mtg,(2) 5303292396 A B C D...
  • Page 12 Publication No. FRS23H7C 5995394243 SYSTEM 08/03...
  • Page 13 FRS23H7C Publication No. 5995394243 SYSTEM A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 240333602 A B C D Condenser 218679606 A B C D Block-evap coil, styrofoam, (2) 218944001 A B C D Drier-filter, R134a System...
  • Page 14 Publication No. FRS23H7C 5995394243 DISPENSER 08/03...
  • Page 15 FRS23H7C Publication No. 5995394243 DISPENSER A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 218976409 A B C D Tube-water 218976901 A B C D Tube-water inlet, inlet valve to ice maker 218976903 A B C D Tube-water inlet, inlet valve to filter...

  • Page 16: Ice Container

    Publication No. FRS23H7C 5995394243 ICE CONTAINER 08/03...
  • Page 17 FRS23H7C Publication No. 5995394243 ICE CONTAINER A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 5304428402 A B C D Auger-ice 5304404343 A B C D Cam-drive 218815300 A B C D Container-ice,bucket only 5304404346...

  • Page 18: Ice Maker

    Publication No. FRS23H7C 5995394243 ICE MAKER 08/03...
  • Page 19 FRS23H7C Publication No. 5995394243 ICE MAKER A = FRS23H7C (FRS23H7CB1) B = FRS23H7C (FRS23H7CQ1) C = FRS23H7C (FRS23H7CW1) D = FRS23H7CS (FRS23H7CSB1) POS. NO PART NO DESCRIPTION 218976409 A B C D Tube-water 218976901 A B C D Tube-water inlet, inlet valve to ice maker 218976903 A B C D Tube-water inlet, inlet valve to filter...

  • Page 20: Wiring Schematic

    Publication No. FRS23H7C 5995394243 WIRING SCHEMATIC 08/03...

  • Page 21: Wiring Diagram

    FRS23H7C Publication No. 5995394243 WIRING DIAGRAM # = Fast-moving Parts 08/03 * = Non-Illustrated Parts...

This manual is also suitable for:

Frs23h7cb1Frs23h7cq1Frs23h7cw1Frs23h7csb1
