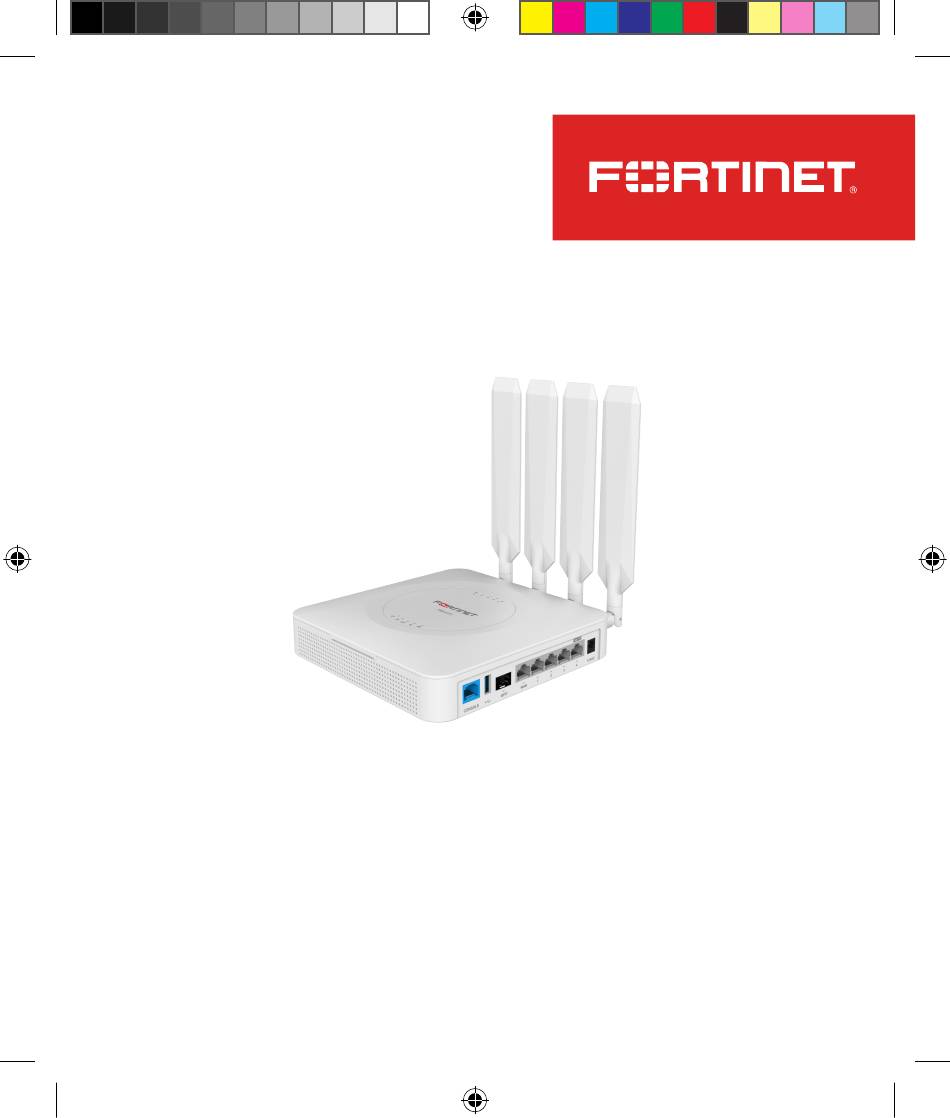

- Page 1 FortiExtender 511F QuickStart Guide FortiExtender-511F-QuickStart.indd 1 FortiExtender-511F-QuickStart.indd 1 7/22/2021 6:21:37 PM 7/22/2021 6:21:37 PM...
- Page 2 , and certain other marks are registered trademarks ® ® of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
-
Page 3: Register For Support
Register for Support Register your Fortinet product to receive: • Technical Support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalités du produit • Protection contre de nouvelles menaces La reistrazione ti permette di usufruire di: •... -
Page 4: Packing List
Packing List 5G/LTE/GNSS All-in-One Antennas FortiExtender-511 Mounting Kit Anchors and Screws Rubber Feet QuickStart Guide Drill Template Sticker FortiExtender-511F-QuickStart.indd 4 FortiExtender-511F-QuickStart.indd 4 7/22/2021 6:21:38 PM 7/22/2021 6:21:38 PM... -
Page 5: Product Description
When 5G connection is unavailable, it provides 4G LTE CAT 20 connection with a maximum downlink speed of 2 Gbps and a maximum uplink speed of 200 Mbps. FEX-511F is able to provide one 1G SFP connection, one 1G RJ-45 wired WAN connection, and four 1G LAN connections. - Page 6 Ports, LEDs, and Buttons LAN (1–4) Ports & LEDs USB 2.0 Port SFP Port & LED WAN Port & LED Port 4 is PoE PD LAN (802.3at) Console Port 12V/2A Input (optional) Note: To access the device from (Use 12V/2A power adapter with ID 2.1 mm plug.) its console port, you must set the baud rate to 115200.
- Page 7 SIM Slot Cover Kensington Lock Slot Bluetooth LED SIM Slot Cover Screw Reset/Default Button Bluetooth Button FortiExtender-511F-QuickStart.indd 7 FortiExtender-511F-QuickStart.indd 7 7/22/2021 6:21:39 PM 7/22/2021 6:21:39 PM...
- Page 8 LED Behavior Behavior and Description • Green Steady: 1 G network connection. • Green Flashing: 1 G network activity. • OFF: No network connection. RJ45 Network LEDs • Green Steady: 1G network connected. • Green Flashing: 1G network activity. • Amber Steady: 100M network connected.
- Page 9 RF Connectors & System LEDs 5G Module RF Connectors MIMO2 Diversity/GNSS Main MIMO1 LTE/5G LTE/5G Signal Level 1 LTE/5G Signal Level 2 LTE/5G Signal Level 3 LTE/5G Signal Level 4 Power LTE Mode 5G Mode Management FortiSASE/LAN Extension FortiExtender-511F-QuickStart.indd 9 FortiExtender-511F-QuickStart.indd 9 7/22/2021 6:21:39 PM 7/22/2021 6:21:39 PM...
- Page 10 The following tables describe the use of RF connectors and the system LEDs on top of the FEX-511F casing. Description Power • Green Steady: System has booted up and is working properly. • Green Flashing: System is booting up. •...
- Page 11 LEDs Description 5G/LTE • Blue Steady: 5G module connected to carrier in 5G and works properly. • Green Steady: 5G module is connected to wireless carrier in LTE mode and works properly. • Green Flashing: 5G module is booting up and connecting to wireless carrier.
- Page 12 Wall Mounting Holes Wall Hanging Slots SIM Slot Cover Screw Rubber Feet Slots FortiExtender-511F-QuickStart.indd 12 FortiExtender-511F-QuickStart.indd 12 7/22/2021 6:21:40 PM 7/22/2021 6:21:40 PM...
-
Page 13: Basic Connections
Basic Connections Internet LAN/PoE Optional Power Connection 1. Insert one end of an Ethernet cable into the LAN 4/PoE PD port on the device. 2. Insert the other end of the Ethernet cable into the PoE LAN port of your FortiGate appliance, or to a WAN port of your FortiGate through a power injector. - Page 14 Assembly 1. Remove the dust cover that protects the SIM sockets. 2. Insert your MicroSIM (3FF) SIM card(s) into the SIM socket(s). 3. Observe the following guidelines: • If installing one SIM card, you can insert the card into either SIM socket. •...
- Page 15 IP Configuration After you have connected the FortiExtender network interfaces, the device automatically attempts to obtain an IP address from a DHCP server. If you do not use DHCP, you can configure a static IP address. To configure a static IP address: 1.
-
Page 16: Installation
Installation The FortiExtender device is designed for placement near a window (desk or wall mount) to achieve the best 5G/LTE signal strength. Refer to the diagram below for proper placement and mounting. FortiExtender-511F-QuickStart.indd 16 FortiExtender-511F-QuickStart.indd 16 7/22/2021 6:21:41 PM 7/22/2021 6:21:41 PM... - Page 17 Place on top of a desk or flat surface 1. Attach the rubber feet to the four corners on the bottom of the unit. 2. Place the unit on the desk or flat surface. 3. Secure the unit in place with a Kensington lock. 4.
- Page 18 Hang on a wall 1. Peel off the drill template sticker, and stick it onto the wall in a desired location. 2. Use the template to mark and drill the pilot holes. 3. Insert the anchors into the holes. 4. Insert the screws into the anchors and tighten, leaving around a 5-mm gap between the screw head and the wall.
- Page 19 FortiExtender-511F-QuickStart.indd 19 FortiExtender-511F-QuickStart.indd 19 7/22/2021 6:21:41 PM 7/22/2021 6:21:41 PM...
- Page 20 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez-vous à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...
- Page 21 20cm de distance entre la source de rayonnement et votre corps. This radio transmitter (IC: 7280B-251M01 / Model: FEX-511F) has been approved by ISED to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
- Page 22 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
- Page 23 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU Compliance with 2014/53/EU Radio Equipment Directive (RED) In accordance with Article 10.8(a) and 10.8(b) of the RED, the following table provides information on the frequency bands used and the maximum RF transmit power of the product for sale in the EU: FortiExtender-511F-QuickStart.indd 23...
- Page 24 Radio Frequency Range Maximum Transmit Power Bluetooth 2402 MHz—2480 MHz 10 dBm (EIRP) WCDMA Band 1: 1920—1980 MHz (Uplink); 2110—2170 MHz (Downlink) 25 dBm (Conducted) Band 3: 1710—1785 MHz (Uplink); 1805—1880 MHz (Downlink) Band 8: 880—915 MHz (Uplink); 925—960 MHz (Downlink) Band 1: 1920—1980 MHz (Uplink);...
- Page 25 This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This product is in compliance with Statutory Instrument 1206 Radio Equipment Regulations 2017 The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/UK FortiExtender-511F-QuickStart.indd 25 FortiExtender-511F-QuickStart.indd 25...
- Page 26 (except as provided in section 5 (“Transfer”) and section 15 (“Open Source Software”) below), non-exclusive, revocable (in the event of your failure to comply with these terms or in the event Fortinet is not properly paid for the applicable Product) license to use the Software...
- Page 27 Fortinet. It is the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped from Fortinet, and it is the end user’s responsibility to understand the original ship date from the party from which the end user purchased the product. All warranty claims must be submitted in writing to Fortinet before the expiration of the warranty term or such claims are waived in full.
- Page 28 For any Open Source Software covered under the GPL, the source code is made available on this CD or download package. If any Open Source Software licenses require that Fortinet provide rights to use, copy or modify any Open Source Software program that are broader than the rights granted in this agreement, then such rights shall take precedence over the rights and restrictions herein.
- Page 29 Public License Source Code Request, Fortinet, Inc., 899 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive the modified software modules, you must also include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mail Address, (e) Product purchased (if applicable), (f ) Product Serial Number (if applicable).
- Page 30 GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License.
- Page 31 If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices.
- Page 32 (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2 instead of to this License.
- Page 33 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are im- posed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
- Page 34 FortiExtender-511F-QuickStart.indd 34 FortiExtender-511F-QuickStart.indd 34 7/22/2021 6:21:41 PM 7/22/2021 6:21:41 PM...
- Page 35 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
