- Page 1 FortiExtender 200F QuickStart Guide ortiExtender-200F-QuickStart.indd 1 ortiExtender-200F-QuickStart.indd 1 1/25/2021 12:19:34 PM 1/25/2021 12:19:34 PM...
- Page 2 , and certain other marks are registered trademarks ® ® of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
- Page 3 Register for Support Register your Fortinet product to receive: • Technical Support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalitées du produit • Protection contre de nouvelles menaces La reistrazione ti permette di usufruire di: •...
-
Page 4: Packing List
Packing List FortiExtender 200F QuickStart Guide 12V/1A Power Adapter Power Adapter Plug Tips (US/EU) Anchors and Screws Wall-mount Ears Rubber Feet ortiExtender-200F-QuickStart.indd 4 ortiExtender-200F-QuickStart.indd 4 1/25/2021 12:19:35 PM 1/25/2021 12:19:35 PM... -
Page 5: Product Description

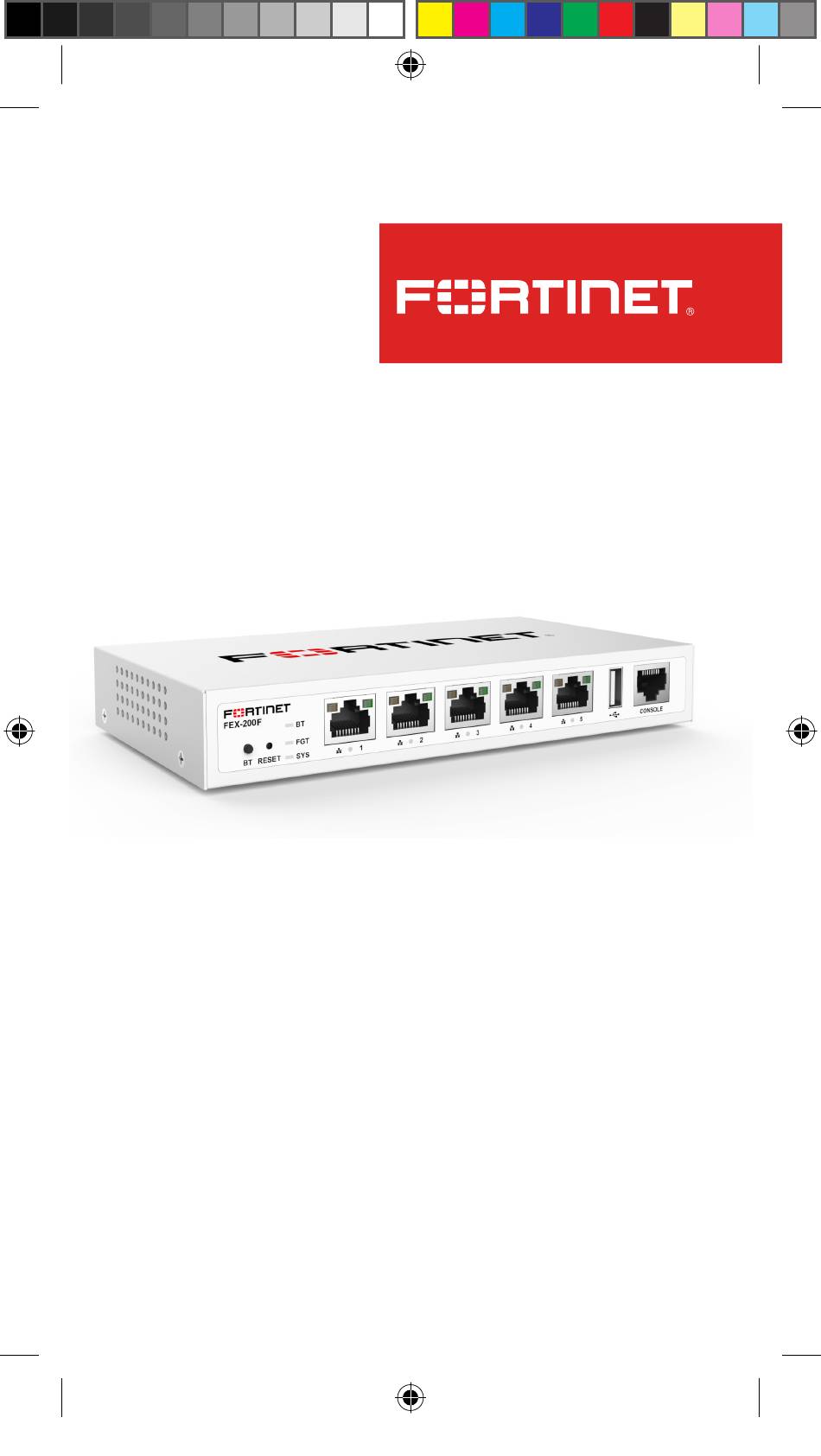

Product Description FortiExtender 200F is a data terminal device to serves as an extension of the FortiGate LAN interface, which connects to the central FortiGate through a secured L-2 tunnel, to apply central Layer-2 through Layer-7 security solutions for small branch and remote offices. -
Page 6: Power Input
Ports, LEDs, and Buttons Bluetooth LED Console Port FortiGate LED RJ45 Port LEDs System LED WAN/LAN Port LEDs USB Port Reset/Default Button Bluetooth Button Power Input 12V Input Grounding Tab (Use the 12V/1A power adapter) (Optional) ortiExtender-200F-QuickStart.indd 6 ortiExtender-200F-QuickStart.indd 6 1/25/2021 12:19:35 PM 1/25/2021 12:19:35 PM... - Page 7 Operation Status LEDs Behavior and Description • Off—No power. (System) • Green—In normal operation; flashing when booting up. • Amber—Error/warning. • Green Steady—Connected to centeral (FortiGate) FortiGate. • Green Flashing—Connecting to central FortiGate. • Amber Steady—Failed to connect to central FortiGate.
- Page 8 RJ-45 Ports LEDs Port Behavior and Description • Green Steady—1000M network connected. • Green Flashing—1000M network activity. • Amber Steady—100M network connected. • Amber Flashing—100M network activity. • OFF—No network connected. • Green Steady—1000M network connected. • Green Flashing—1000M network activity. •...
- Page 9 RESET and BT (Bluetooth) Buttons Button Operating Instructions Reset/Default Button • Press and hold for 5 seconds or less: Reboot the system. • Press and hold for more than 5 seconds: Restore the device to its factory default settings. • Press and hold for 5 seconds or less: Ignored.
-
Page 10: Basic Connections
Basic Connections Internet Power Connection ortiExtender-200F-QuickStart.indd 10 ortiExtender-200F-QuickStart.indd 10 1/25/2021 12:19:36 PM 1/25/2021 12:19:36 PM... - Page 11 To configure a static IP address: 1. Use an Ethernet cable to connect one of the LAN ports in the back of the FEX-200F to the Ethernet port of your computer. 2. Configure the computer to be on the same subnet as the FEX- 200F by changing its IP address to 192.168.200.100 and the...
-
Page 12: Installation
Installation Place on top of a desk or flat surface 1. Attach the rubber feet to the four corners on the bottom of the unit. 2. Place the unit on a desk or flat surface. ortiExtender-200F-QuickStart.indd 12 ortiExtender-200F-QuickStart.indd 12 1/25/2021 12:19:36 PM 1/25/2021 12:19:36 PM... - Page 13 Hang on a wall 1. Attach the hanging ears to the bottom of the unit. 2. Position the device on an ideal location on the wall, and mark and drill the pilot holes. 3. Insert the anchors into the holes. 4.
- Page 14 Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité...
- Page 15 Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.
- Page 16 This declaration is only valid for Fortinet products (including combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end-customer directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU...
- Page 17 Suomi Tämä tuote on direktiivin 2014/53/EU mukainen. Svenska Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full declaration of conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU ortiExtender-200F-QuickStart.indd 17 ortiExtender-200F-QuickStart.indd 17 1/25/2021 12:19:36 PM 1/25/2021 12:19:36 PM...
- Page 18 5 (“Transfer”) and section 15 (“Open Source Software”) below), non-exclusive, revo- cable (in the event of your failure to comply with these terms or in the event Fortinet is not properly paid for the applicable Product) license to use the Software solely for your internal business purposes (provided, if (a)
- Page 19 Hardware will be refunded by Fortinet upon return to Fortinet of the defective Hardware. All Hardware (or part thereof ) that is replaced by Fortinet, or for which the purchase price is refunded, shall become the property of Fortinet upon replacement or refund. Fortinet warrants that Software as initially shipped by Fortinet will substantially conform to Fortinet’s then-current...
- Page 20 (d) is licensed for beta, evaluation, donation, testing or demonstration purposes or for which Fortinet does not charge a purchase price or license fee; or (e) is procured from a non-authorized reseller or non-authorized distributor. In the case of beta, testing, evaluation, donation or free Software or...
- Page 21 Agreement or transfer any of the rights or obligations under this Agreement without the prior written consent of Fortinet. This Agreement shall be binding upon, and inure to the benefit of, the successors and permitted assigns of the parties. The United Nations Convention on Contracts for the International Sales of Goods is expressly excluded.
- Page 22 warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
- Page 23 application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
- Page 24 make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works.
- Page 25 contradiction means you cannot use both them and the Library together in an executable that you distribute. 7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any...
- Page 26 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
