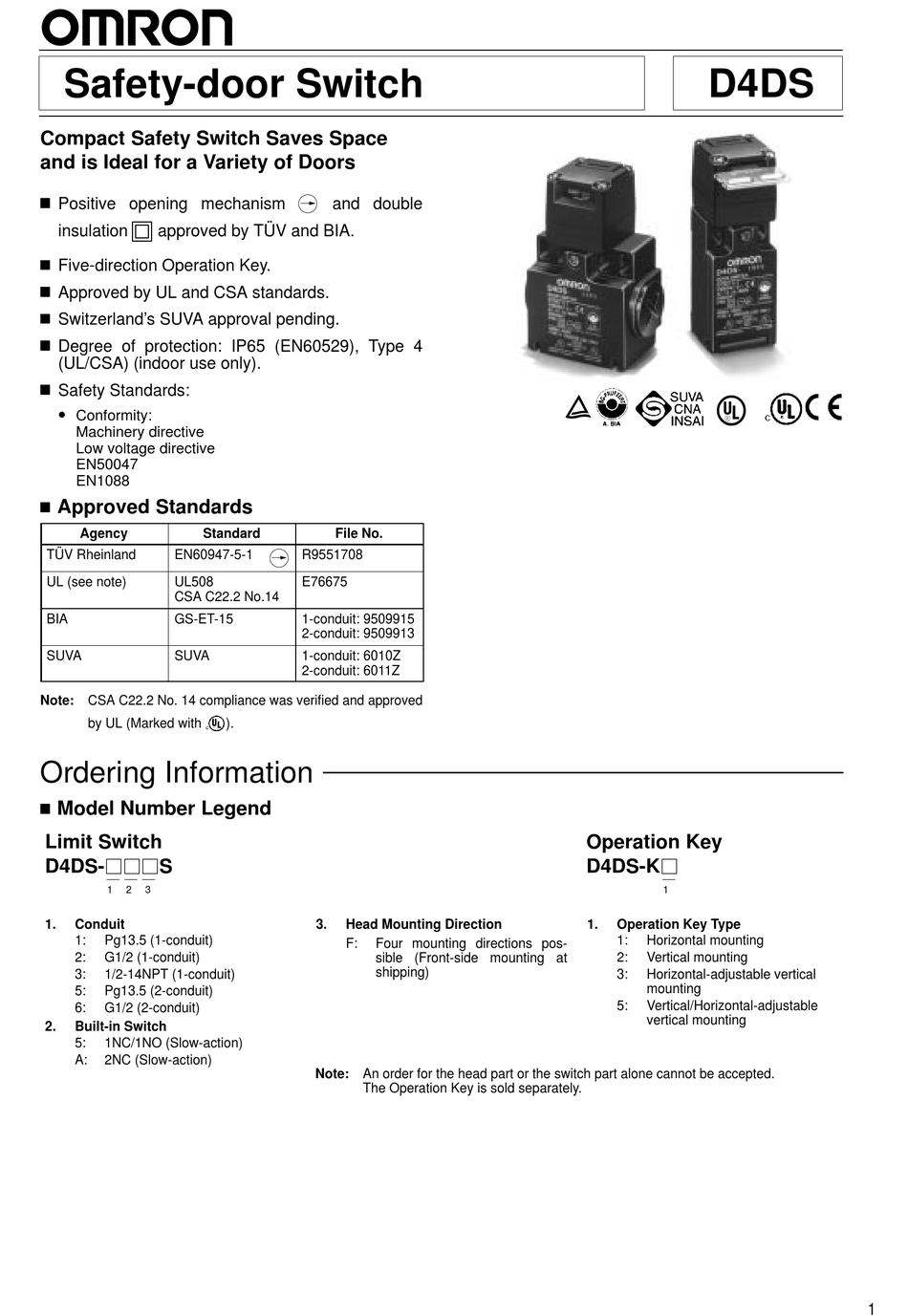

Safety-door Switch
Compact Safety Switch Saves Space
and is Ideal for a Variety of Doors
Positive opening mechanism
insulation
approved by TÜV and BIA.
Five-direction Operation Key.
Approved by UL and CSA standards.
Switzerland's SUVA approval pending.
Degree of protection: IP65 (EN60529), Type 4
(UL/CSA) (indoor use only).
Safety Standards:
Conformity:
Machinery directive
Low voltage directive
EN50047
EN1088
Approved Standards
Agency
Standard
TÜV Rheinland
EN60947-5-1
UL (see note)
UL508
CSA C22.2 No.14
BIA
GS-ET-15
SUVA
SUVA
Note: CSA C22.2 No. 14 compliance was verified and approved
by UL (Marked with
Ordering Information
Model Number Legend
Limit Switch
D4DS-jjjS
1
2
3
1.
Conduit
1:
Pg13.5 (1-conduit)
2:
G1/2 (1-conduit)
3:
1/2-14NPT (1-conduit)
5:
Pg13.5 (2-conduit)
6:
G1/2 (2-conduit)
2.
Built-in Switch
5:
1NC/1NO (Slow-action)
A:
2NC (Slow-action)
and double
File No.
R9551708
E76675
1-conduit: 9509915
2-conduit: 9509913
1-conduit: 6010Z
2-conduit: 6011Z
).
3.
Head Mounting Direction
F:
Four mounting directions pos-
sible (Front-side mounting at
shipping)
Note: An order for the head part or the switch part alone cannot be accepted.
The Operation Key is sold separately.
D4DS
u
E
Operation Key
D4DS-Kj
1
1.
Operation Key Type
1:
Horizontal mounting
2:
Vertical mounting
3:
Horizontal-adjustable vertical
mounting
5:
Vertical/Horizontal-adjustable
vertical mounting
1
Advertisement
Table of Contents
Related Manuals for Omron D4DS
Summary of Contents for Omron D4DS
- Page 1 Safety-door Switch D4DS Compact Safety Switch Saves Space and is Ideal for a Variety of Doors Positive opening mechanism and double insulation approved by TÜV and BIA. Five-direction Operation Key. Approved by UL and CSA standards. Switzerland’s SUVA approval pending.
-
Page 2: List Of Models
D4DS D4DS List of Models Type Conduit size 1NC/1NO (Slow-action) 2NC (Slow-action) Model Model 1-conduit Pg13.5 D4DS-15FS D4DS-1AFS G1/2 D4DS-25FS D4DS-2AFS 1/2-14NPT D4DS-35FS D4DS-3AFS 2-conduit Pg13.5 D4DS-55FS D4DS-5AFS G1/2 D4DS-65FS D4DS-6AFS Accessories (Order Separately) Operation Keys Type Model Horizontal mounting... -
Page 3: Specifications
2. Life expectancy values are calculated at an operating temperature of 5 C to 35 C, and an operating humidity of 40% to 70%. Con- tact your OMRON sales representative for more detailed information on other operating environments. 3. These figures are minimum requirements for safe operation. -
Page 4: Operating Characteristics
58.84 N Min. positive opening stroke (see note) 10 mm Note: Make sure that the positive opening stroke is at least 16 mm in order to use the D4DS safely. Nomenclature Head The head can be mounted in four directions. The Opera-... -
Page 5: Operation
The terminals 11-12 and 23-24 can Stroke be used as opposing poles. Insertion Fully-drawn position position D4DS-jAjS 2NC NC contacts 11-12 and 21-22 have 11 - 12 an approved positive opening 21 - 22 mechanism. The terminals 11-12 and 23-24 can Stroke be used as opposing poles. - Page 6 D4DS D4DS Dimensions Note: 1. All units are in millimeters unless otherwise indicated. 2. Unless otherwise specified, a tolerance of 0.4 mm applies to all dimensions. 3. The conduit thread varies with the model as follows: Conduit thread Model Pg13.5...
- Page 7 D4DS D4DS Operation Keys D4DS-K1 D4DS-K2 D4DS-K3 Horizontal Mounting Vertical Mounting Horizontal-adjustable Vertical Mounting Four, R2.15 9 dia. 4.5 dia. Four, R2.15 8 dia. Note: Each dimension has a tolerance of 0.4 mm unless otherwise specified. D4DS-K5 Horizontal/Vertical-adjustable Vertical Mounting...
- Page 8 D4DS D4DS With Operation Key Inserted Horizontal Mounting Vertical Mounting D4DS-1jjS + D4DS-K1 D4DS-1jjS + D4DS-K2 D4DS-2jjS + D4DS-K1 D4DS-2jjS + D4DS-K2 D4DS-3jjS + D4DS-K1 D4DS-3jjS + D4DS-K2 D4DS-5jjS + D4DS-K1 D4DS-5jjS + D4DS-K2 D4DS-6jjS + D4DS-K1 D4DS-6jjS + D4DS-K2 Horizontal key 44 to 46.5...
-
Page 9: Correct Use
Excessive force door is open. If the D4DS is to be used as a switch in an emergency stop circuit or in a safety circuit for preventing accidents resulting in injuries or deaths, use NC contacts with a forced release mechanism and set the D4DS so that it will operate in positive opening mode. - Page 10 D4DS securely. To mount the D4DS more securely, pre- –0.05 pare two, 4 dia. protruding portions with 4.8 mm maxi- –0.15 mum in height each as shown below and support the D4DS at a total of four points. Mounting Dimensions with Protruding Portions Standard Model –0.05 dia.
- Page 11 1.27 and 1.67 N m when wiring the D4DS two-conduit and tighten each terminal screw within an optimum torque range.
