CONTRACTOR SERIES SmartSequencer
™
MINIPORT CN-15MP
and CN-20MP
Instructions
Contractor Grade Power Management with
SmartSequencing™ Technology
Features:
SmartSequencing™ technology allows large complex A/V systems to
be safely power cycled on and off sequentially, with the press of a button.
Extreme Voltage Shutdown (EVS) with safeguards against operation
during under and over voltage conditions.
Security features include cover shield to prevent tampering with switch
settings.
Forced Off immediate shutdown: for safety and fire ordinance compliance.

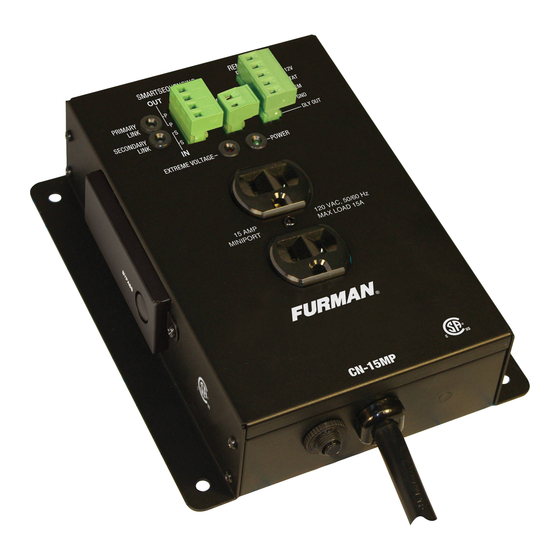

CN-15MP
Multi-Color LED Indicators for status functions.
2 Power Outlets on 1 bank providing 1800 Watts of AC power (CN-15MP)
and 2400 Watts of AC power (CN-20MP).
CN-15MP – 10 ft. Power Cord 14AWG
CN-20MP - 10 ft. Power Cord 12AWG
15 Year Limited Product Warranty
CN-20MP
CN-15-20MP-DIN-00020-A

Advertisement

Table of Contents
loading

Related Manuals for Furman CONTRACTOR Series

Summary of Contents for Furman CONTRACTOR Series

  • Page 1 CONTRACTOR SERIES SmartSequencer ™ MINIPORT CN-15MP and CN-20MP Instructions Contractor Grade Power Management with SmartSequencing™ Technology Features: SmartSequencing™ technology allows large complex A/V systems to be safely power cycled on and off sequentially, with the press of a button. Extreme Voltage Shutdown (EVS) with safeguards against operation during under and over voltage conditions.
  • Page 2 CN-15MP Why choose Furman? At Furman Sound, we have spent the last 30 years quietly obsessing about professional audio and how to best separate your equipment from the noise and damage often associated with AC power. Over the years we...

  • Page 3: Table Of Contents

    Table of Contents Remote Access (and BlueBOLT ® The Miniport is a member of Furman’s Contractor series of devices. All Feature Descriptions_____________________________________ 2 members of the Contractor series can be controlled remotely using an Important Safety Instructions________________________________ 3 integral data-link and command API. The remote access feature delivers Abbreviated Product Features_______________________________3 integration with various control systems.

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. Please read and follow all instructions. 9. Please, only use accessories specified by the manufacturer. 2. Please keep these instructions. 10. Refer all servicing to qualified personnel. Servicing is required when the unit has been damaged in any way or fails to 3.

  • Page 5: Set Up Diagrams

    EXAMPLE 1 DIAGRAM - SMALL SmartSequencing SET-UP SmartSequencer DIAGRAM 1 SMALL SMARTSEQUENCING SET-UP ™ CLASS 2 WIRING Fire ordinances sometime require immediate shut RS-2 Momentary 24 AWG RECOMMENDED down, no matter how large or small a sound system. CN-1800S Remote Switch SmartSequencing provides the solution.
  • Page 6 EXAMPLE 3 DIAGRAM - LARGE LEGACY UPGRADE SmartSequencer DIAGRAM 3 LARGE LEGACY UPGRADE ™ PRIMARY CONTROL AMP RACK CLASS 2 WIRING This upgrade is based upon scenario number 3 in RS-1 Maintained 24 AWG RECOMMENDED the ASD-120 manual. The new example substitutes CN-2400S units at the old miniport locations.

  • Page 7: Smartsequencing™101

    OFF may have priority over the SmartSequencing command. Furman SmartSequencing™ products can be connected end-to-end to form a chain of sequencers. Each Contractor Series unit has two com- Additional SmartSequencing™ information is available throughout this munication ports (OUT and IN) divided into 4 terminals, responsible for manual and also on the website www.furmancontractor.com.

  • Page 8: Side Panel Overview

    Side Panel Overview DIP Switches N.O. 12V ON Bypass Switch N.C. 12V OFF BYPASS EVS ON EVS OFF Potentiometer FACTORY DEFAULT SETTING Bypass Switch N.O. 12V ON N.C. 12V OFF The BYPASS push button switch is located on the side panel to the right of the DIP Switch.
  • Page 9 Cycle the BYPASS switch on/off. anticipated by the factory default settings, or Furman standard wall switch products (RS-1 and RS-2). Please feel free to contact Furman tech Cycle the power to the unit on/off support if further assistance is necessary.
  • Page 10 Momentary Mode is considered more flexible than Maintained Primary unit OFF/ON. mode as multiple push button switches, such as the Furman RS-2 can be wired in parallel and used to toggle a Miniport ON or OFF from multiple Please note, if there is an underlying wiring fault, such as an intermittent locations.

  • Page 11: Front Panel Overview

    15 Amperes. The CN-20MP does not have a circuit breaker. Green LED status is a sign of good communications. If a Contractor Series unit is used independently (no connections) and the unit is configured as...

  • Page 12: Setup And Troubleshooting

    Amplifiers to the sequenc- The Remote Port Barrier strip is provided to allow Furman Legacy devices ers nearest the end of the chain. This will ensure that the power to the to be interoperable with the Miniport.

  • Page 13: Re-Syncing Multiple Sequencers

    Buying through auction sites or unauthorized www.furmancontractor.com dealers may result in the purchase of salvaged, failed and/or products not intended for use in the US. In addition, Authorized Furman Internet dealers have demonstrated sufficient expertise to insure warranty compliant installations.
