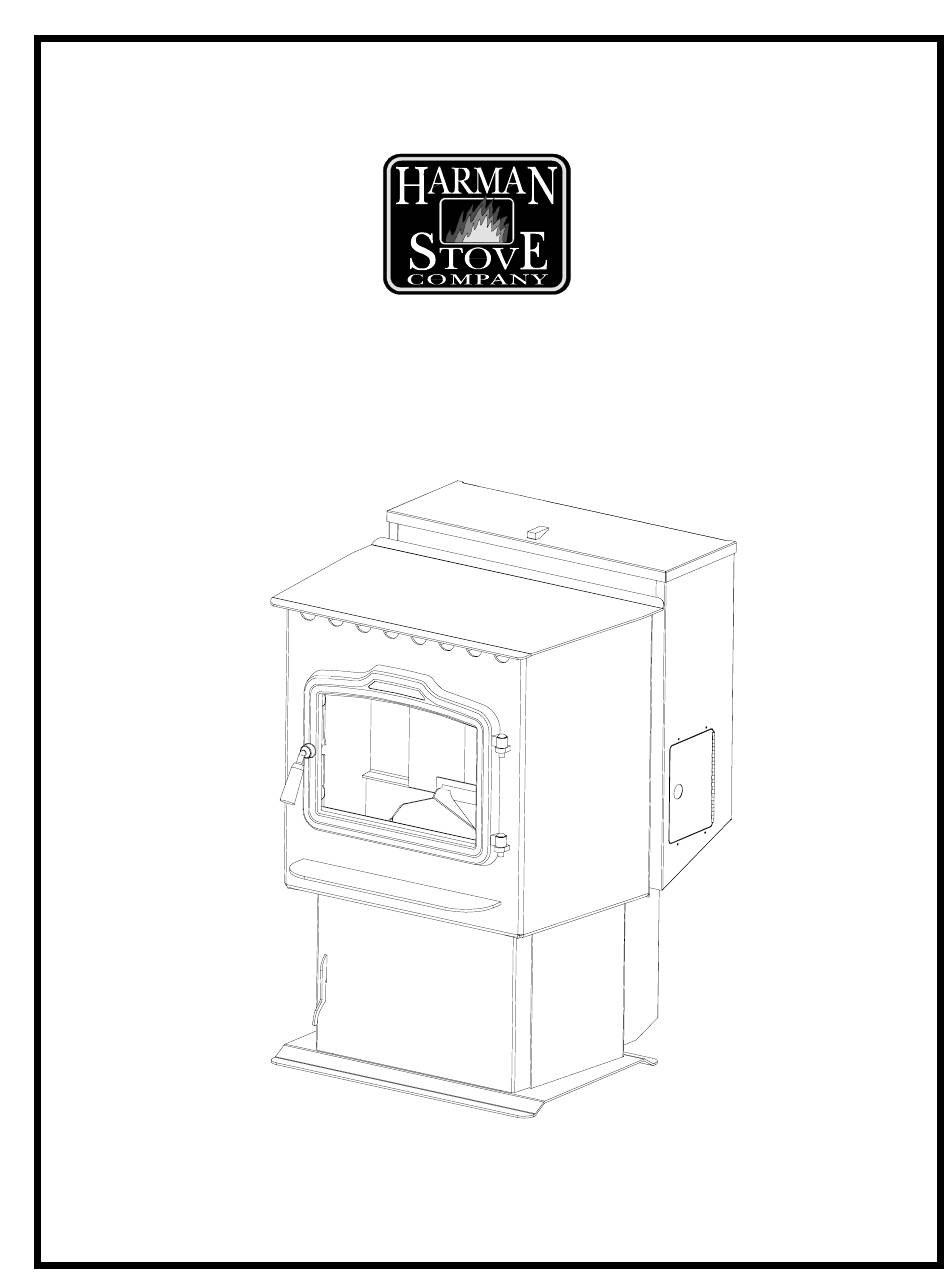

44 Magnum Owners Manual
Contact local building or fire officials about restrictions and
installation inspection requirments in your area.
Contact your local authority (such as municipal
building department, fire department, fire prevention
bureau, etc.) to determine the need for a permit.
R3

Advertisement

Table of Contents
loading

Related Manuals for Harman Stove Company 44 Magnum

Summary of Contents for Harman Stove Company 44 Magnum

  • Page 1 44 Magnum Owners Manual Contact local building or fire officials about restrictions and installation inspection requirments in your area. Contact your local authority (such as municipal building department, fire department, fire prevention bureau, etc.) to determine the need for a permit.
  • Page 2 BURNING COAL. USE OF ANY OTHER SOLID FUEL EXCEPT FOR COAL IGNI- MANUFACTURED BY: TION PURPOSES IS A VIOLATION OF FEDERAL LAW. INPUT RATING: .55 TO 3.75 LBS PER HOUR. HARMAN STOVE COMPANY DO NOT CONNECT THIS UNIT TO A CHIMNEY SERV- 352 MTN. HOUSE ROAD ING ANOTHER APPLIANCE...

  • Page 3: Table Of Contents

    Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. SAVE THESE INSTRUCTIONS Harman Stove Company 352 Mountain House Road Halifax, PA 17032...
  • Page 4 WARNINGS Carbon Monoxide (CO) Awareness Carbon monoxide referred to as CO, is a col- an alarm for fumes other than CO or CO from orless, odorless gas that is produced during com- sources other than the stove such as car or lawn bustion of coal and other fuels.

  • Page 5: Assembly & Installation

    Unpacking Cut straps holding box together and remove box from skid. The 44 Magnum is bolted to the skid to prevent movement during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base.
  • Page 6 Fig.3 DOOR HINGE PINS GLASS PAW BOLT GLASS GASKET Assembling the door Referring to Figure 3, note how the various com- 4 GLASS ponents of the door system fit together. Lay the load RETAINER CLIPS door face down on a soft surface. Clean the glass and gold door using a nonabrasive cleaner.
  • Page 7 Installing Place the stove on a noncombustible floor or UL 10 1/2" approved floor protector that extends 6 inches to the front, 6 inches to the sides and 1 inch to the rear of the stove pipe. Place the stove away from combustible walls at least as far as shown in Figures 6, 7 and 8.
  • Page 8 DO NOT INSTALL A FLUE DAMPER IN THE WARNING EXHAUST VENTING SYSTEM OF THIS DO NOT INSTALL IN SLEEPING ROOM UNIT. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER CAUTION APPLIANCE. The stove is hot while in operation. Keep children, clothing and INSTALL VENT AT CLEARANCES furniture away.
  • Page 9 Damper Seal Fig. 11 Fig. 11 Fig 12 Installing into an existing Installing into an existing chimney fireplace chimney In this method a cap should also be installed to In Canada and some places in the US it is required keep rain from entering the chimney.
  • Page 10 Installation with Internal Prefabricated Chimney Installing to a Prefabricated Chimney Use only the manufacturer's parts; do not use When venting your 44 Magnum using a prefabri- makeshift installation techniques. All prefabricated chim- cated chimney, be sure to contact your local building neys must be tested to either the U.S.

  • Page 11: Chimney

    The Harman 44 Magnum may be installed with Chimney Connectors and (150 mm) 24 gauge chimney connector pipe. The size Chimneys of the connector should correspond to the size of the Draft flue collar opening. Do not use makeshift compromises.
  • Page 12 The 44 Magnum must be installed into a chimney approved for use with solid-fuel appli- ances. In the U.S., the 44 Magnum must be con- nected to (1) a prefabricated chimney complying with the requirements for Type HT chimneys in the...
  • Page 13 44 Magnum. In addition to the other rooms of the house, signs of creosote or requirements found in the previous paragraphs, it is...

  • Page 14: Operation

    Operation Keep Coal Off Be sure the unit is plugged into a 120 V.A.C., 60 Hopper Ledges Hz receptacle. Test Motor Operation Turn feed rate knob from off to TURBO. The com bustion blower and feeder motor will run. Look at the end of the auger shaft in the bottom of the burn pot for rotation.

  • Page 15: Turbo Control

    Turbo Control When the Feed Rate is set to "1" and the Blower is set to the lowest setting, After lighting the fire, the ESP probe in the exhaust only 75 watts of electricity are used. senses when the temperature is high enough to start the feed motor and distribution blower.
  • Page 16 Fine tuning Fig. 20 Feed Rate Fine Tuning The 44 Magnum is equipted with a fine tune ad- justment for the feed rate. This adjustment changes the output range of the stove from 44,000 btu high and 8000 btu low to 30,000 btu high and 6000 btu low.

  • Page 17: Maintenance

    Maintenance Removing Ashes: 1. The ashes will need to be removed before the ash pan overflows. This will be necessary about once a day when on a high setting and approximately every four days when on lower settings. 2. It is recommended that the stove be cooled down and on a #1 setting.
  • Page 18 Build-up Here. Fig. 27 Ash Breaker The 44 Magnum is equipped with an ash breaker that moves up and down in front of the burnpot. The breaker has teeth on it that break any klinkers (lumps of ash) and prevent any ash jamming. This allows the stove to be much shorter front to back.

  • Page 19: Trouble Shooting

    Cleaning Glass While Stove Is Operating 1. Turn the unit to LOW at setting #1 and allow the unit to cool down. 2. Turn the unit to OFF. This will slow the combustion blower to it's lowest speed. Now the viewing door can be opened with minimal exhaust leakage.

  • Page 20: Feeder Parts

    44 Magnum Feeder FEEDER BODY WELDMENT 1-10 - 08654 SLIDE PLATE AUGER MTNG. 5/16" T NUT 1-10-08656 (2) 3-31-23756186 CAST COVER ASSY. CAM BLOCK 1-10-00894 2-00-00153 BEARING RETAINER CAM BEARING 2-00-04035 3-31-3014 CAM BEARING BOLT 3-30-1371608713 AUGER ASSY. 3-50-00365 AUGER MTNG. BOLTS...

  • Page 21: Wiring Diagram

    Wiring Diagram...

  • Page 22: Options

    Door Options Tabs Tabs Fig. 34 Fig. 35 "Sunrise" Gold Trim Gold Door This kit includes a gold trim piece for the ash lip The gold door is assembled and installed the same and a gold Sunrise piece for the door. as the standard door.
  • Page 23 Fig. 36 Fig. 37 Side Heat Sheilds Installation Hopper Extention Installation Thermostat (optional) What is a thermostat? A thermostat is a switch that opens or closes at a set room temperature. For example: When you set the thermostat to 70 degrees, the switch will be closed caus- ing the stove to burn on "Turbo"...

  • Page 24: Part Numbers

    44 MAG-N.D. ITEM NUMBER DESCRIPTION 0-88-00248 HOPPER GASKET— NEED 6' 1-00-08520-1 CLASSIC DOOR KIT “ BLACK “ 1-00-08520-4 GOLD DOOR KIT W/ASH LIP 1-00-08617 ASH DOOR TILE FRAME 1-00-08631 HEAT SHIELD SET WITH BRASS TRIM 1-00-08636 HOPPER EXTENSION 1-00-773866 GOLD SUNRISE W/ASH LIP 1-10-05820 ASH PAN 1-10-08656...

  • Page 25: Warranty

    Harman Stove Company. This warranty does not apply if the product has been altered in any way after leaving the factory. Harman Stove Company assumes no liability for “resultant damages of any kind”...
