Cooper Lighting MS245R Instruction Manual

MS245R (Bronze)
MS245RW (White)
ENGLISH
ITEMS REQUIRED
(Purchase separately)
• Phillips screwdriver
• Outdoor weatherproof silicone caulking
• (2) 100 watt (MAX) PAR 38 floodlight bulbs
NOTE: This fixture was designed to work with up to 150 watt maximum PAR halogen flood
bulbs. For improved energy efficiency, lower wattage PAR halogen flood bulbs may be used.
Compact Fluorescent (CFL) bulbs contain electronics which may interfere with the motion
sensing function of your fixture and are not recommended. To meet ENERGY STAR
requirements, maximum lamp wattage can not exceed 250 watts.
HOW IT WORKS
Your motion activated floodlight senses heat images from
objects such as people, large animals and automobile engines.
When motion is detected, the lights will automatically turn
on. Once motion has stopped, the lights will turn off after a
preselected time delay. Your motion activated floodlight may
also be used as a standard floodlight.
WARNINGS AND CAUTIONS
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• For outdoor use only.
• cULus LISTED for wet locations.
• Connect fixture to a 120 volt, 60 Hz power source. Any other connection voids the warranty.
• Fixture should be mounted to a grounded recessed mounted standard junction box marked
for use in wet locations.
• Suitable for wall mount or eave mount only. NOT suitable for ground mount installation.
• Do not allow sensor head to touch light housing – maintain at least 1 in. space between
fixture and sensor.
• Fixture should be installed by persons with experience in household wiring or by a qualified
electrician. The electrical system, and the method of electrically connecting the fixture to it,
must be in accordance with the National Electrical Code and local building codes.
• Always replace bulb with the same wattage or lower wattage than included. Installing a
bulb of a higher wattage could create a fire hazard. Use of a higher wattage bulb will void
the warranty (maximum 150 watt halogen bulb). To meet ENERGY STAR
maximum lamp wattage can not exceed 250 watts.
• For proper operation and protection against damage, the motion
sensor head adjustment knobs must be facing the ground.
• Keep away from flammable objects. Do not position fixture within 2 in.
of any combustible materials.
Questions? / ¿Preguntas ? 1-800-334-6871 ConsumerProducts@cooperlighting.com

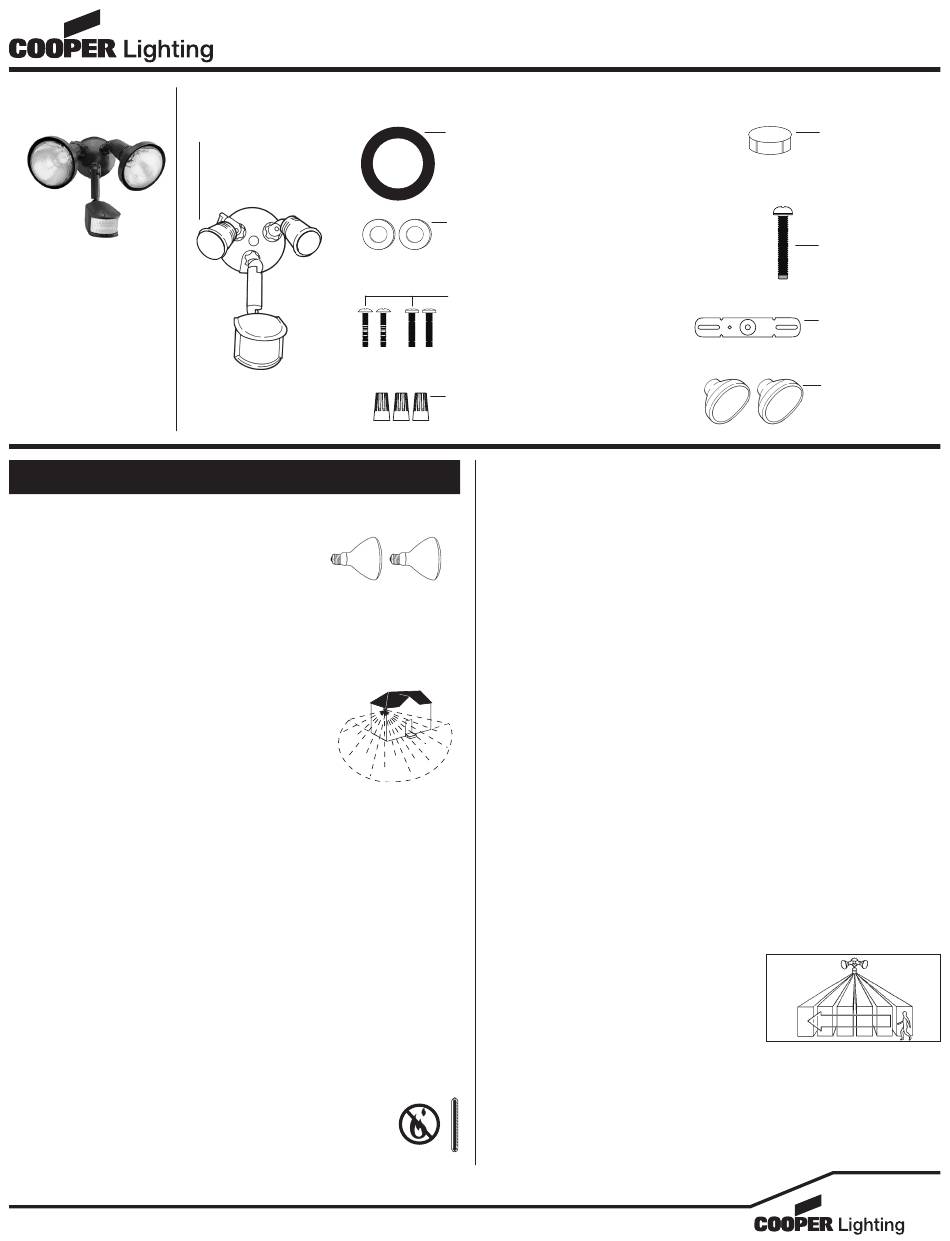

PACKAGING CONTENTS / CONTENIDO DEL PAQUETE
A. Motion detector
light fixture
Detector de movimiento
y artefacto de luz
240 degrees
® requirements,
B. Coverplate gasket
Junta de la placa
de cubierta
C. (2) Lampholder gaskets
(2) Juntas obturadoras
del receptáculo
D. (2) #6 and (2) #8 mounting screws
(use the size that fits your junction box)
(2) Tornillos #6 y (2) tornillos #8 de montaje
(utilice el tamaño que mejor se adecue a
su caja de conexión)
E. (3) Wire nuts
(3) Tuercas para alambre
• Disassembly of your fixture will void the warranty.
• Your fixture is prewired and preassembled for easy installation.
• MINIMUM 90° C SUPPLY CONDUCTORS.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Under Part 15 of the FCC Rules, any changes or modifications to the motion detector
described in this instruction sheet that are not expressly approved by Cooper Lighting, LLC
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
®
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
Up to
communications. However, there is no guarantee that interference will not occur in a particular
70 feet
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- R eorient or relocate the receiving antenna.
- I ncrease the separation between the equipment and receiver.
- C onnect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- C onsult the dealer or an experienced radio/TV technician for help.
WARNING: FCC Regulations state that any unauthorized changes or modifications
to this equipment not expressly approved by the manufacturer could void the user's
authorization to operate this equipment.
SAVE THESE INSTRUCTIONS.
FOR BEST RESULTS
• Install the motion sensor/transmitter 8-12 feet
above the ground. (Motion sensor is less sensitive
above 12 feet.)
• Locate motion sensor so motion moves across
detection zone (Fig. 1).
• Locate sensor away from heat producing sources to
prevent false triggering. Also be very careful not to
include objects such as windows, white walls and
water in the detection zone.
• Locate sensor away from moving objects such as
trees, large shrubs and street traffic.
• Do not install more than one motion activated
floodlight on one wall switch.
MOUNTING AND WIRING YOUR FIXTURE
WARNING: Risk of electric shock. Disconnect
power at fuse or circuit breaker before installing
or servicing.
1
Instruction Manual / Instrucciones
F. Color-matched
center hole plug
Tapón para agujero
central de color
coincidente
G. Center bolt
Perno central
H. Mounting bracket
Soporte de montaje
I. (2) Reflectors
(2) Reflectores
Fig. 1
