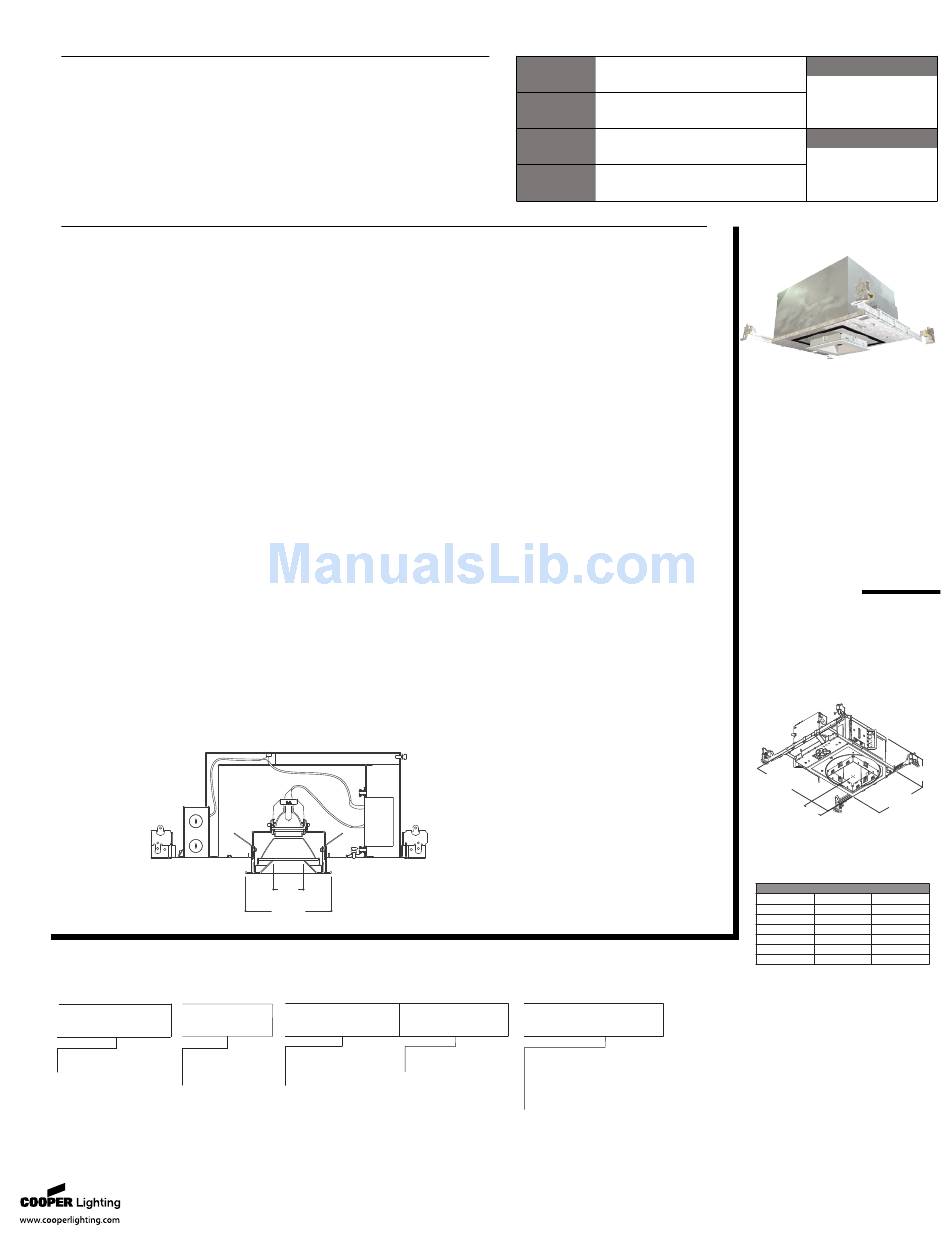

Cooper Lighting IRIS E4RPINSR Specification Sheet

DESCRIPTION
Recessed lens downlight luminaire with 2 inch square regressed pinhole
aperture utilizing a low voltage MR16 tungsten-halogen lamp. Modular
platform can be reconfigured from below the ceiling to accept a broad range
of lamp modules and optical elements. Platform is suitable for direct contact
with insulation and 2x8 residential construction. Platform + module +
element combination supports various lamp beam spreads for desired
optical distribution with excellent light control and low aperture brightness.
SPECIFICATION FEATURES
Frame
Galvanized steel plaster frame with
integral bar hanger receivers. Set-
screws provide positive horizontal
locking.
Collar
Matte black steel collar adjusts
vertically for 1/2" - 1" thick ceilings
and can be rotated +/- 7.5° thru the
aperture. Integral gun sights facili-
tate the use of guide strings or
laser lines. Shipped with a paint
overspray protector installed in the
collar.
Lamp Module
Installed or removed thru the
aperture or from the top and
allows lamp orientation at 0°,
90°, 180° and 270° positions.
Housing
Double wall aluminum housing
painted matte black for a visually
dark interior. All fasteners are
captive.
O R D E R I N G I N F O R M AT I O N :
C o m p l e t e u n i t c o n s i s t s o f p l a t f o r m , l a m p m o d u l e a n d o p t i c a l e l e m e n t .
Platform Lamp Module
P408ICAT MV4MR
P408ICAT = 4" Square MV4MR = MR16
Aperture IC Housing Vertical Lamp
Module, 120V Input
Gaskets
Closed cell gaskets achieve
restrictive airflow requirements
without additional caulking.
Bar Hangers
Captive preinstalled bar hangers
adjusts from 8-1/2" to 24" wide;
pass thru feature allows shortening
without removal. Captive nail
penetrates standard and engi-
neered lumber. Mounting flange
levels platform with ceiling. Inte-
gral clip attaches directly to t-bar.
Splay
Diecast aluminum splay has
truncated paramid with regressed
square aperture and integral glass
lens. Lens can be removed to facili-
tate painting to match ceiling
finish. Mousetrap type springs pull
flange tight to ceiling. Light trap
eliminates spill light at edge of
flange. Provided with both straight
and angle cut parabolic shielding
cone, shipped with angle cut
version installed.
2"
(51mm)
5-3/4"
(146mm)
Optical Element
[Blank] = Self Flanged,
E4RPINSR = 2" Square
Matte White Flange
Aperture Regressed
Pinhole, Lens
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Junction Box
(7) 1/2" trade size pry outs, (3)
integral clamps for non-metallic
cable. Rated for (4) #12 thru branch
circuits. Wago® type push wire
connectors for field connections
Thermal Protector
Self-resetting thermal protector
protects against improper lamping.
Transformer
Integral dual output toroidal
magnetic transformer, 120V
50/60Hz input, 12V nominal 75VA
maximum output. Separate output
for circuits controlled by dimmers
compensates for losses in dim-
mers, improves color temperature
and lumen output.
Lamp Capsule
Ceramic GX5.3 lamp holder
mounts to an aluminum heat sink
to dissipate heat. Connects to the
transformer with electrical quick
connects. Accepts 2 lenses, filters
or optional lamp snoot.
Code Compliance
Thermally protected, IP labeled,
cULus listed for wet locations and
ASTM-E283 AIRTITE(tm). Suitable
for direct contact with insulation.
Accessories
Flange
LSA16 = Matte black lamp
snoot accessory
L Series - Filter Media For MR16
lamps (See Accessories specifi-
cation sheet)
IRIS
®
Type
Date
P408ICAT
MV4MR
E4RPINSR
50W MR16
Tungsten-Halogen
2 Inch Square Lens Downlight
Cutout=5-3/16"
(132mm)
5-1/8"
14-9/16"
(130mm)
(370mm)
8-1/2"
(216mm)
4-9/16"
(115mm)
ENERGY DATA
Lamp Wattage Input Power Input Current
(Nominal) (Watts) (Amps)
20 21 0.17
35 37 .031
37 39 0.32
42 44 0.37
50 53 0.44
