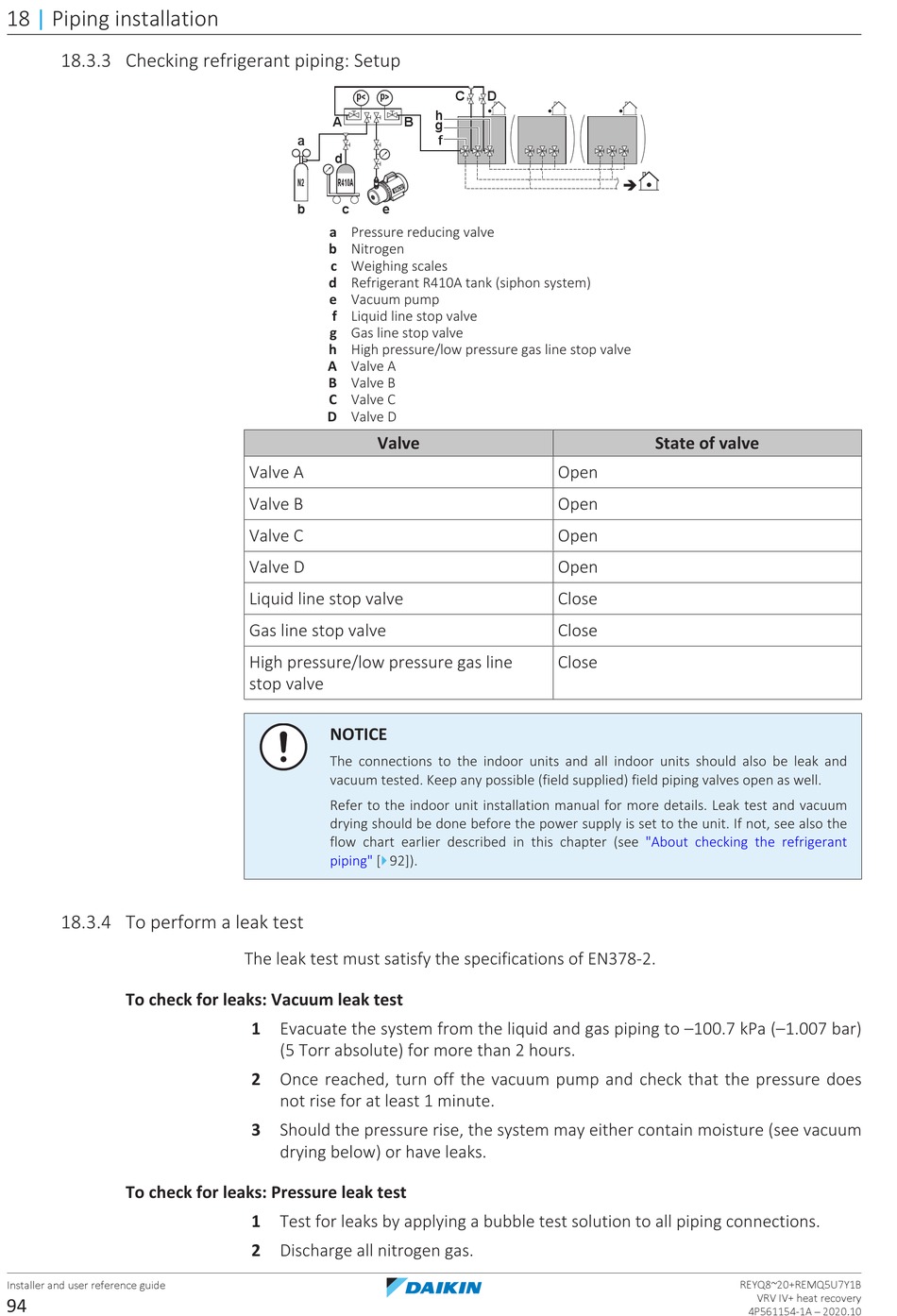

18.3.3 Checking refrigerant piping: Setup

18.3.4 To perform a leak test

To check for leaks: Vacuum leak test
To check for leaks: Pressure leak test
Installer and user reference guide
94
p < p >
A B
a
d
N2 R410A
b c e
a Pressure reducing valve
b Nitrogen
c Weighing scales
d Refrigerant R410A tank (siphon system)
e Vacuum pump
f Liquid line stop valve
g Gas line stop valve
h High pressure/low pressure gas line stop valve
A Valve A
B Valve B
C Valve C
D Valve D
Valve
Valve A
Valve B
Valve C
Valve D
Liquid line stop valve
Gas line stop valve
High pressure/low pressure gas line
stop valve
NOTICE
The connections to the indoor units and all indoor units should also be leak and
vacuum tested. Keep any possible (field supplied) field piping valves open as well.
Refer to the indoor unit installation manual for more details. Leak test and vacuum
drying should be done before the power supply is set to the unit. If not, see also the
flow chart earlier described in this chapter (see
4
piping" [ 92]).
The leak test must satisfy the specifications of EN378‑2.
1 Evacuate the system from the liquid and gas piping to –⁠ 1 00.7 kPa (–⁠ 1 .007 bar)
(5 Torr absolute) for more than 2 hours.
2 Once reached, turn off the vacuum pump and check that the pressure does
not rise for at least 1 minute.
3 Should the pressure rise, the system may either contain moisture (see vacuum
drying below) or have leaks.
1 Test for leaks by applying a bubble test solution to all piping connections.
2 Discharge all nitrogen gas.
C D
h
g
f
Open
Open
Open
Open
Close
Close
Close
State of valve
"About checking the refrigerant
