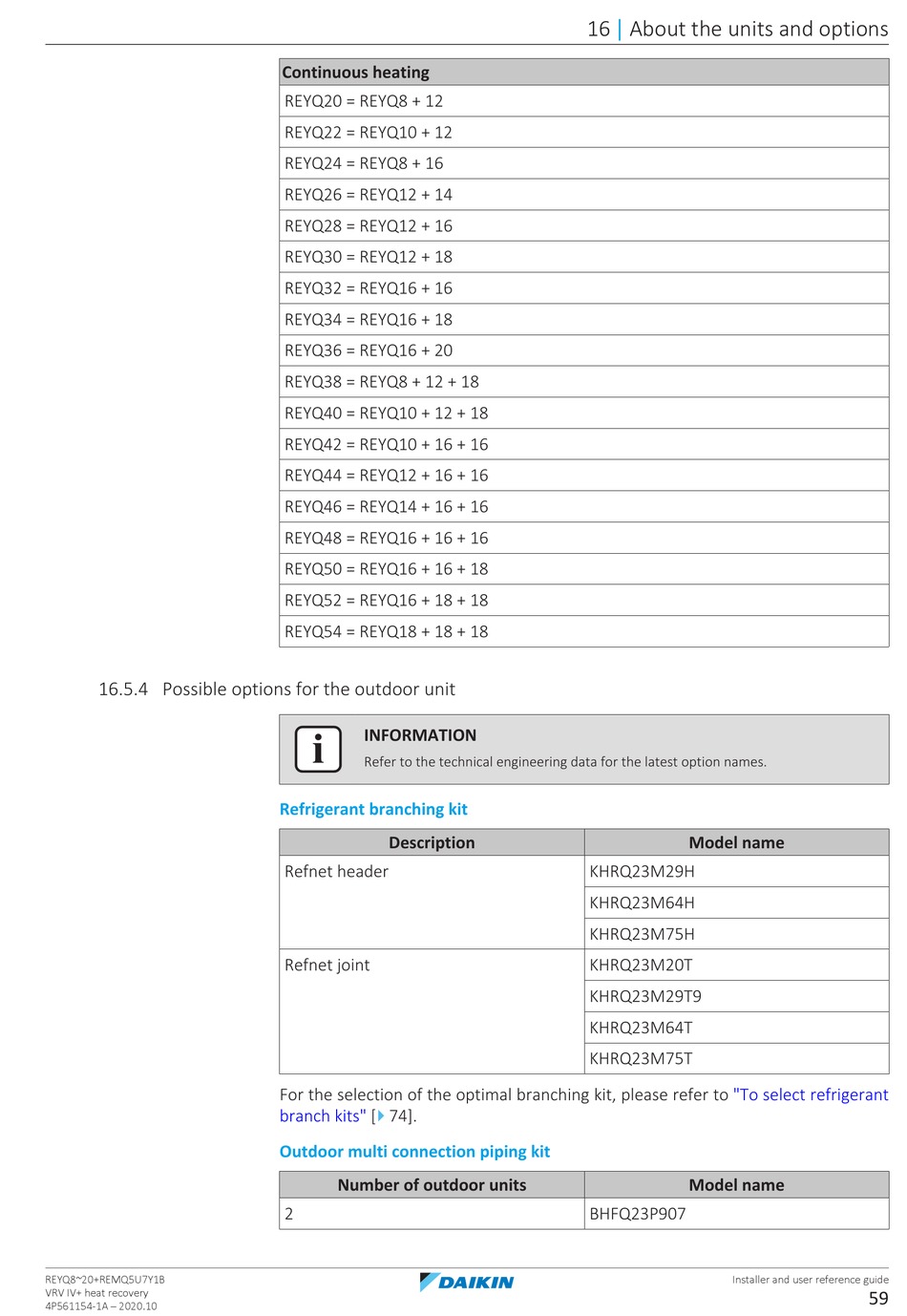

16.5.4 Possible options for the outdoor unit

REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
Continuous heating
REYQ20 = REYQ8 + 12
REYQ22 = REYQ10 + 12
REYQ24 = REYQ8 + 16
REYQ26 = REYQ12 + 14
REYQ28 = REYQ12 + 16
REYQ30 = REYQ12 + 18
REYQ32 = REYQ16 + 16
REYQ34 = REYQ16 + 18
REYQ36 = REYQ16 + 20
REYQ38 = REYQ8 + 12 + 18
REYQ40 = REYQ10 + 12 + 18
REYQ42 = REYQ10 + 16 + 16
REYQ44 = REYQ12 + 16 + 16
REYQ46 = REYQ14 + 16 + 16
REYQ48 = REYQ16 + 16 + 16
REYQ50 = REYQ16 + 16 + 18
REYQ52 = REYQ16 + 18 + 18
REYQ54 = REYQ18 + 18 + 18
INFORMATION
Refer to the technical engineering data for the latest option names.
Refrigerant branching kit
Description
Refnet header
Refnet joint
For the selection of the optimal branching kit, please refer to
4
branch kits" [ 74].
Outdoor multi connection piping kit
Number of outdoor units
2
16 About the units and options
|
Model name
KHRQ23M29H
KHRQ23M64H
KHRQ23M75H
KHRQ23M20T
KHRQ23M29T9
KHRQ23M64T
KHRQ23M75T
"To select refrigerant
Model name
BHFQ23P907
