Troubleshooting

24 Troubleshooting
In this chapter

24.1 Solving problems based on error codes

24.2 Error codes: Overview

Main code
Master
Installer and user reference guide
154
24.1 Solving problems based on error codes................................................................................................................................. 154
24.2 Error codes: Overview ............................................................................................................................................................ 154
In case of a displayed malfunction code, perform correcting actions as explained in
the malfunction code table.
After correcting the abnormality, press BS3 to reset the malfunction code and retry
operation.
The malfunction code which is displayed on the outdoor unit will indicate a main
malfunction code and a sub code. The sub code indicates more detailed
information about the malfunction code. The malfunction code will be displayed
intermittent.

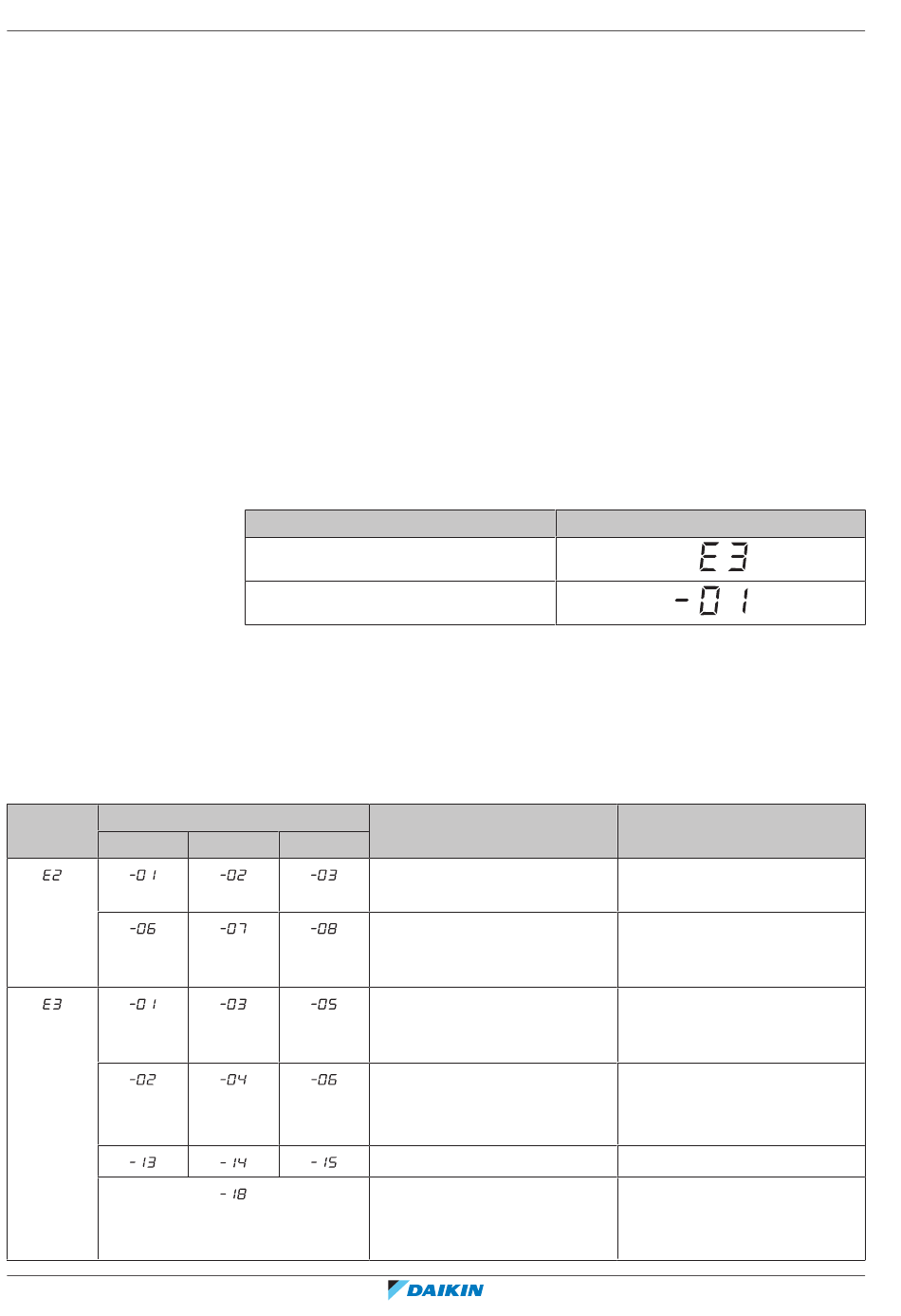

Example:
Main code
Sub code
With an interval of 1 second, the display will switch between main code and sub
code.
In case other error codes appear, contact your dealer.
Sub code
Slave 1 Slave 2
Code
Cause
Earth leakage detector
activated
Earth leakage detector
malfunction: open circuit) - A1P
(X101A)
High pressure switch was
activated (S1PH, S2PH) – main
PCB (X2A, X3A)
▪ Refrigerant overcharge
▪ Stop valve closed
Stop valve closed (liquid)
▪ Refrigerant overcharge
▪ Stop valve closed
Example
Solution
Restart the unit. If the problem
reoccurs, contact your dealer.
Check connection on PCB or
actuator.
Check stop valve situation or
abnormalities in (field) piping or
airflow over air cooled coil.
▪ Check refrigerant
+recharge unit.
▪ Open stop valves
Open liquid stop valve.
▪ Check refrigerant
+recharge unit.
▪ Open stop valves.
REYQ8~20+REMQ5U7Y1B
VRV IV+ heat recovery
4P561154-1A – 2020.10
amount
amount
