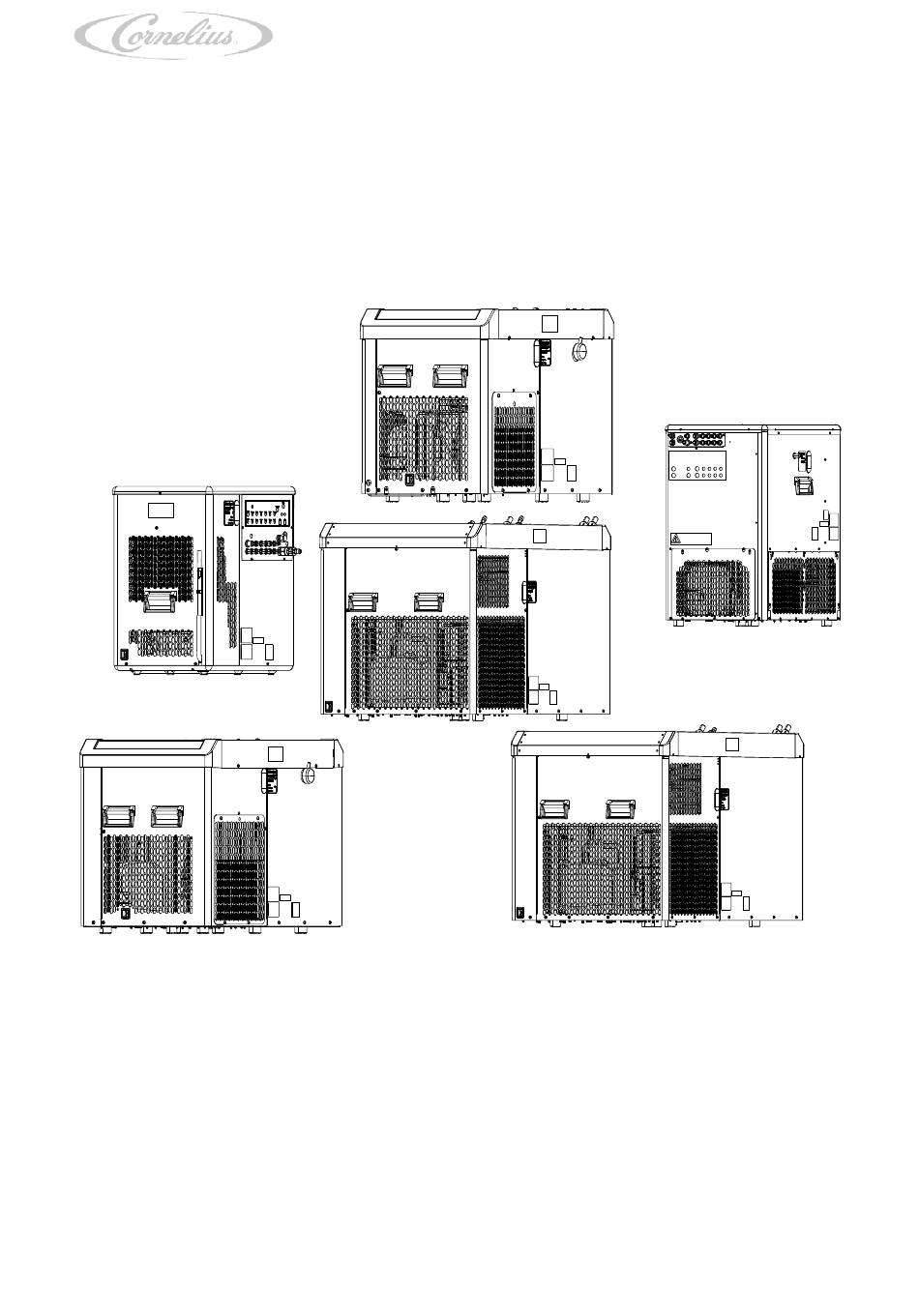

- Page 1 Operator manual Undercounter cooler Energize 2-5 HC...
- Page 2 Legal notice Operator manual (Original) Document no. TD1002000 Undercounter cooler Energize 2 HC: Unit ID no. 221002210 Energize 3 HC: Unit ID no. 221001320 Energize 3v HC: Unit ID no. 221001330 Energize 4 HC: Unit ID no. 221001420 Energize 5 HC single: Unit ID no. 221002571 Energize 5 HC dual: Unit ID no.
-
Page 3: Table Of Contents
......3.3.7.1 Undercounter cooler Energize 2 HC ...... - Page 4 ........Handover certificate Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000...
-
Page 5: Safety
1.3.2. Work on the unit and its components not included in the activities described in this document may only be performed by experts; see chapter 1.3.3. Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC... -
Page 6: Improper Use
Improper use Improper use of the unit and unauthorised modifications to the unit and its components may cause personal injury and equipment damage for which Cornelius Deutschland GmbH shall assume no liability. Improper use of the unit is prohibited. The following in particular is regarded as improper use: –... -
Page 7: Staff
An expert must also have received technical training in the unit-specific special features of Cornelius products. The assigned tasks are always to be carried out in compliance with the relevant installation and service manual for the unit concerned; see the document “Under- counter cooler installation and service manual”, document no. -
Page 8: Presentation Of Warnings
Not every one of following key terms is necessarily used in this documentation. Risk = extent x likelihood of occurrence Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 9: Safety Information
1.5.1 Disclaimer of liability and warranties If work is undertaken on the unit which is not described in this document, Cornelius Deutsch- land GmbH shall not assume any liability for any resulting hazards and damages. The same applies to described work which is partly or not fully performed in compliance with the regula- tions set out in this document. -
Page 10: Safety Information To Prevent Personal Injury And Equipment Damage
1.3.2. • Children must be supervised to ensure that they do not play at or with the unit. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... - Page 11 If you begin to notice any smell, leave the room and alert the fire ser- vice. NOTICE! In particular, safety standards are to be observed in their scope of validity (e.g. EN 60335-2-75). Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2...
-
Page 12: Handling The Unit Prior To Installation
Unpacking the unit NOTICE! Cornelius Deutschland GmbH is not responsible for damaged deliveries. If any damage is found, all packaging material is to be kept and the freight carrier is to be contacted. If the freight carrier is not contacted within 48 hours of receipt of delivery, the warranty claim might be rendered void. -
Page 13: Storage
• When working at the unit or its components, wear a grounding (anti- static) wrist strap at the very least and wear antistatic gloves if neces- sary. Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC... -
Page 14: Disposal
Such fuels or lubricants must always be prevented from seeping into the ground, the sewage system and any bodies of water, and must always be prevented from entering the at- mosphere. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 15: Description
Description Description Assemblies and components 3.1.1 Undercounter cooler Energize 2 HC The unit comprises the following assemblies: Fig. 1 Cover Tube connections Cooling unit with refrigerator and car- Water level gauge bonator Line supply Control and indicator panel Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. -
Page 16: Undercounter Cooler Energize 3 Hc
The unit comprises the following assemblies: Fig. 2 Tube connections Line supply Cover Cooling unit with refrigerator and car- Control and indicator panel bonator Water level gauge Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 17: Undercounter Cooler Energize 3V Hc
The unit comprises the following assemblies: Fig. 3 Control and indicator panel Tube connections Cover Water level gauge Cooling unit with refrigerator and car- bonator Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... -
Page 18: Undercounter Cooler Energize 4 Hc
The unit comprises the following assemblies: Fig. 4 Tube connections Line supply Cover Cooling unit with refrigerator and car- Control and indicator panel bonator Water level gauge Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 19: Undercounter Cooler Energize 5 Hc Single
The unit comprises the following assemblies: Fig. 5 Tube connections Line supply Cover Cooling unit with refrigerator and car- Control and indicator panel bonator Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... -
Page 20: Undercounter Cooler Energize 5 Hc Dual
The unit comprises the following assemblies: Fig. 6 Tube connections Line supply Cover Cooling unit with refrigerator and car- Control and indicator panel bonator Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 21: Functions Within The Dispensing System
When requested at the tower, they are conveyed to the tower via the python. Only the soda is continuously circulated. or electrically operated syrup pumps are used to convey the brands (syrup). Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000... -
Page 22: Technical Data
Apart from the daily check and the connection of new syrup containers and BIBs as and if needed (see chapter 4.2), the undercounter cooler requires no operation by the user or oper- ator. Technical data 3.3.1 Undercounter cooler Energize 2 HC Description Parameter Value Unit... -
Page 23: Undercounter Cooler Energize 3 Hc
Python length max. Syrup (optional) Quantity Unit Premix (optional) Quantity Unit Still water (optional) Quantity Unit Shipping weight 1. with 15 m SC python Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... -
Page 24: Undercounter Cooler Energize 3V Hc
Python length max. Syrup (optional) Quantity Unit Premix (optional) Quantity Unit Still water (optional) Quantity Unit Shipping weight 1. with 15 m SC python Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 25: Undercounter Cooler Energize 4 Hc
Python length max. Syrup (optional) Quantity Unit Premix (optional) Quantity Unit Still water (optional) Quantity Unit Shipping weight 1. with 15 m SC python Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... -
Page 26: Undercounter Cooler Energize 5 Hc Single/Energize 5 Hc Dual
The applicable installation and service manual contains the diagram and description of the connections for this unit; see the document “Undercount- er cooler installation and service manual”, document no. TD1002100. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 27: Labelling Positions
Description 3.3.7 Labelling positions 3.3.7.1 Undercounter cooler Energize 2 HC Fig. 8/1 Dangerous voltage warning sign Fig. 8/2 Refrigerant warning sign Fig. 8/3 Python connection warning sign Fig. 8/4 Carbonator type plate Fig. 8/5 Unit type plate Fig. 8 3.3.7.2 Undercounter cooler Energize 3 HC Fig. -
Page 28: Undercounter Cooler Energize 4 Hc
0.40-0.45 Tap water flow pressure 0.20-0.30 1. Changes reserved NOTICE! When using Cornelius pythons, heat loss of 8-15 kcal/h is to be calculated for each consecutive metre. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000... -
Page 29: Control And Indicator Panel
6.1 Flashing 4 Hz Not OK see chapter 6.1 Alarm (red) + power/ Flashing Not OK see chapter 6.1 mains (green) alternately Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... -
Page 30: Operation
To prevent algae building up in the water, the disinfectant Molco (PN 14- 9670-150) can be added. The container size with 150 ml disinfectant is suf- ficient for 30 litres of water. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... - Page 31 9. Check that the tower is fully operational; see the document “Tower operator manual”. Once the unit has been switched off and only then: 1. Plug the mains plug into the earthed socket, if applicable. Fig. 15 Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC...
-
Page 32: Changing Product Containers
3. Connect the tube connection back onto the product container. NOTICE! If you would like to change another beverage, please inform your service partner. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 33: Shutdown
6. Turn the carbonator pump switch (Fig. 17/1) to position “0”. Fig. 17 7. Pull the mains plug out of the earthed socket. Fig. 18 Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... -
Page 34: Maintenance
Change the water in the water bath. Please contact your service partner As required Undercounter cooler, interior Thaw ice build-up Please contact your service partner Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 35: Visually Inspecting The Unit
Dirty or blocked supply and exhaust air grilles are to be cleaned; see chapter 5.3. 14. Check the legibility of the warning signs; see chapter 3.3.7. Always replace any missing or illegible warning signs. Please contact your service partner. Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000... -
Page 36: Cleaning The Unit
2. Clean the unit with a clean, damp cloth and, if necessary, an approved cleaning agent. 3. Dry the unit with a paper towel. Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
Page 37: Errors And Malfunctions
Syrup has been stored too long Connect a new syrup container; and has had CO added see chapter 4.2 Contaminated tubes Please contact your service part- Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC Version 01/10/2019, Index 2... - Page 38 (see documen- vant pressure-reducing valve tation on the CO system) Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2...
- Page 39 NOTICE! Crushed ice in the cup may also cause decarbonisation. When the finished beverage comes into contact with sharp-edged ice, CO is released from the dispensed drink. Cornelius Deutschland GmbH Operator manual Undercounter cooler Document no. TD1002000 Energize 2-5 HC...
-
Page 40: Applicable Documents
Applicable documents Applicable documents Declaration of conformity Operator manual Undercounter cooler Cornelius Deutschland GmbH Energize 2-5 HC Document no. TD1002000 Version 01/10/2019, Index 2... -
