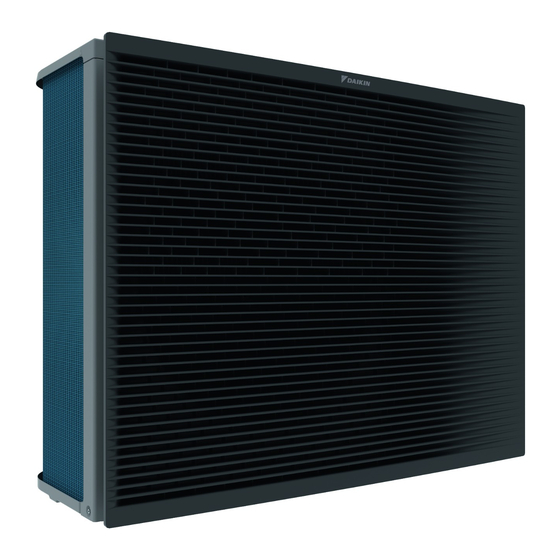

Page 1 Installer reference guide Daikin Altherma 3 H HT F https://daikintechnicaldatahub.eu EPRA14DAV3 ETVH16S18DA6V(G) EPRA16DAV3 ETVH16S23DA6V(G) EPRA18DAV3 ETVH16S18DA9W(G) EPRA14DAW1 ETVH16S23DA9W(G) EPRA16DAW1 ETVX16S18DA6V(G) EPRA18DAW1 ETVX16S23DA6V(G) ETVX16S18DA9W(G) ETVX16S23DA9W(G)
Page 2: Table Of Contents
Installation site requirements of the outdoor unit..................55 6.1.2 Additional installation site requirements of the outdoor unit in cold climates..........58 6.1.3 Installation site requirements of the indoor unit ..................58 Installer reference guide EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 3 To access the most used commands ......................117 Configuration wizard............................... 119 Possible screens ................................120 9.3.1 Possible screens: Overview ..........................120 9.3.2 Home screen..............................121 9.3.3 Main menu screen............................124 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 4 Solving problems based on error codes ......................... 222 13.4.1 To display the help text in case of a malfunction ..................222 13.4.2 Error codes: Overview ............................ 223 14 Disposal Installer reference guide EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 5 Piping diagram: Indoor unit ............................233 15.4 Wiring diagram: Outdoor unit ............................234 15.5 Wiring diagram: Indoor unit ............................239 16 Glossary 17 Field settings table EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 6: General Safety Precautions
Indicates a situation that could result in death or serious injury. WARNING: FLAMMABLE MATERIAL CAUTION Indicates a situation that could result in minor or moderate injury. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 7: For The Installer
Improper installation or attachment of equipment or accessories could result in electric shock, short-circuit, leaks, fire or other damage to the equipment. Only use accessories, optional equipment and spare parts made or approved by Daikin. WARNING Make sure installation, testing and applied materials comply with applicable legislation (on top of the instructions described in the Daikin documentation).
Page 8: Installation Site
▪ In places where corrosive gas (example: sulphurous acid gas) is produced. Corrosion of copper pipes or soldered parts may cause the refrigerant to leak. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 9: Refrigerant
To avoid compressor breakdown, do NOT charge more than the specified amount of refrigerant. ▪ When the refrigerant system is to be opened, refrigerant MUST be treated according to the applicable legislation. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 10: Brine
The selection of the brine MUST be in accordance with the applicable legislation. WARNING Take sufficient precautions in case of brine leakage. If brine leaks, ventilate the area immediately and contact your local dealer. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 11: Water
If NOT factory installed, a main switch or other means for disconnection, having a contact separation in all poles providing full disconnection under overvoltage category III condition, MUST be installed in the fixed wiring. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 12 After finishing the electrical work, confirm that each electrical component and terminal inside the electrical components box is connected securely. ▪ Make sure all covers are closed before starting up the unit. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 13 Running the product in reversed phase can break the compressor and other parts. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 14: About The Documentation
Format: Paper (in the box of the unit) + Digital files on http:// www.daikineurope.com/support-and-manuals/product-information/ Latest revisions of the supplied documentation may be available on the regional Daikin website or via your dealer. The original documentation is written in English. All other languages are translations. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G)
Page 15: Installer Reference Guide At A Glance
About the documentation Technical engineering data ▪ A subset of the latest technical data is available on the regional Daikin website (publicly accessible). ▪ The full set of latest technical data is available on the Daikin Business Portal (authentication required).
Page 16 Note: There is also an installer settings table in the user reference guide. This table has to be filled in by the installer and handed over to the user. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 17: About The Box
To avoid injury, do NOT touch the air inlet or aluminium fins of the unit. Crane Keep the slings within the marked area to not damage the unit. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 18 After unpacking, carry the unit using the slings attached to the unit. See also: ▪ "3.2.2 To unpack the outdoor unit" [ 19] ▪ "6.3.4 To install the outdoor unit" [ 65] ±150 4× EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 19: To Unpack The Outdoor Unit
About the box 3.2.2 To unpack the outdoor unit a, b Accessories EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 20: To Remove The Accessories From The Outdoor Unit
Installation manual – Discharge grille NOTICE Unpacking – Front corners. When you remove the front packaging corners, hold the box containing the discharge grille to prevent it from falling. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 21: Indoor Unit
Handles at the back of the unit b Handles at the bottom of the unit. Carefully tilt the unit to the back so that the handles become visible. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 22: About The Units And Options
Location Model identification Example: EP R A 14 DA V3 Code Explanation European hydro-split outdoor pair heat pump High water temperature – ambient zone 2 (see operation range) Refrigerant R32 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 23: Identification Label: Indoor Unit
Use one of the following models: ▪ EKMST1 with flange feet: to install the outdoor unit on a concrete foundation where drilling is allowed. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 24: Possible Options For The Indoor Unit
As an option the remote indoor sensor can be installed to measure the room temperature on another location. For installation instructions, see the installation manual of the remote indoor sensor and addendum book for optional equipment. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 25 For installation instructions, see the installation manual of the LAN adapter and the addendum book for optional equipment. Universal centralised controller (EKCC8-W) Controller for cascade control. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 26 For installation instructions, see the installation and operation manual of the Human Comfort Interface (HCI) as room thermostat. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 27: Application Guidelines
Setting up the domestic hot water tank ▪ Setting up the energy metering ▪ Setting up the power consumption control ▪ Setting up an external temperature sensor EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 28: Setting Up The Space Heating/Cooling System
The underfloor heating or radiators are directly connected to the indoor unit. ▪ The room temperature is controlled by the dedicated Human Comfort Interface (BRC1HHDA used as room thermostat). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 29 The underfloor heating or radiators are directly connected to the indoor unit. ▪ The room temperature is controlled by the wireless external room thermostat (optional equipment EKRTR1). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 30 Code: [C-05] heating or cooling demand. Benefits ▪ Wireless. The Daikin external room thermostat is available in a wireless version. ▪ Efficiency. Although the external room thermostat only sends ON/OFF signals, it is specifically designed for the heat pump system. ▪...
Page 31 Space cooling is provided by the heat pump convectors only. The underfloor heating is shut off by the shut-off valve. Setup A Main leaving water temperature zone B One single room a Heat pump convectors (+ controllers) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 32: Multiple Rooms - One Lwt Zone
If only one leaving water temperature zone is needed because the design leaving water temperature of all heat emitters is the same, you do NOT need a mixing valve station (cost effective). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 33 Number of water temperature zones: 0 (Single zone): Main ▪ #: [4.4] ▪ Code: [7-02] Benefits ▪ Easy. Same installation as for one room, but with thermostatic valves. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 34 Compared with underfloor heating or radiators for one room: ▪ Comfort. You can set the desired room temperature, including schedules, for each room via the room thermostats. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 35 Code: [C-07] Number of water temperature zones: 0 (Single zone): Main ▪ #: [4.4] ▪ Code: [7-02] Benefits Compared with heat pump convectors for one room: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 36 INFORMATION To increase comfort and performance, we recommend to install the valve kit option EKVKHPC on each heat pump convector. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 37: Multiple Rooms - Two Lwt Zones
In heating: 35°C ▪ In cooling: 20°C (only refreshment, no real cooling allowed) Bed rooms (additional zone) Heat pump convectors: ▪ In heating: 45°C ▪ In cooling: 12°C EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 38 (X2M/29 and X2M/21; normally closed shut-off valve output). The room temperature is controlled by the dedicated Human Comfort Interface (BRC1HHDA used as room thermostat). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 39 At the mixing valve station Set the desired main leaving water temperature for heating and/or cooling. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 40: Setting Up An Auxiliary Heat Source For Space Heating
During heating operation of the auxiliary boiler, the auxiliary boiler operates to achieve the desired water temperature set via the auxiliary boiler controller. Setup ▪ Integrate the auxiliary boiler as follows: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 41 Make sure the auxiliary boiler and its integration in the system complies with applicable legislation. ▪ Daikin is NOT responsible for incorrect or unsafe situations in the auxiliary boiler system. ▪ Make sure the return water to the heat pump does NOT exceed 60°C. To do so: Set the desired water temperature via the auxiliary boiler controller to maximum 60°C.
Page 42 To prevent freeze-up of the water piping, the auxiliary gas boiler must have a fixed setpoint ≥55°C, or a weather-dependent setpoint ≥T (°C) –30 –25 –20 –15 –10 –5 (°C) Outdoor temperature Minimum weather-dependent setpoint for auxiliary gas boiler EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 43: Setting Up The Domestic Hot Water Tank
Example: If the DHW consumption of a family (4 persons) per day is as follows: ▪ 3 showers ▪ 1 bath ▪ 3 sink volumes Then the DHW consumption = (3×100 l)+(1×150 l)+(3×10 l)=480 l EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 44: Setup And Configuration - Dhw Tank
5.4.3 Setup and configuration – DHW tank ▪ For large DHW consumptions, you can heat up the DHW tank several times during the day. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 45: Dhw Pump For Instant Hot Water
You can program a schedule to control the DHW pump via the user interface. For more information, see the user reference guide. 5.4.5 DHW pump for disinfection Setup EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 46: Setting Up The Energy Metering
▪ The produced heat is calculated internally based on: The leaving and entering water temperature The flow rate EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 47: Consumed Energy
Backup heater supplied from a single- (*3V, *6V (6V): 1N~ 230 V) phase grid (i.e. the backup heater model is *3V or *6V connected to a single-phase grid) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 48 NOT have to set which meter covers which power consumption. You only need to set the number of pulses of each power meter. ▪ "5.5.4 Preferential kWh rate power supply" [ 49] for an example with two power meters. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 49: Preferential Kwh Rate Power Supply
5.6 Setting up the power consumption control You can use the following power consumption controls. For more information about the corresponding settings, see "Power consumption control" [ 184]. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 50: Permanent Power Limitation
"Power consumption control" [ 184]): Select continuous limitation mode Select the type of limitation (power in kW or current in A) Set the desired power limitation level EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 51: Power Limitation Activated By Digital Inputs
5.6.2 Power limitation activated by digital inputs Power limitation is also useful in combination with an energy management system. The power or current of the entire Daikin system is limited dynamically by digital inputs (maximum four steps). Each power limitation level is set via the user interface by limiting one of the following: ▪...
Page 52: Power Limitation Process
(BBR16 activation and BBR16 power limit). After 2 weeks, the unit freezes these settings. Note: This is different from the permanent power limitation, which is always changeable. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 53: Setting Up An External Temperature Sensor
At the north side of the house or at the side of the house where the most heat emitters are located That is NOT exposed to direct sunlight EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 54 To protect the outdoor unit, the internal sensor of the outdoor unit is always used. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 55: Unit Installation
Mind the spacing guidelines. See "15.1 Service space: Outdoor unit" [ 230]. NOTICE ▪ Do NOT stack the units on each other. ▪ Do NOT hang the unit on a ceiling. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 56 This is to prevent corrosion caused by high levels of salt in the air, which might shorten the life of the unit. Install the outdoor unit away from direct sea winds. Example: Behind the building. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 57 WARNING Make sure installation, servicing, maintenance and repair comply with instructions from Daikin and with applicable legislation (for example national gas regulation) and are executed only by authorised persons. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G)
Page 58: Additional Installation Site Requirements Of The Outdoor Unit In Cold Climates
Heating only models + conversion kit (EKHVCONV2) ▪ Mind the measurement guidelines: Maximum height difference between indoor unit and outdoor 10 m unit Maximum total water piping length 50 m EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 59: Opening And Closing The Units
Calculation tool. The Hydronic Piping Calculation tool is part of the Heating Solutions Navigator which can be reached via https:// professional.standbyme.daikin.eu. Please contact your dealer if you have no access to Heating Solutions Navigator. ▪ Mind the following spacing installation guidelines: ≥500...
Page 60: To Remove The Transportation Stay
3 Remove the transportation stays (2×), and dispose of them. 6.2.4 To close the outdoor unit NOTICE When closing the outdoor unit cover, make sure that the tightening torque does NOT exceed 4.1 N•m. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 61: To Open The Indoor Unit
NOTICE If you remove the user interface panel, also disconnect the cables from the back of the user interface panel to prevent damage. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 62 ▪ When you need access to the high voltage switch box 2× 5 If you need access to the high voltage components, remove the high voltage switch box cover. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 63: To Lower The Switch Box On The Indoor Unit
2 Tilt the switch box to the front and lift it out of its hinges. 2× 3 Place the switch box lower on the unit. Use the 2 hinges located lower on the unit. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 64: To Close The Indoor Unit
Check the strength and level of the installation ground so that the unit will not cause any operating vibration or noise. Fix the unit securely by means of foundation bolts in accordance with the foundation drawing. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 65: To Install The Outdoor Unit
Make sure not to cover the drain hole in the bottom plate of the unit. 6.3.4 To install the outdoor unit 1 Carry the unit by its slings, and put it onto the installation structure. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 66: To Provide Drainage
Install the unit on a base to make sure that there is proper drainage in order to avoid ice accumulation. ▪ Prepare a water drainage channel around the foundation to drain waste water away from the unit. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 67 O-ring (delivered as accessory) c Drain plug (delivered as accessory) d Hose (field supply) NOTICE O-ring. Make sure the O-ring is installed correctly to prevent leakage. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 68: To Install The Discharge Grille
4 Align and attach the left side. 5 Align and attach the middle part. 6 Align and attach the right side. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 69: To Remove The Discharge Grille, And Put The Grille In Safety Position
68] ▪ "6.3.7 To remove the discharge grille, and put the grille in safety position" [ 69] 1 Remove the upper part of the discharge grille. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 70 4 Align the ball stud and hook on the grille with their counterparts on the unit. 5 Insert the hook. 6 Insert the ball stud. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 71: Mounting The Indoor Unit
3 Slide the indoor unit into position. 4 Adjust the height of the leveling feet to compensate for floor irregularities. The maximum allowed deviation is 1°. ≤1° EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 72: To Connect The Drain Hose To The Drain
4 Reattach the side panel. Ensure the water can flow through the drain tube. It is recommended to use a tundish to collect the water. Option 1: Through the left side panel 3× EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 73 Unit installation Option 2: Through the right side panel 3× EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 74: Piping Installation
Closed circuit. Use the indoor unit ONLY in a closed water system. Using the system in an open water system will lead to excessive corrosion. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 75 Drainage – Pressure relief valve. Connect the drain hose properly to the drain to avoid water dripping out of the unit. See "6.4.4 To connect the drain hose to the drain" [ 72]. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 76: Formula To Calculate The Expansion Vessel Pre-Pressure
7.1.3 To check the water volume and flow rate The indoor unit has an expansion vessel of 10 litre with a factory-set pre-pressure of 1 bar. To make sure that the unit operates properly: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 77 Use the following graph to determine the maximum water volume for the calculated pre-pressure. 200 220 A Pre-pressure (bar) B Maximum water volume (l) Water Water + glycol Example: Maximum water volume and expansion vessel pre-pressure EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 78 In case the minimum flow rate cannot be reached, a flow error 7H will be generated (no heating or operation). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 79: Changing The Pre-Pressure Of The Expansion Vessel
Pg = (0.3+(H/10)) bar = (0.3+(0/10)) bar = 0.3 bar ▪ The corresponding maximum water volume at 0.3 bar is 290 l. (See the graph in "Maximum water volume" [ 77]). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 80: Connecting Water Piping
1 Connect the shut-off valve (with integrated filter) to the outdoor unit water inlet, using thread sealant. a Water OUT (screw connection, male, 1") b Water IN (screw connection, male, 1") EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 81 NOTICE It is recommended to install shut-off valves to domestic cold water in and domestic hot water out connections. These shut-off valves are field supplied. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 82: To Connect The Recirculation Piping
2 Cut out the rubber grommet on top of the unit, and remove the stop. The recirculation connector is placed below the hole. 3 Route the recirculation piping through the grommet and connect it to the recirculation connector. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 83: To Fill The Water Circuit
Glycol leaking out of the freeze protection valves. Freeze protection by glycol About freeze protection by glycol Adding glycol to the water lowers the freezing point of water. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 84 Add glycol according to the table below. Lowest expected outdoor Prevent from bursting Prevent from freezing temperature –5°C –10°C –15°C –20°C — –25°C — –30°C — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 85 Normally closed valves (recommended – field supply) Part Description An automatic air intake (for air supply) should be installed at the highest point. For example, an automatic air purge. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 86: To Fill The Domestic Hot Water Tank
For piping in free air, it is recommended to use the insulation thickness as shown in below table as a minimum (with λ=0.039 W/mK). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 87 The Hydronic Piping Calculation tool is part of the Heating Solutions Navigator which can be reached via https://professional.standbyme.daikin.eu. Please contact your dealer if you have no access to Heating Solutions Navigator. This recommendation ensures good operation of the unit, however, local regulations may differ and shall be followed.
Page 88: Electrical Installation
▪ Make electrical connections to the fixed wiring. ▪ All components procured on-site and all electrical construction MUST comply with the applicable legislation. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 89: Guidelines When Connecting The Electrical Wiring
Place the round crimp-style terminal on the wire up to the covered part and fasten the terminal with the appropriate tool. Stranded conductor wire Round crimp-style terminal ▪ Use the following methods for installing wires: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 90: About Electrical Compliance
E.g. time-of-use rates, seasonal rates, Wärmepumpentarif in Germany and Austria, ... EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 91: Overview Of Electrical Connections Except External Actuators
5 Normal kWh rate power supply (to power the indoor unit PCB in the event of power supply interruption of the preferential kWh rate power supply) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 92: Connections To The Outdoor Unit
4 Inside the switch box, connect the wires to the appropriate terminals, and fix the cables with cable ties. See: ▪ "In case of V3 models" [ 93] "In case of W1 models" [ 95] ▪ EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 93 ▪ Connect the wires to the terminal block (make sure the numbers match with the numbers on the indoor unit) and the earth screw. ▪ Fix the cable with a cable tie. Wires: (3+GND)×1.5 mm² — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 94 ▪ Fix the cable with cable ties. Wires: (2+GND)×0.75 mm². Wiring must be double insulated. Maximum power allowed for drain tube heater = 115 W (0.5 A) — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 95 ▪ Connect the wires to the terminal block. ▪ Fix the cable with a cable tie. Use the factory-mounted cable. Wires: 3N+GND Maximum running current: Refer to name plate on unit. — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 96 ▪ Connect the wires to the terminal block (make sure the numbers match with the numbers on the indoor unit) and the earth screw. ▪ Fix the cable with a cable tie. Wires: (3+GND)×1.5 mm² — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 97 ▪ Fix the cable with cable ties. Wires: (2+GND)×0.75 mm². Wiring must be double insulated. Maximum power allowed for drain tube heater = 115 W (0.5 A) — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 98: To Reposition The Air Thermistor On The Outdoor Unit
8.2.2 To reposition the air thermistor on the outdoor unit This procedure is only necessary in areas with low ambient temperatures. Required accessory (delivered with the unit): Thermistor fixture. Click EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 99: Connections To The Indoor Unit
Maximum running current: 100 mA For the main zone: ▪ [2.9] Control ▪ [2.A] Thermostat type For the additional zone: ▪ [3.A] Thermostat type ▪ [3.9] (read-only) Control EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 100 ▪ Installation manual of the remote indoor sensor ▪ Addendum book for optional equipment Wires: 2×0.75 mm² [9.B.1]=2 (External sensor = Room) [1.7] Room sensor offset EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 101: To Connect The Main Power Supply
Maximum length: 200 m See below ("LAN adapter – System requirements"). LAN adapter – System requirements The requirements posed on the Daikin Altherma system depend on the LAN adapter application/system layout (app control, or Smart Grid application). App control: Item Requirement...
Page 102 Maximum length: 50 m. Preferential kWh rate power supply contact: 16 V DC detection (voltage supplied by PCB). The voltage-free contact shall ensure the minimum applicable load of 15 V DC, 10 mA. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 103 The preferential kWh rate power supply contact is connected to the same terminals (X5M/9+10) as the safety thermostat. Thus, the system can have EITHER preferential kWh rate power supply OR a safety thermostat. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 104: To Connect The Backup Heater Power Supply
Z less than or equal to Z Connect the backup heater power supply as follows: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 105 Connections to backup heater power supply *6V (6V: 1N~ 230 V) Q1DI 1N~, 50 Hz 230 V AC *6V (6T1: 3~ 230 V) Q1DI 3~, 50 Hz L1 L2 L3 230 V AC EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 106: To Connect The Shut-Off Valve (Heating/Cooling)
2 User interface panel 3 Upper switch box cover 2 Connect the valve control cable to the appropriate terminals as shown in the illustration below. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 107: To Connect The Electricity Meters
2 User interface panel 3 Upper switch box cover 2 Connect the electricity meters cable to the appropriate terminals as shown in the illustration below. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 108: To Connect The Domestic Hot Water Pump
2 User interface panel 3 Upper switch box cover 2 Connect the domestic hot water pump cable to the appropriate terminals as shown in the illustration below. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 109: To Connect The Alarm Output
2 Connect the alarm output cable to the appropriate terminals as shown in the illustration below. Wires connected to the alarm output Wire between X2M and A4P Installation of EKRP1HBAA is required. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 110: To Connect The Space Cooling/Heating On/Off Output
2 User interface panel 3 Upper switch box cover 2 Connect the space cooling/heating ON/OFF output cable to the appropriate terminals as shown in the illustration below. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 111: To Connect The Changeover To External Heat Source
[9.C] Bivalent 1 Open the following (see "6.2.5 To open the indoor unit" [ 61]): 1 Top panel 2 User interface panel 3 Upper switch box cover EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 112: To Connect The Power Consumption Digital Inputs
2 User interface panel 3 Upper switch box cover 2 Connect the power consumption digital inputs cable to the appropriate terminals as shown in the illustration below. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 113: To Connect The Safety Thermostat (Normally Closed Contact)
2 User interface panel 3 Upper switch box cover 2 Connect the safety thermostat (normally closed) cable to the appropriate terminals as shown in the illustration below. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 114: After Connecting The Electrical Wiring To The Indoor Unit
8.4 After connecting the electrical wiring to the indoor unit To prevent water ingress to the switch box, seal the low voltage wiring intake using the sealing tape (delivered as accessory). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 115 Electrical installation Without low voltage cables With low voltage cables EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 116: Configuration
First time – Configuration wizard. When you turn ON the user interface for the first time (via the indoor unit), the configuration wizard starts to help you configure the system. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 117: To Access The Most Used Commands
Confirm the pin code and proceed. Installer pin code The Installer pin code is 5678. Additional menu items and installer settings are now available. Installer 5678 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 118 4 Turn the left dial to select the second part of the setting 01 15 5 Turn the right dial to modify the value from 15 to 20. 01 20 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 119: Configuration Wizard
Booster heater capacity [9.4.1] (if applicable) Backup heater Voltage [9.3.2] "Backup heater" [ 178] Configuration [9.3.3] Capacity step 1 [9.3.4] Additional capacity step 2 [9.3.5] (if applicable) Main zone EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 120: Possible Screens
Comfort setpoint [5.2] Eco setpoint [5.3] Reheat setpoint [5.4] Hysteresis [5.9] and [5.A] 9.3 Possible screens 9.3.1 Possible screens: Overview The most common screens are as follows: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 121: Home Screen
26 Feb 2019 22:19 Possible actions on this screen Go through the list of the main menu. Go to the main menu screen. Enable/disable breadcrumbs. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 122 Outdoor unit Indoor unit / domestic hot water tank Floor-standing indoor unit with integrated tank Wall-mounted indoor unit Wall-mounted indoor unit with separated tank Water pressure EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 123 "13.4.1 To display the help text in case of a malfunction" [ 222] for more information. If the corresponding operation (for example: space heating) is not active, the circle is greyed out. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 124: Main Menu Screen
Displays data and information about the Information indoor unit. Installer settings Restriction: Only for the installer. Gives access to advanced settings. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 125: Menu Screen
°C °C – – Tank Additional zone Explanation – Possible actions on this screen Go through the list of the submenu. Go to the submenu. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 126: Detailed Screen With Values
INFORMATION The procedures to program other schedules are similar. To program the schedule: overview Example: You want to program the following schedule: User defined 1 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 127 1 Select the day of which you want to clear the content. For example Friday User defined 1 2 Select Delete. Delete Edit Copy 3 Select OK to confirm. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 128 To copy the schedule to the other weekdays: 1 Select Monday. User defined 1 2 Select Copy. Delete Edit Copy Result: Next to the copied day, "C" is displayed. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 129 8:00 21°C 23:00 18°C --:-- 4 Confirm the changes. 5 Select Saturday. 6 Select Copy. 7 Select Sunday. 8 Select Paste. Result: User defined 1 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 130: Weather-Dependent Curve
EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 131: 2-Points Curve
See "9.4.4 Using weather-dependent curves" [ 133]. 9.4.2 2-points curve Define the weather-dependent curve with these two setpoints: ▪ Setpoint (X1, Y2) ▪ Setpoint (X2, Y1) Example EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 132: Slope-Offset Curve
Examples Weather-dependent curve when slope is selected: Weather-dependent curve when offset is selected: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 133: Using Weather-Dependent Curves
9.4.4 Using weather-dependent curves Configure weather-dependent curves as following: To define the setpoint mode To use the weather-dependent curve, you need to define the correct setpoint mode: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 134 To fine-tune the weather-dependent curve: slope-offset curve The following table describes how to fine-tune the weather-dependent curve of a zone or tank: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 135: Settings Menu
To display the error code, open the menu screen and go to [0] Malfunctioning. Press more information about the error. User profile Operation Malfunctioning Room Main zone EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 136: Room
Room frost protection, when enabled, is not guaranteed when there is no room thermostat that can activate the heat pump. This is the case when: ▪ [2.9] Control=External room thermostat and [C.2] Space heating/ cooling=Off, or if EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 137 Space heating/cooling=On, and The unit will supply leaving water to the heat emitters to heat up the room ▪ Operation mode=Heating according to normal logic. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 138 ▪ Outdoor temperature drops below 6°C ▪ Space heating/cooling=On, and There is no room frost protection. ▪ Operation mode=Cooling Room thermostat control ([C‑07]=2) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 139 Human Comfort Interface or the external room sensor cannot be installed at the ideal location. "5.7 Setting up an external temperature sensor" [ 53]). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 140: Main Zone
▪ In Weather dependent LWT setpoint mode, the scheduled actions consist of desired shift actions, either preset or custom. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 141 131] and "9.4.3 Slope-offset curve" [ 132]. Code Description [2.E] ▪ 2-points ▪ Slope-Offset Heating WD curve Set weather-dependent heating for the main zone (if [2.4]=1 or 2): EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 142 Note: This value should be lower than [1‑02] as for high outdoor temperatures less warm water is required. Cooling WD curve Set weather-dependent cooling for the main zone (if [2.4]=2): EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 143 It is important to set Emitter type correctly and in accordance with your system layout. The target delta T for the main zone depends on it. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 144 Setpoint range To prevent a wrong (i.e. too hot or too cold) leaving water temperature for the main leaving water temperature zone, limit its temperature range. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 145 ▪ Otherwise: 37°C~55°C [2.8.3] [9-02] Cooling minimum: ▪ 5°C~18°C [2.8.4] [9-03] Cooling maximum: ▪ 18°C~22°C Control Define how the operation of the unit is controlled. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 146 The difference delta T indicates, depends on the operation mode: ▪ In heating mode, delta T indicates the temperature difference between the leaving water setpoint and entering water. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 147 Additionally, also the desired leaving water temperature must be configured: if Modulation is enabled, the unit automatically calculates the desired leaving water temperature. These calculations are based on: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 148 1 leaving water temperature zone, connect the shut-off valve to the heating/cooling output. The shut off valve for the main leaving water temperature zone can close under these circumstances: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 149: Additional Zone
▪ 1 Yes: closes when the space operation mode is cooling. 9.5.4 Additional zone Overview The following items are listed in the submenu: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 150 126]. Setpoint mode The setpoint mode of the additional zone can be independently set from the setpoint mode of the main zone. "Setpoint mode" [ 141]. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 151 Also see "9.5.3 Main zone" [ 140]. Code Description [2.E] ▪ 2-points ▪ Slope-Offset Heating WD curve Set weather-dependent heating for the additional zone (if [3.4]=1 or 2): EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 152 Note: This value should be lower than [0‑01] as for high outdoor temperatures less warm water is required. Cooling WD curve Set weather-dependent cooling for the additional zone (if [3.4]=2): EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 153 [9‑05]~[9‑06] [1‑0C] 0: Underfloor Maximum 55°C Variable (see [3.B.1]) heating 1: Fancoil unit Maximum 55°C Variable (see [3.B.1]) 2: Radiator Maximum 70°C Fixed 10°C EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 154 (X2M/35a) ▪ 2: 2 contacts. Connected to 2 digital inputs (X2M/34a and X2M/35a) Leaving water temperature: Delta T For more information, see "9.5.3 Main zone" [ 140]. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 155: Space Heating/Cooling
To tell the system which space operation to use, you can: You can… Location Check which space operation mode is currently used. Home screen EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 156 Cooling only: Restricted 4 Confirm the changes. Example: Changeover restrictions When Restriction During cold season. Heating only Example: October, November, December, January, February and March. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 157 (thus 24+1=25°C) and the desired heating temperature added by the offset value (thus 22+4=26°C). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 158 LWT zone. Code Description [4.4] [7‑02] ▪ 0: Single zone Only one leaving water temperature zone: a Main LWT zone EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 159 When the space heating/cooling operation is OFF, the pump is always OFF. When space heating/cooling operation is ON, you have the choice between these operation modes: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 160 Sample is ONLY available in leaving water temperature control. a Space heating/cooling control b Off c On d LWT temperature e Actual f Desired g Pump operation EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 161 With this limitation range, delta T is possible and the comfort is guaranteed. The maximum values depend on the unit type: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 162 Use this setting to compensate for possible heat losses of the building due to the evaporation of melted ice or snow. (e.g. in cold region countries). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 163: Tank
Room frost protection [1.4] prevents the room from getting too cold. For more information about room frost protection, see "9.5.2 Room" [ 136]. 9.5.6 Tank Overview The following items are listed in the submenu: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 164 When powerful operation is active, the risk of space heating/cooling and capacity shortage comfort problems is significant. In case of frequent domestic hot water operation, frequent and long space heating/cooling interruptions will happen. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 165 The domestic hot water can be prepared in 3 different ways. They differ from each other by the way the desired tank temperature is set and how the unit acts upon it. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 166 ▪ 4: Thursday ▪ 5: Friday ▪ 6: Saturday ▪ 7: Sunday [5.7.3] [2‑02] Start time [5.7.4] [2‑03] Tank setpoint 60°C [5.7.5] [2‑04] Duration 40~60 minutes EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 167 The maximum temperature that users can select for the domestic hot water. You can use this setting to limit the temperatures at the hot water taps. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 168 Code Description [5.A] [6-08] Reheat hysteresis ▪ 2°C~20°C Setpoint mode Code Description [5.B] Setpoint mode: ▪ Fixed ▪ Weather dependent EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 169 Description [5.D] [6-01] The temperature difference determining the heat pump OFF temperature. Range: 0°C~10°C Example: setpoint (T )>maximum heat pump temperature–[6‑01] (T –[6‑01]) HP MAX EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 170: User Settings
The maximum heat pump temperature depends on the ambient temperature. For more information, see the operation range. 9.5.7 User settings Overview The following items are listed in the submenu: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 171 To configure the holiday 1 Activate the holiday mode. — ▪ Go to [7.3.1]: User settings > Holiday > Activation. 7.3.1 Activation From Till ▪ Select On. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 172 Go to [7.4.3] Level and select the applicable quiet mode level. Example: Most quiet. Result: The unit always runs in the selected quiet mode level. The user cannot change this. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 173 INFORMATION Price value ranging from 0.00~990 valuta/kWh (with 2 significant values). INFORMATION If no schedule is set, the Electricity price for High is taken into account. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 174 Price/kWh Gas price 4.08 Electricity price 12.49 Renewable heat incentive per kWh Calculation of the gas price: Gas price=Actual gas price+(Incentive/kWh×0.9) Gas price=4.08+(5×0.9) Gas price=8.58 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 175: Information
Reset the MMI EEPROM to factory default Possible read-out information In menu… You can read out… [8.1] Energy data Produced energy, consumed electricity, and consumed gas EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 176: Installer Settings
[9.C] Bivalent [9.D] Alarm output [9.E] Auto restart [9.F] Power saving function [9.G] Disable protections [9.H] Forced defrost [9.I] Overview field settings [9.N] Export MMI settings EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 177 When turned on, the pump runs and makes sure hot water is instantly available at the tap. To save energy, only turn on the pump during periods of the day when instant hot water is necessary. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 178 INFORMATION During normal operation, the capacity of the second step of the backup heater at nominal voltage is equal to [6‑03]+[6‑04]. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 179 Only for systems with integrated domestic hot water tank: If the storage temperature setpoint is higher than 50°C, Daikin recommends NOT to disable the backup heater second step because it will have a big impact on the required time for the unit to heat up the domestic hot water tank.
Page 180 If NOT set correctly, the liquid in the piping can freeze. Code Description [E-0D] Glycol Filled system: Is the system filled with glycol? ▪ 0: No ▪ 1: Yes EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 181 [8-02]: Anti-recycle timer [8-01] [8-02] 1 Heat pump domestic water heating mode (1=active, 0=not active) 2 Hot water request for heat pump (1=request, 0=no request) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 182 Range: 0~95 minutes Water pipe freeze prevention Only relevant for installations with water piping outdoors. This function tries to protect outdoor water piping from freezing. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 183 Therefore, always enable the auto restart function. ▪ 3 Safety thermostat: A safety thermostat is connected to the system (normal closed contact) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 184 ▪ 0 Amp: The limitation values are set in A. ▪ 1 kW: The limitation values are set in kW. Limit when [9.9.1]=Continuous and [9.9.2]=Amp: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 185 Limits when [9.9.1]=Inputs and [9.9.2]=kW: Code Description [9.9.9] [5-09] Limit 1: 0 kW~20 kW [9.9.A] [5-0A] Limit 2: 0 kW~20 kW [9.9.B] [5-0B] Limit 3: 0 kW~20 kW [9.9.C] [5-0C] Limit 4: 0 kW~20 kW EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 186 (BBR16 activation and BBR16 power limit). After 2 weeks, the unit freezes these settings. Note: This is different from the permanent power limitation, which is always changeable. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 187 ▪ 0 None: NOT installed ▪ 1 1/10kWh: Installed ▪ 2 1/kWh: Installed ▪ 3 10/kWh: Installed ▪ 4 100/kWh: Installed ▪ 5 1000/kWh: Installed EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 188 The outdoor temperature is averaged over the selected time period. Code Description [9.B.3] [1-0A] Averaging time: ▪ 0: No averaging ▪ 1: 12 hours ▪ 2: 24 hours ▪ 3: 48 hours ▪ 4: 72 hours EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 189 Space heating by the heat Bivalent signal for the pump system… auxiliary boiler is… Drops below T Stops Active calc Rises above T +3°C Starts Inactive calc EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 190 2 Determine the value of [C‑03] using the graph: 2.5 (a) 10.5 (b) Example: a [C‑03]=2.5 in case of COP=3 and LWT=35°C b [C‑03]=10.5 in case of COP=3 and LWT=55°C EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 191 See also table below (Alarm output logic). Alarm output logic [C-09] Alarm No alarm No power supply to unit Closed output Open output Open output Open output Closed output EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 192 Afterwards: An installer can manually disable the protective functions by setting [9.G]: Disable protections=Yes. After his work is done, he can enable the protective functions by setting [9.G]: Disable protections=No. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 193 ▪ Back ▪ To export MMI settings 1 Open the user interface panel and insert a USB memory stick. — EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 194: Commissioning
[C.1] Room ▪ 0: Off ▪ 1: On [C.2] Space heating/cooling ▪ 0: Off ▪ 1: On [C.3] Tank ▪ 0: Off ▪ 1: On EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 195: Menu Structure: Overview User Settings
(*) Only applicable for reversible models, or heating only models + conversion kit (**) Only accessible by installer INFORMATION Depending on the selected installer settings and unit type, settings will be visible/ invisible. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 196: Menu Structure: Overview Installer Settings
Solar kit settings are shown but are NOT applicable for this unit. Settings shall NOT be used or changed. INFORMATION Depending on the selected installer settings and unit type, settings will be visible/ invisible. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 197: Commissioning
10 Commissioning NOTICE General commissioning checklist. Next to the commissioning instructions in this chapter, a general commissioning checklist is also available on the Daikin Business Portal (authentication required). The general commissioning checklist is complementary to the instructions in this chapter and can be used as a guideline and reporting template during the commissioning and hand-over to the user.
Page 198: Precautions When Commissioning
There are NO damaged components or squeezed pipes on the inside of the indoor and outdoor units. Backup heater circuit breaker F1B (field supply) is turned ON. The correct pipe size is installed and the pipes are properly insulated. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 199: Checklist During Commissioning
When the air purge function is running, the pump operates without actual operation of the unit and the removal of air in the water circuit will start. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 200 3 In the menu, set Type = Manual. 4 Select Start air purge. 5 Select OK to confirm. Result: The air purge starts. It stops automatically when ready. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 201: Operation Test Run
"To change — the user permission level" [ 117]. 2 Go to [A.1]: Commissioning > Operation test run. 3 Select a test from the list. Example: Heating. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 202: Actuator Test Run
1 In the menu, go to Stop test run. 2 Select OK to confirm. Possible actuator test runs ▪ Backup heater 1 test ▪ Backup heater 2 test ▪ Pump test EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 203: Underfloor Heating Screed Dryout
2 the desired leaving water temperature, up to 55°C. Example: 24h (1) 36h (2) 35°C (2) 25°C (1) T Desired leaving water temperature (15~55°C) t Duration (1~72 h) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 204 [D‑01]=0 ▪ [4‑08]=0 ▪ [4‑01]≠1 Steps Conditions: An underfloor heating screed dryout schedule has been programmed. "To program an underfloor heating screed dryout schedule" [ 203]. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 205 1 Go to [A.4.3]: Commissioning > UFH screed dryout > Status 2 You can read out the value here: Stopped at + the step — where the underfloor screed dryout was stopped. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 206 If the UFH screed dryout program was stopped due to a power failure and the power resumes, the program will automatically restart the last implemented step. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 207: Hand-Over To The User
Show the user what to do for the maintenance of the unit. ▪ Explain the user about energy saving tips as described in the operation manual. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 208: Maintenance And Service
Before performing any maintenance or service work, touch a metal part of the unit in order to eliminate static electricity and to protect the PCB. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 209: Yearly Maintenance
Switch box ▪ Descaling ▪ Chemical disinfection 12.3.4 Yearly maintenance indoor unit: instructions Water pressure Keep water pressure above 1 bar. If it is lower, add water. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 210 "12.5.3 To install the water filter" [ 214] Water pressure relief valve Open the valve and check if it operates correctly. The water may be very hot! Checkpoints are: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 211 For this reason, descaling of the heat exchanger may be required at certain intervals. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 212: To Drain The Domestic Hot Water Tank
▪ "12.5.1 To remove the water filter" [ 213] ▪ "12.5.2 To clean the water filter in case of trouble" [ 213] ▪ "12.5.3 To install the water filter" [ 214] EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 213: To Remove The Water Filter
Opening the magnetic filter/dirt separator is ONLY required in case of severe issues. Preferably this action is never to be done during the complete lifetime of the magnetic filter/dirt separator. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 214: To Install The Water Filter
Check the condition of the O-rings and replace if needed. Apply water to the O-rings before installation. 1 Install the water filter in the correct location. a Clip b Magnetic filter/dirt separator EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 215 Make sure to open the valve (if equipped) towards the expansion vessel, otherwise the overpressure will be generated. 5 Open the stop valves and add water to the water circuit if needed. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 216: Troubleshooting
If you are unable to find the cause of the problem, call your dealer. DANGER: RISK OF ELECTROCUTION EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 217: Solving Problems Based On Symptoms
Make sure that the water volume in the too low installation is above the minimum required value (see "7.1.3 To check the water volume and flow rate" [ 76]). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 218: Symptom: Hot Water Does Not Reach The Desired Temperature
We recommend to purge air with the air purge function of the unit (to be performed by the installer). If you purge air from the heat emitters or collectors, mind the following: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 219: Symptom: The Pump Is Blocked
Purge air manually (see "To perform a manual air purge" [ 200]) or use the automatic air purge function (see "To perform an automatic air purge" [ 201]). EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 220: Symptom: The Pressure Relief Valve Opens
▪ If the water keeps running out of the unit, close both the water inlet and outlet shut-off valves first and then contact your dealer. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 221: Symptom: The Space Is Not Sufficiently Heated At Low Outdoor Temperatures
Increase the "space heating priority temperature" to activate backup heater operation at a higher outdoor temperature. [9.6.3]: Installer > > settings Balancing Priority temperature [5‑03] EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 222: Symptom: The Pressure At The Tapping Point Is Temporarily Unusually High
13.4.1 To display the help text in case of a malfunction In case of a malfunction, the following will appear on the home screen depending on the severity: EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 223: Error Codes: Overview
Overheating water circuit (thermostat) A1-00 Zero cross detection problem A5-00 OU: High pressure peak cut / freeze protection problem AA-01 Backup heater overheated AC-00 Booster heater overheated EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 224 OU: Malfunction of compressor input (CT) system H9-00 OU: Malfunction of outdoor air thermistor HC-00 Tank temperature sensor problem HC-01 Second tank temperature sensor problem EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 225 OU: Defect of power supply voltage U3-00 Underfloor heating screed dryout function not completed correctly U4-00 Indoor/outdoor unit communication problem U5-00 User interface communication problem EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 226 If the software is not successfully updated then you must make sure that your USB device has the FAT32 format. INFORMATION The user interface of the indoor unit will display how to reset an error code. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 227: Disposal
See: ▪ "6.3.6 To install the discharge grille" [ 68] ▪ "6.3.7 To remove the discharge grille, and put the grille in safety position" [ 69] EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 228 3 Turn the EEV magnet clockwise to the fully open position of the valve. If you are not sure about what the open position is, turn the valve in its middle position so that refrigerant can pass. EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 229: Technical Data
Technical data 15 Technical data A subset of the latest technical data is available on the regional Daikin website (publicly accessible). The full set of latest technical data is available on the Daikin Business Portal (authentication required). In this chapter 15.1...
Page 230: Service Space: Outdoor Unit
≥300 ≥100 ≥500 (mm) 3D124412 English Translation General General No top-side obstacle No top-side obstacle Top-side obstacle Top-side obstacle Wall height unrestricted Wall height unrestricted EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 231: Piping Diagram: Outdoor Unit
Solenoid valve (4-way valve) Solenoid valve (low pressure bypass) Solenoid valve (hot gas bypass) Solenoid valve (liquid injection) Outdoor air Compressor discharge Compressor suction Air heat exchanger, distributor EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 232 Technical data Air heat exchanger, middle Refrigerant liquid Compressor shell Compressor port Entering water R10T Leaving water Heating Cooling EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 233: Piping Diagram: Indoor Unit
3-way valve (space heating/domestic hot water) Thermistor (water IN) Thermistor (backup heater – water OUT) R5T, R8T Thermistor (tank) Flow switch Screw connection Flare connection Quick coupling Brazed connection EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 234: Wiring Diagram: Outdoor Unit
Right side view See note *** See note *** Notes: Symbols: Live Neutral Protective earth Noiseless earth Field wiring Option Terminal strip Terminal Connector Connection EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 235 Light-emitting diode (service monitor is orange) HAP (A1P) Light-emitting diode (service monitor is green) K1R (A1P) Magnetic relay (Y1S) K1R (A4P) Magnetic relay (E1HHEX~E3HHEX) K2R (A1P) Magnetic relay (Y2S) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 236 Insulated Gate Bipolar Transistor (IGBT) X1M, X2M Terminal strip Electronic expansion valve (main) Electronic expansion valve (injection) Solenoid valve (4‑way valve) Solenoid valve (low pressure bypass) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 237 Earth leakage circuit breaker (30 mA) (field supply) R1, R2 (A2P) Resistor Thermistor (outdoor air) Thermistor (compressor discharge) Thermistor (compressor suction) Thermistor (air heat exchanger, distributor) Thermistor (air heat exchanger, middle) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 238 Solenoid valve (4‑way valve) Solenoid valve (low pressure bypass) Solenoid valve (hot gas bypass) Solenoid valve (liquid injection) Z1C~Z10C Noise filter (ferrite core) Z1F~Z4F (A1P, A3P) Noise filter EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 239: Wiring Diagram: Indoor Unit
Main leaving water temperature On/OFF thermostat (wired) On/OFF thermostat (wired) On/OFF thermostat (wireless) On/OFF thermostat (wireless) Ext. thermistor External thermistor Heat pump convector Heat pump convector EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 240 * Humidity sensor R1T (A2P) * Ambient sensor On/OFF thermostat R2T (A2P) * External sensor (floor or ambient) * External indoor or outdoor ambient thermistor EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 241 Switch box (6) Field supplied options (6) Field supplied options 12 V DC pulse detection (voltage 12 V DC pulse detection (voltage supplied by PCB) supplied by PCB) EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 242 Only for heat pump convector Only for wired On/OFF thermostat Only for wired On/OFF thermostat Only for wireless On/OFF thermostat Only for wireless On/OFF thermostat EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 243 & add: X2M: 3-4 Only for Human Comfort Interface 2 core 2×0.75 X5M: 11-12 A14P: P1-P2 user interface communication 2 core 2×0.75 A13P: P1-P2 LAN adapter communication 4D124705 EPRA14~18DAV3+W1 + ETVH/X16S18+23DA6V+9W(G) Installer reference guide Daikin Altherma 3 H HT F 4P587502-1 – 2019.07...
Page 244: Glossary
Optional equipment Equipment made or approved by Daikin that can be combined with the product according to the instructions in the accompanying documentation. Field supply Equipment NOT made by Daikin that can be combined with the product according to the instructions in the accompanying documentation.
Page 245: Field Settings Table
1/11 95D1 Field settings table [8.7.5] = ..Applicable indoor units ETBH16DA6V ETBH16DA9W ETBX16DA6V ETBX16DA9W ETVH16S18DA6V* ETVH16S23DA6V* ETVH16S18DA9W* ETVH16S23DA9W* ETVX16S18DA6V* ETVX16S23DA6V* ETVX16S18DA9W* ETVX16S23DA9W* Notes (*1) *6V (*2) *9W (*3) ETB* (*4) ETV* (*5) *X* (*6) *H* 4P586458-1 - 2019.07...
Page 246 2/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value Room └─ Antifrost 1.4.1 [2-06] Activation 0: Disabled 1: Enabled 1.4.2 [2-05] Room setpoint 4~16°C, step: 1°C 8°C └─...
Page 247 3/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value └─ Heating WD curve [0-00] Leaving water value for high ambient temp. for LWT add zone heating WD curve. [9-05]~min(45,[9-06])°C, step: 1°C [2-0C]=0 25°C...
Page 248 4/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value └─ Disinfection 5.7.1 [2-01] Activation 0: No 1: Yes 5.7.2 [2-00] Operation day 0: Each day 1: Monday 2: Tuesday 3: Wednesday 4: Thursday...
Page 249 5/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value 9.1.4.4 [6-04] Additional capacity step 2 0~10kW, step: 0,2kW 4kW (*1) 6kW (*2) └─ Main zone 9.1.5.1 [2-0C] Emitter type 0: Underfloor heating...
Page 250 6/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value 9.2.1 [E-05] Domestic hot water No DHW (*3) [E-06] EKHW (*3) [E-07] Integrated (*4) EKHWP (*3) 9.2.2 [D-02] DHW pump 0: No DHW pump...
Page 251 7/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value 9.9.B [5-0B] Limit 3 0~20 kW, step: 0,5 kW 20 kW 9.9.C [5-0C] Limit 4 0~20 kW, step: 0,5 kW 20 kW 9.9.D [4-01]...
Page 252 8/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value [1-02] Leaving water value for low ambient temp. for LWT main zone heating WD curve. [9-01]~[9-00], step: 1°C [2-0C]=0 35°C [2-0C]=1...
Page 253 9/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value [4-01] Which electric heater has priority? 0: None 1: BSH 2: BUH [4-02] Below which outdoor temperature is heating allowed? 14~35°C, step: 1°C 35°C [4-03]...
Page 254 10/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value [7-03] [7-04] [7-05] Boiler efficiency 0: Very high 1: High 2: Medium 3: Low 4: Very low [7-06] HP Forced OFF 0: Disabled...
Page 255 11/11 Field settings table Installer setting at variance with default value Breadcrumb Field code Setting name Range, step Date Official Value Default value [D-01] Contact type of preferential kWh rate PS installation? 0: No 1: Active open 2: Active closed 3: Safety thermostat [D-02] Which type of DHW pump is installed?
Page 256 4P587502-1 2019.07 Verantwortung für Energie und Umwelt...

This manual is also suitable for:

Altherma 3 h ht f epra14dav3 Altherma 3 h ht f epra16dav3 Altherma 3 h ht f epra18dav3 Altherma 3 h ht f epra14daw1 Altherma 3 h ht f epra16daw1 Altherma 3 h ht f epra18daw1 ... Show all

Daikin Altherma 3 H HT F Series Installer's Reference Manual

Quick Links

Related Manuals for Daikin Altherma 3 H HT F Series

Summary of Contents for Daikin Altherma 3 H HT F Series

This manual is also suitable for:

Table of Contents
