Connecting the FortiGate-5140 chassis to AC power using the FortiGate-5053 power converter tray Power connection and configuration
Connecting the FortiGate-5140 chassis to AC power using the
FortiGate-5053 power converter tray
18

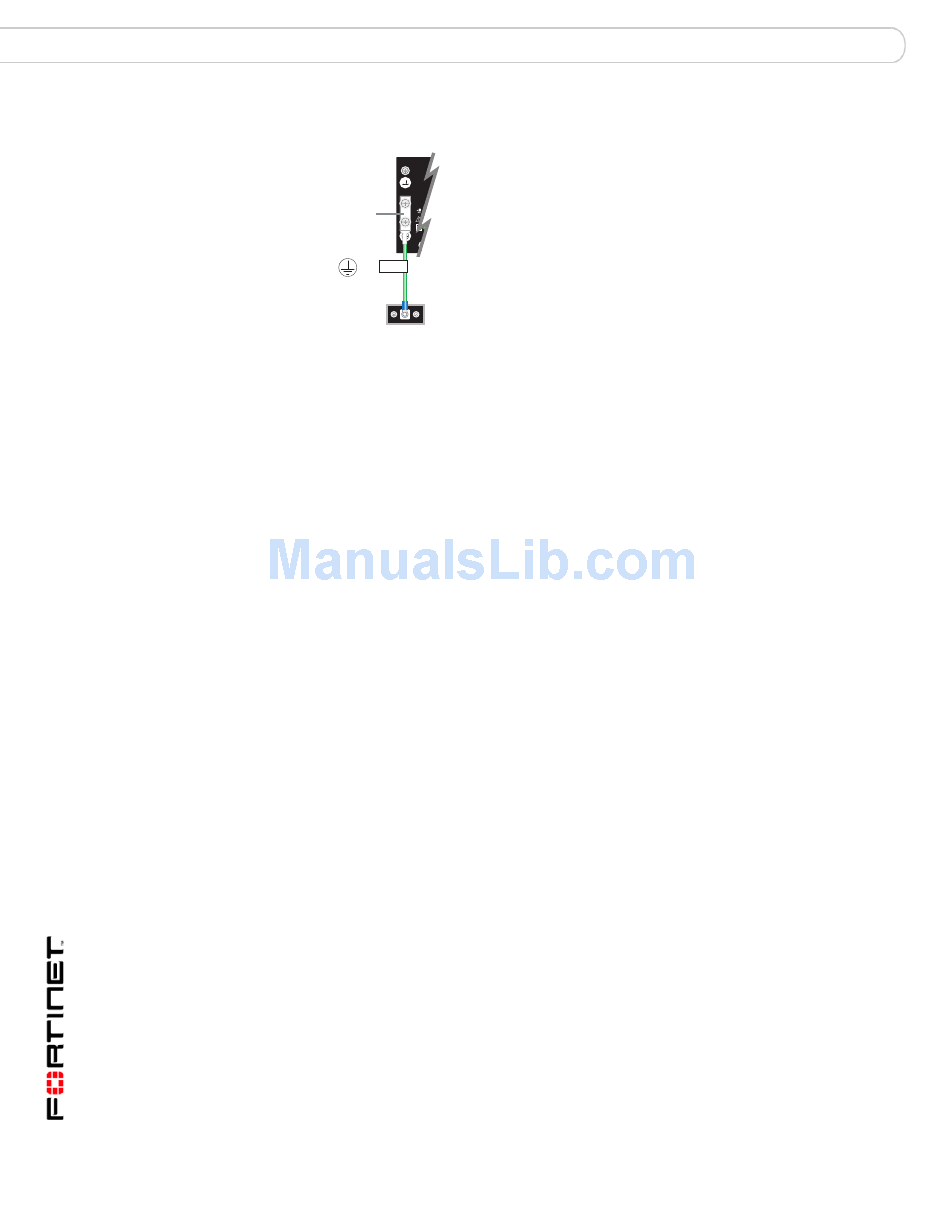

Figure 8: Connecting a FortiGate-5140 chassis to data center ground
Chassis
FortiGate-5140
ground
connector
(green)
GND
Data Center
ground
connector
To connect the FortiGate-5140 chassis to data center ground
1 Attach the ESD wrist strap to your wrist and to an ESD socket or to a bare metal
surface on the chassis or frame.
2 Connect the green ground wire from the data center ground to the ground
connector on the FortiGate-5140 chassis (see
3 Secure the ground wire to the chassis using tie wraps and the back cable tray.
4 Optionally label the ground wire GND.
If data center DC power is not available, you can use the FortiGate-5053 power
converter tray with FortiGate-5140 power supplies (shown in
AC power to DC power. The FortiGate-5053 power converter tray and the power
supplies are not supplied with the FortiGate-5140 chassis and must be purchased
separately.
This section contains the following information about the FortiGate-5140 chassis
and the FortiGate-5053 power converter tray:
• FortiGate-5053 power converter tray front and back panel
• Selecting the power supplies and power convertor trays that you need for your
FortiGate-5140 configuration
• Connecting a FortiGate-5140 chassis to the FortiGate-5053 power converter
tray
• Connecting the FortiGate-5140 chassis to data center ground
Ground
connector
Figure 8).
Figure 9) to convert
