TP-Link AC1200 User Manual page 23

Chapter 4

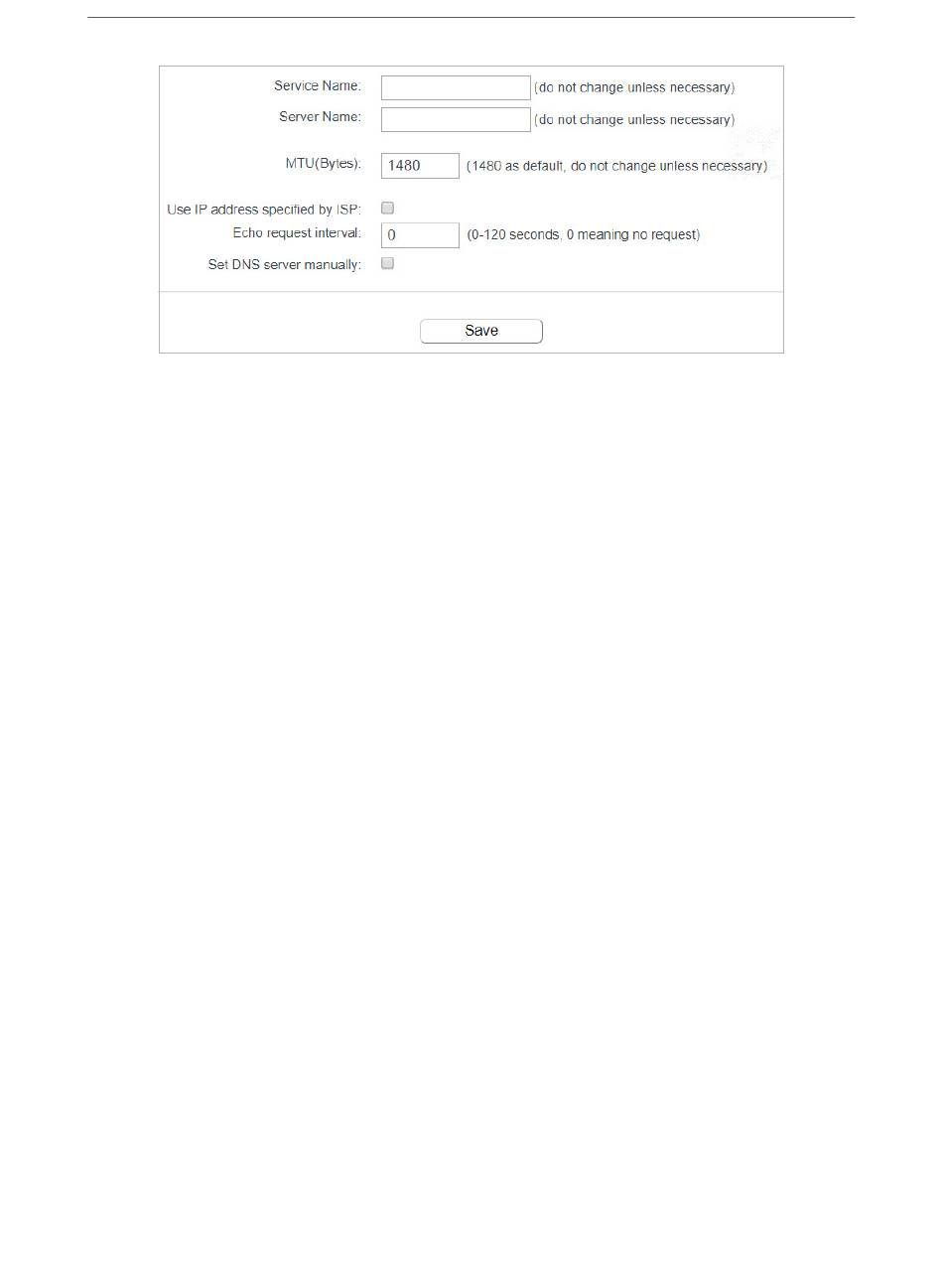

• Service Name/Server Name
configured unless you are sure it is necessary for your ISP. In most cases, leaving
these fields blank will work.
• MTU (Bytes) - The default MTU size is 1480 bytes. It is not recommended that you
change the default MTU size unless required by your ISP.
• Use IP address specified by ISP
addresses to the router, select this and enter the IP address provided by your ISP in
dotted-decimal notation.
• Echo request interval
interval. The default value is 0. You can input the value between 0 and 120. The value
0 means no detect.
• Set DNS server manually
to the router, select this and enter the IP address in dotted-decimal notation of your
ISP's primary DNS server. If a secondary DNS server address is available, enter it as
well.
L2TP
If your ISP provides L2TP connection, please select L2TP.
- The service name and server name should not be
- If your ISP does not automatically assign IP
- The router will detect Access Concentrator online at every
- If your ISP does not automatically assign DNS addresses
Configure the Router
19
