Panasonic S-26PU2U6 Operating Instructions Manual
Hide thumbs
Also See for S-26PU2U6:
- Technical data & service manual (297 pages) ,
- Installation instructions manual (32 pages)
Table of Contents
Advertisement
Quick Links
Type U2
Model No.
Indoor Units
Type
Indoor Unit Type
U2
4-Way Cassette 36" x 36"
T2
Ceiling
* Panel (optional parts)
Connectable outdoor unit lineup
This booklet is the operating instructions for indoor unit. Regarding the outdoor unit, see the operating
instructions supplied with the outdoor unit.
Outdoor Units
Type
Outdoor Unit Type
U
Single
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
Type T2
26
S-26PU2U6
(CZ-36KPU3U)*
S-26PT2U6
26
U-26PE1U6
U-36PE1U6
Operating Instructions
Nominal Capacity
36
S-36PU2U6
(CZ-36KPU3U)*
S-36PT2U6
Nominal Capacity
36
42
U-42PE1U6
This air conditioner uses the refrigerant R410A.
Air Conditioner
42
S-42PU2U6
(CZ-36KPU3U)*
S-42PT2U6
Remarks
Cooling/Heating
F569999
Advertisement
Table of Contents
Related Manuals for Panasonic S-26PU2U6
Summary of Contents for Panasonic S-26PU2U6

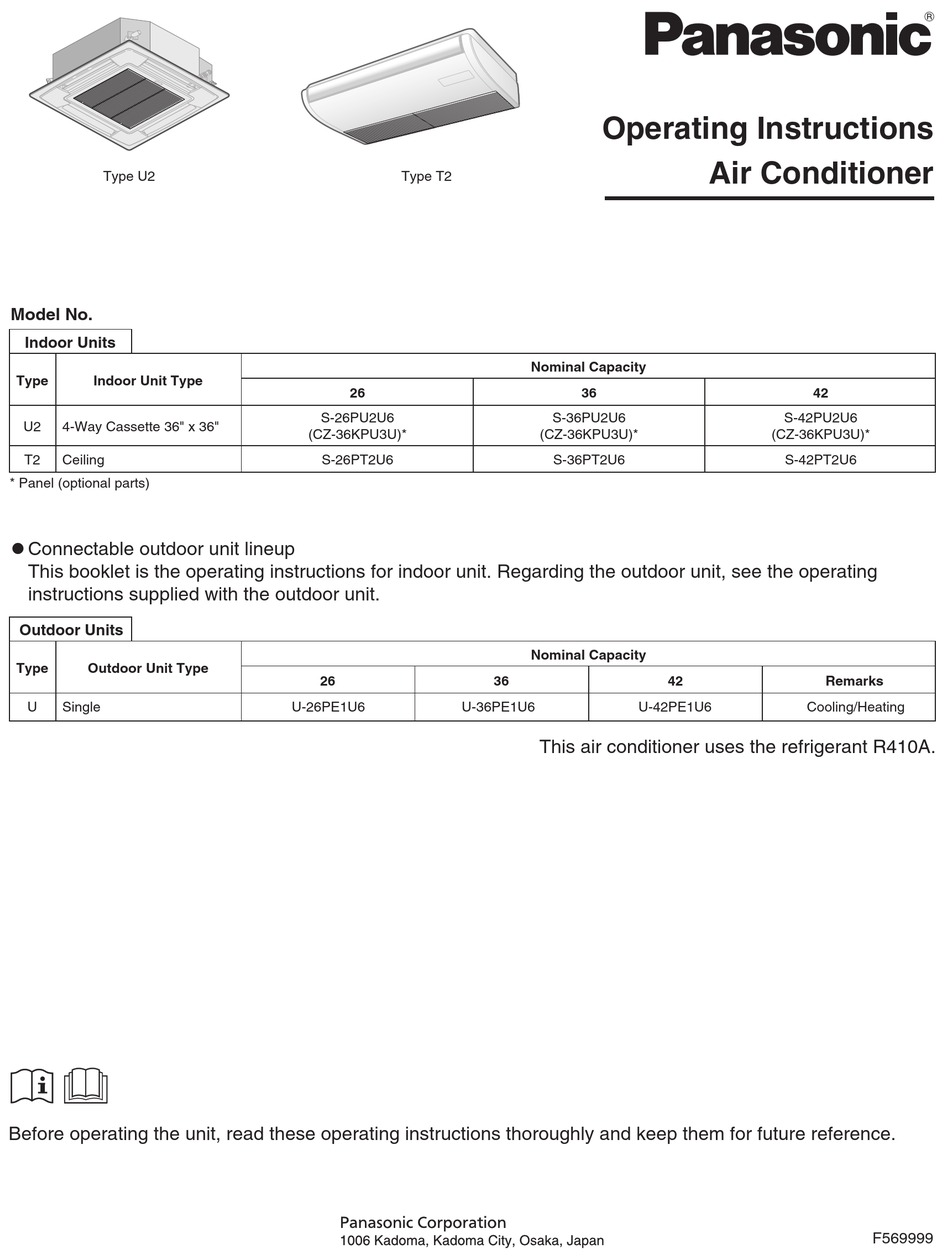

- Page 1 Operating Instructions Air Conditioner Type U2 Type T2 Model No. Indoor Units Nominal Capacity Type Indoor Unit Type S-26PU2U6 S-36PU2U6 S-42PU2U6 4-Way Cassette 36" x 36" (CZ-36KPU3U)* (CZ-36KPU3U)* (CZ-36KPU3U)* Ceiling S-26PT2U6 S-36PT2U6 S-42PT2U6 * Panel (optional parts) Connectable outdoor unit lineup This booklet is the operating instructions for indoor unit.
-
Page 2: Table Of Contents
CONTENTS Page PRODUCT INFORMATION ......................2 ALERT SYMBOLS.........................2 INSTALLATION LOCATION......................3 ELECTRICAL REQUIREMENTS ....................3 SAFETY INSTRUCTIONS......................3 OPERATION CONDITION ......................4 NAMES OF PARTS ........................5 Timer Remote Controller (Optional parts) ..................5 Refer to the Operating Instructions attached to the optional Timer Remote Controller. NOTE High-spec Wired Remote Controller (Optional parts)..............5 Refer to the Operating Instructions attached to the optional High-spec Wired Remote Controller. -
Page 3: Installation Location
INSTALLATION LOCATION • We recommend that this air conditioner be installed properly by qualified installation technicians in accordance with the Installation Instructions provided with the unit. • Before installation, check that the voltage of the electric supply in your home or office is the same as the voltage shown on the nameplate. -
Page 4: Operation Condition
• For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing. • Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. -
Page 5: Names Of Parts
NAMES OF PARTS INDOOR UNIT Type U2 (4-Way Cassette 36" x 36") Type T2 (Ceiling) Water drain Air outlet Water drain Ceiling panel (optional) Air intake grille (air intake) Air outlet Air intake grille (4 locations) (air intake) Timer Remote Controller (Optional parts) Refer to the Operating Instructions NOTE attached to the optional Timer Remote... -
Page 6: Adjusting Airflow Direction
ADJUSTING AIRFLOW DIRECTION 4-Way Cassette 36" x 36" (Type U2) This air conditioners are equipped with auto flaps. You can set the airflow direction to a specific angle or to the sweep mode using the remote controller. Do not move the flap with your hands. •... -
Page 7: Special Remarks
SPECIAL REMARKS • Once the room temperature reaches the level that was set, the unit repeats the cycle of ‘‘DRY’’ Operation turning on and off automatically. • In order to prevent the humidity in the room from rising again, the indoor fan also turns off when the unit stops operating. -
Page 8: Care And Cleaning
CARE AND CLEANING Do not attempt to clean inside the unit by yourself. Refer to the section “Care and Cleaning” in the Installation Instructions. 1. For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning. -
Page 9: Troubleshooting
TROUBLESHOOTING If your air conditioner does not work properly, first check the following points before requesting service. If it still does not work properly, contact your dealer or a service center. INDOOR UNIT Symptom Cause Noise Sound like streaming water during •... -
Page 10: Check Before Requiring Services
CHECK BEFORE REQUIRING SERVICES Symptom Cause Remedy Air conditioner does not run at Power failure or after power failure Press ON/OFF operation button on remote controller all although power is turned again. Operation button is turned off. • Switch on power if breaker is turned off. •... -
Page 11: Specifications
SPECIFICATIONS 4-Way Cassette 36" x 36" (Type U2) Model Name S-26PU2U6 S-36PU2U6 S-42PU2U6 Power Source 208 / 230 V, 60 Hz, 1PH BTU/h 24,800 32,600 39,000 Cooling Capacity 11.4 BTU/h 28,600 37,000 48,000 Heating Capacity 10.8 14.1 Sound Pressure Level (High/Medium/Low) - Page 12 © Panasonic Corporation 2015 F569999 BE0515-10615 Printed in China...
