Type K2
Model No.
Indoor Units
Type
Indoor Unit Type
K2
Wall Mounted
Connectable outdoor unit lineup
This booklet is the operating instructions for indoor unit. Regarding the outdoor unit, see the operating
instructions supplied with the outdoor unit.
Outdoor Units
Type
Outdoor Unit Type
U
Single
This air conditioner uses the refrigerant R410A.
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
85464609338010
Nominal Capacity
26
S-26PK2U6
Nominal Capacity
26
U-26PE1U6
Cooling/Heating
Operating Instructions
Remarks
Air Conditioner
CV6233320526
Advertisement
Table of Contents
Related Manuals for Panasonic S-26PK2U6
Summary of Contents for Panasonic S-26PK2U6

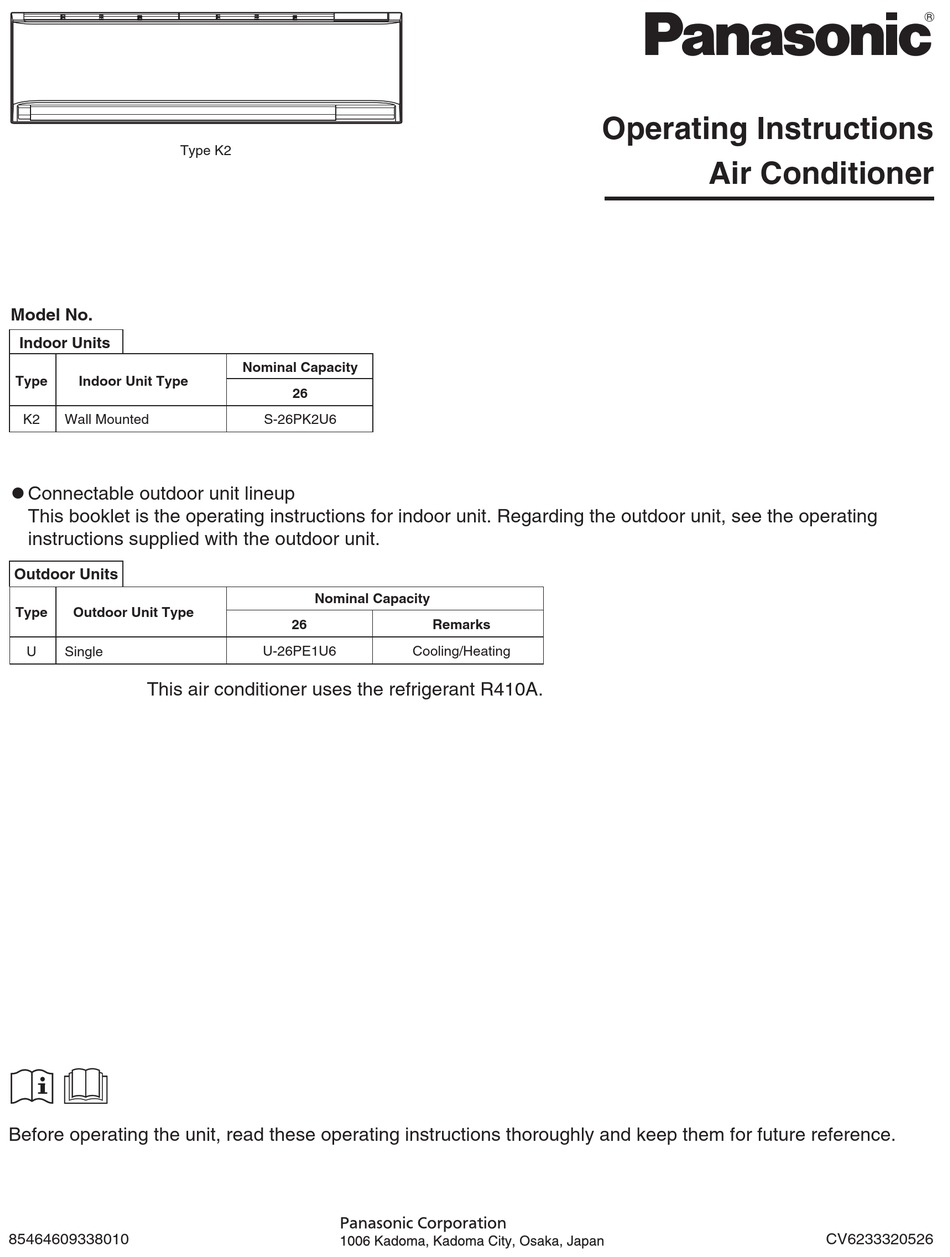

- Page 1 Indoor Units Nominal Capacity Type Indoor Unit Type Wall Mounted S-26PK2U6 Connectable outdoor unit lineup This booklet is the operating instructions for indoor unit. Regarding the outdoor unit, see the operating instructions supplied with the outdoor unit. Outdoor Units...
-
Page 2: Table Of Contents
CONTENTS Page PRODUCT INFORMATION ......................2 ALERT SYMBOLS.........................2 INSTALLATION LOCATION......................3 ELECTRICAL REQUIREMENTS ....................3 SAFETY INSTRUCTIONS......................3 OPERATION CONDITION ......................4 NAMES OF PARTS ........................5 Timer Remote Controller (Optional parts) ..................5 Refer to the Operating Instructions attached to the optional Timer Remote Controller. NOTE High-spec Wired Remote Controller (Optional parts)..............5 Refer to the Operating Instructions attached to the optional High-spec Wired Remote Controller. -
Page 3: Installation Location
INSTALLATION LOCATION • We recommend that this air conditioner be installed properly by qualified installation technicians in accordance with the Installation Instructions provided with the unit. • Before installation, check that the voltage of the electric supply in your home or office is the same as the voltage shown on the nameplate. -
Page 4: Operation Condition
• For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing. • Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. -
Page 5: Names Of Parts
NAMES OF PARTS INDOOR UNIT Air intake Receiver OPERATION TIMER STANDBY Air outlet Emergency Operation button Timer Remote Controller (Optional parts) Refer to the Operating Instructions NOTE attached to the optional Timer Remote Controller. (CZ-RTC4) High-spec Wired Remote Controller (Optional parts) Refer to the Operating Instructions NOTE attached to the optional High-spec Wired... -
Page 6: Adjusting Airflow Direction
ADJUSTING AIRFLOW DIRECTION Wall mounted type (K2) Vertical directions (automatic) Confirm that the remote controller has been turned on. Press the FLAP button to start the flap Indoor unit moving up and down. If you want to stop the flap movement and to direct the air in the desired direction, press the FLAP button again. -
Page 7: Special Remarks
SPECIAL REMARKS • Once the room temperature reaches the level that was set, the unit repeats the cycle of ‘‘DRY’’ Operation turning on and off automatically. • In order to prevent the humidity in the room from rising again, the indoor fan also turns off when the unit stops operating. -
Page 8: Care And Cleaning
CARE AND CLEANING Wipe with a soft cloth. (If it is very dirty, use a cloth moistened with water.) Do not attempt to clean inside the unit by yourself. Refer to the section “Care and Cleaning” in the Installation Instructions. 1. -
Page 9: Troubleshooting
TROUBLESHOOTING If your air conditioner does not work properly, first check the following points before requesting service. If it still does not work properly, contact your dealer or a service center. INDOOR UNIT Symptom Cause Noise Sound like streaming water during •... -
Page 10: Check Before Requiring Services
CHECK BEFORE REQUIRING SERVICES Symptom Cause Remedy Air conditioner does not run at Power failure or after power failure Press ON/OFF operation button on remote controller all although power is turned again. Operation button is turned off. • Switch on power if breaker is turned off. •... -
Page 11: Wireless Remote Controller
WIRELESS REMOTE CONTROLLER UNIT DISPLAY AND OPERATION CONTROLLER TIMER lamp STANDBY lamp OPERATION lamp Receiver OPERATION TIMER STANDBY Emergency Operation button OPERATION lamp This lamp lights when the appliance is turned on. TIMER lamp This lamp lights when the system is being controlled by the timer. STANDBY lamp When the unit is in the heating standby condition, the STANDBY lamp lights. - Page 12 USING WIRELESS REMOTE CONTROLLER How to Install Batteries 1. Press and slide the cover on the back of the wireless remote controller in the direction of the arrow. 2. Install two AAA alkaline batteries (LR03). Make sure the batteries point in the direction marked in the battery compartment.
- Page 13 USING WIRELESS REMOTE CONTROLLER (CONTINUED) How to Use Wireless When using the wireless remote controller, always point the unit’s transmitter head directly at Remote Controller the air conditioner’s receiver. Air conditioner Receiver (Transmitter head) Wireless remote controller Wireless Remote The wireless remote controller can be operated from either a non-fixed position or a wall- Controller Installation mounted position.
-
Page 14: Remote Controller
REMOTE CONTROLLER 15. Sensor button Use this when switching to detect the 1. Operation Display Displays the operation status. temperature at the remote controller. (The figure shows all the statuses.) At shipping the default setting is set • The auto-flap display may be to detect the temperature at the unit. - Page 15 HOW TO SET ADDRESS ( Setting addresses of indoor units for remote controller Setting Remote Control Addresses 1. If you press at the same time, “SET” will blink. 2. While holding down, every time you press , it cycles from ALL 3…...
- Page 16 OPERATION Setting Current Time After changing the batteries and pressing reset, be sure to reset the current time. (When reset is pressed, the current time reverts to [ 1. Press for two seconds or more. Once the clock displays starts blinking, the clock can be set. 2.
- Page 17 <Auto Operation> If all the indoor units are identical in a cooling system and are under control as one group, it heats or cools automatically via the differences between the set temperature and the room temperature. <Dry Operation> • Depending on the indoor unit used, the remote controller may have a [Dry] indicator on its display even though the unit does not have the Dry function.
- Page 18 Combining ON and OFF Timers • Setting the ON and OFF timers, respectively. Checking the timer setting • If you press either for the or the , the scheduled time is displayed for four seconds. • When no timer setting has been made, it displays --:--. (Initial Setting) Changing a timer setting •...
- Page 19 Adjusting Wind Direction • Never try to manually move the flap (up-down wind direction plate) that is operated by the remote controller. • When the unit stops, the flap (up-down wind direction plate) automatically faces downwards. • When the unit is in heating standby, the flap (up-down wind direction plate) faces upward. Also, bear in mind that the flap starts swinging after the heating standby mode is released, but the display on the remote controller indicates Auto Flap during standby heating as well.
- Page 20 OPERATION WITHOUT WIRELESS REMOTE CONTROLLER STEP 1 To start the air conditioner Press [Emergency Operation] button of the indoor unit. STEP 2 To stop the air conditioner Press [Emergency Operation] button of the indoor unit. OPERATION TIMER STANDBY Emergency Operation button...
-
Page 21: Specifications
SPECIFICATIONS Wall Mounted (Type K2) Model Name S-26PK2U6 Power Source 208 / 230 V, 60 Hz, 1PH BTU/h 24,000 Cooling Capacity BTU/h 27,600 Heating Capacity Sound Pressure Level (High/Medium/Low) dB(A) 48/42/38 H : inch (mm) 11-13/16 (300) Unit Dimensions W : inch (mm) - Page 24 © Panasonic Corporation 2015 85464609338010 Printed in Japan BE0915-0...
