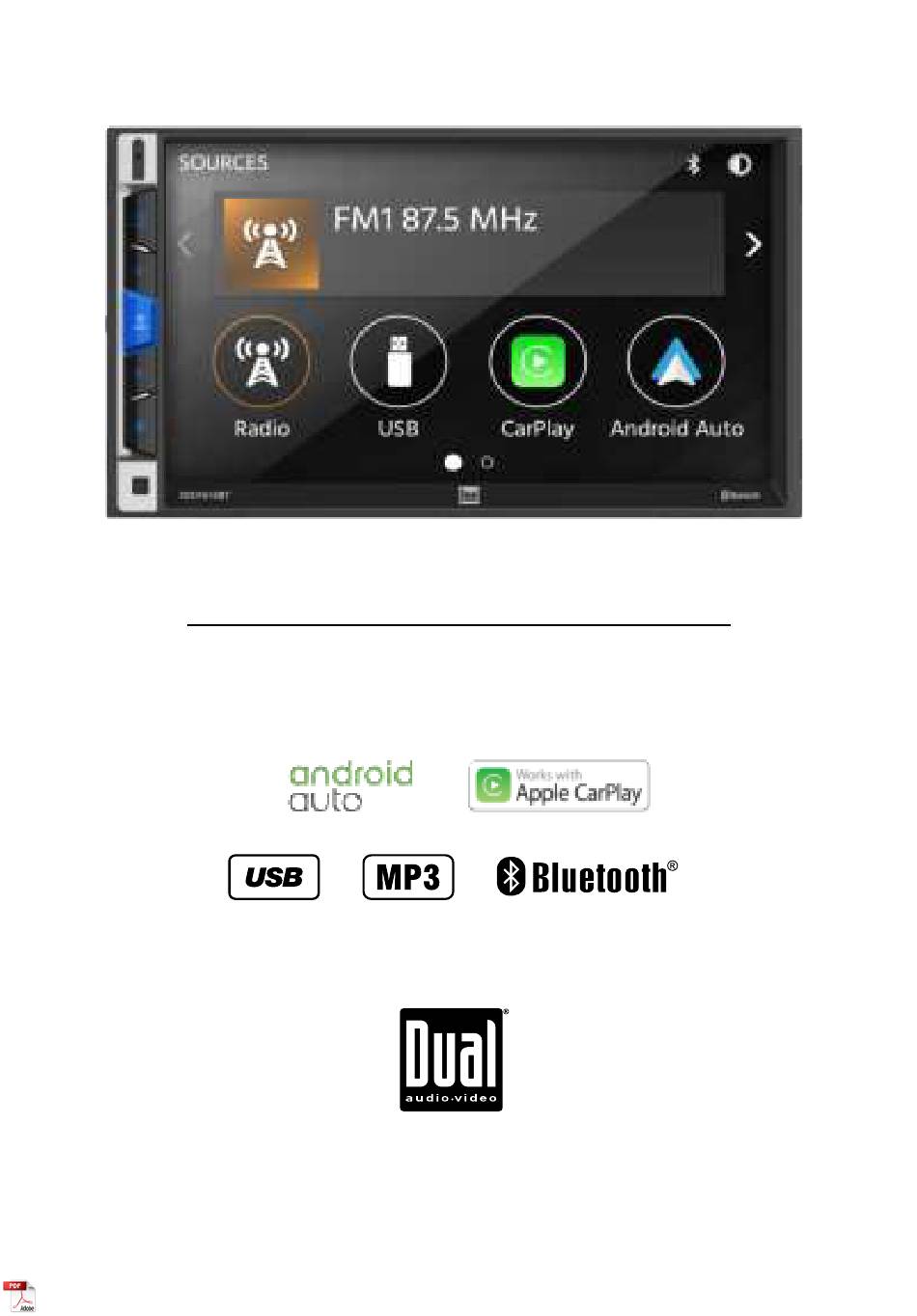

- Page 1 XDCPA10BT INSTALLATION/OWNER’S MANUAL Media Receiver with Android Auto™ and CarPlay™ featuring a 7" digital TFT Display...
- Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
XDCPA10BT INSTALLATION Table of Contents Page Warning Statement .......... - Page 4 XDCPA10BT INSTALLATION WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 5: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XDCPA10BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 6: Preparation/Mounting
XDCPA10BT INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Wiring Diagram
WHITE LEFT FRONT(+) WHITE/BLACK LEFT FRONT(-) GRAY RIGHT FRONT(+) GRAY/BLACK RIGHT FRONT (-) GREEN LEFT REAR(+) GREEN/BLACK LEFT REAR(-) VIOLET RIGHT REAR(+) VIOLET/BLACK RIGHT REAR(-) IGNITION / IGNITION / 12V(+) ACC 12V(+) BLACK CHASSIS GROUND(-) GROUND(-) YELLOW BATTERY 12(+) BATTERY(+) ORANGE LLUMINATION(+) ILLUMINATION... -
Page 8: Control Locations
XDCPA10BT INSTALLATION Control Locations The radio display features the following functions and displays: RESET Home VOL+ Power/Mute VOL- Voice Activation Button IR sensor... -
Page 9: Remote Preparation
XDCPA10BT INSTALLATION Remote Control Preparation Power Volume Up Tune/Track Down Enter Mute Volume Down Preset 1~6 Repeat Play/Pause Talk MODE End Call Random BAND Tune/Track Up Voice Activation Button... -
Page 10: General Operation
XDCPA10BT INSTALLATION General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Press to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume. - Page 11 XDCPA10BT INSTALLATION General Operation From the Main Menu screen, select Setup to access the Setting menu and Setup Menu select from eight categories represented by the icons on the top of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
-
Page 12: Am/Fm Tuner Operation
XDCPA10BT INSTALLATION AM/FM Tuner Operation Radio Operation From the main menu, touch Radio icon on the screen to select AM/ FM tuner mode. Main Menu Press icon to return to Main Menu screen. Current Mode Indicator Display status of various tuning functions including Auto. -
Page 13: Usb Operation
XDCPA10BT INSTALLATION USB/ Operation From the main menu, touch the USB icon on the main screen. Press icon to return to Main Menu screen. Main Menu Displays source currently playing. Current Mode Indicator Press the icon to adjust Equalizer setting. -
Page 14: Media Compatibility
XDCPA10BT INSTALLATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3/.flac/ogg File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... - Page 15 XDCPA10BT INSTALLATION Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
-
Page 16: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XDCPA10BT". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 17 XDCPA10BT INSTALLATION Bluetooth Operation Devices Press the DEVICES to show the pairing device list. To connect to a previously connected device. press the current device name. Any previously connected devices that are in rang will be listed by their device name. Press the desired device name to disconnect from the current device and connect to the new device.
-
Page 18: Apple Carplay
XDCPA10BT INSTALLATION Apple CarPlay Operation Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen. - Page 19 XDCPA10BT INSTALLATION Apple CarPlay Operation When the CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands.
-
Page 20: Android Auto
XDCPA10BT INSTALLATION Android Auto™ Operation Android Auto™ brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music. - Page 21 XDCPA10BT INSTALLATION Android Auto™ Operation Using Android Auto™ The Android Auto™ home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android Auto™ menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
-
Page 22: Auxiliary Inputs/Rear Camera Operation
XDCPA10BT INSTALLATION Rear RCA Input A/V IN Connect an optional audio/video source into the RCA (rear) input. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). Rear Camera Operation - (Optional) Using Rear Camera Connect an optional rear camera to the Camera Input (Black RCA connector). -
Page 23: Swc Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDCPA10BT to be compatible with any steering wheel controls. The following controls are available for most vehicles. -
Page 24: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name... -
Page 25: Specifications
XDCPA10BT INSTALLATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz 10dBf Usable sensitivity: 20dBf 50dB quieting sensitivity: 38dB Stereo separation @ 1kHz: Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB High Speed USB 2.0... -
Page 26: Warranty
