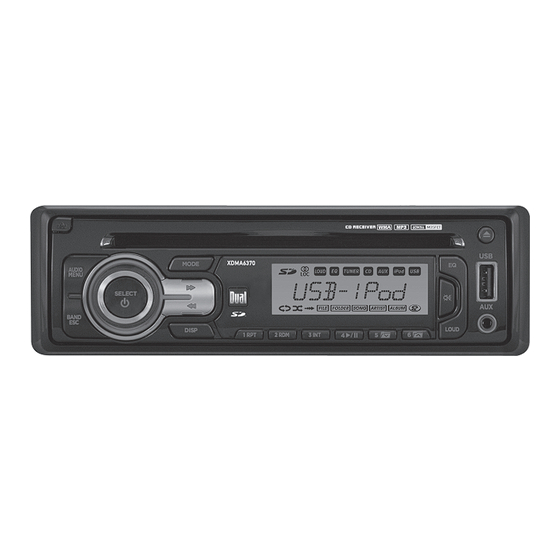

Am/fm/cd receiver with detachable face
Hide thumbs Also See for WMA XDMA6370:
Table of Contents

Advertisement

Quick Links

Download this manual
XDMA6370
INSTALLATION/OWNER'S MANUAL
AM/FM/CD Receiver with Detachable Face
Front and Rear Inputs

Advertisement

Table of Contents
loading

Related Manuals for Dual WMA XDMA6370

Summary of Contents for Dual WMA XDMA6370

  • Page 1 XDMA6370 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with Detachable Face Front and Rear Inputs...

  • Page 2: Getting Started

    XDMA6370 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started •...

  • Page 3: Wiring Diagram

    XDMA6370 INSTALLATION  RCA Preamp Connections REAR/SUB (selectable) FRONT FRONT R/SUB REMOTE IN Steering Wheel Interface Input (PAC SWI-PS required) Wiring Diagram AUX INPUT (rear) L-CH R-CH Antenna Connector FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio.

  • Page 4: Control Locations - Receiver

    XDMA6370 OPERATION Control Locations - Receiver Release Audio / Menu Select / Power Mode Tune / Track Up Mute Eject USB Input Auxiliary Input Loud Preset 6 / Folder Up Preset 5 / Folder Down Preset 4 / Play / Pause Preset 3 / Intro Preset 2 / Random Preset 1 / Repeat Display...

  • Page 5: Control Locations - Remote

    Control Locations - Remote Mode Volume Up Audio / Menu Select / Power Tune / Track Up Volume Down Display Preset 2 / Random Preset 3 / Intro XDMA6370 OPERATION Preset 6 / Folder Up Loudness Mute Preset 5 / Folder Down Preset 4 / Play / Pause Preset 1 / Repeat Band / Escape Tune / Track Down...

  • Page 6: General Operation

    XDMA6370 OPERATION General Operation Power On/Off Mode Auxiliary Inputs Steering Wheel Interface  Input Volume Display Reset Set the Clock 12/24-hour Clock  Setup Menu Press or any other button (except EJECT) to turn the unit on. Press and hold for 3 seconds to turn the unit off. Press MODE to select between AM/FM, CD player, auxiliary front/rear, operation of iPod operation are shown in the display.

  • Page 7: Setup Menu

    Menu Function Options Auto Station  AUTO STORE Store LOCAL OFF Local/Distance  Tuning LOCAL ON FREQ USA Tuner Frequency Spacing FREQ EUR IPOD FULL Selectable iPod  Control IPOD BASIC CLOCK OFF Clock  Display CLOCK ON AUX FR ON Front Auxiliary  Input AUX FR OFF AUX RE ON Rear Auxiliary ...
  • Page 8 XDMA6370 OPERATION General Operation Audio Press AUDIO momentarily to select between Bass, Treble, Balance, Fader, Subwoofer and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER* SOURCE LEVEL Bass Press AUDIO until BASS appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Treble Press AUDIO until TREBLE appears then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum).
  • Page 9 XDMA6370 OPERATION AM/FM Tuner Operation Press TUNE or TUNE  for more than one second Seek Tuning to seek to the next strong station. Press TUNE or TUNE  momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold to advance quickly. Band ...

  • Page 10: Cd Player Operation

    XDMA6370 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Intro Repeat Random CD-R/CD-RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation.
  • Page 11 XDMA6370 OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA Disc When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between song title, artist, file name, folder name, track number, and clock/elapsed time.
  • Page 12 XDMA6370 OPERATION CD Player Operation - MP3/WMA Files Folder/File Search Mode Step 1 Step 2 Step 3 Step 4 MP3/WMA CD mode features a file and folder search mode. This search allows navigating through folders to find a specific MP3 or WMA file for playback. Press SELECT. "MP3 SEARCH" will appear, then a list of the files in the currently selected directory will be accessible.
  • Page 13 CD Player Operation - MP3/WMA Files Folder Access  Press Press *Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume  knob to select one of the following options: • OFF - Plays all tracks on CD. •...
  • Page 14 XDMA6370 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility Playback Order Compatible Recording  Formats The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
  • Page 15 CD Player Operation - MP3/WMA Files Additional MP3/WMA  Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings XDMA6370 OPERATION An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
  • Page 16 XDMA6370 OPERATION SD Card / USB Operation  Connecting a USB Device (sold separately) Inserting an SD Card (sold separately) Playing Music Track Select Fast Forward and  Reverse Pause File Search Step 1 Step 2 Step 3 To play MP3/WMA files from most USB mass storage devices, line up the USB connector and insert the USB device into the XDMA6370's USB port. To play MP3/WMA files from an SD card, insert the card horizontally with the label facing up into the SD card slot located behind the front panel.
  • Page 17 Displaying Information    Song Title Icon  Artist Icon  Folder Icon      File Icon  Folder Access  Repeat Random   Intro XDMA6370 OPERATION SD Card / USB Operation When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween sont title, artist, file name, folder name, track number and clock/elapsed time.
  • Page 18 XDMA6370 OPERATION SD Card / USB Operation  Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 30 character maximum • *Artist name – 30 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
  • Page 19 Additional MP3/WMA  Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display XDMA6370 OPERATION SD Card / USB Operation Only MP3 files with filename extension (.mp3) can be played. Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension. 8kHz ~ 48kHz 32kHz ~ 48kHz 32kbps ~ 320kbps constant Variable bit rates...

  • Page 20: Operation Of Ipod

    XDMA6370 OPERATION Operation of iPod Connect an iPod Device (Not Included) Displaying Information Search Mode Search Menu Functions (step 1) (step 2) (step 3) See the below table for a list of the search menu navigation options. Search Item Menu Playlist Menu Artist Album Menu Song Menu Audiobooks Menu Podcast Menu The XDMA6370 features a direct USB control system for iPod.
  • Page 21               Song Select Press   Fast Forward and  Press and hold Reverse song.    Pause Press Press Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: Random Press RDM to enter the Random menu, then turn the volume knob to select one of the following options: Intro Press INT to enter the Intro menu, then turn the volume...

  • Page 22: Limited One Year Warranty

    Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal...

  • Page 23: Troubleshooting

    Problem Yellow wire not connected or incorrect Unit will not turn on  (no power) Unit has power  One or more speaker wires touching (but no sound) each other or touching chassis ground Unit blows fuses Speaker wires touching chassis ground Excessive skipping Physical defect in media (CD, CD-R or ERROR-01 appears  on display ERROR-02 appears  Focus error or disc is in upside down on display PROTECT appears ...

  • Page 24: Specifications

    XDMA6370 OPERATION Specifications CD Player FM Tuner AM Tuner General Power Output: 18 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) Frequency response: 10Hz-20kHz Channel separation @ 1kHz: D/A converter: 1 Bit Tuning range: 87.5MHz-107.9MHz...

  • Page 25: Fcc Compliance

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 26 XDMA6370 OPERATION Notes...
  • Page 27 XDMA6370 OPERATION Notes...
  • Page 28 Toll Free: 1-866-382-5476 www.dualav.com ©2010 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
