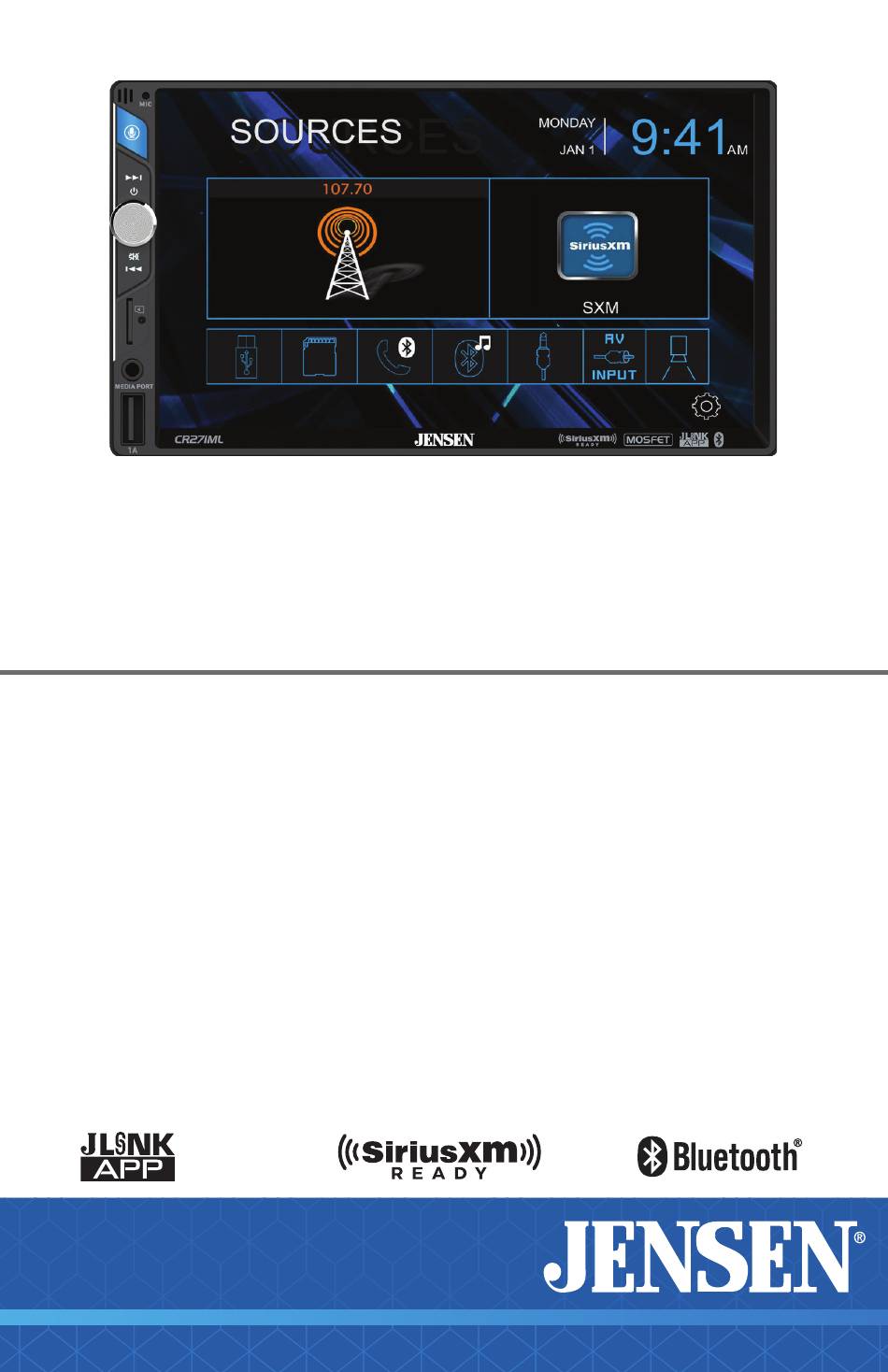

- Page 1 CR271ML 7” CAPACITIVE TOUCH SCREEN MULTIMEDIA MECHLESS RECEIVER AM-FM, Bluetooth SiriusXM™ Ready Front & Rear Camera Input INSTALLATION & OWNER’S MANUAL...
-
Page 2: Fcc Compliance
CR271ML INFORMATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Safety Notice
The SAFETY NOTICE is reminder to drive responsibly and safely while using your mobile phone device, or any APP’s that are compatible with this unit. It is highly recommended that your JENSEN CR271ML is installed by a professional installer or an authorized dealer. -
Page 4: Installation
CR271ML INSTALLATION Preparation Please read and understand entire manual before installation. Consult a qualified technician for detailed instructions or installation assistance. Before You Start • Disconnect negative battery terminal. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. - Page 5 The unit uses (1) 10 amp ATC blade-type fuse located on the back of the unit. Front / Rear camera inputs Up to two cameras (not included) can be used. We recommend JENSEN Part # BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for rear camera.
-
Page 6: Operation
CR271ML OPERATION Main Control Locations Microphone microSD Card Slot Mode / Voice Assistant Reset Tune/Track Up Auxiliary Input Volume / Power / Mute USB Slot Tune/Track Down Power Loudness Number keys Mode Play / Pause Root OSD (On Screen Display) -
Page 7: Remote Control Preparation
CR271ML OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly. -
Page 8: On Screen Controls
CR271ML OPERATION Source Menu Operation 1. Radio 6. Auxiliary Input 2. SiriusXM 7. BT Music 3. Settings 8. BT Phone 4. Cameras 9. microSD 5. AV Input 10. USB On Screen Controls Press up to two times to dim the screen. Press a... -
Page 9: Audio Settings
CR271ML OPERATION Audio Settings Select any of the preset EQ settings (Flat, Classic, Rock, Pop, Jazz, Beat or User) or use the touch screen to manually adjust EQ settings. Select any of the preset Surround settings: Concert, Church, Passive, Wide, Live or None. -
Page 10: Settings Menu
CR271ML OPERATION Settings Menu From the Main Menu, press the gear icon to access the Setup menu and adjust the following: General, Audio, Display and Bluetooth. General: • OSD Language - Select English. • Wallpaper - Select from three different wallpaper options. -
Page 11: Tuner Operation
CR271ML OPERATION Tuner Operation Select the Radio icon from the Main Menu screen. Radio Operation Press to return to Main Menu screen. Main Menu Displays the current mode of operation. Mode Indicator Press to tune to a lower frequency one step at a Tune Down time. - Page 12 CR271ML OPERATION USB/microSD Operation To play MP3 files from a USB device or microSD card, USB/microSD Operation insert a USB device or microSD card, and playback will begin automatically. To return to USB or microSD playback from another mode of operation, select the corresponding icon from the Main Menu.
-
Page 13: Media Compatibility
CR271ML OPERATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... -
Page 14: Bluetooth Operation
Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “JENSEN CR271ML”. The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 15 CR271ML OPERATION Bluetooth Operation Paired Device List Press to display a list of paired devices, and select desired device to connect. Talk Press to connect a call to the number entered. End Call Press to end a call. Previous Track Press to go back to the previous track.
-
Page 16: Siriusxm Satellite Radio Operation
CR271ML OPERATION SiriusXM Satellite Radio Operation Only SiriusXM® Satellite Radio brings you more of what SiriusXM® Radio you loveto listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. - Page 17 CR271ML OPERATION SiriusXM Satellite Radio Operation Main Menu Press to return to the Main Menu screen. Band Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to six preset channels. (Preset channels are accessed from the List icon.)
- Page 18 CR271ML OPERATION SiriusXM Satellite Radio Operation Additional Options Press to display/adjust the options Mode, Tune Scan and Go to Live. Mode - Press to access and adjust the following options: • Parental Code - When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
- Page 19 CR271ML OPERATION SiriusXM Satellite Radio Operation Press and hold any preset button (1-6) to save the current station Preset Buttons as a preset. Press the desired preset button to begin playback of the corresponding preset channel. Press to display screen for direct channel access. Press the Direct desired channel number, then press Enter.
-
Page 20: App Operation
CR271ML OPERATION App Operation The Jensen Smart app is the ultimate wireless remote control for your receiver. You can download the Jensen Smart app from the Apple App Store or Google Play Store and install it on your smartphone or tablet. Scan the following QR code to download the Jensen J-Link P1 application on your smartphone. -
Page 21: Rear Camera
CR271ML OPERATION Rear Camera Connect an optional rear camera to the Rear Camera input (Yellow RCA) connector for video Refer to the wiring diagram for details. Manual selection - Touch the REAR CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. -
Page 22: Steering Wheel Controls
CR271ML OPERATION Steering Wheel Controls A third-party adapter must be used in order for the CR271ML to be compatible with any OEM steering wheel controls. The CR271ML has a built-in 3.5mm SWC interface that compatible with many popular 3rd party SWC control modules, such as PAC, METRA, and others. - Page 23 Specific license conditions and copyright notices for the software can be found via www.jensenmobile.com. Warranty Coverage Limited 1-year warranty when purchased from an authorized Jensen dealer. *Limited 2-year warranty when purchased from and professionally installed by an authorized Jensen dealer.
-
Page 24: Troubleshooting
CR271ML OPTIONS Troubleshooting General PROBLEM CAUSE ACTION Red and/or Yellow wire not connected or Check connections for proper voltage incorrect voltage (11~16VDC) Unit will not turn on Black wire not connected Check ground connection (no power) Blown fuse on unit or vehicle... -
Page 25: Warranty
CR271ML WARRANTY Specifications FM Tuner US Tuning Range: 87.5MHz-107.9MHz EU Tuning Range: 87.50MHz-108.00MHz Usable Sensitivity: 8.5dBf 50dB Quieting Sensitivity: 10dBf Stereo Separation@ 1kHz: 30dB Frequency Response: 30Hz-13kHz AM Tuner Tuning Range: 530kHz-1710kHz Usable Sensitivity: <42dBu Frequency Response: 30Hz-2.2kHz Bluetooth Version: 4.1 + EDR... - Page 26 CR271ML INSTALLATION & OWNER’S MANUAL Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
