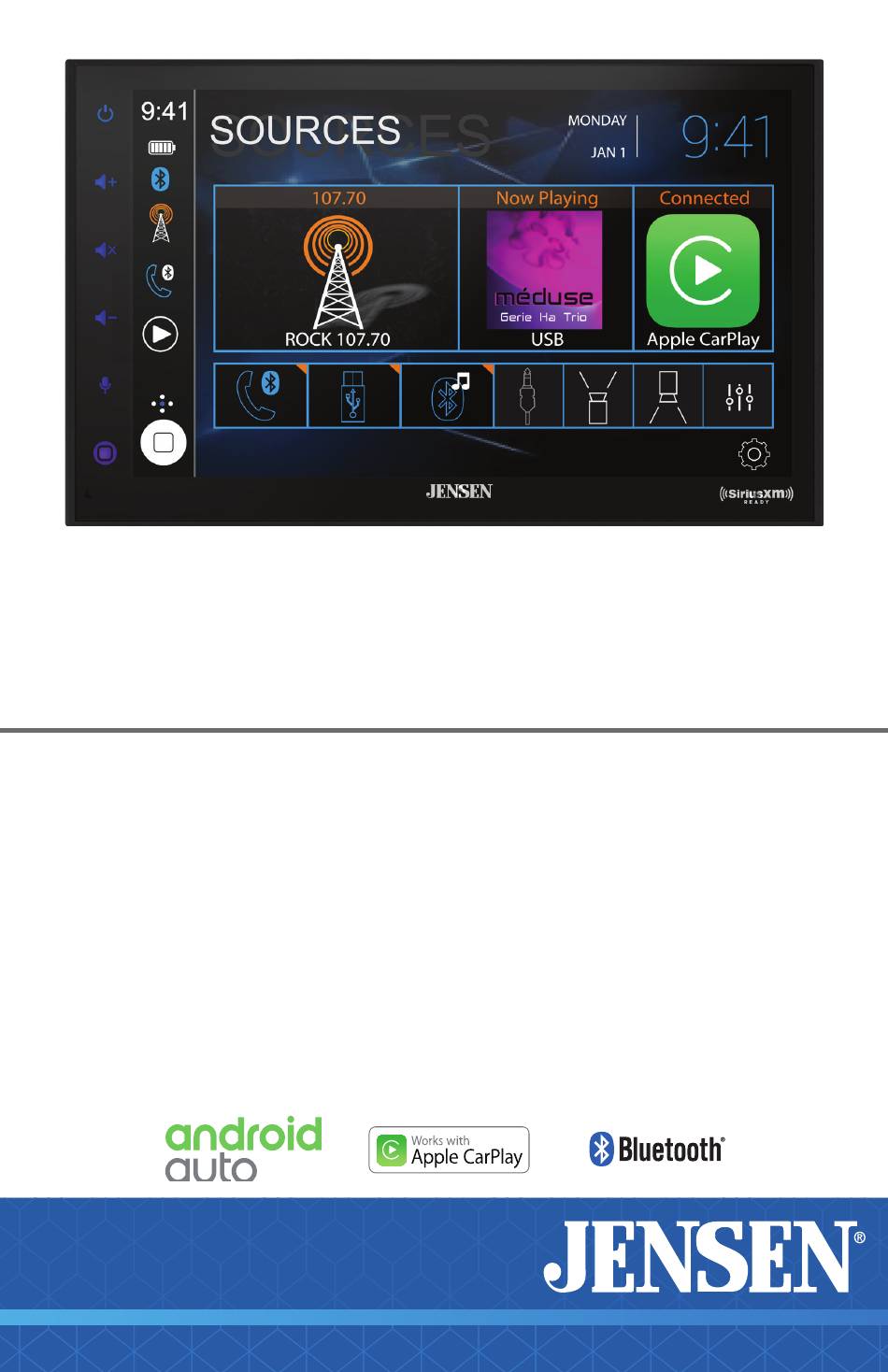

- Page 1 CAR68 6.8” 2 DIN CAPACITIVE TOUCH SCREEN MULTIMEDIA MECHLESS RECEIVER AM-FM-RDS USB Multimedia Player Front / Rear Camera Inputs INSTALLATION & OWNER’S MANUAL...
-
Page 2: Copyright And Trademark
CAR68 INFORMATION Copyright and Trademark Apple CarPlay is a trademark of Apple Inc. / Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. -
Page 3: Safety Notice
The SAFETY NOTICE is reminder to drive responsibly and safely while using your mobile phone device, or any APP’s that are compatible with this unit. it is highly recommended that your JENSEN CAR68 is installed by a professional installer or an authorized dealer. -
Page 4: Installation
CAR68 INSTALLATION Preparation Please read and understand entire manual before installation. Consult a qualified technician for detailed instructions or installation assistance. Before You Start • Disconnect negative battery terminal. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. - Page 5 (1) 15 amp ATO blade-type fuse located on the back of the unit. Wiring Notes: Front / Rear camera inputs Up to two cameras (not included) can be used. We recommend optional JENSEN Backup Camera Part # BUCAM200J for FRONT CAMERA and BUCAM300AJ or BUCAM400AJ for REAR CAMERA 5V 1A...
- Page 6 CAR68 OPERATION Getting Started - First Time Setup Wizard The first time the unit is powered on, the Setup Wizard will guide you through the main system settings and connect to your Bluetooth device. STEP 1 STEP 2 Select Language...
- Page 7 CAR68 OPERATION Main Control Locations Power On/Off Press any button to turn the unit on. Press POWER and hold to turn the unit off. Volume Up Press VOLUME + to increase the volume level. Mute Press MUTE to silence the audio. Momentarily press again to return to the previously selected volume.
- Page 8 CAR68 OPERATION Source Menu Operation Press to quickly access your Top 3 Sources. Quick Select Sources Press to access Radio. Radio Press to access Media Player. Media Player Press to access Apple CarPlay or Android Auto. Carplay | Android Auto...
- Page 9 CAR68 OPERATION Gesture Source Ribbon Operation While in any Main Source mode (other than Apple CarPlay or Android Auto), you can quickly swipe to switch sources using the motions depicted below. The Ribbon Mode Indicator on the screen shows current location in the layout.
-
Page 10: Am/Fm Tuner Operation
CAR68 OPERATION AM/FM Tuner Operation Stereo Local Station Mono Distance Info Indicator Indicator Top 3 Sources Loc/Dx Home Source Menu Press to select between FM1, FM2 and FM3. Band Selector Press any preset station stored in the current band Preset Stations to tune radio to saved frequency. -
Page 11: Band Equalizer
CAR68 OPERATION 10-BAND Equalizer 10-Band Sliders Press to manually adjust frequencies. Preset EQ Select between the following preset EQ options: Flat, R&B, Rock, Pop, HipHop, Jazz or Custom (manual adjustment). Reset Press to reset all EQ frequencies to Flat. Go Back Press to return to the previous source mode. -
Page 12: Media Player Operation
CAR68 OPERATION Media Player Operation Top 3 Sources Home Source Media Player Menu USB Playback Press desired option to select between audio sources for Source Selector the media player: USB, Auxiliary Input or Bluetooth Music. Press to display all files/folders on the device (Music or File/Folder List Pictures). -
Page 13: Media Compatibility
CAR68 OPERATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... -
Page 14: Bluetooth - Handsfree Operation
Tips CAR68 OPERATION Bluetooth - Handsfree Operation Top 3 5V 1A Sources USB CHARGE Nyne ADS15 Home Source Menu Before you can use a Bluetooth device, it must be Preparation paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. - Page 15 CAR68 OPERATION Bluetooth - Handsfree Operation Press to display a list of paired devices, and Device Manager select desired device to connect. Use the keypad to dial a number. Keypad Press to connect a call to the number entered. Talk Press to backspace when using the keypad.
-
Page 16: Apple Carplay Operation
CAR68 OPERATION Apple CarPlay Operation Apple CarPlay. The ultimate copilot. CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with your iPhone while driving and puts them right on your display. - Page 17 CAR68 OPERATION OPERATION Apple CarPlay Operation Starting CarPlay Connect an iPhone to the receiver’s USB port using an Apple Certified Lightning cable (not included). Apple CarPlay will launch automatically, and familiar applications will appear on the on screen. Note: For safety reasons, CarPlay features are limited while driving and will vary with each CarPlay-enabled app.
-
Page 18: Android Auto Operation
CAR68 OPERATION Android Auto Operation Android Auto brings the most useful apps to your phone screen or unit’s display,in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls, text messages and music. -
Page 19: Using Android Auto
CAR68 OPERATION Android Auto Operation Starting Android Auto Connect an Android Auto compatible device to the unit via USB cable. Android Auto will launch automatically, or it can be accessed at any time from the main menu. Note: When the device for Android Auto is connected to this unit, the device is also connected via Bluetooth at the same time. -
Page 20: Settings Menu
CAR68 OPERATION Settings Menu From the Main Menu, press the gear icon to access the Setup menu and adjust the following: General, Audio, Display, Radio and Bluetooth. Swipe down for more settings General: • Time - Press to set the time. - Page 21 CAR68 OPERATION Cameras & Auxiliary Input Connect an optional rear camera to the Rear Camera Rear Camera inputs (Yellow RCA connector for video and Black RCA connector for audio). Refer to the wiring diagram for details. Manual selection - Touch the REAR CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode.
-
Page 22: Steering Wheel Controls
CAR68 OPTIONS Steering Wheel Controls A third-party adapter must be used in order for the CAR68 to be compatible with any OEM steering wheel controls. The CAR68 has a built-in 3.5mm SWC interface that compatible with many popular 3rd party SWC control modules, such as PAC, METRA, and others. -
Page 23: Limited One Year Warranty
CAR68 WARRANTY Limited One Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Namsung America Inc. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 24: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Info Dealer Name:... -
Page 25: Specifications
CAR68 GENERAL Specifications Please FM Tuner check!! US Tuning Range: 87.5MHz-107.9MHz EU Tuning Range: 87.50MHz-108.00MHz Usable Sensitivity: 8.5dBf 50dB Quieting Sensitivity: 10dBf Stereo Separation@ 1kHz: 30dB Frequency Response: 30Hz-13kHz AM Tuner Tuning Range: 530kHz-1710kHz Usable Sensitivity: <42dBu Frequency Response: 30Hz-2.2kHz... - Page 26 CAR68 INSTALLATION & OWNER’S MANUAL Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
