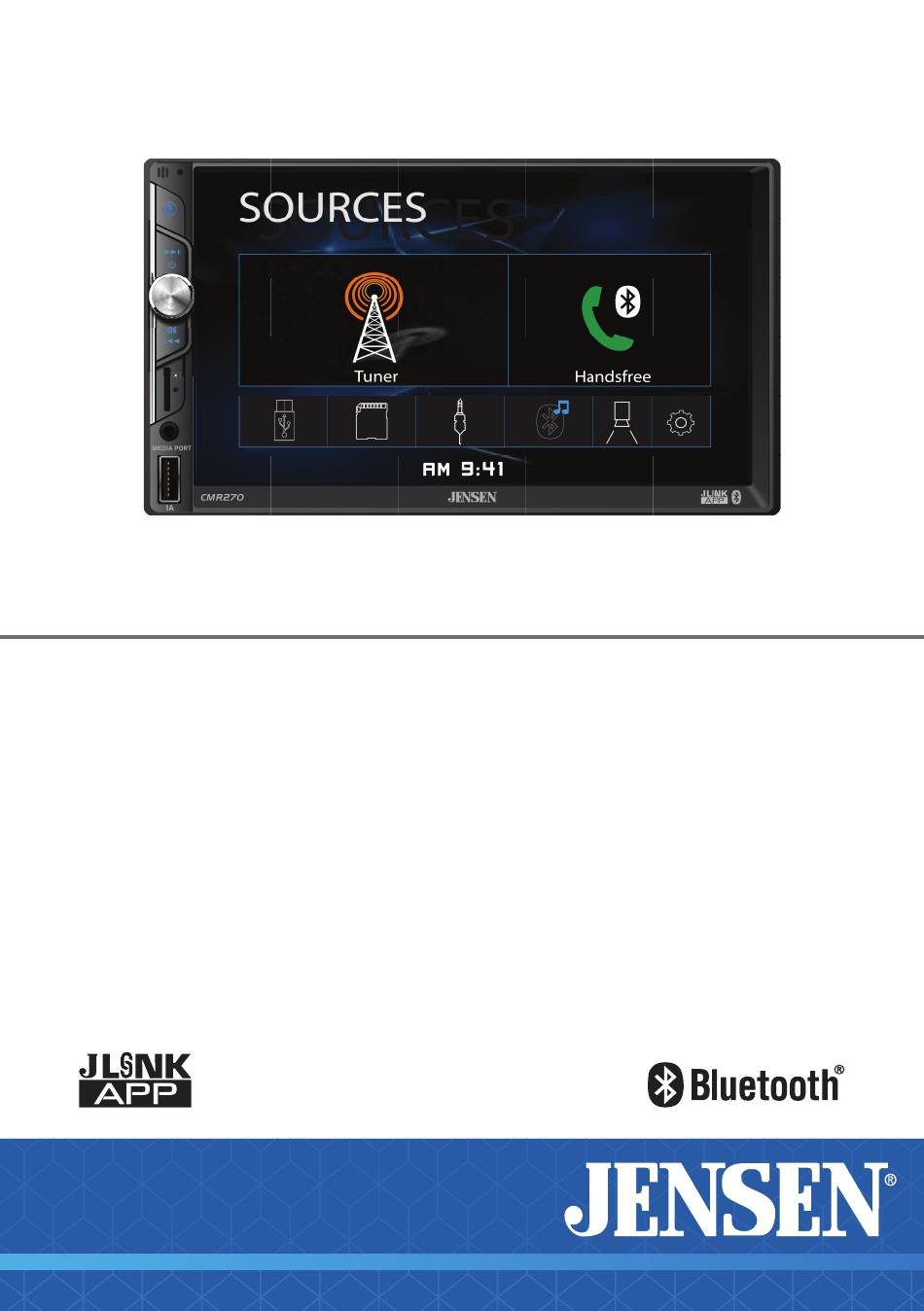

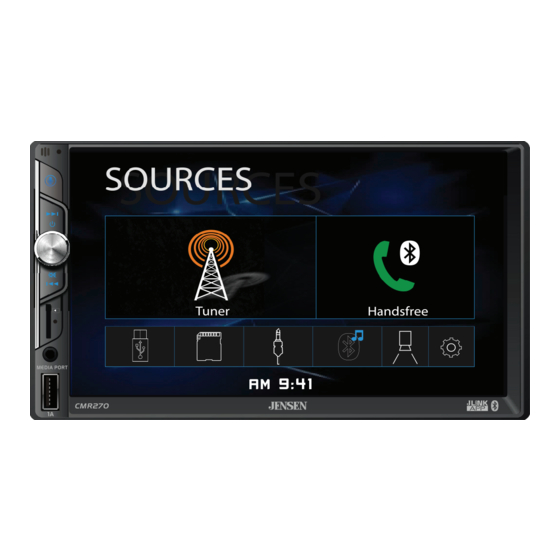

- Page 1 CMR270 Media Receiver with Bluetooth featuring a 7" Touch Screen Display INSTALLATION & OWNER’S MANUAL...
- Page 2 Copyright Note: The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. The microSD logo is a trademark of SD-3C LLC. Siri and Apple are registered trademarks owned by Apple Inc. Google Assistant and Android are trademarks owned by Google LLC. Other trademarks and trade names are those of their respective owners.
-
Page 3: Safety Information
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your JENSEN CMR270 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. - Page 4 CMR270 INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 CMR270 INSTALLATION Wiring Diagram - Inputs/Outputs GRAY GREEN/WHITE REVERSE GRAY/BLACK BLUE AMP/ANT(+) ORANGE TFT DIMMER (+) ACC 12V (+) VIOLET VIOLET/BLACK Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.
-
Page 6: Control Locations
CMR270 OPERATION Control Locations microSD Card Slot Voice Activation Button Reset Tune/Track Up Auxiliary Input Power/Volume/Mute USB Port Tune/Track Down... - Page 7 CMR270 OPERATION General Operation Momentarily press to turn the unit on. Press and hold to turn the Power On/Off unit off. Rotate the volume knob to increase or decrease the volume level. Volume Momentarily press MUTE to silence the audio. Momentarily press MUTE Mute again to return to the previously selected volume.
-
Page 8: General Operation
OPERATION CMR270 General Operation From the Main Menu screen, select Settings to access the Setup menu and Setup Menu select from three categories represented by the icons on the left side of the screen: Settings, Audio and Bluetooth. Settings: • Time Setting - Access and adjust date and time settings. -
Page 9: Am/Fm Tuner Operation
CMR270 OPERATION AM/FM Tuner Operation Select the Radio icon from the Main Menu screen. Radio Operation Press to return to Main Menu screen. Main Menu Displays current mode of operation. Current Mode Indicator Press and hold << to seek a lower frequency. Press << momentarily Tune Frequency Down to tune the unit down one step at a time. - Page 10 CMR270 OPERATION USB/microSD Card Operation To play audio files from a USB device or microSD card, insert device USB/microSD Operation and playback will begin automatically. To return to USB or microSD card playback from another mode of operation, select the corresponding icon from the Main Menu.
- Page 11 CMR270 OPERATION Media Compatibility - USB/microSD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz...
-
Page 12: Media Compatibility
CMR270 OPERATION Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • WAV format • WMV format • AAC, protected AAC, M4A format MP3 playback sequence begins in the root folder of the USB flash drive or Playback Order microSD card. -
Page 13: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "CMR270". The Bluetooth passcode The unit can be in any mode of operation when pairing is is "0000". -
Page 14: Rear Camera Operation - (Optional)
OPERATION CMR270 Bluetooth Operation Press to dim the display. Dimmer Press to adjust Audio options. Audio Press to access the Settings menu. Settings Press to access Bluetooth Phone (from Music mode). Bluetooth Phone Press to access Bluetooth Music (from Phone mode). -
Page 15: Voice Activation
OPERATION Navigation App Operation(audio only) Activation of JENSEN Smart App should not be closed, but open on your smartphone for this operation. Touching will guide you instant access to your favorite navigation App on your smartphone. JENSEN iPlug P1 Smart App Remote Control The Jensen Smart app is the ultimate wireless remote control for your receiver. -
Page 16: Specifications
OPERATION CMR270 Specifications Tuning range: FM Tuner 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz Tuning range: AM Tuner 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Compatibility: Front USB High Speed USB 2.0... -
Page 17: Limited One Year Warranty
Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized Jensen dealer and used in the U.S.A. What is covered? This warranty covers all defects in material and workmanship in this product. The follow-... -
Page 18: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in For Your Records the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Name Dealer Phone... - Page 19 CMR270 OPERATION Notes...
- Page 20 CMR270 INSTALLATION & OWNER’S MANUAL Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
