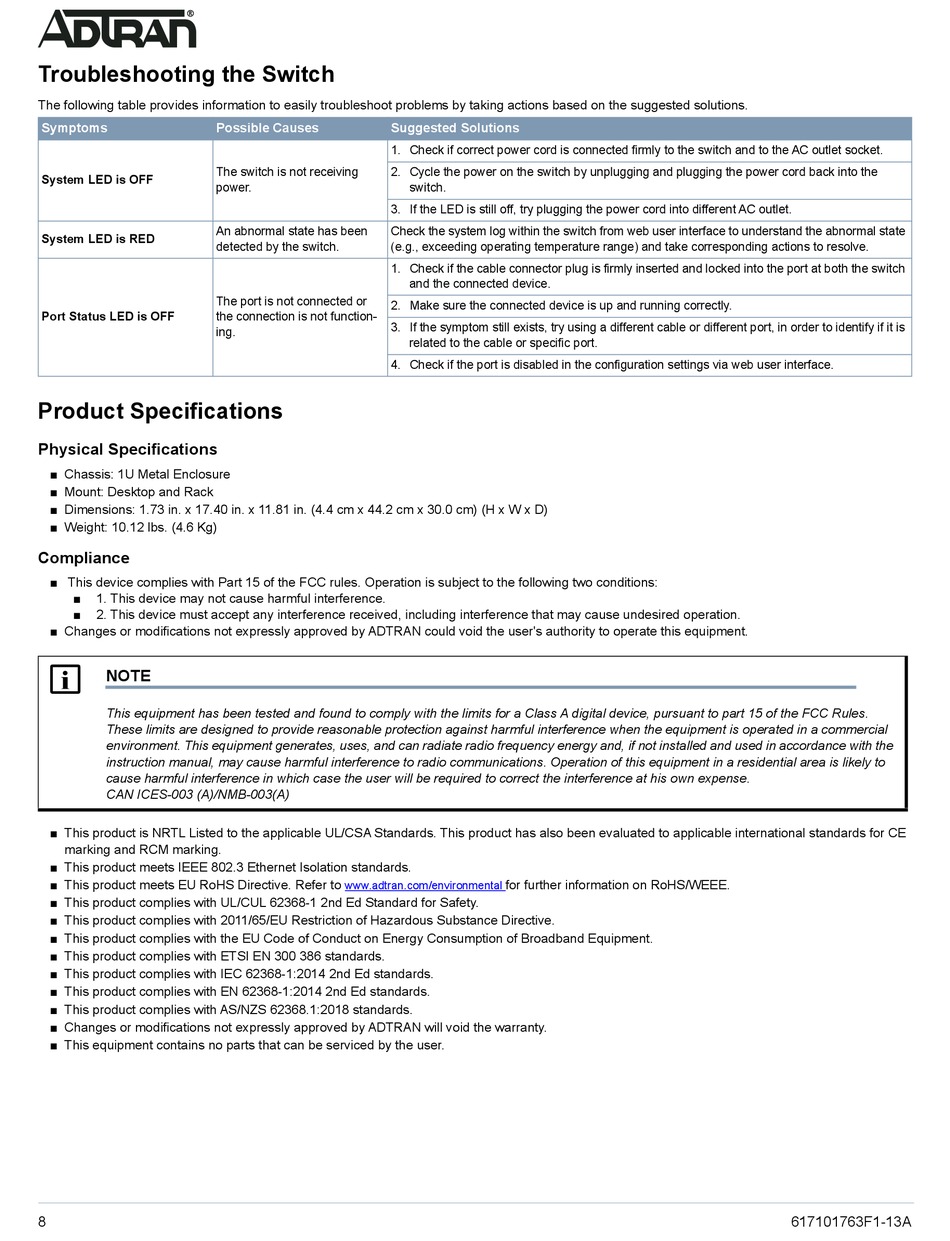

Troubleshooting the Switch
The following table provides information to easily troubleshoot problems by taking actions based on the suggested solutions.
Symptoms
Possible Causes
The switch is not receiving
System LED is OFF
power.
An abnormal state has been
System LED is RED
detected by the switch.
The port is not connected or
Port Status LED is OFF
the connection is not function-
ing.
Product Specifications
Physical Specifications
■ Chassis: 1U Metal Enclosure
■ Mount: Desktop and Rack
■ Dimensions: 1.73 in. x 17.40 in. x 11.81 in. (4.4 cm x 44.2 cm x 30.0 cm) (H x W x D)
■ Weight: 10.12 lbs. (4.6 Kg)
Compliance
■ This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
■
1. This device may not cause harmful interference.
■
2. This device must accept any interference received, including interference that may cause undesired operation.
■ Changes or modifications not expressly approved by ADTRAN could void the user's authority to operate this equipment.
g
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
CAN ICES-003 (A)/NMB-003(A)
■ This product is NRTL Listed to the applicable UL/CSA Standards. This product has also been evaluated to applicable international standards for CE
marking and RCM marking.
■ This product meets IEEE 802.3 Ethernet Isolation standards.
■ This product meets EU RoHS Directive. Refer to
■ This product complies with UL/CUL 62368-1 2nd Ed Standard for Safety.
■ This product complies with 2011/65/EU Restriction of Hazardous Substance Directive.
■ This product complies with the EU Code of Conduct on Energy Consumption of Broadband Equipment.
■ This product complies with ETSI EN 300 386 standards.
■ This product complies with IEC 62368-1:2014 2nd Ed standards.
■ This product complies with EN 62368-1:2014 2nd Ed standards.
■ This product complies with AS/NZS 62368.1:2018 standards.
■ Changes or modifications not expressly approved by ADTRAN will void the warranty.
■ This equipment contains no parts that can be serviced by the user.
8
Suggested Solutions
1. Check if correct power cord is connected firmly to the switch and to the AC outlet socket.
2. Cycle the power on the switch by unplugging and plugging the power cord back into the
switch.
3. If the LED is still off, try plugging the power cord into different AC outlet.
Check the system log within the switch from web user interface to understand the abnormal state
(e.g., exceeding operating temperature range) and take corresponding actions to resolve.
1. Check if the cable connector plug is firmly inserted and locked into the port at both the switch
and the connected device.
2. Make sure the connected device is up and running correctly.
3. If the symptom still exists, try using a different cable or different port, in order to identify if it is
related to the cable or specific port.
4. Check if the port is disabled in the configuration settings via web user interface.
for further information on RoHS/WEEE.
www.adtran.com/environmental
617101763F1-13A
