Endress+Hauser Ecograph RSG35 Operating Instructions Manual

Universal data managers
Hide thumbs
Table of Contents

Advertisement

Quick Links

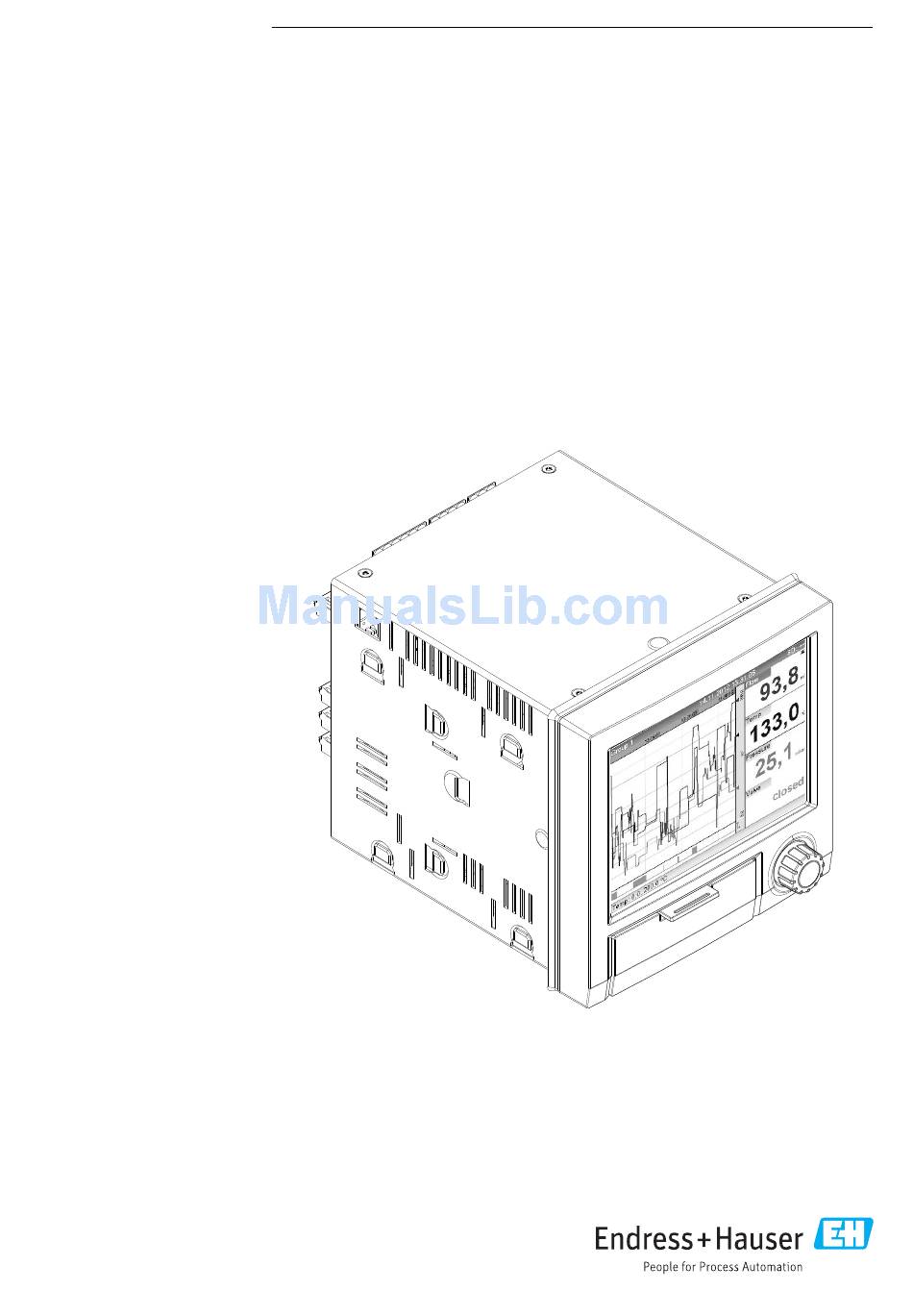

BA01146R/09/EN/05.16
71344137
Valid as of version
ENU000A, V2.01.xx
Products
Operating Instructions
Ecograph T, RSG35
Universal Data Manager
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Ecograph RSG35

Summary of Contents for Endress+Hauser Ecograph RSG35

  • Page 1 Products Solutions Services BA01146R/09/EN/05.16 71344137 Valid as of version ENU000A, V2.01.xx Operating Instructions Ecograph T, RSG35 Universal Data Manager...

  • Page 3: Table Of Contents

    Analog inputs ....16 Switching on the measuring device ..32 Setting the operating language ... . 32 Endress+Hauser...
  • Page 4 10.15 Limit values ......49 16.1.2 "Inputs" submenu ....97 Endress+Hauser...
  • Page 5 16.1.6 "Diagnostics" submenu ... 165 Index ....... . . 170 Endress+Hauser...

  • Page 6: Document Information

    A connection that has to be connected to ground prior to establishing any to the plant grounding system: This other connections. may be a potential equalization line or a star grounding system depending on national or company codes of practice. Endress+Hauser...

  • Page 7: Symbols For Certain Types Of Information

    A0011188 Terminology To improve clarity, abbreviations or synonyms are used in these instructions for the following terms: • Endress+Hauser: Term used in these instructions: "Manufacturer" or "Supplier" • Ecograph T RSG35: Term used in these instructions: "Device" or "Measuring device"...

  • Page 8: Basic Safety Instructions

    ‣ Wear the required personal protective equipment according to federal/national regulations. Operational safety Risk of injury. ‣ Operate the device in proper technical condition and fail-safe condition only. ‣ The operator is responsible for interference-free operation of the device. Endress+Hauser...

  • Page 9: Product Safety

    Product description Product design This device is best suited for the electronic acquisition, display, recording, analysis, remote transmission and archiving of analog and digital input signals. Endress+Hauser...

  • Page 10: Incoming Acceptance And Product

    Compare the nameplate with the following diagram: 35 VA A0019299  1 Device nameplate (example) Device tag Order code, serial number, extended order code Power supply, mains frequency Maximum power consumption Temperature range Software version; MAC address Device approvals Endress+Hauser...

  • Page 11: Storage And Transport

    10 mm (0.39 in) mm (inch) between the devices must be observed if aligning the devices in the X-direction (horizontally beside one another). • Securing to DIN 43 834 Mounting the measuring device Mounting tool: For installation in the panel, all you need is a screwdriver. Endress+Hauser...

  • Page 12: Post-Mounting Check

    Post-mounting check • Is the sealing ring undamaged? • Does the seal run all around the housing collar? • Are the threaded rods properly tightened? • Is the device fixed firmly in the center of the control panel cutout? Endress+Hauser...

  • Page 13: Electrical Connection

    No ferrules must be used when connecting flexible wires to spring terminals. Shielding and grounding Optimum electromagnetic compatibility (EMC) can only be guaranteed if the system components and, in particular, the lines - both sensor lines and communication lines - are Endress+Hauser...

  • Page 14: Connecting The Measuring Device

    The shield that is not connected should be insulated! Connecting the measuring device 6.3.1 Terminal assignment on the rear of the device A0019304  3 Terminals on the rear of the device Endress+Hauser...

  • Page 15: Supply Voltage

    Digital input D11 to D61 GND1 1 to 6 Digital input 1 to 6 Ground (-) for digital inputs 1 to 6 Auxiliary 24V Out - 24V Out + voltage - Ground + 24V (±15%) output, not stabilized, max. 250 Endress+Hauser...

  • Page 16: Analog Inputs

    If a universal input is used as a frequency or pulse input and the voltage is >2.5 V, a series resistor must be used in series connection with the voltage source. Example: 1.2 kΩ series resistor at 24 V Endress+Hauser...

  • Page 17: Connection Example: Auxiliary Voltage Output As Transmitter Power Supply For 2-Wire Sensors

    Connecting auxiliary voltage output when using as a transmitter power supply for 2-wire sensors in the current measuring range. (When connecting channel CH3-12, see pin assignment CH1-2.) Sensor 1 (e.g. Cerabar from Endress+Hauser) Sensor 2 External indicator (optional) (e.g. RIA16 from Endress+Hauser) Endress+Hauser...

  • Page 18: Connection Example: Auxiliary Voltage Output As Transmitter Power Supply For 4-Wire Sensors

    Connecting auxiliary voltage output when using as a transmitter power supply for 4-wire sensors in the current measuring range. (When connecting channel CH3-12, see pin assignment CH1-2.) Sensor 1 (e.g. temperature switch TTR31 from Endress+Hauser) Sensor 2 External indicator (optional) (e.g. RIA16 from Endress+Hauser) 6.3.8...

  • Page 19: Ethernet Connection (Rear Of Device)

    The device can be accessed from every PC in the network. • Standard: 10/100 Base T/TX (IEEE 802.3) • Socket: RJ-45 • Max. cable length: 100 m • Galvanic isolation; testing voltage: 500 V Endress+Hauser...

  • Page 20: Option: Ethernet Modbus Tcp Slave

    USB B socket "Function" e.g. to connect to PC or laptop Green LED lit: power supply present USB A socket "Host" e.g. for USB memory stick or external keyboard 7-12 For a description of the displays, see the "Operability" section Endress+Hauser...
  • Page 21 Use only the industrial grade SD cards described in the "Accessories" section of the Operating Instructions. These have been tested by the manufacturer and guaranteed to function faultlessly in the device. →  61 The SD card must be formatted to FAT or FAT32. NTFS format is not readable. Endress+Hauser...

  • Page 22: Post-Connection Check

    Does the supply voltage match the specifications on the nameplate? Are all terminals firmly engaged in their correct slot? Are the mounted cables strain-relieved? Are the power supply and signal cables correctly connected? See connection diagram and rear of device. Endress+Hauser...

  • Page 23: Operation Options

    Universal inputs Digital inputs Output Relaiy 1 - 6 Communication Ethernet Serial interface Modbus Slave Application Maths Signal analysis Limits Signal groups E-mail Diagnostics Diagnostics list WebDAV Client Event logbook Device information Measured Values Outputs Simulation Initialize modem A0019594-EN Endress+Hauser...

  • Page 24: Operating Menu For Experts

    (PC operation, serial data export, modem operation, etc.). – Application: Define different application-specific settings (e.g. group settings, limit values, etc.). Once values have been set for these parameters, the measurement should generally be completely configured. Endress+Hauser...
  • Page 25 • "Communication" submenu Contains all parameters for configuring the communication interfaces. • "Application" submenu Contains all parameters for configuring application- specific settings (e.g. group settings, limit values etc.). • "Diagnostics" submenu Contains all parameters needed to detect and analyze operational errors. Endress+Hauser...

  • Page 26: Measured Value Display And Operating Elements

    In display mode: alternating status display (e.g. set zoom range) of the analog or digital inputs in the appropriate color of the channel. In setup mode: different information can be displayed here depending on the display type. In display mode: window for measured value display (e.g. curve display). In setup mode: display of operating menu Endress+Hauser...

  • Page 27: Display Representation Of Symbols Used In Operation

    Setup is locked via a control input. Disable setup lock via a control input. "Out of specification" The device is being operated outside its technical specifications (e.g. during startup or cleaning). "Function check" The device is in Service mode. Endress+Hauser...

  • Page 28: Symbols In Operating Menus

    A virtual keyboard is available for entering text and numbers. This is opened automatically if needed. Here, turn the navigator to select the corresponding character and press the navigator to accept it. The following characters are available for entering free text: Endress+Hauser...

  • Page 29: Channel Color Assignment

    • Essential version (free, with limited functionalities) • Professional version (see accessories →  61) • Demo version (time-limited Professional version) An "Essential" version of the analysis software is supplied with the device. For details, see the Operating Instructions on the analysis software DVD provided. Endress+Hauser...

  • Page 30: Web Server

    • Loading and saving device data (upload/download) • Documentation of the measuring point For details, see the Operating Instructions on the configuration software DVD provided Overview of device description files (DTM) Information and files are available free of charge at: See online at: www.de.endress.com/fieldcare Endress+Hauser...

  • Page 31: System Integration

    Setup → Advanced setup → Communication → Modbus slave menu. Up to 12 analog inputs and 6 digital inputs can be transmitted via Modbus and stored in the device. Menu position RTU (RS485) Ethernet Device address: 1 to 247 IP address manual or automatic Baud rate: 9600/19200/38400/57600/115200 Parity: Even/Odd/None Stop bits: Port: Endress+Hauser...

  • Page 32: Commissioning

    "Back" (>3 sec.). The changes made are accepted and saved. Configuring the measuring device (Setup menu) Access to the setup is enabled when the device leaves the factory and can be locked in various ways e.g. by entering a 4-digit access code or via role-based password protection. Endress+Hauser...

  • Page 33: Step-By-Step: To The First Measured

    Setup directly at the device You can access the main menu by pressing the Navigator during operation. Turn the Navigator to navigate through the available menus. When the desired menu is displayed, press the Navigator to open the menu. Endress+Hauser...

  • Page 34: Setup Via Sd Card Or Usb Stick

    1. Connect the device to the PC via Ethernet 2. Start the browser at the PC; open the Web server for the device by entering the IP address: http://<ip-address> Note: Leading zeros in IP addresses must not be entered (e.g. enter 192.168.1.11 instead of 192.168.001.011) Endress+Hauser...

  • Page 35: Setup Via Fieldcare/Devicecare Configuration Software (Included In The Delivery)

    The complete Setup menu, i.e. all the parameters listed in the Operating Instructions, can also be found in the configuration software. NOTICE Undefined switching of outputs and relays ‣ During configuration using the configuration software, the device may assume undefined statuses! This may result in the undefined switching of outputs and relays. Endress+Hauser...

  • Page 36: Advanced Settings (Expert Menu)

    1. Make the connection to the device with the Web server →  34 2. Click "Data management -> Save device settings" in the Web server function bar 3. Select the setup file 4. Transfer the file 5. Verify and accept Endress+Hauser...

  • Page 37: Simulation

    "Setup -> Advanced setup -> System -> Security -> Protected by -> User roles" . Factory setting: "open access", i.e. modifications can always be made. The passwords should be changed during commissioning. Make a note of the code and store in a safe place. Endress+Hauser...

  • Page 38: Operation

    "Setup -> Advanced setup -> Inputs -> Digital inputs -> Digital input X -> Function: Control input; Action: Lock setup". If setup is locked via the access code, all the operating parameters can be displayed, and can also be edited as soon as the access code is entered. Endress+Hauser...

  • Page 39: Reading Measured Values

    "Troubleshooting" section. →  50 10.4 Reading measured values via the Web server A Web server is integrated into the device. If the device is connected via Ethernet, it is possible to display the measured values via the Internet using a Web server. Endress+Hauser...

  • Page 40: Access To The Web Server Via Http (Html)

    Note: Leading zeros in IP addresses must not be entered (e.g. enter 192.168.1.11 instead of 192.168.001.011). The decimal separator is always displayed as a point in the XML file. Also, all times are given in UTC. The time difference in minutes is noted in the following entry. Endress+Hauser...

  • Page 41: Remote Control Via The Web Server

    2. Expert -> Communication -> Ethernet -> Configuration Web server -> Remote control, select "Yes". 10.5 Data analysis and visualization with the Field Data Manager software (FDM) provided The analysis software offers centralized data management with visualization for recorded data. Endress+Hauser...

  • Page 42: Structure/Layout Of A Csv File

    Bit 9: Alarm storage Bit 10..13: Not assigned Bit 14: Use error value Bit 15: Not assigned General status: 1: High speed storage is active 2: Additional hour for summer/normal time changeover Note: A combination of 1 and 2 is also possible. Endress+Hauser...

  • Page 43: Importing Utf-8-Encoded Csv Files Into Spreadsheets

    SD card. Tests are also made to determine whether the data have been written without any errors. Once a new SD card is inserted, the device starts saving the data automatically after 5 minutes. The use of a USB stick is only recommended if Endress+Hauser...

  • Page 44: Functions Relating To The Sd Card Or

    A user-definable time range can be saved on the data storage medium. • Load setup: Loads device settings (setup) from the storage medium onto the device. • Save setup: All device settings (setup) are saved onto the storage medium. They can be archived or used for other devices. Endress+Hauser...

  • Page 45: Notes On E-Mail Encryption

    SSL (TLS). All data are sent in encrypted format via the SSL port of the external WebDAV server. The complete connection runs over TLS. The port is 80 by default but this value can be changed in the Setup. The procedure to be used can be selected as follows: "Setup -> Endress+Hauser...

  • Page 46: Ssl Certificates

    If the certificate has expired the alarm relay switches (if activated) and a message is displayed on the screen. An entry is also made in the event log. If a certificate is deleted all errors related to this certificate are reset. Endress+Hauser...

  • Page 47: Showing Measured Values History

    "Operation -> Screenshot". 10.10.6 Historical data: Change the display mode It is possible to change the display mode of the active group in the historical data under "Operation -> Change display mode" in the data history. Endress+Hauser...

  • Page 48: Signal Analysis

    10.14 Adjusting the brightness of the display You can adjust the brightness of the display in the main menu under "Operation -> Adjust brightness": Parameters Possible settings Description Adjust brightness 0-100 Sets the brightness of the display Default: 80 Endress+Hauser...

  • Page 49: Limit Values

    Ethernet -> Configuration Web server -> Authentication". Default value for ID: admin; Password: admin Note: The password should be changed during commissioning! Note: For devices with a stainless steel front and touchscreen, the data are always made available in "protected format" via the WebDAV server. Endress+Hauser...

  • Page 50: Diagnostics And Troubleshooting

    Service Department please always have the error number and the information in the main menu under "Diagnostics -> Device information" (program name, serial number etc.) ready. The contact details of your Endress+Hauser representative can be found on the Internet at www.endress.com/worldwide. 11.2.1 Device error/alarm relay One relay can be used as an alarm relay.

  • Page 51: Diagnostic Information On The Local Display

    Contact the Service Department defective F312 Analog card x is not Analog card x is not calibrated! The device Contact the Service Department calibrated! works with default values, i.e. the measured values could possibly be inaccurate under certain circumstances Endress+Hauser...
  • Page 52 An error occurred when a setup was saved to an SD card or USB stick S901 Input signal too low Input signal too low Check Connections and parameters. Check connected sensor/transmitter S902 Input signal too high Input signal too high Check Connections and parameters. Check connected sensor/transmitter Endress+Hauser...
  • Page 53 0: SMTP was switched off when the mail was being sent 3: TCP/IP connection was denied 4: TCP/IP connection error 5: SMTP server denied 6: Error during authentication 7: Connection unexpectedly lost 8: Server responded with error code 9: Timeout 10: Internal protocol error Endress+Hauser...

  • Page 54: Pending, Current Diagnostic Messages

    "Diagnostics -> Actual diagnostics", "Diagnostics -> Last diagnostics" or under "Diagnostics -> Last restart". 11.5 Diagnosis list The last 30 diagnostic messages are displayed in the main menu under "Diagnostics -> Diagnosis list" (messages with Fxxx, Sxxx or Mxxx-type error numbers). Endress+Hauser...

  • Page 55: Event Logbook

    A test mail can be sent to the selected recipient in the main menu under "Diagnostics -> Simulation -> E-mail". At least one e-mail address must be set beforehand. A message is provided on the device to confirm if the email was sent or not. Endress+Hauser...

  • Page 56: Test Webdav Client

    The PRESET returns all parameters to the factory default setup! The internal memory content is deleted! ‣ Save the setup and measured values on the USB stick or SD card. Then perform a PRESET.  The device is reset to the factory default settings. Endress+Hauser...

  • Page 57: Firmware History

    "Main menu -> Expert -> System -> Device options -> Activation code". 12.3 Cleaning The front of the housing can be cleaned with a clean dry or damp cloth. Endress+Hauser...

  • Page 58: Repairs

    3, 5, 10 Spare parts kit, display XPR0007-A3 6, 7, 8 Front + navigator + flat ribbon connector XPR0007-A4 6, 7, 8 Front neutral + Navigator + flat ribbon connector XPR0007-A5 15, 20 Spare parts kit, card holder XPR0007-A6 Endress+Hauser...
  • Page 59 An RS485 interface is required for Modbus RTU. If there is no RS485 in the device, a new CPU board must be ordered. The software option can be enabled directly on the device. After ordering you will receive instructions and a code that you must enter. Endress+Hauser...

  • Page 60: Return

    The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.

  • Page 61: Accessories

    Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
  • Page 62 Desktop housing, cable with US plug RXU10-J _ Desktop housing, cable with Swiss plug RXU10-K _ 293.4 (11.55) 236 (9.29) 184 (7,24) 207.57 (8.17) A0021772  11 Dimensions in mm (in) Version: Standard RXU10- _ 1 Neutral RXU10- _ 2 Endress+Hauser...

  • Page 63: Technical Data

    One relay can be used as an alarm relay. If the device detects a system error (e.g. hardware defect) or a malfunction (e.g. cable open circuit), the selected output/relay switches. This "alarm relay" switches if "F"-type errors occur (F = failure), i.e. "M"-type errors (M= Maintenance required) do not switch the alarm relay. Endress+Hauser...

  • Page 64: Input

    Temperature drift: ±0.01%/K oMR 1 to 5 V; 1 to 5 V quadratic ±10 V ±30 V Voltage (U) 0 to 1 V; 0 to 1 V quadratic ±0.1% oMR ≥2.5 MΩ ≤1 V ±1 V Temperature drift: ±0.01%/K oMR ±150 mV Endress+Hauser...
  • Page 65 Maximum permitted input voltage: 35 V 1 to 5 V range with disengageable cable open circuit monitoring: <0.8 V or >5.2 V: cable open circuit (display shows: - - - -) Voltage (U) ≤1 V Maximum permitted input voltage: 24 V Endress+Hauser...
  • Page 66 97, 2, 20 9, 5, 4 The available storage capacity of the internal and external memory can be displayed in the main menu under "Diagnostics → Device information → Memory information". The storage capacity depends on the specific device set-up. Endress+Hauser...

  • Page 67: Output

    2 kV 500 V 500 V 500 V 500 V 500 V 500 V Ethernet 2 kV 500 V 500 V 500 V 500 V 500 V RS232/RS485 2 kV 500 V 500 V 500 V 500 V 500 V Endress+Hauser...
  • Page 68 • Shielding at one end on the supply side with capacitance termination at the device • Shielding at one end on the supply side Experience shows that the best results with regard to EMC are achieved in most cases in installations with one-sided shielding on the supply side (without capacitance termination Endress+Hauser...

  • Page 69: Power Supply

    The power actually consumed depends on the individual operating state and the device version (LPS, USB, brightness of screen, number of channels, etc). The active power here is approx. 3 W to 20 W. Power supply failure Battery-backed time and data memory. The device starts automatically following a power failure. Endress+Hauser...
  • Page 70 • The following baud rates are supported: 9600, 19200, 38400, 57600, 115200 • Max. cable length with a shielded cable: 2 m (6.6 ft) (RS232), or 1000 m (3281 ft) (RS485) Only one interface can be used at any one time (RS232 or RS485). Endress+Hauser...

  • Page 71: Performance Characteristics

    Can be configured for limit values in the setup Long-term drift As per IEC 61298-2: max. ±0.1%/year (of measuring range) 15.6 Installation Mounting location and The device is designed for use in a panel in non-hazardous areas. installation dimensions Endress+Hauser...
  • Page 72 As an option, the device can be ordered ready-mounted in a desktop housing. and design (optional) Dimensions (B x H x D) approx.: 293 mm (11.5 in) x 188 mm (7.4 in) x 211 mm (8.3 in) (dimensions with bracket, feet and installed device) Endress+Hauser...

  • Page 73: Environment

    Mounting guide rail for PCBs; motherboard fixing unit; Plastic PA6-GF15 UL94-V2 display retainer plate Seal to panel wall; seal to display; seal in flap; seal to Rubber EPDM 70 Shore A navigator Casing; rear panel Galvanized sheet steel St 12 ZE All materials are silicone-free. Endress+Hauser...

  • Page 74: Display And Operating Elements

    "Temp. boiler 1" or "Daily averages" so that they can be uniquely identified. • Linear scaling • Measured value history: quick retrieval of historical data with zoom function • Preformatted screen displays such as horizontal or vertical curve presentation, bar graph display or digital display. Endress+Hauser...
  • Page 75 In display mode: window for measured value display (e.g. curve display). In setup mode: display of operating menu In display mode: current group name, type of evaluation In setup mode: name of the current operating item (dialog title) In display mode: displays current date/time In setup mode: -- Endress+Hauser...
  • Page 76 (e.g. status byte). The process values are transferred in the same devices that are used for display at the device. Ethernet The following functions are implemented: • Data communication with PC software (analysis software, configuration software, OPC server) • Web server Endress+Hauser...

  • Page 77: Certificates And Approvals

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 78: Appendix

    Czech, Japanese, Chinese (Simplified), Chinese (Traditional) Factory setting English; or preset to customer' s preferred language Device tag Navigation Expert → System → Device tag Direct access code: 000031-000 Description Individual device tag. User entry Text entry (max. 32 characters) Factory setting Unit 1 Endress+Hauser...
  • Page 79 Not used, Relay x All the available relays are displayed Factory setting Relay 1 Keyboard layout Navigation Expert → System → Keyboard layout Direct access code: 100020/000 Description Please select the keyboard layout. Only relevant if external keyboard is used. Endress+Hauser...
  • Page 80 (e.g. when cleaning the device). The device is unlocked by pressing the navigator or the OK operating key for 3 s. When using an external keyboard, the device is unlocked with the key combination "Ctrl-Alt-Del". Options Never, After 2 (5, 10, 15) minutes Factory setting After 5 minutes PRESET Endress+Hauser...
  • Page 81 DD.MM.YYYY, MM/DD/YYYY, YYYY-MM-DD Factory setting DD.MM.YYYY Time format Navigation Expert → System → Date/time setup → Time format Direct access code: 110001-000 Description Select in which format the time is to be set and displayed. Options 24 hour, 12 hour AM/PM Endress+Hauser...
  • Page 82 Expert → System → Date/time setup → Change date/time UTC time zone Navigation Expert → System → Date/time setup → Date/time → Change date/time → UTC time zone Direct access code: 120010-000 Description Set your UTC time zone (UTC = universal time coordinated). Endress+Hauser...
  • Page 83 Off, Manual, Automatic Factory setting Automatic NT/ST region Navigation Expert → System → Date/time setup → NT/ST changeover → NT/ST region Direct access code: 110003-000 Description Selects the regional settings for summer/normal time changeover. Only visible if NT/ST changeover = automatic. Endress+Hauser...
  • Page 84 Month, when in the spring a change from normal to summer time occurs. Visible for NT/ST changeover = Automatic or Manual. Only editable if NT/ST changeover = Manual. Options January, February, March, April, May, June, July, August, September, October, November, December Endress+Hauser...
  • Page 85 Direct access code: 110011-000 Description Day, when in the autumn a change from summer to normal time occurs. Visible for NT/ST changeover = Automatic or Manual. Only editable if NT/ST changeover = Manual. Options 1st, 2nd, 3rd, 4th, Last Factory setting Last Endress+Hauser...
  • Page 86 Point of time when the time is moved back by 1 hour on the day of the changeover from summer time to normal time (in the set time format). Visible for NT/ST changeover = Automatic or Manual. Only editable if NT/ST changeover = Manual. User entry Time in set time format Factory setting 02:00 Endress+Hauser...
  • Page 87 Shows the IP address of the time server if it was automatically allocated via DHCP. Non- editable display text. An attempt is always made to synchronize the time via SNTP server 1 first (provided it is configured). DHCP must be switched on (see Communication/Ethernet). DHCP server: Option 42. Endress+Hauser...
  • Page 88 Only visible if an access code has been defined. Factory default: "0" means that alarm set points can only be changed by entering the access code. Alarm set point code and access code should not be identical! Endress+Hauser...
  • Page 89 Operator ID: operator Password Navigation Expert → System → Security → Authentication → Password Direct access code: 470105/000 Description Enter a password for this user account. Options Text entry max. 12 characters Factory setting operator Administrator ID: admin Password Endress+Hauser...
  • Page 90 PC analysis software provided. "Open format": data are stored in a CSV format, this can be opened by a number of different programs (e.g. MS Excel) (Attention: no manipulation security). Options Protected format, Open format (*.csv) Factory setting Protected format SD card Endress+Hauser...
  • Page 91 Expert → System → External memory → Switches relay Direct access code: 140006-000 Description When the warning "Data carrier full" is displayed a relay can also be switched on. Options Not used, Relay x All the available relays are displayed Factory setting Not used Endress+Hauser...
  • Page 92 Expert → System → External memory → Operating time Direct access code: 140004-000 Description Please select in which format operation times will be stored/displayed. Options 0 seconds, 0.0000 hours, 0.00000 days, 0000h00:00 Factory setting 0000h00:00 "Messages" submenu Navigation Expert → System → Messages Endress+Hauser...
  • Page 93 Description "Switched off": LCD is always switched on. “Switch on for x min.”: display goes dark after x minutes. All other functions remain in operation. Press an operating key: Illumination is switched back on. "Switch daily": Enter time span. Endress+Hauser...
  • Page 94 "Check function (Cxxx)" is active, the screensaver will not be deactivated. Active messages that require acknowledgment or an active status signal "Failure (Fxxx)" or "Out of specification (Sxxx)" deactivate the screensaver always. Options Off on alarm, Always on Endress+Hauser...
  • Page 95 Not assigned, Universal inputs Slot 2 Navigation Expert → System → Device options → Slot 2 Direct access code: 990001-000 Description Shows hardware or software options. Cannot be edited. The assignment can be specified in the PC operating software for offline configuration. Endress+Hauser...
  • Page 96 Direct access code: 990005-000 Description Shows hardware or software options. Cannot be edited. Options Not available, Modbus Slave Application Navigation Expert → System → Device options → Application Direct access code: 990007-000 Description Shows hardware or software options. Cannot be edited. Endress+Hauser...

  • Page 97: Inputs" Submenu

    No, universal input x Factory setting "Universal input x" submenu Navigation Expert → System → Inputs → Universal inputs→ Universal input x Description View or change settings for the selected channel. x = place holder for selected universal input. Signal Endress+Hauser...
  • Page 98 Expert → Inputs → Universal inputs → Universal input x → Connection Direct access code: 220002-0xx Examples: Universal input 1: 220002-000; Universal input 12: 220002-011 Description Specify whether RTDs are connected as 2-, 3- or 4-wire systems. Only visible if signal = resistance thermometer. Options 2-wire, 3-wire, 4-wire Endress+Hauser...
  • Page 99 = second → current value = liters/second. Only visible if signal = "Pulse counter" and plot type = "Current value + counter". Options Second (s), Minute (min), Hour (h), Day (d) Factory setting Second (s) Endress+Hauser...
  • Page 100 Up to 13kHz, Up to 25Hz Factory setting Up to 13kHz Pulse value Navigation Expert → Inputs → Universal inputs → Universal input x → Pulse value Direct access code: 220010-0xx Examples: Universal input 1: 220010-000; Universal input 12: 220010-011 Endress+Hauser...
  • Page 101 User entry 0 to 12500 (Hz) Factory setting 5.0 (Hz) Range start Navigation Expert → Inputs → Universal inputs → Universal input x → Range start Direct access code: 220006-0xx Examples: Universal input 1: 220006-000; Universal input 12: 220006-011 Endress+Hauser...
  • Page 102 • The parameter can be defined independently of the number of decimal places configured for the measured value as these are only taken into consideration for the display. User entry Number (max. 8 digits) Factory setting 100 (Depends on the input signal selected) Zoom start Endress+Hauser...
  • Page 103 Result: Fast changes will be damped/suppressed. Only visible if signal = current, voltage, resistance thermometer or thermocouple. User entry 0 to 999.9 s Factory setting Current, voltage: 0.0 s Resistance thermometer, thermocouple: 0.2 s Endress+Hauser...
  • Page 104 Examples: Universal input 1: 220015-000; Universal input 12: 220015-011 Description Initial setting for the totalizer. Useful when continuing measurements recorded to date with an (electro)-mechanical counter. Only visible if signal = pulse counter User entry Number (max. 15 digits) Factory setting Endress+Hauser...
  • Page 105 Examples: Universal input 1: 220057-000; Universal input 12: 220057-011 Description Rear panel temperature correction value for this analog input (only required for thermocouples). Only visible/editable if the service code has been entered. User entry Number (max. 8 digits) Factory setting -0.1 Range start Target value Endress+Hauser...
  • Page 106 Examples: Universal input 1: 220055-000; Universal input 12: 220055-011 Description Enter the upper set point here (e.g. measuring range 0°C to 100°C: 100°C). Only visible if signal = current or voltage. User entry Number (max. 8 digits) Factory setting Actual value Endress+Hauser...
  • Page 107 Examples: Universal input 1: 220031-000; Universal input 12: 220031-011 Description Select the required time base. Example: ml/s -> time base seconds (s); m³/h -> time base hours (h). Only visible if totalization = yes. Options Second (s), Minute (min), Hour (h), Day (d) Factory setting Second (s) Endress+Hauser...
  • Page 108 Factor for calculating the integrated value (e.g. the transmitter delivers l/s -> totalization base = second -> engineering unit required is m³ -> enter factor 0.001) Only visible if totalization = yes. User entry Number (max. 8 digits) Factory setting Endress+Hauser...
  • Page 109 ≥ 20.5 mA: over range ≤ 3.6 mA or ≥ 21.0 mA: sensor error ≤ 2 mA: cable open circuit Only visible if signal = "Current" and range = "4-20 mA" or "4-20 mA squared". Options Off, On Factory setting Cable open circ. Endress+Hauser...
  • Page 110 When NE43 is switched off, defines the value that must be exceeded for the device to output an error. Only visible if signal = "Current", range = "4-20 mA", and NAMUR NE 43 = "Off". User entry Number (max. 8 digits); 20 to 22mA Factory setting 20.8mA Time delay Endress+Hauser...
  • Page 111 User entry Number (max. 8 digits) Factory setting Save event Navigation Expert → Inputs → Universal inputs → Universal input x → Fault mode → Save event Direct access code: 220063-0xx Examples: Universal input 1: 220063-000; Universal input 12: 220063-011 Endress+Hauser...
  • Page 112 Addition of a digital input that must be configured according to the function. Options No, Digital input x Factory setting Delete input Navigation Expert → System → Digital inputs → Delete input Direct access code: 252001/000 Description Delete an input configuration. Endress+Hauser...
  • Page 113 Examples: Digital input 1: 250001-000; Digital input 6: 250001-005 Description Measurement point name (e.g. "Pump") or description of the function of this input (e.g. "Fault message"). Only visible if function ≠ switched off. User entry Text (max. 16 characters) Endress+Hauser...
  • Page 114 Examples: Digital input 1: 250019-000; Digital input 6: 250019-005 Description Defines if the set up factor is respective to 1 second or 1 hour. Only visible if function = quantity from time. Options Seconds, hours Factory setting Seconds Pulse value Endress+Hauser...
  • Page 115 The high signal must be active for at least the preset time before the device changes the channel from low to high. The change from high to low is always immediate. Only visible if function = control input, on/off event, event+operation time. User entry 0 to 99 999 s Factory setting Action Endress+Hauser...
  • Page 116 All the available relays are displayed Factory setting Not used Description 'H' Navigation Expert → Inputs → Digital inputs → Digital input x → Description ' H ' Direct access code: 250007-00x Examples: Digital input 1: 250007-000; Digital input 6: 250007-005 Endress+Hauser...
  • Page 117 Only visible if function = control input, on/off event, event+operation time. Options No, Yes Factory setting Event message Navigation Expert → Inputs → Digital inputs → Digital input x → Event message Direct access code: 250018-00x Examples: Digital input 1: 250018-000; Digital input 6: 250018-005 Endress+Hauser...
  • Page 118 Only visible if function = control input, on/off event, event+operation time. User entry Text (max. 22 characters) Record duration Navigation Expert → Inputs → Digital inputs → Digital input x → Record duration Direct access code: 250012-00x Examples: Digital input 1: 250012-000; Digital input 6: 250012-005 Endress+Hauser...

  • Page 119: Outputs" Submenu

    No, Digital input x Users can choose from all the available digital inputs. Factory setting 16.1.3 "Outputs" submenu Setting up only required if outputs (e.g. relays) are to be used. "Relay x" submenu Navigation Expert → Outputs → Relay x Endress+Hauser...

  • Page 120: Communication" Submenu

    The various interfaces can be operated in parallel. Timeout Navigation Expert → Communication → Timeout Direct access code: 150200-000 Description Timeout is modifiable between 1 and 99 seconds. 0 seconds means that the functionality is inactivated. User entry 0 to 99s Endress+Hauser...
  • Page 121 Expert → Communication → Ethernet Description Contains the set-up required if you are using the Ethernet interface of the unit. MAC-address Navigation Expert → Communication → Ethernet → MAC-address Direct access code: 150000-000 Description Displays the MAC address. DHCP Endress+Hauser...
  • Page 122 Only editable if DHCP = no. User entry IP address Factory setting 255.255.255.000 Gateway Navigation Expert → Communication → Ethernet → Gateway Direct access code: 150005-000 Description Please enter the Gateway (given from your network administrator). Only editable if DHCP = no. Endress+Hauser...
  • Page 123 The system communicates with the PC software through this communication port. If your network is protected by a firewall, this port may have to be enabled. Please contact your network administrator if this is the case. User entry Number (max. 5 digits) Endress+Hauser...
  • Page 124 Configure the Web server or specify which functionality should be possible via Web server. Only visible if Web server = yes. Instantaneous value display is always possible once the Web server is switched on. Port Navigation Expert → Communication → Ethernet → Configuration Web server → Port Direct access code: 470003-000 Endress+Hauser...
  • Page 125 No, Yes Factory setting Remote control Navigation Expert → Communication → Ethernet → Configuration Web server → Remote control Direct access code: 470004-000 Description Remote control of the device is possible via Web server. Options No, Yes Factory setting Endress+Hauser...
  • Page 126 Note: The following passwords should be changed during commissioning. Operator Navigation Expert → Communication → Ethernet → Configuration Web server → Authentication → ID Direct access code: 470104-000 Description ID required in order to access the device. Pay attention to case-sensitivity. Cannot be edited. Factory setting operator Endress+Hauser...
  • Page 127 Expert → Communication → Ethernet → Configuration Web server → Authentication → Password Direct access code: 470102-000 Description Enter a password for this user account. Pay attention to case-sensitivity. User entry Text (max. 12 characters) Factory setting admin Service Endress+Hauser...
  • Page 128 Expert → Communication → Ethernet → Configuration Web server → Timeouts → Connection quality Direct access code: 470200-000 Description Configuration of typical timeout values for the Web server connection. The default values can be changed if necessary. Options Please select, Local network (LAN/WLAN), Wireless/mobile (fast connect.), Wireless/ mobile (slow connect) Endress+Hauser...
  • Page 129 Expert → Communication → Ethernet → Configuration Web server → Timeouts → Put timeout Direct access code: 470203-000 Description Maximum time to transmit files to or from the device before the browser ends the connection. User entry 5 to 9999 s Factory setting Ping interval Endress+Hauser...
  • Page 130 0 to 5 Factory setting Poll timeout Navigation Expert → Communication → Ethernet → Configuration Web server → Timeouts → Poll timeout Direct access code: 470207-000 Description Maximum permitted time to refresh the website. User entry 5 to 999 s Endress+Hauser...
  • Page 131 Expert → Communication → Serial interface → Baud rate Direct access code: 150101-000 Description Transmission speed ("Baud rate") - must be the same as the settings for the PC software. Options 9600, 19200, 38400, 57600, 115200 Factory setting 19200 Endress+Hauser...
  • Page 132 User entry 0 to 30 Factory setting "Modbus Slave" submenu (option) Navigation Expert → Communication → Modbus Slave Description Configure the Modbus settings for the device. Detailed descriptions of this device option can be found in the associated documentation. Endress+Hauser...
  • Page 133 Only visible if Modbus = Ethernet. User entry Number (max. 5 digits) Factory setting "Serial interface" submenu Navigation Expert → Communication → Modbus Slave → Serial interface Description Contains settings for the serial interface. Only visible if Modbus = RS485. Baud rate Endress+Hauser...

  • Page 134: Application" Submenu

    "Application" submenu Configure various application-specific settings (e.g. group settings, limit values, etc.). Submenu "Maths - Maths x" Navigation Expert → Application → Maths → Maths x Description Configuration of the mathematics channels. x = place holder for selected mathematics channel. Endress+Hauser...
  • Page 135 Description of formula editor →  141 Only visible if Function = Formula Editor. User entry Formula The result is Navigation Expert → Application → Maths → Maths x → The result is Direct access code: 400003-000 Examples: Maths 1: 400003-000; Maths 4: 400003-003 Endress+Hauser...
  • Page 136 Expert → Application → Maths → Maths x → Engineering unit Direct access code: 400004-000 Examples: Maths 1: 400004-000; Maths 4: 400004-003 Description Unit of the calculated value. Only visible if the result is = instantaneous value or counter User entry Text (max. 6 characters) Endress+Hauser...
  • Page 137 Starts/ends the external analysis (the analysis only runs as long as the signal is high). Measured value acquisition for the graphic display continues. Options Switched off, Start/stop recording, Screensaver on, Block set up, Time synchronization, Set point monitoring on/off, Block keyboard/navigator, Start/stop analysis 1 Factory setting Switched off Switches relay Endress+Hauser...
  • Page 138 Only visible if the result is = control input or state. User entry Text (max. 6 characters) Factory setting Save event Navigation Expert → Application → Maths → Maths x → Save event Direct access code: 400010-00x Examples: Maths 1: 400010-000; Maths 4: 400010-003 Endress+Hauser...
  • Page 139 Expert → Application → Maths → Maths x → Event text H->L Direct access code: 400012-00x Examples: Maths 1: 400012-000; Maths 4: 400012-003 Description Description of condition change from high to low. Event text is stored (e.g. Stop filling). Only visible if the result is = control input or state. Endress+Hauser...
  • Page 140 Direct access code: 400017-00x Examples: Maths 1: 400017-000; Maths 4: 400017-003 Description Like "Zoom start". However, enter the upper value of the required range here. Only visible if the result is = instantaneous value. User entry Number (max. 8 digits) Factory setting Endress+Hauser...
  • Page 141 Inputs Inputs are described in the formula using the following syntax: Input type (signal type;channel number) Type of input Description Analog inputs Digital inputs Mathematics inputs Endress+Hauser...
  • Page 142 • The limit value is not violated • The limit value is not switched on • Limits monitoring is switched off (e.g. per control input) Examples: LMT (1;1) Instantaneous value of limit value 1 LMT (2;3) State of limit value 3 Endress+Hauser...
  • Page 143 Expert → Application → Maths → Maths x → Totalization → Totalization Direct access code: 400050-00x Examples: Maths 1: 400050-000; Maths 4: 400050-003 Description By totalizing the analog signal (e.g. flow rate in m³/h) quantities (in m³) can be calculated. Endress+Hauser...
  • Page 144 If the input is scaled from -x to +y, all values around the zero point (e.g. also negative values) are not recorded. Only visible if totalization = yes. User entry Number (max. 8 digits) Factory setting Endress+Hauser...
  • Page 145 Direct access code: 400060-00x Examples: Maths 1: 400060-000; Maths 4: 400060-003 Description Configure what value the device should continue working with (for calculations) if the measured value is not valid (e.g. cable open circuit). Options Invalid calculation, Error value Endress+Hauser...
  • Page 146 "Signal analysis" submenu Navigation Expert → Application → Signal analysis Description Contains settings for signal analysis (saving). Analysis x Navigation Expert → Application → Signal analysis → Analysis x Direct access code: 44000x-000 Examples: Analysis 1: 440000-000; Analysis 4: 440003-000 Endress+Hauser...
  • Page 147 Factory setting Please select Reset channel Navigation Expert → Application → Signal analysis → Reset channel Direct access code: 440010-000 Description Reset analysis of a single channel. Note: should only be executed after the device has taken over the setup. Endress+Hauser...
  • Page 148 No, limit value x Factory setting "Set point x" submenu Navigation Expert → Application → Limits → Limit x Description View or change the setup for the selected alarm set point. x = place holder for selected limit value Channel/value Endress+Hauser...
  • Page 149 Upper set point The limit value is active if the value exceeds the configured value. The limit value is switched off if the limit value, including hysteresis, is undershot. Measured value Setpoint Hysteresis Threshold “off” Setpoint “on” Setpoint “off” A0010187-EN Endress+Hauser...
  • Page 150 Expert → Application → Limits → Limit x → Identifier Direct access code: 450015-0xx Examples: Set point 1: 450015-000; Set point 30: 450015-029 Description Name of the set point for identification purposes. User entry Text (max. 16 characters) Factory setting Limit x Endress+Hauser...
  • Page 151 User entry 0 to 99999 s Factory setting Switches Navigation Expert → Application → Limits → Limit x → Switches Direct access code: 450006-0xx Examples: Set point 1: 450006-000; Set point 30: 450006-029 Endress+Hauser...
  • Page 152 This text (including date and time) is shown on the display and/or stored in the event log. Only available if "LV messages" is set to "Acknowledge" or "Save message" is set to "Yes". If no text is entered, the device generates its own text (e.g. Analog 1 > 100%). User entry Text (max. 22 characters) Endress+Hauser...
  • Page 153 • The save cycle is set under signal groups .→  155 • In the event of an alarm violation, all the groups are saved in the alarm cycle. Options Normal, Alarm cycle Factory setting Normal Draw help line Endress+Hauser...
  • Page 154 = place holder for selected group. Various general settings for measured value display of the device. Identifier Navigation Expert → Application → Signal groups → Group x → Identifier Direct access code: 460000-0xx Examples: Group 1: 460000-000; Group 4: 460000-003 Endress+Hauser...
  • Page 155 Expert → Application → Signal groups → Group x → Display blue Direct access code: 460003-00x Examples: Group 1: 460003-000; Group 4: 460003-003 Description Choose which input/calculate variable should be displayed in this group. Options Switched off, Universal input x, Digital input x, Maths x Endress+Hauser...
  • Page 156 Expert → Application → Signal groups → Group x → Display Direct access code: 460006-0xx Examples: Group 1: 460006-000; Group 4: 460006-003 Description Please select which data from the selected channel should be displayed. Options Instantaneous value/state, Analysis x, Totalizer, Everything Factory setting Instantaneous value/state Display red Endress+Hauser...
  • Page 157 Expert → Application → Signal groups → Group x → Display Direct access code: 460010-0xx Examples: Group 1: 460010-000; Group 4: 460010-003 Description Please select which data from the selected channel should be displayed. Options Instantaneous value/state, Analysis x, Totalizer, Everything Factory setting Instantaneous value/state Endress+Hauser...
  • Page 158 Factory setting Switched off Display Navigation Expert → Application → Signal groups → Group x → Display Direct access code: 460014-0xx Examples: Group 1: 460014-000; Group 4: 460014-003 Description Please select which data from the selected channel should be displayed. Endress+Hauser...
  • Page 159 Expert → Application → Signal groups → Group x → Display brown Direct access code: 460017-00x Examples: Group 1: 460017-000; Group 4: 460017-003 Description Choose which input/calculate variable should be displayed in this group. Options Switched off, Universal input x, Digital input x, Maths x Factory setting Switched off Display Endress+Hauser...
  • Page 160 Expert → Application → E-mail With Tele-Alarm option under Expert → Application → Tele-Alarm → General → E-mail setup Description Contains settings required if alarms are to be transmitted by e-mail. Test the e-mail settings under Diagnostics → Simulation → E-mail. Endress+Hauser...
  • Page 161 Direct access code: 510063-000 Description Enter your SMTP port here. If necessary, contact your network administrator or e-mail provider. User entry Number (max. 4 digits) Factory setting Sender Navigation Expert → Application → E-mail → Sender Direct access code: 510064-000 Endress+Hauser...
  • Page 162 Here, enter all the e-mail addresses messages should be sent to in the event of an alarm. Assignment to the alarms is performed later on. E-mail address x Navigation Expert → Application → E-mail → E-mail addresses → E-mail address x Direct access code: E-mail address 1: 510080-000 E-mail address 5: 510084-000 Endress+Hauser...
  • Page 163 Only for inputs where "Save message" is set to "Yes". Recipient x Navigation Expert → Application → E-mail → On/off messages → Recipient x Direct access code: Recipient 1: 510115-000; Recipient 2: 510116-000 Description Select who should receive the e-mail. Options Not used, E-mail address x Endress+Hauser...
  • Page 164 Expert → Application → E-mail → Maintenance required → Recipient x Direct access code: Recipient 1: 510130-000; Recipient 2: 510131-000 Description Select who should receive the e-mail. Options Not used, E-mail address x Factory setting Not used "WebDAV Client" submenu Navigation Expert → Application → WebDAV Client Endress+Hauser...

  • Page 165: Diagnostics" Submenu

    Only some of the diagnostic functions are available under Expert → Diagnostics. For other functions, see Main menu → Diagnostics. Actual diagnostics Navigation Expert → Diagnostics → Actual diagnostics Direct access code: 050000-000 Description Displays the current diagnosis message. Endress+Hauser...
  • Page 166 "Device information" submenu Navigation Expert → Diagnostics → Device information Description Displays important device information. Device tag Navigation Expert → Diagnostics → Device information → Device tag Direct access code: 000031-000 Description Individual device tag name/unit identifier (max. 32 characters). Endress+Hauser...
  • Page 167 Direct access code: 000032-000 Description Displays the version of the electronic nameplate. Please send these details with any questions about the unit. ENP device name Navigation Expert → Diagnostics → Device information → ENP device name Direct access code: 000020-000 Endress+Hauser...
  • Page 168 Expert → Diagnostics → Device information → Firmware Direct access code: 009998-000 Description Displays the installed firmware of the device. Please send these details with any questions about the unit. "Simulation" submenu Navigation Expert → Diagnostics → Simulation Description Settings for simulation mode. Endress+Hauser...
  • Page 169 Direct access code: 010010-000 Description Normal operation: Unit plots the signals from the connected measurement points. Simulation: Instead of operating with the real measurement points the signals are simulated (using the actual settings). Options Normal operation, Simulation Factory setting Normal operation Endress+Hauser...
