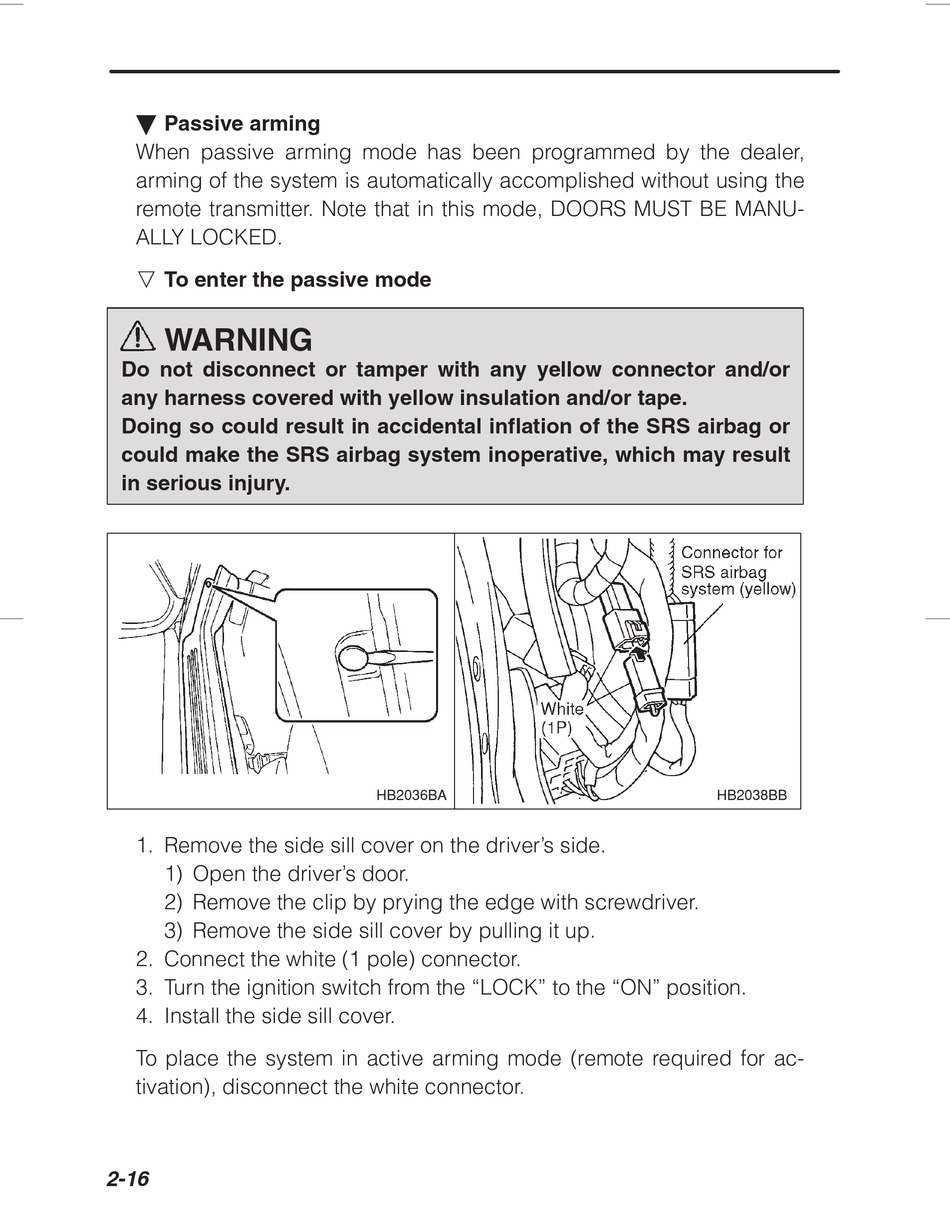

Subaru 2002 Forester Owner's Manual page 96

B Passive arming
When passive arming mode has been programmed by the dealer,
arming of the system is automatically accomplished without using the
remote transmitter. Note that in this mode, DOORS MUST BE MANU-
ALLY LOCKED.
n To enter the passive mode
WARNING
Do not disconnect or tamper with any yellow connector and/or
any harness covered with yellow insulation and/or tape.
Doing so could result in accidental inflation of the SRS airbag or
could make the SRS airbag system inoperative, which may result
in serious injury.
1. Remove the side sill cover on the driver's side.
1) Open the driver's door.
2) Remove the clip by prying the edge with screwdriver.
3) Remove the side sill cover by pulling it up.
2. Connect the white (1 pole) connector.
3. Turn the ignition switch from the "LOCK" to the "ON" position.
4. Install the side sill cover.
To place the system in active arming mode (remote required for ac-
tivation), disconnect the white connector.
2-16
HB2036BA HB2038BB
