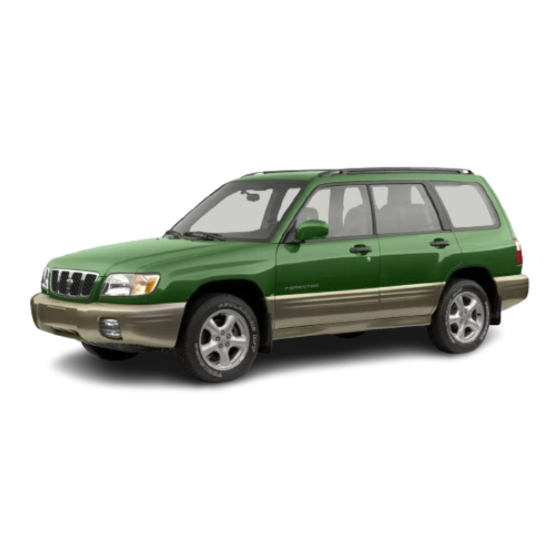

Page 2 Foreword Congratulations on choosing a SUBARU vehicle. This Owner’s Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation.
Page 3 Warranties B Warranties for U.S.A. All SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties: D SUBARU Limited Warranty D Emission Control Systems Warranty...
Page 4 This chapter informs you how to start and operate your SUBARU. Chapter 8: Driving tips This chapter informs you how to drive your SUBARU in various condi- tions and explains some safety tips on driving. Chapter 9: In case of emergency This chapter informs you what to do if you have a problem while driving, such as a flat tire or engine overheating.
Page 5: Safety Warnings
This chapter informs you how to keep your SUBARU running properly. Chapter 12: Specifications This chapter informs you about dimension and capacities of your SUBARU. Chapter 13: Consumer information and Reporting safety defects This chapter informs you about Uniform tire quality grading standards and Reporting safety defects.
Page 6 J Safety symbol You will find a circle with a slash through it in this manual. This symbol means “Do not”, “Do not do this”, or “Do not let this happen”, depending upon the context. Safety precautions when driving SEATBELT AND SRS AIRBAG WARNING D All persons in the vehicle should fasten their seatbelts BE- FORE the vehicle starts to move.
Page 7 deploys could suffer very serious injuries. Because the SRS air- bag needs enough space for deployment, the driver should al- ways sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
Page 8 THE SRS AIRBAG. D Always use the child safety locks whenever a child rides in the rear seat. Serious injury could result if a child accidentally opened the door and fell out. Refer to the “Door locks” section in chapter 2. D Always lock the passenger’s windows using the lock switch when children are riding in the vehicle.
Page 9 vehicle, have the problem checked and corrected as soon as pos- sible. If you must drive under these conditions, drive only with all windows fully open. D Keep the rear gate closed while driving to prevent exhaust gas from entering the vehicle. DRINKING AND DRIVING WARNING Drinking and then driving is very dangerous.
Page 10 the literature that accompanies the medication to determine if the drug you are taking can impair your driving ability. Do not drive after taking any medications that can make you drowsy or otherwise affect your abil- ity to safely operate a motor vehicle. If you have a medical condition that requires you to take drugs, please consult with your doctor.
Page 11 MODIFICATION OF YOUR VEHICLE CAUTION Your vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate govern- mental regulations. In addition, damage or performance problems resulting from modification may not be covered under warranties. DRIVING WITH PETS Unrestrained pets can interfere with your driving and distract your atten- tion from driving.
Page 12 Refer to the “Tires and wheels” section in chapter 11 for detailed information. CALIFORNIA PROPOSITION 65 WARNING WARNING Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 13: Table Of Contents
Table of contents Seat, seatbelt and SRS airbag Doors and locks Instruments and controls Climate control Audio Interior equipment Starting and operating Driving tips In case of emergency Appearance care Maintenance and service Specifications Consumer information and Reporting safety defects Index –...
Page 14 Illustrated index J Exterior Engine hood (page 11-6) Windshield washer (page 3-22) Wiper switch (page 3-22) Replacement of wiper blade (page 11-34) Lighting switch (page 3-16) Replacement of light bulbs (page 11-54) Outside mirror (page 3-31) Locking and unlocking of door (page 2-3) HSF015EB Tire inflation pressure (page 11-42)
Page 15 J Interior Head rest (page 1-9) Interior light (page 6-14) Door lock (page 2-3) Moonroof (page 2-24) Center console (page 6-3) Storage compartment (page 6-2) Selector lever/Gearshift lever (page 7-15/7-11) Front seat (page 1-2) Parking brake lever (page 7-26) Seatbelt (combination lap/shoulder belt) (page 1-10) Rear seat (page 1-8) Rear center passenger’s seat seatbelt (page 1-18) HSF009BB...
Page 16 J Luggage compartment Jack handle (page 9-16) Jack (page 9-16) Spare tire (page 9-16) Luggage cover (page 6-16) Cargo anchorage eyelets (page 6-18) Accessory power socket (page 6-8) Luggage floor storage tray (page 6-19) HSF010BB HSF011BB...
Page 17 J Instrument panel Combination meter (page 3-6) Hazard warning flasher switch (page 3-5) Rear window defogger switch (page 3-26)/Outside mirror defogger switch (page 3-33) Cup holder (page 6-6) SRS airbag (page 1-31) Glove compartment (page 6-3) Heater or air conditioner control (page 4-4) Audio (page 5-1) Cigarette lighter (page 6-11)
Page 18 Parking light switch (page 3-19) Hazard warning flasher switch (page 3-5) Rear window defogger switch (page 3-26)/Outside mirror defogger switch (page 3-33) Rear window wiper and washer switch (page 3-24) Windshield washer (page 3-22) Mist (page 3-23) Windshield wiper (page 3-22) Wiper control (page 3-20) Light control (page 3-16) Illumination brightness control...
Page 19 J Combination meter ABS warning light (page 3-13) Seatbelt warning light (page 3-10) Front-wheel drive warning light (page 3-15) Turn signal indicator light (page3-15) High beam indicator light (page 3-15) SRS airbag warning light (page 3-10) Brake system warning lights (page 3-14) AT oil temperature warning light (page 3-13)
Page 20 B Warning and indicator light Mark Seatbelt warning light SRS airbag system warning light AIRBAG CHECK ENGINE warning light/ Malfunction indicator lamp Charge warning light Oil pressure warning light AT OIL temperature warning light (if equipped) ABS warning light Brake system warning light Door open warning light Front-wheel drive warning light (for AT vehicles) Security system indicator light (if equipped)
Page 21 ABS (Anti-lock Brake System) ABS warning light (for vehicles with ABS) Accessory power socket Air cleaner element ............. . Air conditioner operation Air filtration system (if equipped) Aluminum wheels (If equipped)
Page 22 Child restraint systems ............Child safety locks .
Page 23 Engine overheating ............. . Exterior care .
Page 24 Horn ................. Ignition switch .
Page 25 Moonroof (if equipped) Moonroof – if the moonroof cannot be closed New vehicle break-in driving – the first 1,000 miles (1,600 km) Odometer/Trip meter Off road driving ..............Oil pressure warning light Operating tips for heater and air conditioner Outside mirrors...
Page 26 Rear window defogger switch Rear window wiper and washer switch (if equipped) Replacement of brake pad and lining Replacement of windshield wiper blades Replacing bulbs ..............Reporting safety defects (USA) Rocking the vehicle .
Page 27 Starting the engine for an automatic transmission vehicle State emission testing (U.S. only) Stopping the engine ............. Storage compartment Sun visors .
Page 28 Vanity mirror (if equipped) Vehicle capacity weight Vehicle identification ............. Vehicle with driver’s and front passenger’s SRS airbags and lap/shoulder restraints Ventilator...
Page 29 Seat, seatbelt and SRS airbags Front seats ..............Seat heater (if equipped) Rear seats .
Page 30: Front Seats
Front seats WARNING D Never adjust the seat while driving to avoid the possibility of loss of vehicle control and of personal injury. D Never drive the vehicle with the head restraints removed be- cause they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck from the rear.
Page 31 adults, their risk of being injured from deployment is greater. For that reason, we strongly recommend that ALL children (includ- ing those in child seats and those that have outgrown child re- straint devices) sit in the REAR seat properly restrained at all times in a child restraint device or in a seatbelt, whichever is ap- propriate for the child’s age, height and weight.
Page 32: Fore And Aft Adjustment
Put children in the rear seat properly restrained at all times. B Fore and aft adjustment Pull the lever upward and slide the seat to the desired position. Then release the lever and move the seat back and forth to make sure that it is securely locked into place.
Page 33 B Reclining the seatback Pull the reclining lever up and adjust the seatback to the desired posi- tion. Then release the lever and make sure the seatback is securely locked into place. The seatback placed in a reclined position can spring back upward with force when released.
Page 34 B Head restraint adjustment HS0031 To raise the head restraint, pull it up. To lower it, push the head re- straint down while pressing the release button on the top of the seat- back. The head restraint should be adjusted so that the center of the head restraint is closest to the top of the occupant’s ears.
Page 35: Seat Heater (If Equipped)
Seat heater (if equipped) CAUTION D Use of the seat heater for long period of time while the engine is not running can cause battery discharge. D Do not put anything on the seat which insulates against heat, such as a blanket, cushion, or similar items. This may cause the seat heater to overheat.
Page 36: Rear Seats
Rear seats WARNING D Never drive the vehicle with the head rest removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck from the rear. D Seatbelts provide maximum restraint when the occupant sits well back and upright in the seat.
Page 37 Seat, seatbelt and SRS airbags B Folding down the seatback WARNING Never permit anyone to ride in the cargo area. HB1022BA HB1023BA Unlock the seatback by pulling the release knob and then fold the seatback down. To return the seatback to its original position, raise the seatback until it locks into place and make sure that it is securely locked.
Page 38: Seatbelt Safety Tips
Seatbelts J Seatbelt safety tips WARNING D All persons in the vehicle should fasten their seatbelts BE- FORE the vehicle starts to move. Otherwise, the possibility of se- rious injury becomes greater in the event of a sudden stop or ac- cident.
Page 39: Emergency Locking Retractor (Elr)
According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. For instructions and precautions concerning the child restraint system, see the “Child restraint systems” section in this chapter. B Infants or small children Use a child restraint system that is suitable for your vehicle.
Page 40: Automatic/Emergency Locking Retractor (A/Elr)
J Automatic/Emergency Locking Retractor (A/ELR) Each passenger’s seatbelt has an Automatic/Emergency Locking Re- tractor (A/ELR). The Automatic/Emergency Locking Retractor normally functions as an Emergency Locking Retractor (ELR). The A/ELR has an additional locking mode “Automatic Locking Retractor (ALR) mode” in- tended to secure a child restraint system.
Page 41: Fastening The Seatbelt
J Fastening the seatbelt WARNING D Never use a belt that is twisted or reversed. In an accident, this can increase the risk or severity of injury. D Never place the shoulder belt under the arm or behind the back. If an accident occurs, this can increase the risk or severity of injury.
Page 42 CAUTION Metallic parts of the seatbelt can become very hot in a vehicle that has been closed up in sunny weather; they could burn an oc- cupant. Do not touch such hot parts until they cool. B Front seatbelts 1. Adjust the seat position: Driver’s seat: Adjust the seatback to the upright position.
Page 43 n Adjusting the front seat shoulder belt anchor height WARNING When wearing the seatbelts, make sure the shoulder portion of the webbing does not pass over your neck. If it does, adjust the seatbelt anchor to a lower position. Placing the shoulder belt over the neck may result in neck injury during sudden braking or in a collision.
Page 44 n Unfastening the seatbelt Push HB0303 Push the button on the buckle. Before closing the door, make sure that the belts are retracted prop- erly to avoid catching the belt webbing in the door. B Rear seatbelts (except rear center seatbelt) OM-H0043 OM-H0044 1.
Page 45 4. To make the lap part tight, pull up on the shoulder belt. And place the lap belt as low as possible on your hips, not on your waist. n Adjusting the rear seat shoulder belt anchor height WARNING When wearing the seatbelts, make sure the shoulder portion of the webbing does not pass over your neck.
Page 46 n Unfastening the seatbelt Push the button on the buckle. Before closing the door, make sure that the belts are retracted prop- erly to avoid catching the belt webbing in the door. B Rear center seatbelt WARNING D Before fastening the seatbelt, confirm that the seatbelt is routed through the seatbelt comfort guide.
Page 47 1. Pull out the seatbelt slowly from the overhead retractor, then pass the seatbelt through the seatbelt comfort guide located beside the Seat, seatbelt and SRS airbags HB1030BA 1. Center seatbelt tongue plate 2. Connector (tongue) 3. Connector (buckle) 4. Center seatbelt buckle HS1017BB HB1032BA HB1031BA...
Page 48 head rest. HB1033CA 2. After confirming that the webbing is not twisted, insert the connec- tor (tongue) attached at the webbing end into the buckle on the right- hand side until a click is heard. If the belt stops before reaching the buckle, return the belt slightly and pull it out more slowly.
Page 49 n Unfastening the seatbelt Push Push the release button of the center seatbelt buckle (on the left-hand side) to unfasten the seatbelt. NOTE When the seatback is folded down for greater luggage space, it is necessary to disconnect the connector. CAUTION D Do not allow the retractor to roll up the seatbelt too quickly.
Page 50 D Have the seatbelt fully rolled up so that the tongue plates are neatly stored. A hanging tongue plate can swing and hit against the trim during driving, causing damage to the trim. 1. Insert a key or other hard pointed object into the slot in the con- nector (buckle) on the right-hand side and push it in, and the connec- tor (tongue) plate will disconnect from the buckle.
Page 51: Seatbelt Maintenance
If the front seatbelts are not long enough to permit the tongue plate to engage with the seatbelt buckle, an optional seatbelt extender is avail- able from your SUBARU dealer. When ordering an extender, only order one particularly designed for your vehicle. Several different types of extenders are available to match various varieties of front seatbelt designs.
Page 52 that is needed to permit the seatbelt to be buckled properly, re- move the heavy clothing and do not use the extender. D Do not use the extender if the buckle of the extender rests over the abdomen. D Do not let someone else use the extender. Use of an extender when it is not needed could reduce the effectiveness of the seat- belt and result in more serious injury in the event of a collision.
Page 53: Child Restraint Systems
Seat, seatbelt and SRS airbags Child restraint systems WARNING D Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from injury in a collision, because the child will be caught between the passenger and objects inside the vehicle.
Page 54 Never hold a child on your lap or in your arms in the front passenger’s seat or any other seat. Never install rearward facing child seat in the front passenger’s seat. WARNING D Child restraint systems and seatbelts can become hot in a ve- hicle that has been closed up in sunny weather;...
Page 55 Standards or Canada Motor Vehicle Safety Standards, is compatible with your vehicle and is appropriate for the child’s age and size. All child re- straint systems are designed to be secured in vehicle seats by lap belts or the lap portion of a lap/shoulder belt. Children could be endangered in an accident if their child restraints are not properly secured in the vehicle.
Page 56 HB1080BA Make sure that the seatbelt is securely locked into place. 1. Set the child restraint system in the seating position. 2. Run the lap and shoulder belts through or around the child re- straint system following the instructions provided by its manufacturer. If the shoulder belt goes in front of the child’s face or neck, put it be- hind the child restraint system.
Page 57: Top Tether Anchorages
The belt will return to the ELR mode. If you have any question concerning this type of child restraint sys- tem, ask your SUBARU dealer. J Top tether anchorages B Anchorage location HS1030BB Three anchorages, i.e., ones for the right, center and left positions,...
Page 58 B To hook the top tether CAUTION Always remove the head rest when mounting a child restraint system with a top tether. Otherwise, it may happen that the top tether cannot be fastened tightly. 1. Remove the head rest at the seat position where the child restraint has been installed with the seatbelt: lift up the head rest while press- ing the release button.
Page 59: Srs Airbag
*SRS airbag (Supplemental Restraint System airbag) *SRS: This stands for supplemental restraint system. This name is used because the airbag system supplements the vehicle’s seatbelts. J Vehicle with driver’s and front passenger’s SRS air- bags and lap/shoulder restraints WARNING D To obtain maximum protection in the event of an accident, the driver and all passengers in the vehicle should always wear seat- belts when the vehicle is moving.
Page 60 deploys could suffer very serious injuries. Because the SRS air- bag needs enough space for deployment, the driver should al- ways sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
Page 61 Put children in the REAR seat prop- erly restrained at all times. CAUTION D When the SRS airbag deploys, some smoke will be released. This smoke could cause breathing problems for people with a history of asthma or other breathing trouble. If you or your pas- sengers have breathing problems after SRS airbag deploys, get fresh air promptly.
Page 62 B Components Airbag control module (including impact sensors) Airbag module (driver’s side) Airbag module (passenger’s side) Front sub sensor (left hand side) Front sub sensor (right hand side) 1-34 Side airbag module (driver’s side — if equipped) Side airbag module (passenger’s side —...
Page 63: Srs Frontal Airbag
J SRS frontal airbag WARNING D NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILD’S HEAD TOO CLOSE TO THE SRS AIRBAG. D Never allow a child to stand up, or to kneel on the front pas- senger’s seat, or never hold a child on your lap or in your arms.
Page 64 Never hold a child on your lap or in your arms in the front passenger’s seat or any other seat. Adjust the seatback to upright position. Sit well back and upright. Move the seat as far back as possible. WARNING D Do not put any objects over the steering wheel pad and dash- board.
Page 65 Do not put any objects over the steering wheel pad and dashboard The driver’s SRS frontal airbag is stowed in the center portion of the steering wheel. The passenger’s SRS frontal airbag is stowed near the top of the dashboard under an “SRS AIRBAG” mark. In a moderate to severe frontal collision, the driver’s and front passen- ger’s SRS frontal airbags deploy and supplement the seatbelts by reduc- ing the impact on the driver’s and front passenger’s head and chest.
Page 66 HS2001BB The SRS airbag can function only when the ignition switch is in the “ON” position. If the front sub sensors inside the both front fenders and the impact sensors in the airbag control module detect a certain predetermined amount of force during a frontal collision, the control module sends signals to the frontal airbag modules instructing them to inflate the SRS frontal airbags.
Page 67 Seat, seatbelt and SRS airbags be heard and some smoke will be released. These occurrences are normal result of the deployment. This smoke does not indicate a fire in the vehicle. The SRS frontal airbag is designed to deploy in the event of an acci- dent involving a moderate to severe frontal collision.
Page 68 n Examples of the types of accidents in which it is possible that the SRS frontal airbag will deploy. The SRS frontal airbag may be activated when the vehicle sustains a hard impact in the undercarriage area from the road surface (such as when the vehicle plunges into a deep ditch, is severely bumped or knocked hard against an obstacle on the road such as a curb).
Page 69 The vehicle strikes a tele- phone pole or similar ob- ject. HS0238 n Examples of the types of accidents in which the SRS frontal airbag will basically not deploy. The SRS frontal airbag is basically not designed to deploy if the vehicle is struck from side or from behind, or if it rolls onto its side or roof, or if it is involved in a low-speed frontal collision.
Page 70: Srs Side Airbag (If Equipped)
HB1070BB J SRS side airbag (if equipped) WARNING D The SRS side airbag is designed as only a supplement to the primary protection provided by the seatbelt. It does not do away with the need to fasten seatbelts. It is also important to wear your seatbelt to help avoid injuries that can result when an occupant is not seated in a proper upright position.
Page 71 the rear seat anyway and should be properly restrained at all times. Do not sit or learn unnecessary close to the front door. Never allow a child to kneel on the front passenger’s seat facing the side window. WARNING D Do not attach accessories to the door trim or near either SRS side airbags and do not place objects near the SRS side airbags.
Page 72 Do not put any kind of cover over either seatback. The SRS side airbag is stored in the door side of each front seatback, which bears an “SRS AIRBAG” label. In a moderate to severe side impact collision, the SRS side airbag on the impacted side of the vehicle deploys between the occupant and the door panel and supplements the seatbelt by reducing the impact on the occupant’s chest.
Page 73 SRS side airbag deploys as soon as a collision occurs. After deployment, SRS side airbag starts to deflate immedi- ately. The SRS side airbag can function only when the ignition switch is in the “ON” position. The driver’s and front passenger’s SRS side airbags deploy indepen- dently of each other since each has its own impact sensor.
Page 74 When the SRS side airbag deploys, a sudden, fairly loud inflation noise will be heard and some smoke will be released. These occur- rences are normal result of the deployment. This smoke does not indi- cate a fire in the vehicle. The SRS side airbag is designed to deploy in the event of an accident involving a moderate to severe side impact collision.
Page 75 n Examples of the types of accidents in which the SRS side air- bag is unlikely to deploy. There are many types of collisions which might not necessarily require SRS side airbag deployment. In the event of accidents like those illus- trated below, the SRS side airbag may not deploy depending on the level of accident forces involved.
Page 76 n Examples of the types of accidents in which the SRS side air- bag will basically not deploy. The SRS side airbag is basically not designed to deploy if the vehicle is involved in a frontal collision or is struck from behind. Examples of such accidents are illustrated below.
Page 77: Srs Airbag System Monitors
D All related wiring In the event of a malfunction indicated by any of following, the vehicle should be taken promptly to your nearest SUBARU dealer to have the system checked. Unless checked and repaired, the SRS airbags will not function reliably: D Flashing or flickering of the indicator light.
Page 78: Srs Airbag System Servicing
CAUTION If you need service or repair in areas listed below, we recommend that you have an authorized SUBARU dealer perform the work. The SRS airbag control module, impact sensors and airbag modules are stored in these areas.
Page 79: Precautions Against Vehicle Modification
When the components of the SRS airbag system are replaced, use only genuine SUBARU parts. To ensure their long-term reliability, the SRS airbags must be inspected by a SUBARU dealer ten years after the date of manufacture, which is shown on the certification label attached to the driver’s door. NOTE In the following cases, contact your SUBARU dealer as soon as pos- sible.
Page 80 D Attachment of any equipment (side steps or side sill protec- tors, etc.) to the side body (for vehicles with side airbags only). Always consult your SUBARU dealer if you want to install any accessory parts to your vehicle. 1-52...
Page 81 Doors and locks Keys ................Master, submaster and valet key Key number .
Page 82: Keys
Keys Master key Submaster key J Master, submaster and valet key Three types of keys are provided for your vehicle. Master key, submaster key and valet key. The master key and submaster key fit all locks on your vehicle. D Ignition switch D Doors D Rear gate D Glove compartment...
Page 83: Doors And Locks
Door locks B Locking and unlocking from the outside Unlock To lock the door from the outside with the key, turn the key toward the rear. To unlock the door, turn the key toward the front. Pull the outside door handle to open an unlocked door. Locking without the key Press the lock lever.
Page 84 Always make sure that all doors and the rear gate are locked before leaving your vehicle. NOTE Make sure that you do not leave the key inside the vehicle before locking the doors from the outside without the key. B Locking and unlocking from the inside WARNING Keep all doors locked when you drive, especially when small chil- dren are in your vehicle.
Page 85: Power Door Locking Switches
Doors and locks J Power door locking switches HB2008CB HB2009BB All doors and the rear gate can be locked and unlocked by the power door locking switches located at the driver’s side and the front passen- ger’s side doors. To lock the doors, push the switch forward. To unlock the doors, push the switch rearward.
Page 86: Keyless Entry System (If Equipped)
Keyless entry system (if equipped) CAUTION D Do not expose the transmitter to severe shocks, such as those experienced as a result of dropping or throwing. D Do not take the transmitter apart except when replacing the battery. D Do not get the transmitter wet. If it gets wet, wipe it dry with a cloth immediately.
Page 87 Press to Lock all doors. Press and Hold to activate panic alarm. B Locking the doors Briefly press the “LOCK/ARM” button (for less than two seconds) to lock all doors and rear gate. The horn will sound one time. If any of the doors or the rear gate is not fully closed, the horn will sound three times to alert you that the doors (or the rear gate) are not properly closed.
Page 88 B Selecting audible signal operation Using the horn, the system will give you an audible signal when the doors lock and unlock. If desired, you may turn the audible signal off. To turn the audible signal off, unlock the doors by pushing “UNLOCK/DIS- ARM”...
Page 89 3. Remove the old battery from the holder. 4. Replace with a new battery (Type CR2032 or equivalent) making sure to install the new battery with the positive (+) side facing up. 5. Install the back half of the transmitter case. 6.
Page 90 2. Open the driver’s door and sit in the driver’s seat. 3. Close the driver’s door. HB2032BB 4. Place the ignition key into the ignition switch and cycle the switch from LOCK to ON ten times within 15 seconds. Be sure to stop at the LOCK position.
Page 91 Doors and locks 3. Press and release any button on the transmitter that you wish to program into the system. The horn will sound two times to indicate that the transmitter has been programmed. Any additional transmitters can also be programmed at this time. Repeat steps 1 through 3 for an additional transmitter.
Page 92: Security System (If Equipped)
Security system (if equipped) The security system helps to protect your vehicle and valuables from theft. The horn sounds and the parking lights flash if someone attempts to break into your vehicle. The starter motor is also interrupted to prevent starting the vehicle without a key.
Page 93 B Arming the system n To arm the system using remote transmitter Press to Arm the system. 1. Close all windows and moonroofs (if so equipped). 2. Remove the key from the ignition switch. 3. Open the doors and get out of the vehicle. 4.
Page 94 n To arm the system using power door locking switches HB2024CC 1. Close all windows and moonroofs (if so equipped). 2. Remove the key from the ignition switch. 3. Open the doors and get out of the vehicle. 4. Make sure that the engine hood is locked. 5.
Page 95 Doors and locks To unlock all doors (and the rear gate), briefly press the “UNLOCK/ DISARM” button a second time. n Emergency disarming If you cannot disarm the system using the transmitter (i.e. the trans- mitter is lost, broken or the transmitter battery is too weak), you can disarm the system without using the transmitter.
Page 96 B Passive arming When passive arming mode has been programmed by the dealer, arming of the system is automatically accomplished without using the remote transmitter. Note that in this mode, DOORS MUST BE MANU- ALLY LOCKED. n To enter the passive mode WARNING Do not disconnect or tamper with any yellow connector and/or any harness covered with yellow insulation and/or tape.
Page 97 n Arming the system CAUTION In passive mode, the system will automatically activate the alarm but WILL NOT automatically lock the doors. In order to lock the doors you must either lock them as indicated in step 4 below or with the key once they have been closed.
Page 98 B Disarming the system To disarm the system, briefly press the “UNLOCK/DISARM” button on the transmitter. B Tripped sensor identification If the horn sounds four times and the parking lights flash four times when you disarm the system, this indicates that the alarm was trig- gered.
Page 99: Child Safety Locks
Child safety locks Unlock Lock WARNING Always use the child safety lock whenever a child rides in the rear seat. Serious injury could result if a child accidentally opened the door and fell out. Each rear door has a child safety lock that prevents the doors from being opened even if the inside door handle is pulled.
Page 100: Power Windows
Power windows WARNING D When operating power windows, be extremely careful to pre- vent anyone’s fingers, arms or head from being caught in the window. D Always lock the passengers’ windows using the lock switch when children are riding in the vehicle. D Before leaving the vehicle, always remove the key from the ignition switch for safety and never allow an unattended child to remain in the vehicle.
Page 101 Lock Unlock Close Open Automatically open All door windows can be controlled by the power window switch clus- ter at the driver side door. n To open or close the driver’s window AUTO switch: This switch has two functions. Push the switch down until it clicks and release it, and the window will fully open.
Page 102 B Front passenger’s switch Close Open To open the window, push the switch down and hold it until the win- dow reaches the desired position. To close the window, pull the switch up and hold it until the window reaches the desired position. When the lock switch on the power window switch cluster, located on the driver’s side door, is in the “LOCK”...
Page 103: Rear Gate
the driver’s side door, is in the “LOCK” position, the rear passengers’ windows cannot be operated with the rear passengers’ switches. Rear gate WARNING D Do not attempt to shut the rear gate while holding the inside handle. Also avoid closing the rear gate by pulling on the inside handle from inside the cargo space.
Page 104: Moonroof (If Equipped)
Moonroof (if equipped) WARNING D Never let anyone’s hands, arms, head or any objects protrude from the moonroof. D Before closing the moonroof, make sure that no one’s hands, arms, head or other objects will be accidentally caught in the moonroof.
Page 105 To open or close the moonroof Push the upper part of the switch to open the moonroof. The sun shade also will be opened together with the moonroof. The moonroof will stop at a position 20 in. (50 cm) away from the fully closed position if you contin- ue to press on the switch.
Page 106 head wrench. For the procedure, refer to “Moonroof — if the moon- roof cannot be closed” in Chapter 9 “In case of emergency”. B Sun shade The sun shade can be slid forward or backward by hand while the moonroof is closed. If the moonroof is opened, the sun shade also moves back.
Page 107 Instruments and controls Ignition switch ............. Key reminder chime .
Page 108: Ignition Switch
Ignition switch WARNING Never turn the ignition switch to “LOCK” while the vehicle is be- ing driven or towed because that will lock the steering wheel, pre- venting steering control. And when the engine is turned off, it takes a much greater effort than usual to steer. The ignition switch has four positions: LOCK, ACC, ON and START.
Page 109: Instruments And Controls
Instruments and controls n Automatic transmission vehicles: HS0123 HS0124 The key can be turned from “ACC” to “LOCK” only when the selector lever is in the “P” position. n Manual transmission vehicles: HS0125 The key can be turned from “ACC” to “LOCK” only when the key is pushed in while turning it.
Page 110: Key Reminder Chime
2. Remove three screws securing the undercover of the steering col- umn. 3. Remove the under cover of the steering column. 4. Turn the ignition key while pressing the key interlock release lever. Take your vehicle to the nearest SUBARU dealer immediately to have the Release lever Vehicle front...
Page 111: Hazard Warning Flasher
Instruments and controls key interlock system repaired. Hazard warning flasher HS0053 The hazard warning flasher is used to warn other drivers when you have to park your vehicle under emergency conditions. The hazard warning flasher works with the ignition switch in any position. When you have to park your vehicle under emergency conditions, pull off the roads safely and park away from the traffic if it is possible.
Page 112: Gauges
Gauges J Speedometer The speedometer shows the vehicle speed. J Odometer/Trip meter CAUTION To ensure safety, do not attempt to change the function of the in- dicator during driving, as an accident from inadequate steering operation could result. This meter displays the odometer and two trip meters when the ignition HSF013CB HS3005BB...
Page 113: Outside Temperature Indicator (If Equipped)
switch is in the “LOCK”, “ACC” or “ON” position. To change the mode indication, briefly push the knob. Each press of the knob changes the function in the following order. A trip meter B Odometer The odometer shows the total distance that the vehicle has been driv- B Double trip meter The trip meter shows the distance that the vehicle has been driven since you last set it to zero.
Page 114: Fuel Gauge
The indicator can give a false reading under any of the following condi- tions: D When there is too much sun. D During idling; while running at low speeds in a traffic jam; when the engine is restarted immediately following a shutdown. D When the actual outside temperature falls outside the specified indi- cator range.
Page 115: Temperature Gauge
J Temperature gauge CAUTION If the pointer exceeds the normal operating range, safely stop the vehicle as soon as possible. See “In case of emergency” in this manual. Normal operating range The temperature gauge shows engine coolant temperature when the ignition switch is in the “ON”...
Page 116: Srs Airbag System Warning Light
If any lights fail to come on, it indicates a burned-out bulb or a malfunc- tion of the corresponding system. Consult your authorized SUBARU dealer for repair. J Seatbelt warning light and chime When the ignition switch is turned to the “ON” position, the seatbelt warning light will come on and the reminder chime will sound to remind driver to fasten the seatbelt.
Page 117: Check Engine Warning Light
Tightening the cap will not make the CHECK ENGINE warning light turn off immediately. It may take several driving trips. If the light does not go out, take your vehicle to your authorized SUBARU dealer immediately. B If the light is blinking:...
Page 118: Charge Warning Light
If the oil level is low, add oil immediately. If the engine oil is at the proper level but the light remains on, contact your nearest SUBARU dealer immediately.
Page 119: At Oil Temperature Warning Light
B Automatic transmission control system warning If the light flashes after the engine starts, it may indicate that the auto- matic transmission control system is not working properly. Contact your nearest SUBARU dealer for service immediately. J ABS warning light (for vehicles with ABS) The ABS warning light comes on when the ignition switch is turned to the “ON”...
Page 120 D Driving with the brake system warning light on is dangerous. This indicates your brake system may not be working properly. If the light remains on, have the brakes inspected by a SUBARU dealer immediately. D If at all in doubt about whether the brakes are operating prop- erly, do not drive the vehicle.
Page 121: Door Open Warning Lights
“ON”), it could be an indication of leaking of brake fluid or worn brake pads. Have your vehicle checked by a SUBARU dealer immediately. J Door open warning lights The door open warning light comes on if any door or the rear gate is not fully closed.
Page 122: Light Control Switch
Light control switch WARNING To prevent battery discharge resulting from accidentally leaving your lights on when your vehicle is parked, the light switch oper- ates only when the ignition switch is in the “ON” position. In any other position, the vehicle’s lights will be out. If you park your ve- hicle on a roadside at night, use the hazard warning flasher to alert the other drivers.
Page 123 B High/low beam change (dimmer) To change from low beam to high beam, push the turn signal lever forward. When the headlights are on high beam, the high beam indi- cator light “a” on the instrument panel is also on. To switch back to low beam, pull the lever back to the detent position.
Page 124: Turn Signals Lever
Turn signals lever Right turn Left turn To activate the right turn signal, push the turn signal lever up. To activate the left turn signal, push the turn signal lever down. When the turn is fin- ished, the lever will return automatically. If the lever does not return after cornering, return the lever to the neutral position by hand.
Page 125: Parking Light Switch
When the lighting switch is in the “p” or “a” position, you can adjust brightness of the instrument panel illumination for better visibility. To brighten, turn the control dial counterclockwise. To darken, turn the control dial clockwise. Parking light switch The parking light switch operates regardless of the ignition switch posi- tion.
Page 126: Fog Light Switch (If Equipped)
Fog light switch (if equipped) The fog lights operate only when the headlights are on low beam. Push the fog light switch to turn the fog lights on. Press the switch again to turn them off. The indicator light located on the switch will illuminate when the fog lights are on.
Page 127 D Use clean water if windshield washer fluid is unavailable. In areas where water freezes in winter, use SUBARU Windshield Washer Fluid or the equivalent. (See “Windshield washer fluid” section in chapter 11.) Also, when driving the vehicle when there are freezing tempera- tures, use non-freezing type wiper blades.
Page 128: Windshield Wiper And Washer Switches
windshield or rear window. D Grease, wax, insects or other material on the windshield or the wiper blades results in jerky wiper operation and streaking on the glass. If you cannot remove those streaks after operating the washer or if the wiper operation is jerky, clean the outer surface of the windshield or rear window and the wiper blades using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaner.
Page 129 B Wiper intermittent time control (if equipped) When the wiper switch is in the “ the operating interval of the wiper. Operating interval can be adjusted continuously from the shortest interval to the longest. Two click stop positions of the dial may help you to aim at your desired interval.
Page 130: Rear Window Wiper And Washer Switch (If Equipped)
er control lever. The washer fluid sprays until you release the washer button. The wipers operate while you push the button. J Rear window wiper and washer switch (if equipped) HS3009BB B Rear wiper To turn the rear wiper on, turn the knob on the end of the wiper control lever upward.
Page 131: Windshield Wiper Deicer (If Equipped)
Windshield wiper deicer (if equipped) CAUTION To prevent the battery from being discharged, do not operate the windshield wiper deicer continuously for any longer than neces- sary. The windshield wiper deicer operates only when the ignition switch is in the “ON” position. Before turning on the windshield wiper deicer, remove any snow from the windshield.
Page 132: Rear Window Defogger Switch
Rear window defogger switch CAUTION D Do not use sharp instruments or window cleaner containing abrasives to clean the inner surface of the rear window. They may damage the conductors printed on the window. D To prevent the battery from being discharged, do not operate the defogger continuously for any longer than necessary.
Page 133: Tilt Steering Wheel
operating. Tilt steering wheel WARNING Do not adjust the steering wheel tilt position while driving. This may cause loss of vehicle control and result in personal injury. B Tilt adjustment 1. Adjust the seat position. Refer to “Front seat” section (chapter 1). 2.
Page 134: Horn
Horn OM-H2736 To sound the horn, push the horn pad. Mirrors Always check that the inside and outside mirrors are properly adjusted before you start driving. J Inside mirror HB4003BB The inside mirror has a day and night position. Pull the tab at the bottom of the mirror toward you for the night position.
Page 135 Instruments and controls B Compass mirror (if equipped) HB6019BB The inside electronic compass mirror has an anti-glare feature which automatically reduces glare coming from headlights of vehicles be- hind you. It also contains a built-in compass. D By pressing and releasing the left button, the automatic dimming function is toggled on or off.
Page 136 n Photosensors HB6020BA The mirror has a photosensor attached on both the front and back sides. If the glare from the headlights of vehicles behind you strikes the mirror, these sensors detect it and make the reflection surface of the mirror dimmer to help prevent you from being blinded. For this reason, use care not to cover the sensors with stickers, or other simi- lar items.
Page 137: Outside Mirrors
n Compass zone adjustment 1. The zone setting is factory preset to Zone 8. Refer to the “Com- pass calibration zone” map shown above or one attached to the end of this manual to verify that the compass zone setting is correct for your geographical location.
Page 138 HS0065 B Remote control mirror switch (if equipped) The remote control mirrors operate only when the ignition switch is in the “ON” or “ACC” position. HS3008BB 1. Press either end of the selection switch, “L” for the left and “R” for the right.
Page 139 B Outside mirror defogger (if equipped) CAUTION To prevent the battery from being discharged, do not operate the defogger continuously for any longer than necessary. The outside mirror defogger shares the switch with rear window defogger. The outside mirror defogger operates only when the ignition switch is in the “ON”...
Page 140 Climate control Ventilator ..............Heating and air conditioning control system Heater operation .
Page 141: Ventilator
Ventilator Move the thumb-wheel up and down or right and left to adjust the air flow direction Oepn Close Move the thumb-wheel up and down or right and left to adjust the air flow direction Move the thumb-wheel up and down or right and left to adjust the air flow direction Oepn...
Page 142: Climate Control
Climate control B Air flow section HS0081 HS0079 HS0075 HS0077 HS0073 – CONTINUED –...
Page 143: Heating And Air Conditioning Control System
Heating and air conditioning control system B Control panel 1. Temperature control dial 2. Air inlet selection lever 3. Air flow control dial 4. Air conditioner button (if equipped) 5. Fan speed control lever n Temperature control dial This dial regulates the temperature of air flow from the air outlets over a range from the blue area (cool) to red area (warm).
Page 144 : Air flows through the windshield defroster outlets and foot outlets. : Air flows through the windshield defroster outlets. n Air conditioner button (if equipped) The air conditioner operates only when the engine is running. Push the air conditioner button while the fan is in operation to turn on the air conditioner.
Page 145: Heater Operation
J Heater operation B Defrosting or defogging the windshield HS0072 To direct warm air to the windshield and front door windows: 1. Set the air inlet selection lever to the “ ” position. 2. Set the air flow control dial to the “ ”...
Page 146 B Heating and defrosting To direct warm air toward the floor and the windshield: 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Set the temperature control dial to the most comfortable level. 4.
Page 147 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3. Set the temperature control dial to the most comfortable level. 4. Set the fan speed control lever to the desired speed. NOTE Warm air also comes out from the right and left air outlets.
Page 148 B Ventilation WARNING Continued operation in the “ dows. Switch to the “ dusty condition clears. To force outside air through the instrument panel outlets: 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3.
Page 149: Air Conditioner Operation
J Air conditioner operation B Cooling or dehumidifying ON position For cooling and dehumidification of the passenger compartment, air flows through the instrument panel outlets: 1. Set the air inlet selection lever to the “ 2. Set the air flow control dial to the “ 3.
Page 150: Operating Tips For Heater And Air Conditioner
Climate control 2. Set the air outlet control dial to the “ ” position. 3. Push the air conditioner button to the “ON” position. 4. Set the temperature control dial to the red area. 5. Set the fan speed control lever at the highest speed. Operating tips for heater and air conditioner B Cleaning ventilator grille Ventilator inlet grille...
Page 151: Air Filtration System (If Equipped)
Since the filter element is a viscous type, it is unnecessary to clean or wash the element. It is recommended that you have your filter checked or replaced by your SUBARU dealer. For replacement, use only a genuine SUBARU air filter kit.
Page 152 Replacement schedule: Every 12 months or 7,500 miles (12,000 km) whichever comes first NOTE The filter can influence the air conditioning, heating and defroster performance. B Replacement procedure Old filter 1. Remove the filter cover from the cooling unit by removing the two (2) clips with a blade screwdriver and unhooking the hinge.
Page 153 3. Insert the front filter assembly in the cooling unit, then install the rear filter assembly. NOTE D Hold the filter tabs to facilitate installation. D The passenger compartment side of each filter is marked with arrows (indicating “UP” and the direction of air flow). Ensure the arrows point in the correct directions.
Page 154 5. Fill in the maintenance label with the replacement date and mile- age. 6. Install it on the left hand side of the instrument panel as shown. D The filter must be replaced every 7,500 mile (12,000 km) or 1 year.
Page 155: Audio
Audio Antenna system ............Installation of accessories Audio set .
Page 156: Antenna System
Installation of accessories Always consult your SUBARU dealer before installing a citizen band ra- dio or other transmitting device in your vehicle. Such devices may cause the electronic control system to malfunction if they are incorrectly installed or if they are not suited for the vehicle.
Page 157: Audio Set
Audio set Your SUBARU may be equipped with one of the following audio sets. See the pages indicated in this section for operating details. B Type A audio set D Radio operation: refer to page 5-6 D Cassette player operation: refer to page 5-9...
Page 158 B Type C audio set D Radio operation: refer to page 5-26 D Cassette player operation: refer to page 5-31 D Built in CD changer operation: refer to page 5-34 D CD changer control: refer to page 5-39 B CD player (Optional audio unit — if equipped) D Inserting and removing a disc: refer to page 5-42 HS5004AA HB5039AA...
Page 159 Audio B In-dash 6 CD auto changer 1 (Optional audio unit — if equipped) HB5040AA D Inserting and removing a disc or all discs: refer to page 5-44 – CONTINUED –...
Page 160: Type A Audio Set (If Equipped)
Type A audio set (if equipped) The audio set will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation Power switch/Volume, Tone, Balance, Fader control dial AUDIO button BAND button B Power switch and volume/bass/treble/fader/balance control n Power switch and volume control (PWR/VOL) The dial is used for both power (ON/OFF) and volume control.
Page 161 Choose desired volume level for each mode by turning the volume control dial. The control function returns to volume control mode after about 5 seconds. To change control modes: Each brief press of the “AUDIO” button changes control modes in the following sequence starting from vol- ume control mode.
Page 162 B Stereo indicator The stereo indicator “ST” will come on when an FM stereo broadcast is received. B Tuning (TUNE) n Manual tuning (TUNE) Press the tuning button marked “Y” to increase the tuning frequen- cy and press the tuning button marked “B” to decrease it. Each time the button is pressed, the frequency interval can be changed between 10 kHz in the AM mode and 0.2 MHz in the FM mode.
Page 163: Cassette Player Operation
3. Press one of the preset buttons for more than 2 seconds to store the frequency. At this time, there will momentarily be no sound from the radio. If the button is pressed for less than 2 seconds, the preced- ing selection will remain in memory.
Page 164 D Never expose cassettes to heat, direct sunlight or moisture. D Clean the tape head (once or twice a month) using a wet-type cleaning cassette. B Cassette slot Insert a cassette with the exposed tape side facing to the right. After insertion, playback starts.
Page 165 CD player control (If optional CD player is connected) An optional CD player can be connected to this audio unit. See your SUBARU dealer for more information. For procedures for loading and un- loading CDs, refer to “CD player 1” in this chapter.
Page 166 B To start playback n When CD is not in the CD player Hold a disc with a finger in the center hole while gripping the edge of the disc, then insert it in to the slot (with the label side up) on the CD player and the player will automatically pull the disc into position.
Page 167 B Random playback Press the “RAND” button all songs on the disc in a random order. The “RAND” indicator will come on and all songs on the disc will be played in a random order. To cancel the random mode, press the button again. Then the “RAND”...
Page 168 CD changer control (If optional in dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your SUBARU dealer for more information. For procedures for loading and un- loading CDs, refer to “In-dash 6 CD auto changer” in this chapter. CD button...
Page 169 Audio D If you have loaded fewer than 6 discs, any missing disc is automatically skipped. B Selection of a desired disc Briefly press the “Y” button to skip to the next disc and briefly press the “B” button to skip to the previous disc. n Operation with the in-dash CD changer unit Press the desired “Disc select”...
Page 170 B Scan (a convenient way to become familiar with a disc) 1. Press the “SCAN” button – The display shows “SCAN” and the track number being scanned. – You hear the first 10 seconds of each track. – The operation is automatically cleared after playing all pro- grams.
Page 171: Type B Audio Set (If Equipped)
Type B audio set (if equipped) The radio will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation SCAN button Power switch, Volume control, Bass/Middle/Treble control and Fader/Balance control dial B Power switch and volume/bass/treble/fader/balance control (PWR/VOL) The dial is used for both power (ON/OFF) and volume control.
Page 172 Choose desired volume level for each mode by turning the “VOL- UME” control knob. The control function returns to volume control mode after about 5 seconds. To change control modes: Each brief press of the “T/B” button changes control modes in the following sequence starting from vol- ume control mode.
Page 173 Audio in the following order: The display indicates which one is currently selected. B Stereo indicator The stereo indicator “ST” will come on when an FM stereo broadcast is received. B Manual tuning (TUNE) ∧ Push the tuning button marked “ ”...
Page 174: Compact Disc Player Operation
B How to preset stations 1. Press the “FM/AM” selection button to select AM, FM1 or FM2 re- ception. 2. Press the “SCAN” button sired station frequency is displayed. 3. Press one of the preset buttons the frequency. The frequency of the station will flash once on the dis- play at this time.
Page 175 Audio B To play back a compact disc n When CD is not in the player Hold a disc with a finger in the center hole while gripping the edge of the disc, then insert it in to the slot (with the label side up) and the player will automatically pull the disc into position.
Page 176 n Fast reverse ∨ Press the “ ” button continuously for more than 1 second to fast reverse the disc. Release the button to stop fast reverse. B Repeat playback Press the “RPT/RDM” button and release it in less than 2 seconds while a song is playing to play the song repeatedly.
Page 177: Cd Changer Control
CD changer control (If optional in-dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your SUBARU dealer for more information. Track selection buttons DISC button B To start playback When the “CD” button back.
Page 178 D If you have loaded fewer than 6 discs, any missing disc is automatically skipped. B Selection of a desired disc You can select a desired disc from among the discs contained in the magazines only by pressing the corresponding number one of the disc select buttons.
Page 179 Audio with the first track on the current disc. n Fast reverse ∨ Press the “ ” button continuously for more than 1 second to fast reverse the disc. Release the button to stop fast reverse. If you continue fast reverse to the beginning of the disc, the CD changer will automatically stop fast reverse and start playback begin- ning with the first track on the current disc.
Page 180: Type C Audio Set (If Equipped)
Type C audio set (if equipped) The radio will operate only when the ignition switch is in the “ACC” or “ON” position. Radio operation FM button AM button SCAN button Tuning knob Preset buttons B Power switch and volume/bass/treble/fader/balance control (PWR/VOL) The dial is used for both power (ON/OFF) and volume control.
Page 181 trols when the “BAL/FAD” button Display Control mode Bass control Treble control Balance control Fader control Volume control n Tone control The volume control dial dial become a control for Bass or Treble when you select the ap- propriate tone control mode. Choose desired level for each mode by turning the volume control dial.
Page 182 n Fader and balance control The volume control dial normally function as volume control. The dial become the controls for Fader or Balance when you select the appropriate fader and balance control mode. Choose desired setting for each mode by turning the volume control dial.
Page 183 B Manual tuning (TUNE) n Manual tuning Turn the tuning knob increase the tuning frequency and turn the tuning knob counterclock- wise and release it immediately to decrease the tuning frequency. Each time the knob is turned, the frequency changes 10 kHz in the AM waveband and 0.2 MHz in the FM waveband.
Page 184 B Selecting preset stations Presetting a station with a preset button allows you to select that station in a single operation. Up to six AM, FM1 and FM2 stations each may be preset. B How to preset stations 1. Press the “FM/AM” selection button to select AM, FM1 or FM2 re- ception.
Page 185 Cassette player operation Cassette slot Eject button Repeat button TAPE (cassette player selection) button NOTE D Only use good quality cassettes (cassettes longer than C-90 are not recommended). D Put cassettes back in their boxes immediately after use to protect them from dust and dirt and to prevent the tape from unwinding.
Page 186 n When cassette tape is in the player When the “TAPE” button is pressed, the display will show “PLAY” and the player will start playback. B Tape travel indicators These indicate the direction the cassette tape is moving. " : indicates that the top side of the cassette is being played back. A : indicates that the bottom side of the cassette is being played back.
Page 187 n Blank search Press “TPS” button during playback to return to the beginning of the current selection or to skip to the beginning of the next selection. To use this function, press the “TPS” button to turn on the “TPS” indi- cator.
Page 188: Built In Cd Changer Operation
* Noise reduction system manufactured under license from Dolby Laboratories Licensing Corporation. “Dolby” and the double-D Symbol are trade marks of Dolby Laboratories Licensing Corporation. B Auto metal sensor The cassette player automatically adjusts for metal or CrO Built in CD changer operation LOAD button SCAN button Disc slot...
Page 189 Audio B How to insert a CD(s) n Inserting a CD 1. Press “LOAD” button . If the magazine in the player has an idle position where you can insert a disc, the “DISC” indicator associated with the idle position will blink. If no indicator blinks, it means that there is no idle position in the mag- azine.
Page 190 D While the player is in the loading mode, if you press any of the oth- er mode buttons “FM” , “AM” and “TAPE” , the player will enter standby mode. Press the “CD” button to start playback. n Loading all the magazine (Full disc loading mode) 1.
Page 191 B Selecting a desired track (TRACK) n Skipping forward Turn the “TRACK” knob skip to the beginning of the next track. Each time the knob is turned and released, the indicated track number will increase. n Skipping backward Turn the “TRACK” knob ately to skip to the beginning of the current track.
Page 192 B Random playback Press the “RDM” button while a disc is being played back to play all songs on the disc in a random order. The “RDM” indicator will come on and all songs on the disc will be played in a random order. To cancel the random mode, press the button again.
Page 193 CD changer control (If optional in dash CD changer is connected) An optional CD changer can be connected to this audio unit. See your SUBARU dealer for more information. For procedures for loading and un- loading CDs, refer to “In-dash 6 CD auto changer” in this chapter. SCAN button...
Page 194 D If you have loaded fewer than 6 discs, any missing disc is automatically skipped. B Selection of a desired disc Press the desired “Disc select” buttons the disc will begin to play. B Selecting a desired track (TRACK) n Skipping forward Turn the “TRACK”...
Page 195 n Fast reversing Turn the “TRACK” knob for more than 2 seconds to fast reverse the disc. Release the knob to stop fast reverse. If you continue fast reverse to the beginning of the disc, the CD changer will automatically stop fast reverse and start playback begin- ning with the first track on the current disc.
Page 196: Cd Player (If Equipped)
CD player (if equipped) Disc slot Disc indicator CAUTION D Use only music CDs identified by D Do not use CDs listed below which could cause damage to the CD player. D Any disc with a peel-off or seal on it. D Any disc with scratches and/or dust.
Page 197 Audio B To insert a disc Be sure to hold a disc with the label side (the side where titles are printed) up. Push the disc into the slot. The disc will be automatically set in position by the auto-loading mechanism and begin playing.
Page 198: In-Dash 6 Cd Auto Changer 1 (If Equipped)
In-dash 6 CD auto changer 1 (if equipped) Disc slot Disc indicators (disc No.1 to 6) CAUTION D Do not attempt to insert two or more discs into the slot at a time. Doing so can cause mechanical damage to the CD changer. D Use only music CDs identified by a D Do not use CDs listed below which could cause damage to the CD player.
Page 199 Audio B To insert a disc 1. Press one of the “Disc select” buttons (numbered from 1 to 6) for which the disc indicator light is “OFF”. The Disc indicator lights are located directly above the corresponding “Disc select” buttons. 2.
Page 200 B To remove all discs at one time 1. Press and hold the “Eject” button until all “Disc” indicators begin blinking (about 1.5 seconds), and the first disc will be ejected. 2. When the disc is removed, the next one will be ejected, and so on. B To replace a playing disc with another Simply press the desired one of “Disc select”...
Page 201: Precautions To Observe When Handling A Compact Disc (Cd)
Audio Precautions to observe when handling a compact disc (CD) D To remove a disc from the case, press the center of the case and hold both edges of the disc. If the disc surface is touched directly, contamina- tion could cause poor tone quality. Do not touch the disc surface. D Use a clean disc whenever possible.
Page 202 Interior equipment Sun visors ..............Vanity mirror (if equipped) Storage compartment Glove compartment...
Page 203: Sun Visors
Sun visors To block out glare, swing down the visors. To use the sun visor at a side window, swing it down and move it sideways. J Vanity mirror (if equipped) To use the vanity mirror, swing down the visor and open the cover. Storage compartment CAUTION D Always keep the storage compartment closed while driving to...
Page 204: Interior Equipment
J Glove compartment To open the glove compartment, pull the handle. To close it, push the lid firmly upward. To lock the glove compartment, insert the master key and turn it clock- wise. To unlock it, insert the masterkey and turn it counterclockwise. J Center console To open the lid, pull up the lock release.
Page 205: Overhead Console
J Overhead console CAUTION When your vehicle is in the sun or a warm day, the inside of the overhead console heats up. Avoid storing plastic or other heat- vulnerable or flammable articles such as a lighter in the overhead console.
Page 206: Door Storage Compartment
lid. Be sure to close the compartment fully before driving. J Door storage compartment Push Each door is equipped with a door storage compartment. To open the compartment, push the button and pull up on the lid. J Coin tray To open the coin tray, pull the upper edge of the lid.
Page 207: Cup Holder
Cup holder CAUTION D When not in use, always keep the holder stored while driving to reduce the risk of injury in the event of a sudden stop or an accident. D Do not pick up a cup from the cup holder or put a cup in the holder while you are driving, as this may distract you and lead to an accident.
Page 208 B Front passenger’s cup holder A front passenger’s cup holder is also built in the lid of the center con- sole. To use the cup holder, open the lid by sliding it forward and un- fold the arm. Adjust the opening area by sliding the lid forward or rearward to fit the cup.
Page 209: Clock
CAUTION The electrical power socket located on the lower part of the instrument panel is designed to use only a SUBARU genuine cig- arette lighter plug. Do not use non-genuine cigarette lighter plugs or any “plug-in” type electrical accessories in the socket. Doing so many cause a short-circuit and overheating, resulting in a fire.
Page 210 B Accessory power socket in the luggage compartment and dual power socket (if equipped) CAUTION D Do not attempt to use a cigarette lighter in the accessory socket or dual power socket. D Do not place any foreign objects, especially metal ones such as coins or aluminum foil, into the accessory socket or dual power socket.
Page 211 HS6000BA HS6001BA Electrical power (12V DC) from the battery is on tap at the socket when the ignition switch is either in the “ACC” or “ON” position. You can use an in-car use electrical appliance by connecting it to the socket.
Page 212: Cigarette Lighter (If Equipped)
The electrical power socket located on the lower part of the instrument panel can only be used as cigarette lighter socket. A cigarette lighter plug is an optional accessory. It is available from your SUBARU dealer. If smoking is not desired, always put the cap on the socket to prevent any foreign object from entering it.
Page 213 CAUTION Do not hold the lighter pushed in, because it will overheat. HS0106 The cigarette lighter operates only when the ignition switch is in the “ON” and “ACC” positions. To use the cigarette lighter, push in the knob and wait a few moments. It will automatically spring up when ready for use.
Page 214: Ashtray
Ashtray CAUTION Do not use ashtrays as waste receptacles or leave a lighted ciga- rette in an ashtray. This could cause a fire. Fully close the ashtray after using it to help reduce residual smoke. B Front ashtray To open the ashtray, pull the lid out. To remove the ashtray for cleaning, open it and pull it out while push- ing the inner plate down.
Page 215: Coat Hook
Coat hook CAUTION Never hang anything on the coat hook that might obstruct the driver’s view or that could cause injury in sudden stops or in a collision. And do not hang items on the coat hook that weight 2.2 lb (1 kg) or more.
Page 216: Spotlight
Interior equipment The interior light switch has three positions: ON: The light stays on continuously. Middle position: The light comes on when any door is opened and stays on for a few seconds after all doors are closed. OFF: The light stays off. When leaving your vehicle, make sure the light is turned off to avoid bat- tery discharge.
Page 217: Cargo Area Light
Cargo area light The cargo area light switch has three positions: ON: The light stays on continuously. DOOR: The light comes on only when the rear gate is opened. OFF: The light stays off. When leaving your vehicle, make sure the light is turned off to avoid bat- tery discharge.
Page 218 Interior equipment B Using the cover HS6019BA To extend the cover, pull the end of the cover out of the housing, then insert its hooks into the catches as shown. To rewind it, unhook it from the catches and it will rewind automatically. You should hold on to the cover and guide it back into the cover housing while it is rewinding.
Page 219: Shopping Bag Hook
Shopping bag hook A shopping bag hook is attached to each side of the cargo area. You can hook a light shopping bag or something similar on it. Cargo anchorage eyelets CAUTION The cargo anchorage eyelets are designed only for securing light cargo.
Page 220: Under Floor Storage Tray
The cargo area is equipped with four anchorage eyelets so that cargo can be secured with a cargo net or ropes. When using the anchorage eyelets, raise them up. When not in use, lower the eyelets down. Under floor storage tray CAUTION D Always keep the lid of the storage tray closed while driving to reduce the risk of injury in the event of sudden stops or an acci-...
Page 221 B Front, left and right side storage tray To open the lid, raise the cargo anchorage eyelets and pull the tab up. The jack and jack handle are stored in the left side storage tray. 6-20 HS0117 HS0119 HS0118...
Page 222 Interior equipment B Center storage tray HS6021BA HS6022BA To open the lid, pull the handle up. To keep the lid open, hang the hook provided on the backside of the lid on the rear edge of the roof. The spare tire is stored under the storage tray. –...
Page 223 Starting and operating Fuel ................Fuel requirements .
Page 224: Fuel
Federal specifications. Gasoline sold outside California is permitted to have higher sulfur levels, which may affect the performance of your vehicle’s catalytic converter and may pro- duce a sulfur exhaust odor or smell. SUBARU recommends that you...
Page 225: Starting And Operating
SUBARU. In addition, some gasoline suppliers are now producing reformulated gasolines, which are designed to reduce vehicle emissions. SUBARU approves the use of reformulated gasoline. If you are not sure what the fuel contains, you should ask your service station operators if their gasolines contain detergents and oxygenates and if they have been reformulated to reduce vehicle emissions.
Page 226: Fuel Filler Lid And Cap
Fuels may cause paint damage, which is not covered under the SUBARU Limited Warranty. D Always use a genuine SUBARU fuel filler cap. If you use the wrong cap, it may not fit or have proper venting, and your fuel...
Page 227 Be certain not to catch the cap tether under the cap while tightening. If you spill any fuel on the painted surface, rinse it off immediately. Otherwise, the painted surface could be damaged. Such damage is not covered under the SUBARU Limited Warranty. – CONTINUED –...
Page 228: State Emission Testing (U.s. Only)
At state inspection time, remember to tell your inspection or service station in advance not to place your Subaru AWD vehicle on a two- wheel dynamometer. Otherwise, serious transmission damage will result.
Page 229: Preparing To Drive
The U.S. Environmental Protection Agency (EPA) and states using two- wheel dynamometers in their emission testing programs have EXEMPTED Subaru AWD vehicles from the portion of the testing pro- gram that involves a two-wheel dynamometer. There are some states that use four-wheel dynamometers in their testing programs.
Page 230: Starting The Engine
levels should be checked daily, weekly or at fuel stops. Starting the engine CAUTION Do not operate the starter motor continuously for more than ten seconds. If the engine fails to start after operating the starter for five to ten seconds, wait for ten seconds or more before trying again.
Page 231: Starting The Engine During Cold Weather Below -4 °F (-20 °C)
J Starting the engine for an automatic transmission ve- hicle CAUTION If you restart the engine while the vehicle is moving, shift the se- lector lever into the “N” position. Do not attempt to place the se- lector lever of a moving vehicle into the “P” position. 1.
Page 232: Starting A Flooded Engine
J Starting a flooded engine If the engine does not start, it may be flooded (excessive fuel in the en- gine). In case of a flooded engine, turn the starter motor for five seconds with the accelerator pedal fully depressed. Repeat this two or three times until the engine starts.
Page 233: Manual Transmission
Manual transmission WARNING Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutral position. Engine braking has no effect in either of these condi- tions and the risk of an accident is consequently increased. CAUTION Shift into reverse ONLY when the vehicle has completely stopped.
Page 234 B Shifting speed n Recommended shifting speeds The best compromise between fuel economy and vehicle perfor- mance during normal driving is ensured by shifting up at the speeds listed in the following table. Shift up 1st to 2nd 2nd to 3rd 3rd to 4th 4th to 5th n Maximum allowable speeds...
Page 235: Driving Tips
Vehicle type Gear B Driving tips Do not drive with your foot resting on the clutch pedal and do not use the clutch to hold your vehicle at a standstill on an upgrade. Either of those actions may cause clutch damage. Do not drive with your hand resting on the shift lever.
Page 236: Automatic Transmission
Automatic transmission WARNING Do not shift from the “P” or “N” position into the “D”, “3”, “2”, “1” or “R” position while depressing the accelerator pedal. This may cause the vehicle to jump forward or backward. CAUTION D Shift into the “P” or “R” position only after the vehicle is com- pletely stopped.
Page 237: Selector Lever
J Selector lever Release button The selector lever has seven positions. The release button must be pushed to select the “P”, “R”, or “2” posi- tions. B P (Park) This position is for parking the vehicle and starting the engine. In this position, the transmission is mechanically locked to prevent the vehicle from rolling freely.
Page 238 B R (Reverse) This position is for backing the vehicle. To shift from the “N” to “R” position, first stop the vehicle completely then move the lever to the “R” position while pushing the release but- ton. B N (Neutral) WARNING Do not drive the vehicle with the selector lever in the “N”...
Page 239 Starting and operating NOTE The transmission may downshift to 2nd or 1st gear, depending on the way the accelerator pedal is pressed to accelerate the vehicle again. n While going down a hill When descending a steep hill, depressing the brake pedal will cause the transmission to downshift to 3rd gear, thus applying engine brake- ing.
Page 240 B 2 (Second) To shift from the “3” to “2” position, push the release button. This position is for using engine braking when going down a hill or for climbing a steep grade. In this position, the transmission holds in the 2nd gear. Use this position when starting off from a standstill on slippery road surfaces such as mud or snow.
Page 241: Shift Lock Release
Vehicle type Position NOTE D In order to prevent over-revving during acceleration of the vehicle, the transmission will automatically shift to the next high- est gear if the Maximum Allowable Speed for the current gear is exceeded. D Similarly, in order to prevent over-revving during deceleration of the vehicle, the transmission will remain in the current gear if the speed of the vehicle is in excess of the Maximum Allowable Speed for the gear to which the selector lever has been moved.
Page 242 “P” to the “N” position. 8. Remove the shaft from the hole. Depress the brake pedal and start the engine. Take your vehicle to the nearest SUBARU dealer immediately to have the system repaired. 7-20...
Page 243: Rear Viscous Limited Slip Differential (S Models)
Rear viscous limited slip differential (for S models) CAUTION D Never start the engine while a tire on one side is jacked up, as the vehicle may move. D If one rear tire is spinning in mud, avoid continued spinning at high speed as this could adversely affect the LSD.
Page 244: Braking
Braking J Braking tips WARNING Never rest your foot on the brake pedal while driving. This can cause dangerous overheating of the brakes and needless wear on the brake pads and linings. B When the brakes get wet When driving in rain, in puddle or after washing the vehicle, the brakes may get wet.
Page 245: Disc Brake Pad Wear Warning Indicators
The disc brake pad wear warning indicators on the disc brakes give a warning noise when the brake pads are worn. If a squeaking or scraping noise is heard from the disc brakes while braking, immediately have your vehicle checked by your SUBARU deal- ABS (Anti-Lock Brake System) WARNING Always use the utmost care in driving –...
Page 246 CAUTION D The ABS system does not always decrease stopping distance. You should always maintain a safe following distance from other vehicles. D When driving on badly surfaced roads, gravel roads, icy roads, or over deep newly fallen snow, stopping distances may be long- er for a vehicle with the ABS system than one without.
Page 247 8mph (12km/h). D The warning light comes on during driving. If these occur, have the ABS system repaired at the first available opportunity by your SUBARU dealer. NOTE If the warning light behavior is as described below, the ABS sys- tem may be considered normal.
Page 248: Parking Your Vehicle
D The warning light remains on after the engine has been started, but it goes out when the vehicle speed reaches about 8 mph (12 km/h). D The warning light comes on during driving, but it goes out immediately and remains off. When driving with an insufficient battery voltage such as when the en- gine is jump started, the ABS warning light may come on.
Page 249 Starting and operating Release button HS0137 To release the parking brake, pull the lever up slightly, press the release button, then lower the lever while keeping the button pressed. When the parking brake is set while the engine is running, the parking brake warning light comes on.
Page 250: Cruise Control (If Equipped)
When parking on a hill, always turn the steering wheel. When the vehicle is headed up the hill, the front wheels should be turned away from the curb. When facing downhill, the front wheels should be turned into the curb. Cruise control (if equipped) WARNING Do not use the cruise control under any of the following condi-...
Page 251 B To set cruise control 1. Push the “CRUISE” main switch. 2. Depress the accelerator pedal until the vehicle reaches to the de- sired speed. 3. Push the control lever downward in the “SET, COAST” direction and release it. Then release the accelerator pedal. The vehicle will maintain the desired speed.
Page 252 nal cruising speed automatically. B To turn off the cruise control There are two ways to turn off the cruise control: D Push the main switch again. D Turn the ignition switch to the “ACC” position (but only when the vehicle is completely stopped).
Page 253: Driving Tips
Driving tips New vehicle break-in driving – the first 1,000 miles (1,600 km) Fuel economy hints ............Engine exhaust gas (Carbon monoxide) Catalytic converter .
Page 254: New Vehicle Break-In Driving - The First 1,000 Miles (1,600 Km)
New vehicle break-in driving – the first 1,000 miles (1,600 km) The performance and long life of your vehicle are dependent on how you handle and care for your vehicle while it is new. Follow these instructions during the first 1,000 miles (1,600 km): D Do not race the engine.
Page 255: Engine Exhaust Gas (Carbon Monoxide)
Engine exhaust gas (Carbon monoxide) WARNING D Never inhale engine exhaust gas. Engine exhaust gas contains carbon monoxide, a colorless and odorless gas which is danger- ous, or even lethal, if inhaled. D Always properly maintain the engine exhaust system to pre- vent engine exhaust gas from entering the vehicle.
Page 256: Catalytic Converter
D Keep your engine tuned-up. If you feel the engine running rough (mis- firing, backfiring or incomplete combustion), have your vehicle checked and repaired by an authorized SUBARU dealer. D Do not apply undercoating or rust prevention treatment to the heat...
Page 257: Periodic Inspections
Starting and operating shield of catalytic converter and the exhaust system Periodic inspections To keep your vehicle in the best condition at all times, always have the recommended maintenance services listed in the maintenance schedule in the “Warranty and Maintenance Booklet” performed at the specified time or mileage intervals.
Page 258: Driving Tips For Awd Vehicles
By shifting power between the front and rear wheels, SUBARU AWD can also pro- vide added traction during acceleration and added engine braking force during deceleration.
Page 259: Off Road Driving
But please keep in mind that an AWD Subaru is a passenger car and is neither a conventional off-road vehicle nor an all-terrain vehicle. If you do take your Subaru off-road, cer-...
Page 260 belts. D Carry some emergency equipment, such as a towing rope or chain, a shovel, wheel blocks, first aid kit and portable phone or citizens band radio. D Drive carefully. Do not take unnecessary risks by driving in dangerous areas or over rough terrain. D Slow down and employ extra caution at all times.
Page 261 “Warranty and Maintenance Booklet”. Remember that damage done to your Subaru while operating it off-road and not using common sense precautions such as those listed above is not eligible for warranty coverage.
Page 262: Winter Driving
Winter driving HS0141 B Operation during cold weather Carry some emergency equipment, such as tire chains, a window scraper, a bag of sand, flares, a small shovel, and jumper cables. Check the battery and cables. Cold temperatures reduce battery capacity. The battery must be in good condition to provide enough power for cold winter starts.
Page 263 tor pedal, brake pedal, and all other controls operate smoothly. Clear away ice and snow that has accumulated under the fenders to avoid making steering difficult. During severe winter driving, stop when and where it is safe to do so and check under the fenders peri- odically.
Page 264 When an antifreeze additive is used, its effect lasts longer if the tank is refilled whenever the fuel level reaches half empty. If your SUBARU is not going to be used for an extended period, it is best to have the fuel tank filled to capacity.
Page 265: Snow Tires
turned fully to the right until the wiper blades are completely thawed out. To thaw out the rear wiper blade, use the rear window defogger. When driving in snow, if frozen snow starts to stick on the surface of the windshield despite wiper operation, use the defroster with the air- flow control dial in “...
Page 266: Tire Chains
Your vehicle is equipped with “all season tires” which are designed to provide an adequate measure of traction, handling and braking perfor- mance in year-round driving. In winter, it may be possible to enhance performance through use of tires designed specifically for winter driving conditions.
Page 267: Corrosion Protection
MT and AT). Refer to the “Automatic transmission” section in chapter 7 for information on holding the transmission in 2nd position. J Corrosion protection Refer to the “Corrosion protection” section (chapter 10). Loading your vehicle WARNING D Never allow passengers to ride on the folded rear seatback or in the cargo area.
Page 268: Vehicle Capacity Weight
CAUTION Do not carry spray cans, containers with flammable or corrosive liquids or any other dangerous items inside the vehicle. NOTE For better fuel economy, do not carry unneeded cargo. J Vehicle capacity weight The load capacity of your vehicle is determined by weight, not by avail- able cargo space.
Page 269: Gvwr And Gawr (Gross Vehicle Weight Rating And Gross Axle Weight Rating)
Starting and operating J GVWR and GAWR (Gross Vehicle Weight Rating and Gross Axle Weight Rating) Certification plate HS0143 The certification plate attached to the driver’s side door jamb shows GVWR (Gross Vehicle Weight Rating) and GAWR (Gross Axle Weight Rating).
Page 270: Roof Rail And Crossbar (If Equipped)
tires with a higher load range than the originals do not increase the GVWR and GAWR limitations. J Roof rail and crossbar (if equipped) CAUTION D For cargo carrying purposes, the roof rail must be used together with a roof cross bar kit. The roof rail must never be used alone to carry cargo.
Page 271 B When luggage is put on the slats (Vehicles with roof slats only) When putting any luggage on the slats, make sure the total weight of the luggage on the slats of the roof cross bar kit does not exceed 100 lb.
Page 272 2. Move the end support and inner clamp to unhook under the bot- tom of the roof rail on both sides. 3. Carefully raise the crossbar from roof rails. NOTE It may be necessary to move the Front crossbar rearward, near the center of the roof rail for easier removal.
Page 273 NOTE It may be necessary to start the inner clamp and end support at the center of the roof rail for easier installation, then move the crossbar forward. Use care not to cross-thread the screw in the insert if it has been removed. 5.
Page 274: Trailer Towing
If you do decide to tow a trailer, your safety and satisfaction depend upon proper use of correct equipment and cautious operation of your vehicle. Seek the advice of your SUBARU dealer to assist you in pur- chasing a hitch and other necessary towing equipment appropriate for your vehicle.
Page 275 CAUTION D Adequate size trailer brakes are required when the trailer and its cargo exceed 1,000 lbs (453 kg) total weight. D Before towing a trailer, check the trailer total weight, GVW, GAWs and tongue load. Make sure the load and its distribution in your vehicle and trailer are acceptable.
Page 276 n Gross Vehicle Weight (GVW) and Gross Vehicle Weight Rating (GVWR) The Gross Vehicle Weight (GVW) must never exceed the Gross Vehicle Weight Rating (GVWR). Gross Vehicle Weight (GVW) is the combined total of the weight of the vehicle, driver, passengers, luggage, trailer hitch, trailer tongue load and any other optional equipment installed on your vehicle.
Page 277 Gross Axle Weight To check both GVWR and GAWR and to confirm that the total weight and weight distribution are within safe driving limits, you should have your vehicle and trailer weighed at a commercial weighing station. Be sure that all cargo is firmly secured to prevent a change in weight distribution while driving.
Page 278 Tongue load Bathroom scale Jack OM-H2785 HS0145 The tongue load can be adjusted by proper distribution of the load in the trailer. Never load the trailer with more weight in the back than in the front; approximately 60 percent of the trailer load should be in the front and approximately 40 percent in the rear.
Page 279 Choose a proper hitch for your vehicle and trailer. The use of a genuine SUBARU trailer hitch is recommended. A genu- ine SUBARU hitch is available from your SUBARU dealer. If use of a non-genuine hitch is unavoidable, be sure the hitch is suited to your vehicle and trailer.
Page 280 Check that your trailer’s brakes conform with Federal, state/province and/or other applicable regulations. Your SUBARU’s brake system is not designed to be tapped into the trailer’s hydraulic brake system. Please ask your SUBARU dealer and professional trailer supplier for more information about the trailer’s brake system.
Page 281 To ensure the trailer lights are connected properly, please consult your SUBARU dealer. Check for proper operation of the turn signals and the brake lights and parking lights each time you hitch up.
Page 282 n Tires Make sure that all the tires on your vehicle are properly inflated to the pressure under towing conditions as shown on the tire placard located on the left center pillar of your vehicle. Trailer tire condition, size, load rating and proper inflation pressure should be in accor- dance with the trailer manufacturer’s specifications.
Page 283 Starting and operating D Sufficient time should be taken to learn the “feel” of the vehicle/ trailer combination before starting out on a trip. In an area free of traf- fic, practice turning, stopping and backing up. n Driving with a trailer D You should allow for considerably more stopping distance when towing a trailer.
Page 284 D If the ABS warning light illuminates while the vehicle is in motion, stop towing the trailer and have repairs performed immediately by the nearest SUBARU dealer. n Driving on grades D Before going down a steep hill, slow down and shift into low gear in order to utilize the engine braking effect and prevent overheating of your vehicle’s brakes.
Page 285 Starting and operating n Parking on a grade Always block the wheels under both vehicle and trailer when parking. Apply the parking brake firmly. You should not park on a hill or slope. But if parking on a hill or slope cannot be avoided, you should take the following steps: 1.
Page 286 In case of emergency Hazard warning flasher Flat tires ..............Jump starting .
Page 287: Hazard Warning Flasher
Hazard warning flasher The hazard warning flasher should be used in day or night to warn other drivers when you have to park your vehicle under emergency conditions. Avoid stopping on the road. It is best to safely pull off the road if a prob- lem occurs.
Page 288: In Case Of Emergency
D Always turn the engine off before raising the flat tire off the ground using the jack. Never swing or push the vehicle sup- ported with the jack. The jack can come out of the jacking point due to a jolt and this can result in a severe accident. D Do not use oil or grease on the wheel studs or nuts when the spare tire is installed.
Page 289 Jack handle Jack The spare tire is stored under the floor of the cargo area. To remove the spare tire, first open the spare tire cover and remove the storage tray, turn the attaching bolt counterclockwise, then take the spare tire out. The jack is stored under the left side of the cargo floor.
Page 290 7. Place the jack under the side sill at the front or rear jack-up point clos- est to the flat tire. Turn the jackscrew by hand until the jack head engages firmly into the jack-up point. 8. Insert the jack handle into the jackscrew, and turn the handle clock- wise until the tire clears the ground.
Page 291 HS0151 9. Remove the wheel nuts and the flat tire. 10. Before putting the spare tire on, clean the mounting surface of the wheel and hub with a cloth. OM-H0172 HG0104 11. Put on the spare tire. Replace the wheel nuts. Tighten them by hand. 12.
Page 292 The torque for tightening the nuts is 58 to 72 ft-lb (78 to 98 N-m, 8 to 10 kg-m). This torque is equivalent to applying about 88 to 110 lbs (40 to 50 kg) at the top of the wheel nut wrench. Never use your foot on the wheel nut wrench or a pipe extension on the wrench because you may exceed the specified torque.
Page 293: Jump Starting
Jump starting WARNING D Battery fluid is SULFURIC ACID. Do not let it come in contact with the eyes, skin, clothing or the vehicle. If battery fluid gets on you, thoroughly flush the exposed area with water immediately. Get medical help if the fluid has entered your eyes.
Page 294 B How to jump start 1. Make sure the booster battery is 12 volts and the negative terminal is grounded. 2. If the booster battery is in another vehicle, do not let the two ve- hicles touch. 3. Turn off all unnecessary lights and accessories. 4.
Page 295: Engine Overheating
Make sure that the cables are not near any moving parts and that the cable clamps are not in contact with any other metal. 5. Start the engine of the vehicle with the booster battery and run it at moderate speed. Then start the engine of the vehicle that has the dis- charged battery.
Page 296: Towing
This will cause the vehicle to spin away due to the operation or deterioration of the center differential. If towing is necessary, it is best done by your SUBARU dealer or a com- mercial towing service. Observe the following procedures for safety.
Page 297 B Towing and tie-down hooks CAUTION D Never use the tie-down hook closest to the muffler under the vehicle for towing purposes. D Do not apply excessive lateral load to the towing hooks. Towing and tie-down hooks Never use tie-down hook for towing purpose.
Page 298 B Using a flat-bed truck This is the best way to transport your vehicle. Use the following proce- dures to ensure safe transportation. 1. Shift the selector lever into the “P” position for automatic transmis- sion vehicles or “1st” for manual transmission vehicles. 2.
Page 299 We do not recommend this method of towing. Use this method only when towing service by a SUBARU dealer or a commercial towing service is not available. 1. Check the transmission and differential oil levels and add oil to bring it to the upper level if necessary.
Page 300: Moonroof - If The Moonroof Cannot Be Closed
HS0361 3. Insert the wrench in the end of the motor shaft. To close the moonroof, turn the wrench counterclockwise. Have your vehicle checked and repaired by an authorized SUBARU dealer. – CONTINUED – 9-15...
Page 301: Maintenance Tools
Maintenance tools Your vehicle is equipped with the following maintenance tools: Screwdriver Wheel nut wrench Hex-headed wrench (for vehicle with moonroof) J Tire changing tools Jack handle Jack 9-16 HS0331 Spare tire HSF010BC...
Page 302 In case of emergency B Jack and jack handle HS0118 HS0160 The jack is stored under the left side of the cargo floor. The jack handle is stored under the lid. For how to use the jack, refer to “Flat tires”. –...
Page 303 Appearance care Exterior care ..............Washing .
Page 304: Exterior Care
Exterior care J Washing CAUTION D When washing the vehicle, the brakes may get wet. As a result, the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly pressing the brake pedal to heat up the brakes.
Page 305: Appearance Care
When in doubt, it is always best to contact your SUBARU dealer or an auto paint specialist. J Cleaning aluminum wheels D Promptly wipe the aluminum wheels clean of any kind of grime or agent.
Page 306: Cleaning Fog Light Lens
Corrosion protection Your SUBARU has been designed and built to resist corrosion. Special materials and protective finishes have been used on most parts of the vehicle to help maintain fine appearance, strength, and reliable opera- tion.
Page 307 If any of them are found to be rusted, they should be given an appropriate rust prevention treatment or should be replaced. Contact your SUBARU dealer to perform this kind of maintenance and treatment if you need assistance.
Page 308: Cleaning The Interior
A mild detergent suitable for cleaning woolen fabrics may be used to remove difficult dirt spots, rubbing with a soft, dry cloth afterwards to restore the luster. If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the seats and head restraints be covered, or the windows shaded, to prevent fading or shrinkage.
Page 309 A mild detergent suitable for cleaning woolen fabrics may be used to remove difficult dirt spots, rubbing with a soft, dry cloth afterwards to restore the luster. If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the upholstery items be cov- ered, or the windows shaded, to prevent fading or shrinkage.
Page 310 Maintenance and service Maintenance schedule Maintenance precautions Engine hood ..............Engine compartment overview Engine oil .
Page 311 Aluminum wheels (If equipped) Fuses ............... . . Main fuse .
Page 312: Maintenance And Service
Maintenance precautions When maintenance and service are required, it is recommended that all work be done by an authorized SUBARU dealer. If you perform maintenance and service by yourself, you should familiar- ize yourself with the information provided in this section on general main- tenance and service for your SUBARU.
Page 313 D Because the fuel system is under pressure, replacement of the fuel filter should be performed only by your SUBARU dealer. D The SRS airbag has no user-serviceable parts. Tampering with or disconnecting the system’s wiring could result in accidental inflation of the airbag or could make the system inoperative, which may result in serious injury.
Page 314 Maintenance and service J When you do checking or servicing in the engine compartment while the engine is running A running engine can be dangerous. Keep your fingers, hands, clothing, hair and tools away from the cooling fan, belts and any other moving engine parts.
Page 315: Engine Hood
Engine hood WARNING Always check that the hood is properly locked before you start driving. If it is not, it might fly open while the vehicle is moving and block your view, which may cause an accident and serious bodily injury. To open the hood: 1.
Page 316 Maintenance and service To close the hood: 1. Lift the hood slightly and remove the hood prop from the slot in the hood and return the prop to its retainer. 2. Lower the hood until it approaches about 6 in. (15 cm) from the closed position and let it drop.
Page 317: Engine Compartment Overview
Engine compartment overview Manual transmission oil level gauge (MT) (page 11-21) or Differential gear oil level gauge (AT) (page 11-24) Air cleaner element (page 11-18) Clutch fluid reservoir (page 11-30) Automatic transmission fluid level gauge (page 11-22) Brake fluid reservoir (page 11-28) Fuel filter 11-8...
Page 318: Engine Oil
Maintenance and service Engine oil B Checking the oil level Check the engine oil level at each fuel stop. HS0173 HBB061BB 1. Park the vehicle on a level surface and stop the engine. 2. Pull out the dipstick, wipe it clean, and insert it again. 3.
Page 319 B Changing the oil and oil filter Change the oil and oil filter according to the maintenance schedule in the “Warranty and Maintenance Booklet”. The engine oil and oil filter must be changed more frequently than listed in the maintenance schedule when driving on dusty roads, when short trips are frequently made when towing a trailer, or when driving in extremely cold whether.
Page 320 Drain plug Sealing washer 6. Remove the under cover. 7. Remove the oil filter with an oil filter wrench. 8. Before installing a new oil filter, apply a thin coat of engine oil to the seal. 9. Clean the rubber seal seating area of the lower crank case and install the oil filter by hand turning.
Page 321 When adding oil, different brands may be used together as long as they are the same API classification and SAE viscosity as those rec- ommended by SUBARU. Engine oil viscosity (thickness) affects fuel economy. Oils of lower vis- cosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate the engine.
Page 322 SAE viscosity number and applicable temperature B Recommended grade and viscosity under severe driving conditions If the vehicle is used in desert areas, in areas with very high tempera- tures, or used for heavy-duty applications such as a towing a trailer, use of oil with the following grade and viscosities is recommended.
Page 323: Cooling System
–33°F (–36°C). For adding, use genuine SUBARU coolant or an equivalent: a mixture of 50% soft water and 50% ethylene-glycol basis coolant. Use of improp- er coolants may result in corrosion in the cooling system. It is im- portant to maintain protection against freezing and corrosion, even if freezing temperatures are not expected.
Page 324: Engine Coolant
J Engine coolant B Checking the coolant level Check the coolant level at each fuel stop. “FULL” level mark “LOW” level mark 1. Check the coolant level on the outside of the reservoir while the engine is cool. 2. If the level is close to or lower than the “LOW” level mark, add coolant up to the “FULL”...
Page 325 B Changing the coolant WARNING Never attempt to remove the radiator cap until the engine has been shut off and has cooled down completely. Since the coolant is under pressure, you may suffer serious burns from a spray of boiling hot coolant when the cap is removed. Change the engine coolant in the following procedures according to the maintenance schedule in the “Warranty and Maintenance Book- let”.
Page 326 5. Slowly pour the coolant and fill to the radiator filler neck and to the reserve tank’s “FULL” level mark. Do not pour the coolant too quickly, as this may lead to insufficient air bleeding and trapped air in the sys- tem.
Page 327: Air Cleaner Element
Replace the air cleaner element according to the maintenance sched- ule in the “Warranty and Maintenance Booklet”. Under extremely dusty conditions, replace it more frequently. It is recommended that you always use genuine SUBARU parts. 1. Remove the bolt securing the rear air cleaner element case. 11-18...
Page 328: Spark Plugs
D Make sure the cables are replaced in the correct order. It may be difficult to replace the spark plugs. It is recommended that you have the spark plugs replaced by your SUBARU dealer. The spark plugs should be replaced according to the maintenance schedule in the “Warranty and Maintenance Booklet”.
Page 329: Drive Belts
B Recommended spark plugs RC10YC4 (Champion) BKR6E-11 (NGK) BKR5E-11 (NGK) Drive belts The alternator, power steering pump, and air conditioner compressor de- pend on drive belts. Satisfactory performance requires that belt tension be correct. To check belt tension, place a straightedge (ruler) across two adjacent pulleys and apply a force of 98 N (22 lb, 10 kg) midway between the pulleys by using a spring scale.
Page 330: Manual Transmission Oil
If a belt is loose, cracked, or worn, contact your SUBARU dealer. Manual transmission oil B Checking the oil level Check the oil level monthly. 1. Park the vehicle on a level surface and stop the engine. 2. Pull out the dipstick, wipe it clean, and insert it again.
Page 331: Automatic Transmission Fluid
SAE viscosity No. and Applicable Temperature Automatic transmission fluid B Checking the fluid level The automatic transmission fluid expands largely as its temperature rises; the fluid level differs according to fluid temperature. Therefore, there are two different scales for checking the level of hot fluid and cold fluid on the dipstick.
Page 332 Maintenance and service HSA002DB HBA008BB 4. Pull out the dipstick and check the fluid level on the gauge. If it is below the lower level on the “HOT” range, add the recommended au- tomatic transmission fluid up to the upper level. n Checking the fluid level when the fluid is cold When the fluid level has to be checked without time to warm up the automatic transmission, check to see that the fluid level is between...
Page 333: Front Differential Gear Oil (Automatic Transmission Vehicles)
Front differential gear oil (Automatic transmission vehicles) B Checking the oil level Check the differential oil level monthly. 1. Park the vehicle on a level surface and stop the engine. 2. Pull out the dipstick, wipe it clean, and insert it again. 3.
Page 334: Rear Differential Gear Oil
If the vehicle requires frequent refilling, there may be an oil leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. Your vehicle may be equipped with a rear differential protector. The differential protector provides protection to the rear differential assem- bly during off-road use.
Page 335 Filler hole Oil level Filler hole Drain hole Drain hole HB0077 HB0078 Remove the plug from the filler hole and check the oil level. The oil level should be kept even with the bottom of the filler hole. If the oil level is below the bottom edge of the hole, add oil through the filler hole to raise the level.
Page 336: Power Steering Fluid
Power steering fluid The power steering fluid expands greatly as its temperature rises; the fluid level differs according to fluid temperature. Therefore, the dipstick has two different checking ranges for hot and cold fluids. B Checking the fluid level when the fluid is hot WARNING Be careful not to burn yourself because the fluid may be hot.
Page 337: Brake Fluid
If the fluid level is extreme low, it may indicate possible leakage. Con- sult your SUBARU dealer for inspection. B Checking the fluid level when the fluid is cold When the fluid level has to be checked without warming up the power steering system (approximately 70°F [21°C]), read the fluid level on...
Page 338 CAUTION D Never use different brands of brake fluid together. D When adding brake fluid, be careful not to allow any dirt into the reservoir. D Never splash the brake fluid over painted surfaces or rubber parts. Alcohol contained in the brake fluid may damage them. Check the fluid level monthly.
Page 339: Clutch Fluid
D If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. D Never use different brands of clutch fluid together. D When clutch fluid is added, be careful not to allow any dirt into the tank.
Page 340: Brake Booster
Brake booster If the brake booster does not operate as described below, have it checked by your SUBARU dealer. 1. With the engine off, depress the brake pedal several times, applying the same pedal force each time. The distance the pedal travels should not vary.
Page 341 D To lessen the risk of sparks, remove rings, metal watchbands, and other metal jewelry. Never allow metal tools to contact the positive battery terminal and anything connected to it WHILE you are at the same time in contact with any other metallic portion of the vehicle because a short circuit will result.
Page 342: Windshield Washer Fluid
In areas where water freezes in winter, use an anti-freeze type windshield washer fluid. SUBARU Windshield Washer Fluid contains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing temperature varies according to how much it is diluted, as indicated below.
Page 343: Replacement Of Windshield Wiper Blades
Replacement of windshield wiper blades Grease, wax, insects, or other materials on the windshield or the wiper blade results in jerky wiper operation and streaking on the glass. If you cannot remove the streaks after operating the windshield washer or if the wiper operation is jerky, clean the outer surface of the windshield (or rear window) and the wiper blades using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaner.
Page 344 Metal support 4. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber. Metal spines 5. Align the claws of the metal support with the grooves in the rubber and slide the blade rubber assembly into the metal support until it locks.
Page 345 Stopper HS0193 HS0194 6. Install the wiper blade assembly to the wiper arm. Make sure that it locks in place. 7. Lower the wiper arm. 11-36...
Page 346: Brake Pedal
Lightly press the brake pedal down with one finger to check the free play with a force of less than 10 N (2 lb, 1 kg). If the free play is not within proper specification, contact your SUBARU dealer. B Checking the brake pedal reserve distance More than 2.56 in...
Page 347: Clutch Pedal (Manual Transmission Vehicles)
When the measurement is smaller than the specification, or when the pedal does not operate smoothly, contact with your SUBARU dealer. Clutch pedal (Manual transmission vehicles) Check the clutch pedal free play and reserve distance according to the maintenance schedule in the “Warranty and Maintenance Booklet”.
Page 348: Replacement Of Brake Pad And Lining
If you hear this scraping noise each time you apply the brake pedal, have the brake pads serviced by your SUBARU dealer as soon as pos- sible. B Breaking-in of new brake pads and linings When replacing the brake pad or lining, use only genuine SUBARU parts.
Page 349: Parking Brake Stroke
(about 196 N, 44 lb, 20 kg). If the parking brake lever stroke is not within the specified range, have the brake system checked and adjusted at your SUBARU dealer. 11-40...
Page 350: Tires And Wheels
7 to 8 notches Tires and wheels J Types of tires B All season tires All season tires are designed to provide an adequate measure of trac- tion, handling and braking performance in year-round driving includ- ing snowy and icy road conditions. However all season tires do not have adequate traction performance compared with winter (snow) tires in heavy or loose snow or on icy road.
Page 351: Tire Inspection
Check on a daily basis that the tires are free from serious damage, nails, and stones. At the same time, check the tires for abnormal wear. Contact your SUBARU dealer immediately if you find any problem. NOTE D When the wheels and tires strike curbs or are subjected to harsh treatment as when the vehicle is driven on a rough surface, they can suffer damage that cannot be seen with the naked eye.
Page 352 Driving even a short distance warms up the tires and increases the tire pressures. Also, the tire pressures are affected by the ambient tempera- ture. It is best to check tire pressure outdoors before driving the vehicle. When a tire becomes warm, the air inside it expands, causing the tire pressure to increase.
Page 353 D Correct tire pressure (tread worn evenly) Roadholding is good, and steering is responsive. Rolling resistance is low, so fuel consumption is also lower. D Abnormally low tire pressure (tread worn at shoulders) Rolling resistance is high, so fuel consumption is also higher. 11-44 HGB033AA HSB012AA...
Page 354: Wheel Balance
If you suspect that the wheels are not correctly balanced, have them checked and adjusted by your SUBARU dealer. Also have them adjusted after tire repairs and after tire rotation.
Page 355: Wear Indicators
Loss of correct wheel alignment* causes the tires to wear on one side and reduces the vehicle’s running stability. Contact your SUBARU dealer if you notice abnormal tire wear. * : The suspension system is designed to hold each wheel at a certain alignment (relative to the other wheels and to the road) for optimum straight-line stability and cornering performance.
Page 356: Tire Rotation
Maintenance and service J Tire rotation OM-H0230 Tire wear varies from wheel to wheel. To maximize the life of each tire and ensure that the tires wear uniformly, it is best to rotate the tires every 7,500 miles (12,500 km). Rotating the tires involves switching the front and rear tires on the right-hand side of the vehicle and similarly switching the front and rear tires on the left-hand side of the vehicle.
Page 357: Wheel Replacement
All four tires must be the same in terms of manufacturer, brand (tread pattern), construction, and size. You are advised to replace the tires with new ones that are identical to those fitted as standard equipment. For safe vehicle operation, SUBARU recommends replacing all four tires at the same time. WARNING...
Page 358: Aluminum Wheels (If Equipped)
D Be sure to fit tire chains on uniformly and completely around the tire, otherwise the chains may scratch the wheel. D When wheel nuts, balance weights, or the center cap are replaced, be sure to replace them with genuine SUBARU parts designed for alumi- num wheels. Fuses...
Page 359 Good CAUTION Never replace a fuse with one having a higher rating or with mate- rial other than a fuse because serious damage or a fire could re- sult. B Fuse box (behind the coin tray) 1. Turn the ignition switch to the “LOCK” position and turn off all elec- trical accessories.
Page 360 6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs. B Main fuse box (in the engine compartment) 1. Turn the ignition switch to the “LOCK” position and turn off all elec- trical accessories.
Page 361 6. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating. The spare fuses are stored in the main fuse box cover in the engine compartment. 7. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs. 11-52...
Page 362: Main Fuse
SUBARU dealer. Installation of accessories Always consult your SUBARU dealer before installing fog lights or any other electrical equipment in your vehicle. Such accessories may cause the electronic system to malfunction if they are incorrectly installed or if they are not suited for the vehicle.
Page 363: Replacing Bulbs
Replacing bulbs Spot light Room light Front turn signal, parking light and front side marker light Fog light Headlight High mount stop light Backup light Rear turn signal light Brake/tail light Tail light License plate light 11-54 HSF015FB Wattage (12V-8W) (12V-8W) (12V-27/8W Amber) (12V-51W)
Page 364 NOTE If headlight aiming is required, consult your SUBARU dealer for proper adjustment of the headlight aim. 1. Disconnect the electrical connector, then remove the rubber cover.
Page 365: Fog Light (If Equipped)
J Fog light (if equipped) CAUTION Halogen light bulbs become very hot while in use. If you touch the bulb surface with bare hands or greasy gloves, finger prints or grease on the bulb surface develop into hot spots, causing the bulb to break.
Page 366 B Bulb replacement 1. Remove the fog light protector. 2. Remove the fog light assembly by removing the two screws. 3. Disconnect the connector. 4. Remove the fog light bulb by turning it counterclockwise. 5. Replace the bulb with a new one. Then reconnect the connectors and reinstall the removed parts in the reverse order of removal.
Page 367: Rear Combination Lights
the fender. 3. Remove the bulb holder from the front turn signal light assembly by turning it counterclockwise. 4. Pull the bulb out of the socket. Install a new bulb. 5. Set the bulb holder into the front turn signal light assembly and turn it clockwise until it locks.
Page 368: License Plate Light
B Back-up/tail light (in the rear gate) 1. Remove the rear combination light cover by prying the edge of the cover with screwdriver. 2. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise. 3. Pull the bulb out of socket. Install a new bulb. 4.
Page 369: Interior Light And Luggage Compartment Light
4. Reinstall the lens and cover. 5. Tighten the mounting screws. J Interior light and luggage compartment light HS0221 HSA005BA HS0223 1. Remove the lens by prying the edge of the lens with a regular screw- driver. 2. Pull the bulb out of the socket. Install a new bulb. 3.
Page 370: High Mount Stop Light
Maintenance and service J Spot light HSA006BA 1. Remove the lens by prying the edge of the lens with a regular screw- driver. 2. Remove the plate by removing a mounting screw. 3 Pull the bulb out of the socket. Install a new bulb. 4.
Page 371 4. Reinstall the cover. 5. Tighten the mounting screws then reinstall the covers. NOTE Other bulbs may be difficult to replace. Have your SUBARU dealer replace these bulbs if necessary. 11-62...
Page 372 Specifications Specifications ............. . Dimensions .
Page 373: Specifications
Specifications These specifications are subject to change without notice. J Dimensions Overall length Overall width Overall height Ground clearance Front tread Rear tread Wheelbase J Engine Engine model Engine type Engine displacement Bore Stroke Compression ratio Firing order J Electrical system Battery Type Reserve capacity...
Page 374: Specifications
J Capacities Fuel tank Engine oil Manual transmission oil Automatic transmission fluid AT differential gear oil AWD rear differential gear oil Power steering fluid Engine coolant J Tires Type Size Pressure Wheel size J Wheel alignment Front Rear Camber Front Rear Specifications 15.9 US gal (60 liter, 13.2 Imp gal)
Page 375: Fuses And Circuits
Fuses and circuits J Fuse panel located behind the coin tray Fuse panel Fuse rating Empty 12-4 Circuit D Heater fan D Heater fan D Power door lock D Cigarette lighter D Remote controlled rear view mirrors D Tail light D Parking light D SRS airbag D Fog light...
Page 376 Fuse panel Fuse rating Empty Circuit D Engine ignition system D SRS airbag D Illumination brightness control D Wiper deicer D Windshield wiper and washer D Rear window wiper and washer D Brake light D Air conditioner D Backup light D Cruise control D ABS control D Rear accessory power socket...
Page 377: Fuse Panel Located In The Engine Compartment
J Fuse panel located in the engine compartment Main fuse Fuse panel Fuse rating 12-6 Circuit D Radiator cooling fan (Main) D Radiator cooling fan (Sub) D Rear window defogger D Hazard warning flasher D Horn D Meter D SRS airbag system warning light D Automatic transmission control unit D Alternator D Headlight (right side)
Page 378: Bulb Chart
Bulb chart Description Spot light Room light Front turn signal, parking light and front side marker light Fog light Headlight Brake/tail light Rear turn signal light Backup light High mount stop light License plate light Tail light Specifications Wattage Bulb No. 12V-8W —...
Page 379: Vehicle Identification
Vehicle identification Emission control label Vehicle identification number 12-8 Vacuum hose piping label Vehicle identification number plate Model number plate Tire inflation pressure label Certification plate Bar cord label HS0226...
Page 380: Consumer Information And Reporting Safety Defects
Consumer information and Reporting safety defects Uniform tire quality grading standards Treadwear ..............Traction AA, A, B, C .
Page 381: Uniform Tire Quality Grading Standards
For U.S.A. The following information has been compiled according to Code of Fed- eral Regulations “Title 49, Part 575”. Uniform tire quality grading standards This information indicates the relative performance of passenger car tires in the area of treadwear, traction, and temperature resistance. This is to aid the consumer in making an informed choice in the purchase of tires.
Page 382: Temperature A, B, C
Consumer information and Reporting safety defects phalt and concrete. A tire marked C may have poor traction perfor- mance. WARNING The traction grade assigned to this tire is based on straightahead braking traction tests, and does not include acceleration, corner- ing, hydroplaning, or peak traction characteristics.
Page 383: Reporting Safety Defects (Usa)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Subaru of America, Inc. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in the Washington D.C. area) or write to: NHTSA, U.S.

Subaru 2002 Forester Owner's Manual

Table of Contents

Table of Contents

Doors and Locks

Instruments and Controls

Climate Control

Audio

Interior Equipment

Starting and Operating

Driving Tips

In Case of Emergency

Maintenance and Service

Quick Links

Chapters

Related Manuals for Subaru 2002 Forester

Summary of Contents for Subaru 2002 Forester
